Tadano Crane AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-142-3 42020321100 LOWER MITSUBISHI KC-FE548B6K Parts Catalog Manual – PDF DOWNLOAD

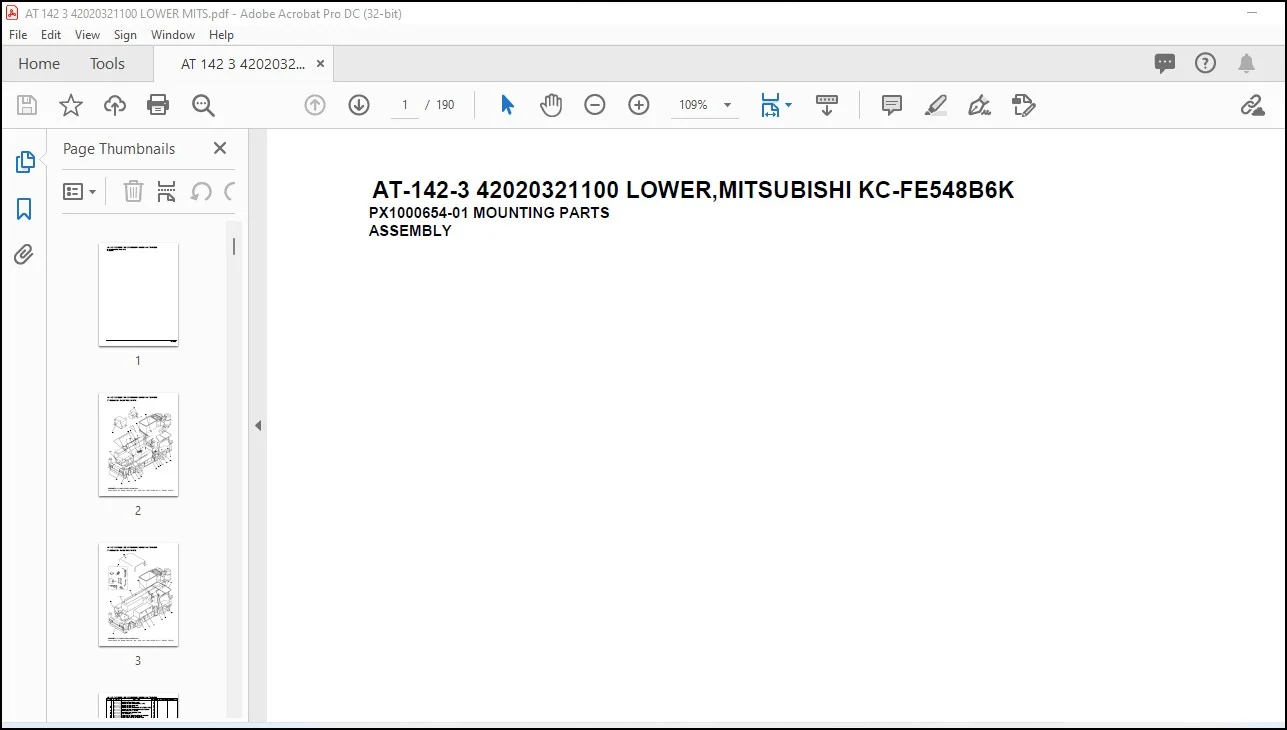

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :190
Downloadable : Yes
File Type : PDF
Size:2.24 MB
TABLE OF CONTENTS:

Tadano Crane AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K Parts Catalog Manual – PDF DOWNLOAD

AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K
PX1000654-01 MOUNTING PARTS
ASSEMBLY

AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K
PB1030164-02 POWER TAKE OFF
PB1030195-00 POWER TAKE OFF
PB1050119-06 OPE.ASSY,P.T.O.
PB1110007-01 PUMP INSTALLATION
PB1370058-00 POWER SUPPLY (WIRING,POWER UNIT)
PB1370063-01 POWER SUPPLY (FUEL PUMP)
PB1380060-02 POWER SUPPLY (LOWER HYDRAULIC OUTLET SW)
PB1380079-02 POWER SUPPLY (LOWER,HYD.OUTLET,BOOSTER)
PB1380084-00 POWER SUPPLY (24V)
PB1380085-02 POWER SUPPLY (LOWER,HYDRAULIC OUTLET)
PB1380125-01 POWER SUPPLY (EXHAUST)
PB1410861-04 PIPING,HYDRAULIC LOWER
PC1010571-01 OUTRIGGER (INNER,REAR)
PC1010709-01 OUTRIGGER (REAR/REFLECTOR)
PC1030251-02 CYLINDER,JACK
PC1050167-02 CYLINDER,EXTENSION (REAR)
PG1250005-00 ATTACHMENT,JIB
PH1700099-01 VIEW SYSTEM (MONITOR,MITSUBISHI/CLARIO
PH1700100-01 VIEW SYSTEM (CAMERA/CLARION)
PH1700101-00 VIEW SYSTEM (COLOR MONITOR)
PH1710006-01 DISPLAY (COLOR MONITOR)
PH1720011-00 CONTROLLER (POWER BOX)
PH1750001-00 CAMERA (COLOR MONITOR)
PH5032159-00 HARNESS
PH5032781-00 HARNESS
PH5032782-00 HARNESS
PH5032783-00 HARNESS
PH5032784-00 HARNESS
PH5032785-00 HARNESS
PH5032789-00 HARNESS
PI1100061-00 VALVE,RELIEF
PI1120150-02 VALVE,SOLENOID
PI1120238-02 VALVE,SOLENOID
PI1120259-01 VALVE,SOLENOID
PI1120272-01 VALVE,SOLENOID
PI1120305-02 VALVE,SOLENOID
PI1280051-00 VALVE,PILOT CHECK
PI1300033-00 FILTER,OIL
PL1030442-02 OPERATION SYSTEM, ACCELERATOR
PN1012063-02 ELEC.ASSY (CARRIER)
PN1350029-01 REEL,CORD (FOR EARTHING)
PN1350032-02 REEL,CORD
PO1011544-04 PLATE ASSY,NAME (VEHCLE HEIGHT 3.35M)
PP5500003-00 PUMP,OIL (32CC:L)
PW1010091-04 ACCESSORIES
PW1010381-00 ACCESSORIES (WRENCH)
PW1030047-01 TOOLS
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1030302-03 FENDER
PX1120354-00 BOOM REST INSTALLATION
PX1130008-01 BUCKET REST INSTALLATION
PX1170298-02 ATTACHMENT PARTS, CRANE FRAME
PX1200284-02 GUARD,SIDE (FRONT)
PX1200333-00 GUARD,SIDE (REAR)
PX1250139-00 COVER INSTALLATION (OUTRIGGER SIDE)
PX1250150-00 COVER (REAR CAB)
PX1260143-01 STEP (FOR ENTRY INTO CAB)
PX1270075-01 WOOD BLOCK (WITH RUBBER,T=80)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290320-00 WEIGHT INSTALLATION
PX1310024-02 MOUNT,LAMP (TAIL)
PX1350218-01 BOX,TOOL (RIGHT)
AT-142-3 42020321100 LOWER,MITSUBISHI KC-FE548B6K
000002
PX1350264-00 BOX,TOOL (LEFT)
PX1350289-01 BOX,TOOL (LEFT,STD)
PX1350299-01 BOX,TOOL (RIGHT)
PX1350304-01 BOX,TOOL (BOOM,LEFT SIDE)
PX1350418-00 BOX,TOOL (BOOM LEFT SIDE)
PX1370156-02 GUARD,CAB
PX1390381-00 PARTS,CHASSIS MODIFICATION
PX1410140-00 MOUNT,TIRE
PY1170033-02 BOOSTER
PY1170034-00 BOOSTER
PY1180194-02 LAMP (O/R FLICKER)
PY1240016-00 CONTROL UNIT (BOOSTER)
PY1510035-01 HOUR METER
PY1550023-00 TOOL SUPPORT (ANTENA)
PY1650022-00 EARTHING DEVICE (BOLT TYPE 8X10M)
PY1650030-00 EARTHING DEVICE
PY1650062-01 EARTHING DEVICE (CLIP TYPE 8X10M)
PY1650064-01 EARTHING DEVICE (CLIP TYPE 8X20M)
PY1660003-01 ARM,ATTACHMENT
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
PY2350003-01 SWITCH,BOOSTER
PY2350004-01 SWITCH,BOOSTER
