Tadano Crane AT-142-3 42020360200 LOWER TOYOTA KC-FB4JCA-AC3 Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-142-3 42020360200 LOWER TOYOTA KC-FB4JCA-AC3 Parts Catalog Manual – PDF DOWNLOAD

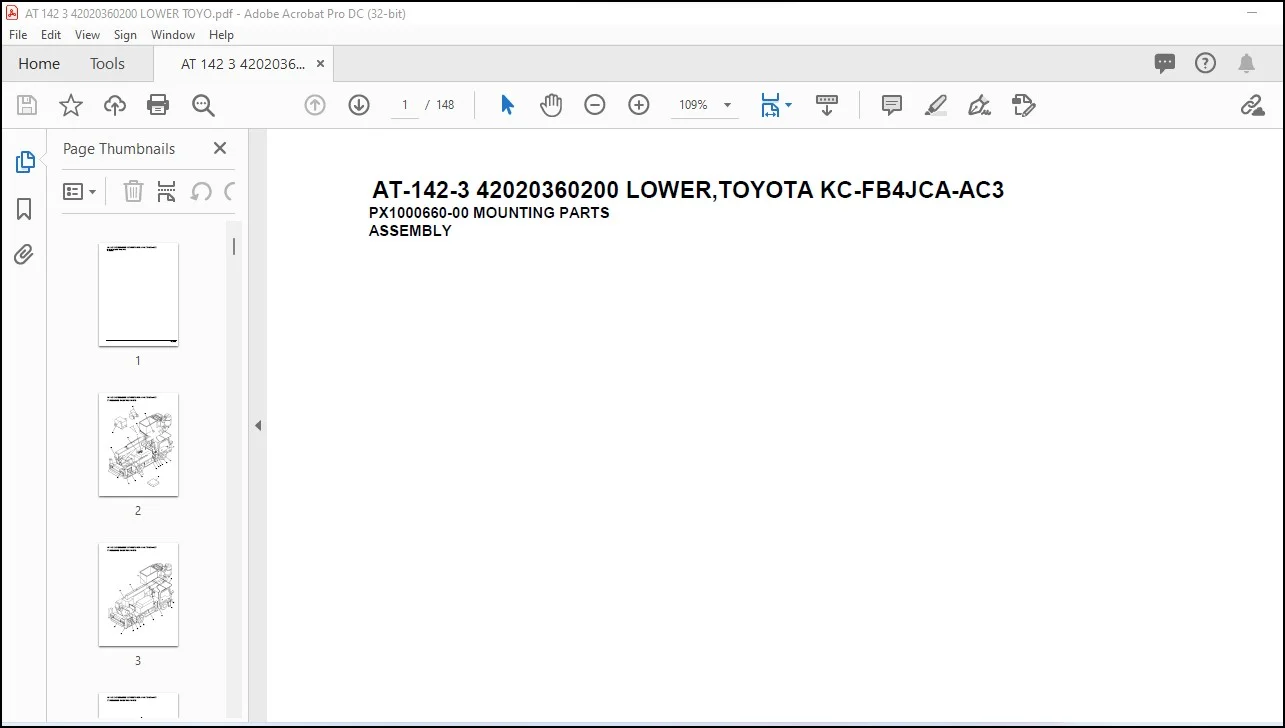

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-142-3 42020360200 LOWER TOYOTA KC-FB4JCA-AC3 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :148
Downloadable : Yes
File Type : PDF
Size:1.70 MB
TABLE OF CONTENTS:

Tadano Crane AT-142-3 42020360200 LOWER TOYOTA KC-FB4JCA-AC3 Parts Catalog Manual – PDF DOWNLOAD

AT-142-3 42020360200 LOWER,TOYOTA KC-FB4JCA-AC3
PX1000660-00 MOUNTING PARTS
ASSEMBLY

AT-142-3 42020360200 LOWER,TOYOTA KC-FB4JCA-AC3
PB1030172-02 POWER TAKE OFF
PB1050162-04 OPE.ASSY,P.T.O.
PB1110007-01 PUMP INSTALLATION
PB1380060-02 POWER SUPPLY (LOWER HYDRAULIC OUTLET SW)
PB1380084-00 POWER SUPPLY (24V)
PB1380088-01 POWER SUPPLY (LOWER,HYDRAULIC OUTLET)
PB1380089-01 POWER SUPPLY (WITH BOOSTER,OPTION)
PB1411249-01 PIPING,LOWER
PC1010571-01 OUTRIGGER (INNER,REAR)
PC1010709-01 OUTRIGGER (REAR/REFLECTOR)
PC1030251-02 CYLINDER,JACK
PC1050167-02 CYLINDER,EXTENSION (REAR)
PH5032159-00 HARNESS
PH5032781-00 HARNESS
PH5032782-00 HARNESS
PH5032783-00 HARNESS
PH5032784-00 HARNESS
PH5032791-00 HARNESS
PH5034644-00 HARNESS
PI1100061-00 VALVE,RELIEF
PI1120238-02 VALVE,SOLENOID
PI1120259-01 VALVE,SOLENOID
PI1120272-01 VALVE,SOLENOID
PI1280051-00 VALVE,PILOT CHECK
PI1300033-00 FILTER,OIL
PI1340005-00 ACCUMULATOR
PK1330075-00 COVER (REAR CAB)
PL1030756-03 OPE.ASSY,ACCELERATOR
PN1012796-01 ELEC.ASSY (CARRIER)
PN1350032-02 REEL,CORD
PO1013422-03 PLATE ASSY,NAME (VEHCLE HEIGHT 3.4M)
PP5500003-00 PUMP,OIL (32CC:L)
PW1010091-04 ACCESSORIES
PW1010381-00 ACCESSORIES (WRENCH)
PW1030047-01 TOOLS
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PX1030432-00 FENDER
PX1120429-00 BOOM REST
PX1130008-01 BUCKET REST INSTALLATION
PX1170424-00 ATTACHMENT PARTS, CRANE FRAME
PX1200377-00 GUARD,SIDE (REAR)
PX1200425-00 GUARD,SIDE (FRONT)
PX1250065-00 COVER (OUTRIGGER SIDE)
PX1260143-01 STEP (FOR ENTRY INTO CAB)
PX1270075-01 WOOD BLOCK (WITH RUBBER,T=80)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290317-00 WEIGHT INSTALLATION
PX1310122-00 MOUNT,LAMP (TAIL)
PX1350214-01 BOX,TOOL (RIGHT)
PX1350300-04 BOX,TOOL (RIGHT)
PX1350304-01 BOX,TOOL (BOOM,LEFT SIDE)
PX1350418-00 BOX,TOOL (BOOM LEFT SIDE)
PX1350461-00 BOX,TOOL
PX1350536-00 BOX,TOOL (LEFT)
PX1370213-01 GUARD,CAB
PX1390511-00 MODIFICATION PARTS
PX1390512-00 MODIFICATION PARTS (NIPPLE,GREESE)
PX1410243-01 MOUNT,TIRE
PX1620018-00 MOUNT,COLOR CONE SUPPORT
PX1810081-01 MOUNT,SUPPORT
PY1170033-02 BOOSTER
PY1170034-00 BOOSTER
PY1180194-02 LAMP (O/R FLICKER)
PY1240016-00 CONTROL UNIT (BOOSTER)
AT-142-3 42020360200 LOWER,TOYOTA KC-FB4JCA-AC3
000002
PY1550023-00 TOOL SUPPORT (ANTENA)
PY1650030-00 EARTHING DEVICE
PY1650064-01 EARTHING DEVICE (CLIP TYPE 8X20M)
PY2350004-01 SWITCH,BOOSTER
