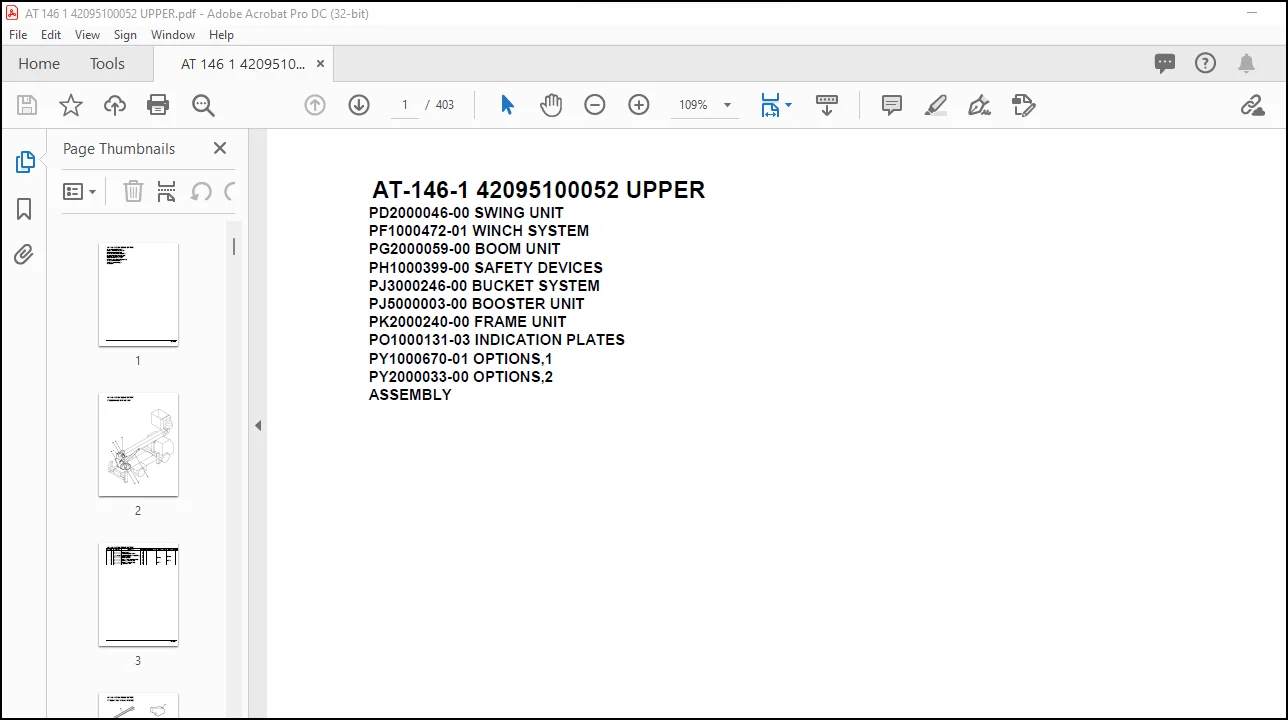

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT 146 1 42095100053 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

AT-146-1 42095100053 UPPER
PD2000051-00 SWING UNIT
PF1000471-01 WINCH SYSTEM
PG2000059-00 BOOM UNIT
PH1000399-00 SAFETY DEVICES
PJ3000247-00 BUCKET SYSTEM
PJ5000003-00 BOOSTER UNIT
PK2000241-00 FRAME UNIT
PO1000131-03 INDICATION PLATES
PY1000670-01 OPTIONS,1
PY2000033-00 OPTIONS,2
ASSEMBLY

AT-146-1 42095100053 UPPER
PB1100208-00 PUMP,HYDRAULIC
PB1100208-00 PUMP,HYDRAULIC
PB1130209-02 TANK,OIL
PB1300360-01 JOINT,ROTARY
PB1310037-01 BRUSH,ROTARY JOINT
PB1320319-00 VALVE,MANUAL CONTROL
PB1320572-01 VALVE,MANUAL CONTROL
PB1320576-01 VALVE,MANUAL CONTROL (BOOSTER)
PB1320589-01 VALVE,MANUAL CONTROL (BOOSTER)
PB1380108-00 POWER SUPPLY (MOTOR/MOUNT)
PB1380109-00 POWER SUPPLY (MOTOR/WIRING)
PB1380110-00 POWER SUPPLY (MOTOR/COVER)
PB1380111-01 POWER SUPPLY (MOTOR/WIRING STARTER)
PB1380112-01 POWER SUPPLY (MOTOR/BATTERY)
PB1400335-06 PIPING,UPPER
PB1400408-03 PIPING,UPPER
PB1411214-00 PIPING,LOWER (TANK)
PC1010781-01 OUTRIGGER (FRONT,L/INNER CASE)
PC1010782-01 OUTRIGGER (FRONT,R/INNER CASE)
PC1010783-01 OUTRIGGER (REAR/INNER CASE)
PC1010858-01 OUTRIGGER (FRONT/MOUNT)
PC1010859-01 OUTRIGGER (REAR/MOUNT)
PC1030304-00 CYLINDER,JACK
PC1050221-00 CYLINDER,EXTENSION (FRONT)
PC1050222-00 CYLINDER,EXTENSION (REAR)
PC1190031-00 INDICATOR,OUTRIGGER
PC1200437-00 PIPING,OUTRIGGER
PC1380011-00 DETECTOR,OUTRIGGER LENGTH
PC5570165-00 COVER ASSY
PC5570166-00 COVER ASSY
PD1010160-00 REDUCER,SWING SPEED
PD1010169-00 REDUCER,SWING SPEED
PD1020021-01 SWING UNIT
PE1010395-01 CYLINDER,ELEVATING
PE1050111-00 CYLINDER,LEVELING (UPPER)
PE1050112-01 CYLINDER,LEVELING (LOWER)
PF1010168-01 WINCH
PF1010392-01 WINCH
PF1050508-00 HOOK (1-PART LINE/TSK)
PF1200314-00 PIPING,WINCH
PF1350028-02 WINCH,JIB (FRP,INSULATION,GRAY)
PF1350069-01 WINCH,JIB (SUPPORT)
PF1350070-00 WINCH,JIB (FRP COVER)
PF1350131-00 WINCH,JIB
PF1360004-00 CYLINDER,WINCH JIB
PF1360005-00 CYLINDER,WINCH JIB
PF1400249-00 MOUNT,WINCH (WITHOUT JIB STOWING)
PG1010727-02 BOOM
PG1050438-01 CYLINDER,TELESCOPING
PG1130136-00 DETECTOR,BOOM LENGTH
PG1220065-03 PIPING,BOOM
PG1220140-00 PIPING,BOOM
PG1410080-01 COVER,BOOM (TOP/FRP,GRAY)
PG1410081-01 COVER,BOOM
PG5240003-00 GUIDE ASSY (BOOM SIDE HOOK,AT-146-1)
PH1250053-00 MOMENT LIMITER (H2)
PH5031064-00 HARNESS
PH5031069-00 HARNESS
PH5031070-00 HARNESS
PH5031372-00 HARNESS (FOR DETECTOR,O/R LENGTH)
PH5032282-00 HARNESS
PH5032296-00 HARNESS
PH5032326-00 HARNESS
PH5032327-00 HARNESS
AT-146-1 42095100053 UPPER
000011
PH5032328-00 HARNESS
PH5032807-00 HARNESS
PH5034371-00 HARNESS
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010158-00 MOTOR,HYDRAULIC
PI1010177-00 MOTOR,HYDRAULIC
PI1100007-00 VALVE,RELIEF
PI1100056-00 VALVE,RELIEF
PI1100061-00 VALVE,RELIEF
PI1100122-00 VALVE,RELIEF
PI1100134-01 VALVE,RELIEF
PI1120199-02 VALVE,SOLENOID
PI1120201-02 VALVE,SOLENOID
PI1120238-02 VALVE,SOLENOID
PI1120272-01 VALVE,SOLENOID
PI1120273-01 VALVE,SOLENOID
PI1140094-01 VALVE,CHECK
PI1140133-01 VALVE,CHECK
PI1140136-01 VALVE,CHECK
PI1140172-00 VALVE,CHECK
PI1140212-00 VALVE,CHECK
PI1140213-00 VALVE,CHECK
PI1140214-00 VALVE,CHECK
PI1140221-00 VALVE,CHECK
PI1240030-00 VALVE
PI1250137-00 VALVE,COUNTERBALANCE
PI1250141-00 VALVE,COUNTERBALANCE
PI1250153-00 VALVE,COUNTERBALANCE
PI1280041-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3010104-00 BUCKET
PJ3010107-00 BUCKET (INNER CASE)
PJ3020017-04 FRAME
PJ3020031-01 FRAME
PJ3040024-00 OPE.ASSY
PJ3110024-01 PIPING (BUCKET)
PJ3240005-00 COVER (FRP,GRAY)
PJ3240006-00 COVER (CLOTH,GRAY)
PJ3240024-00 COVER (FRP,GRAY)
PJ3250009-01 PIPING,GREASE (WINCH)
PJ3250010-01 PIPING,GREASE (BUCKET)
PJ3340007-00 CYLINDER,LIFT
PK1010658-02 FRAME
PK1100374-03 SWING FRAME
PK1200354-04 COVER,SWING FRAME
PK1200397-02 COVER,SWING FRAME
PL1020056-02 LEVER,CONTROL
PM5210017-00 MOTOR ASSY,OIL
PN1012658-01 ELEC.ASSY (BOOM)
PN1012670-01 ELEC.ASSY (CHARGER)
PN1012671-00 ELEC.ASSY (BUCKET)
PN1012672-01 ELEC.ASSY (SWING FRAME)
PN1012681-00 ELEC.ASSY (FRAME)
PN1013873-00 ELEC.ASSY (CHARGER)
PN1030052-01 OPTICAL CABLE
PN1080104-04 LAMP (AML)
PN1080105-00 LAMP
PN1140164-00 SWITCH ASSY (WITH HARNESS,3 SW)
PN1180020-00 CONTROLLER
PN1190001-01 CONVERTER (PAL)
PN1190002-00 CONVERTER (DC-DC)
PN1190004-00 CONVERTER (FAMOTH)
PN1210126-00 TRANSMITTER,SIGNAL
PN1350016-00 REEL,CORD
AT-146-1 42095100053 UPPER
000011
PN1360005-02 MOUNT,CHARGER
PN1370104-02 BATTERY
PN1410007-00 MOTOR,ELECTRIC
PO1012228-01 PLATE ASSY,NAME (HYDRAULIC OIL)
PO1013351-00 PLATE ASSY,NAME (WINCH)
PO1013360-00 PLATE ASSY,NAME (SWING FRAME)
PO1013363-00 PLATE ASSY,NAME (BUCKET)
PO1013364-00 PLATE ASSY,NAME
PO1013365-01 PLATE ASSY.NAME (OUTRIGGER CONTROL)
PO1013367-01 PLATE ASSY,NAME (MOTOR UNIT)
PO1015621-00 PLATE ASSY,NAME (BUCKET/GREASE)
PO1080059-00 PLATE,NAME (LIVE-LINE WORKING DEVICE)
PS5150001-00 SHACKLE
PT5060011-00 TANK ASSY (BATTERY,WATER)
PV1020276-01 VALVE,REMOTE CONTROL
PV5040021-00 VALVE ASSY,CHECK
PW1010092-00 ACCESSORIES (BUCKET INNER MAT)
PX1360025-00 REFLECTOR
PX1620022-00 MOUNT,COLOR CONE SUPPORT
PX1940001-00 MOUNT
PY1050012-00 CLAMP HEAD (SANWA,12TON,TITANIUM)
PY1070000-00 ROPE (SAFETY,YELLOW:TD-TYPE)
PY1080021-00 ARM
PY1160089-03 BOOSTER (AIR&ELECTRIC)
PY1160090-02 BOOSTER (WIRING/AIR SELECTOR)
PY1160091-00 BOOSTER (PIPING/AIR&ELEC.SELECT.)
PY1170040-02 BOOSTER
PY1500029-00 SELECTOR,BOOSTER (AIR)
PY1540007-00 COVER,BUCKET (INNER CASE)
PY1550015-00 TOOL SUPPORT
PY1550032-00 TOOL SUPPORT (JIB STOWING)
PY1590000-02 HOSE,BOOSTER (WITH AIR BALLOON)
PY1760003-00 STEP,BUCKET (GRAY,FOR BUCKET INNER)
PY1790004-01 HANGER (FOR BUCKET,FRP)
PY2120000-00 BOX,TOOL (FOR BUCKET)
PY2170007-00 COVER,WINCH (FOR JIB ARM,WHITE)
PY2350004-01 SWITCH,BOOSTER
