Tadano Crane AT-147-3 43010100062 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-147-3 43010100062 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-147-3 43010100062 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 885
Downloadable : Yes
File Type : PDF
Size: 10.7 MB

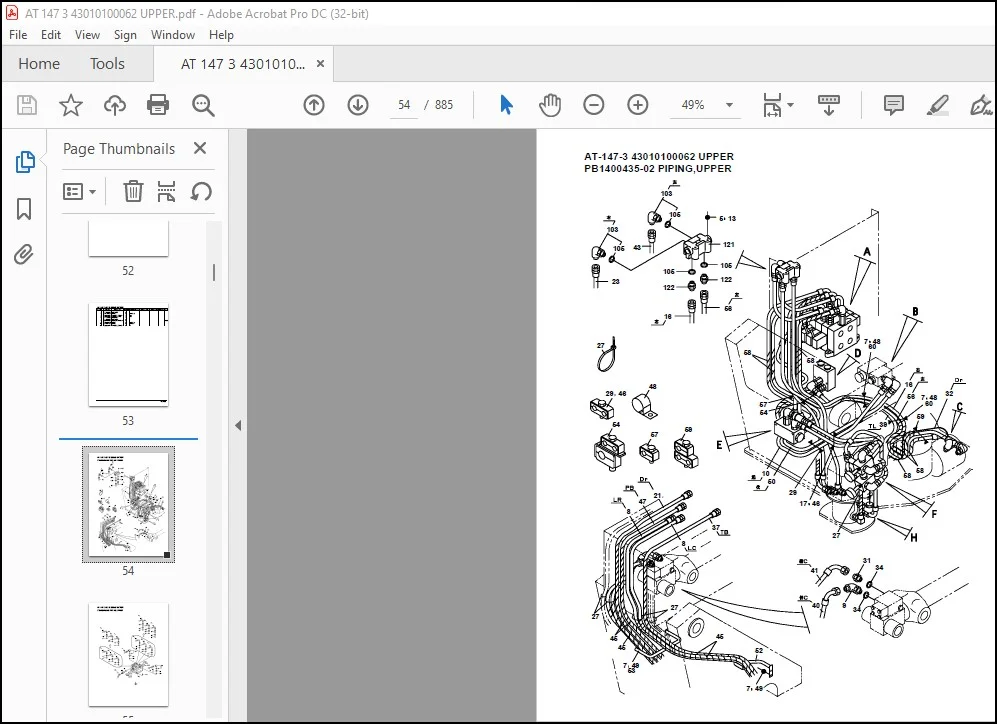

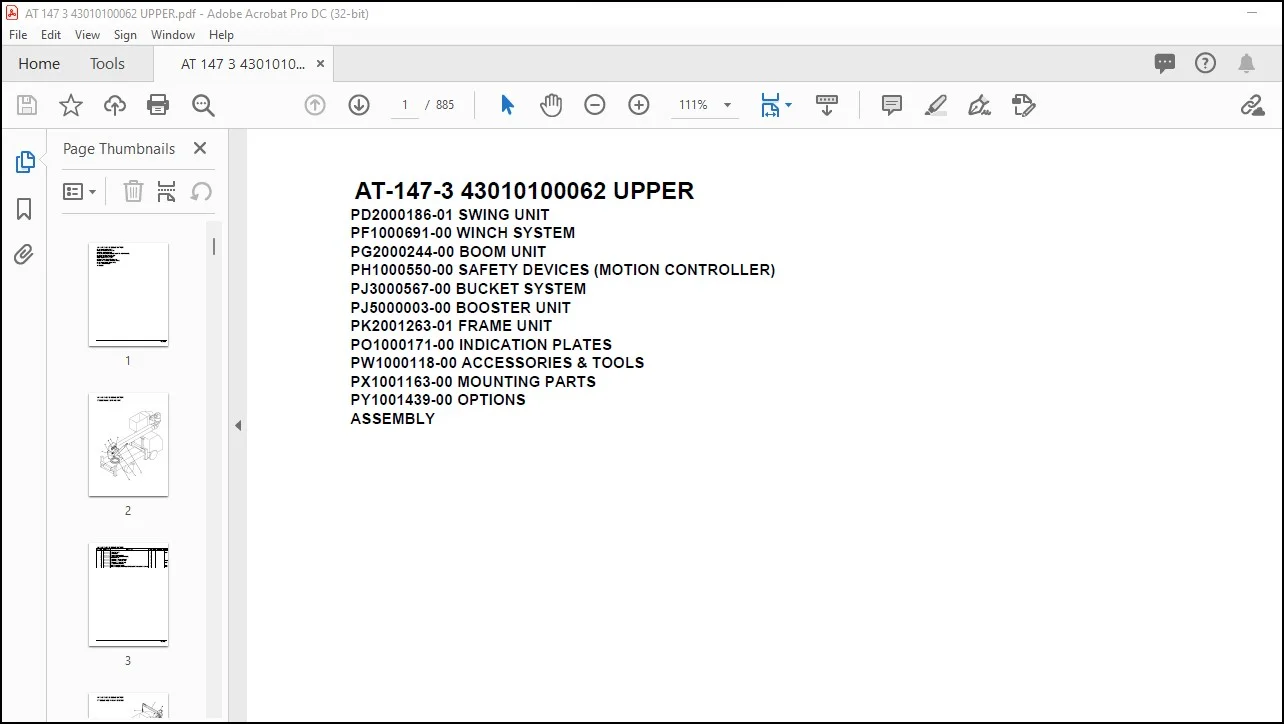

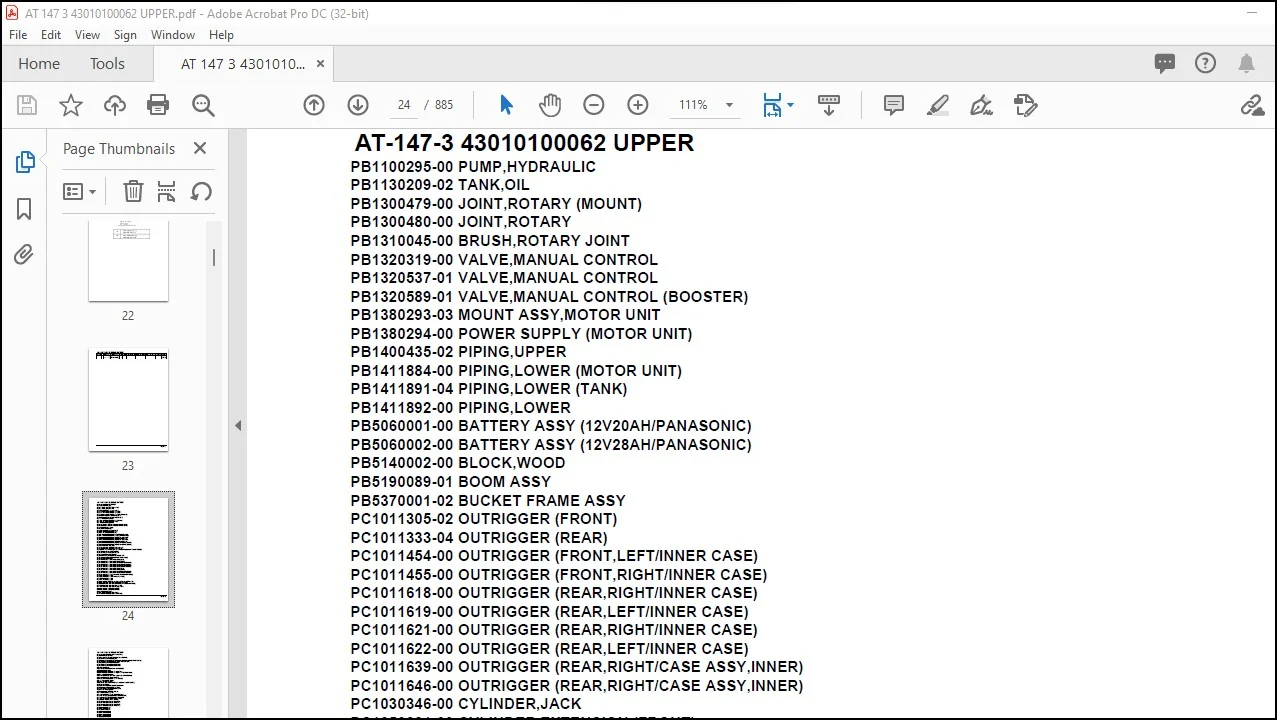

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-147-3 43010100062 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

AT-147-3 43010100062 UPPER
PD2000186-01 SWING UNIT
PF1000691-00 WINCH SYSTEM
PG2000244-00 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ3000567-00 BUCKET SYSTEM
PJ5000003-00 BOOSTER UNIT
PK2001263-01 FRAME UNIT
PO1000171-00 INDICATION PLATES
PW1000118-00 ACCESSORIES & TOOLS
PX1001163-00 MOUNTING PARTS
PY1001439-00 OPTIONS
ASSEMBLY

AT-147-3 43010100062 UPPER
PB1100295-00 PUMP,HYDRAULIC
PB1130209-02 TANK,OIL
PB1300479-00 JOINT,ROTARY (MOUNT)
PB1300480-00 JOINT,ROTARY
PB1310045-00 BRUSH,ROTARY JOINT
PB1320319-00 VALVE,MANUAL CONTROL
PB1320537-01 VALVE,MANUAL CONTROL
PB1320589-01 VALVE,MANUAL CONTROL (BOOSTER)
PB1380293-03 MOUNT ASSY,MOTOR UNIT
PB1380294-00 POWER SUPPLY (MOTOR UNIT)
PB1400435-02 PIPING,UPPER
PB1411884-00 PIPING,LOWER (MOTOR UNIT)
PB1411891-04 PIPING,LOWER (TANK)
PB1411892-00 PIPING,LOWER
PB5060001-00 BATTERY ASSY (12V20AH/PANASONIC)
PB5060002-00 BATTERY ASSY (12V28AH/PANASONIC)
PB5140002-00 BLOCK,WOOD
PB5190089-01 BOOM ASSY
PB5370001-02 BUCKET FRAME ASSY
PC1011305-02 OUTRIGGER (FRONT)
PC1011333-04 OUTRIGGER (REAR)
PC1011454-00 OUTRIGGER (FRONT,LEFT/INNER CASE)
PC1011455-00 OUTRIGGER (FRONT,RIGHT/INNER CASE)
PC1011618-00 OUTRIGGER (REAR,RIGHT/INNER CASE)
PC1011619-00 OUTRIGGER (REAR,LEFT/INNER CASE)
PC1011621-00 OUTRIGGER (REAR,RIGHT/INNER CASE)
PC1011622-00 OUTRIGGER (REAR,LEFT/INNER CASE)
PC1011639-00 OUTRIGGER (REAR,RIGHT/CASE ASSY,INNER)
PC1011646-00 OUTRIGGER (REAR,RIGHT/CASE ASSY,INNER)
PC1030346-00 CYLINDER,JACK
PC1050221-00 CYLINDER,EXTENSION (FRONT)
PC1050222-00 CYLINDER,EXTENSION (REAR)
PC1070003-04 FLOAT (ISUZU,HINO,TOYOTA,MITSUBISHI/LARGE SIZE RUBBER)
PC1100280-00 OPE.ASSY,OUTRIGGER
PC1190055-00 INDICATOR,OUTRIGGER
PC1200578-06 PIPING,OUTRIGGER
PC1380015-01 DETECTOR,OUTRIGGER LENGTH
PC5020022-00 CABLE ASSY (PC CONNECTION CABLE)
PC5020041-00 CABLE ASSY
PC5150015-00 CASE ASSY,INNER (FRONT,LEFT)
PC5150016-00 CASE ASSY,INNER (FRONT,RIGHT)
PC5150018-00 CASE ASSY,INNER (REAR,RIGHT/OUTRIGGER)
PC5150019-00 CASE ASSY,INNER (REAR,LEFT/OUTRIGGER)
PC5150033-00 CASE ASSY,INNER (REAR,RIGHT/OUTRIGGER)
PC5150034-00 CASE ASSY,INNER (REAR,LEFT/OUTRIGGER)
PC5150054-00 CASE ASSY,INNER (FRONT,LEFT)
PC5150055-00 CASE ASSY,INNER (FRONT,RIGHT)
PC5150057-00 CASE ASSY,INNER (REAR,RIGHT/OUTRIGGER)
PC5150058-00 CASE ASSY,INNER (REAR,LEFT/OUTRIGGER)
PC5250001-00 CLAMP HEAD ASSY (YONDENKO/SAFETY HOSE)
PC5570025-00 COVER ASSY
PC5570055-00 COVER ASSY (BACKET CONTROL)
PC5570078-00 COVER ASSY
PC5570133-01 COVER ASSY
PC5640001-00 CUTTER HEAD ASSY (YONDENKO/SAFETY HOSE)
PC6210001-00 CYLINDER ASSY (LIFT,BUCKET FRAME)
PC6210002-00 CYLINDER ASSY (LIFT,BUCKET FRAME WITH VALVE)
PC6340002-00 CYLINDER ASSY (WINCH JIB)
PC6470106-00 CYLINDER ASSY,TELESCOPING
PD1010160-00 REDUCER,SWING SPEED
PD1010183-00 REDUCER,SWING SPEED
PD1020067-00 SWING UNIT
PE1010486-00 CYLINDER,ELEVATING
PE1050149-01 CYLINDER,LEVELING (UPPER)
AT-147-3 43010100062 UPPER
000012
PE1050150-01 CYLINDER,LEVELING (LOWER)
PE5010004-01 EARTH ASSY
PE5010034-01 EARTH ASSY (FOR LOCAL MOUNTING)
PE5060007-00 ELEC.ASSY,BUCKET
PE5080003-00 ELEC.ASSY,CHARGER (SINGLE-PHASE.100V CHARGER CABLE)
PE5150002-01 ELEC.ASSY,MOTOR (MOUNT/MOTOR UNIT)
PE5180027-01 ELEC.ASSY,POWER UNIT
PE5190007-06 ELEC.ASSY,SWING FRAME
PE5190027-00 ELEC.ASSY,SWING FRAME
PF1010392-01 WINCH
PF1050285-00 HOOK (1-PART LINE WITH ROPE)
PF1080004-00 SUPPORT
PF1080009-00 SUPPORT (WINCH JIB,OPTION)
PF1080012-00 SUPPORT (WINCH JIB,FOR HOKURIKUDENKOU)
PF1200461-01 PIPING,WINCH
PF1350107-00 WINCH,JIB (FRP/INTEGRATED SUPPORT,GRAY)
PF1350173-01 WINCH,JIB (SUPPORRT)
PF1360003-05 CYLINDER,WINCH JIB (POWER)
PF1400451-00 MOUNT,WINCH
PF5030023-00 FILTER ASSY
PF5050001-04 FLOAT ASSY (FOR STD JACK/LARGE SIZE RUBBER)
PG1010981-03 BOOM
PG1050670-01 CYLINDER ASSY,TELESCOPING
PG1090004-00 GUIDE (O/R CONT.VALVE)
PG1120238-00 DETECTOR,BOOM LENGTH
PG1220176-04 PIPING,BOOM
PG1250024-02 ATTACHMENT,JIB (JIB)
PG1410104-03 COVER,BOOM
PG1410105-00 COVER,BOOM (TOP/FRP,WHITE)
PH1140047-01 DETECTOR,SWING ANGLE (BUCKET)
PH1140048-01 DETECTOR,SWING ANGLE (ARM)
PH1480061-01 MOTION CONTROLLER (AMC)
PH1540019-04 FOOT SWITCH (OPTION)
PH1700236-00 VIEW SYSTEM (MAIN UNIT)
PH1700237-00 VIEW SYSTEM (CAMERA)
PH1700241-00 VIEW SYSTEM (MAIN UNIT)
PH1700374-02 VIEW SYSTEM (CAMERA)
PH1710015-00 DISPLAY
PH1710017-00 DISPLAY
PH1750007-01 CAMERA
PH5030164-00 HARNESS
PH5030165-00 HARNESS
PH5030199-00 HARNESS
PH5030468-00 HARNESS
PH5030992-00 HARNESS
PH5030993-01 HARNESS
PH5031064-00 HARNESS
PH5031066-00 HARNESS
PH5031067-00 HARNESS
PH5031068-00 HARNESS
PH5031069-00 HARNESS
PH5031070-00 HARNESS
PH5031072-00 HARNESS
PH5031073-00 HARNESS
PH5031074-00 HARNESS
PH5031076-00 HARNESS
PH5031077-01 HARNESS
PH5031078-00 HARNESS
PH5031095-00 HARNESS
PH5031205-00 HARNESS
PH5031434-00 HARNESS
PH5032053-00 HARNESS
PH5032326-00 HARNESS
PH5032327-00 HARNESS
AT-147-3 43010100062 UPPER
000012
PH5032328-00 HARNESS
PH5032330-00 HARNESS
PH5032331-00 HARNESS
PH5032334-00 HARNESS
PH5032336-00 HARNESS
PH5032340-00 HARNESS
PH5032341-00 HARNESS
PH5032345-00 HARNESS
PH5032348-01 HARNESS
PH5032364-00 HARNESS
PH5032365-00 HARNESS
PH5032366-00 HARNESS
PH5032428-00 HARNESS (MAIN)
PH5032453-00 HARNESS
PH5032499-00 HARNESS
PH5032500-00 HARNESS
PH5033252-00 HARNESS
PH5033350-00 HARNESS (MAIN)
PH5034242-00 HARNESS
PH5034367-00 HARNESS
PH5034371-00 HARNESS
PH5080161-01 HOOK ASSY (MARTEC LOCKING HOOK/BK-7/8-10,2TON)
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010116-01 MOTOR,HYDRAULIC
PI1010176-00 MOTOR,HYDRAULIC
PI1010178-01 MOTOR,HYDRAULIC
PI1100061-00 VALVE,RELIEF
PI1100136-01 VALVE,RELIEF
PI1120097-00 VALVE,SOLENOID
PI1120215-02 VALVE,SOLENOID
PI1120335-00 VALVE,SOLENOID
PI1120336-00 VALVE,SOLENOID
PI1120347-00 VALVE,SOLENOID
PI1120348-00 VALVE,SOLENOID
PI1140133-01 VALVE,CHECK
PI1140136-01 VALVE,CHECK
PI1140212-00 VALVE,CHECK
PI1140224-00 VALVE,CHECK
PI1140227-00 VALVE,CHECK
PI1250153-00 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1300041-00 FILTER,OIL
PI1300048-01 FILTER,OIL
PJ3010108-00 BUCKET (INNER CASE)
PJ3010320-00 BUCKET
PJ3030035-00 ARM
PJ3340015-01 CYLINDER,LIFT (BUCKET)
PJ5050119-00 JIB ASSY
PK1011443-00 FRAME (BUCKET)
PK1011454-03 FRAME
PK1100464-00 SWING FRAME
PK1100488-00 SWING FRAME
PK1200454-03 COVER,SWING FRAME
PK1330362-00 COVER (ARM/FRP,WHITE)
PK1330364-01 COVER
PK1330366-00 COVER (CLOTH,WHITE/BUCKET)
PK1330378-00 COVER
PK1330400-00 COVER
PK1330431-00 COVER (RACK,B)
PK1330432-00 COVER (RACK,L)
PK1330462-00 COVER (BUCKET/FRP,WHITE)
PK1330464-02 COVER (WINCH/FRP,WHITE)
PK1330465-00 COVER (ARM HOSE,CLOTH)
PL1020061-00 LEVER,CONTROL
AT-147-3 43010100062 UPPER
000012
PL1250085-00 VALVE,CONTROL
PL1920059-03 OPE.ASSY (BUCKET)
PM5020009-00 MARKING
PM5020010-01 MARKING (TOENEC/BOOM 1M:ALIGNMENT MARK)
PM5210007-01 MOTOR ASSY,OIL
PM5210008-00 MOTOR ASSY,OIL
PM5210009-00 MOTOR ASSY,OIL
PM5210010-00 MOTOR ASSY,OIL
PM5230001-01 MOTOR,OIL
PN1014441-05 ELEC.ASSY (BOOM)
PN1014447-00 ELEC.ASSY (MOTOR UNIT)
PN1014448-00 ELEC.ASSY (MOUNT/MOTOR UNIT)
PN1014449-00 ELEC.ASSY (POWER UNIT)
PN1014455-01 ELEC.ASSY (SWING FRAME)
PN1014486-02 ELEC.ASSY (FRAME)
PN1014491-03 ELEC.ASSY (CHARGER)
PN1014509-01 ELEC.ASSY
PN1014749-01 ELEC.ASSY
PN1015019-01 ELEC.ASSY (BUCKET)
PN1015023-00 ELEC.ASSY (ARM)
PN1015042-01 ELEC.ASSY (WINCH)
PN1030065-00 OPTICAL CABLE (BOOM)
PN1030066-00 OPTICAL CABLE (BUCKET.ARM)
PN1080371-00 LAMP
PN1080372-01 LAMP (BUCKET)
PN1080394-03 LAMP (O/R CONTROL PANEL)
PN1080422-01 LAMP (REOVLVING LAMP)
PN1080449-00 LAMP (WORKING/BOX,TOOL.LEFT)
PN1100050-01 RELAY BOX
PN1100051-00 RELAY BOX
PN1140143-02 SWITCH ASSY (VERTICAL/HORIZONTAL CONTROL)
PN1140164-00 SWITCH ASSY (WITH HARNESS,3 SW)
PN1210156-00 TRANSMITTER,SIGNAL
PN1240003-00 INVERTER
PN1350032-02 REEL,CORD
PN1370147-01 BATTERY (MOUNT/MOTOR UNIT)
PN1370154-00 BATTERY
PN1450014-01 HARNESS
PN1450079-00 HARNESS
PN1450080-00 HARNESS
PN1450081-00 HARNESS
PN5010488-00 NAME PLATE ASSY (BUCKET)
PN5010562-00 NAME PLATE ASSY (BUCKET,INSULATION)
PO1014931-01 PLATE ASSY,NAME (HYDRAULIC OIL)
PO1014988-01 PLATE ASSY,NAME (WINCH)
PO1014990-01 PLATE ASSY,NAME (MOTOR UNIT)
PO1014991-01 PLATE ASSY,NAME (WORKING RANGE CHART)
PO1014999-01 PLATE ASSY,NAME (SWING FRAME)
PO1015061-04 PLATE ASSY,NAME (OUTRIGGER CONTROLS)
PO1015322-01 PLATE ASSY,NAME (BUCKET)
PO1015602-01 PLATE ASSY,NAME (VEHICLE)
PO1015671-01 PLATE ASSY,NAME (VEHICLE)
PO1080059-00 PLATE,NAME (LIVE-LINE WORKING DEVICE)
PO5010010-00 OPE.ASSY (LEVER,CONTROL)
PO5010027-02 OPE.ASSY (LEVER,CONTROL)
PO5010043-01 OPE.ASSY
PO5010055-00 OPE.ASSY
PP5100022-00 PARTS ASSY,ELECTRICITY (MONITOR)
PP5100023-00 PARTS ASSY,ELECTRICITY (MONITOR)
PP5390001-00 PRUNER ASSY
PP5450004-00 PUMP,GREASE (400CC)
PP6040002-00 PIPING ASSY,ARM
PP6080006-03 PIPING ASSY,BUCKET
PP6390011-00 PIPING ASSY,WINCH
AT-147-3 43010100062 UPPER
000012
PP6390017-03 PIPING ASSY,WINCH
PR5050031-00 REEL ASSY,CORD
PR5100008-01 RELAY BOX ASSY
PR5100078-00 RELAY BOX ASSY
PR5210002-00 RELAY
PR5210003-00 RELAY
PS5150001-00 SHACKLE
PS5420036-00 SUPPORT ASSY (FOR CLARION CAMERA)
PS5420083-00 SUPPORT ASSY (WINCH,JIB)
PS5420153-00 SUPPORT ASSY(WINCH,JIB)
PS5420154-01 SUPPORT ASSY
PS5530103-00 SWITCH ASSY (3M,ELECTLIC BOOSTER REMOCON)
PS5530117-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:2M,NANABOSI,KASUGA)
PS5530288-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:3M,NANABOSI,KASUGA)
PS5530289-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:5M,NANABOSI,KASUGA)
PS5550005-00 SUPPORT (7 DEGREES ANGLE METER MOUNTING)
PT5060011-00 TANK ASSY (BATTERY,WATER)
PT5130074-00 TELESCOPE ASSY
PV1030001-00 SWITCH BOX (FOR BOOSTER)
PV1030069-00 SWITCH BOX(BOOSTER,3M/SANWA)
PV1030109-00 SWITCH BOX (ELECTRIC BOOSTER, 3M,NANABOSI,SINKOU DENKI)
PV1030110-00 SWITCH BOX (ELECTRIC BOOSTER, 5M,NANABOSI,SINKOU DENKI)
PV1300014-00 CABLE
PV5040021-00 VALVE ASSY,CHECK
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140019-00 VALVE ASSY,RELIEF
PV5170004-00 VALVE ASSY,SELECTOR
PV5170018-00 VALVE ASSY,SELECTOR
PV5240009-00 VALVE ASSY,SOLENOID
PV5450014-00 VIEW SYSTEM (BACK MONITOR,ICHIKOH:ST-900,ISUZU)
PV5450015-00 VIEW SYSTEM (BACK MONITOR,ICHIKOH,HINO/TOYOTA,BDG)
PW1010092-00 ACCESSORIES (BUCKET INNER MAT)
PW1010377-00 ACCESSORIES
PW1010381-00 ACCESSORIES (WRENCH)
PW1030047-01 TOOLS
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW1100006-00 CHAIN (FOR COLOR CONE/ RIGHT FRONT,STAINLESS)
PW5070004-01 WINCH ASSY (MOUNT/J:WITHOUT SWIVEL FUNCTION)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PW5110005-00 WEDGE (YELLOW)
PX1030696-01 FENDER
PX1120585-01 BOOM REST
PX1200635-00 SIDE GUARD
PX1200652-00 SIDE GUARD
PX1260143-01 STEP (FOR ENTRY INTO CAB)
PX1270075-01 WOOD BLOCK (WITH RUBBER,T=80)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1270113-01 WOOD BLOCK (KANSAI DENRYOKU/DETACHABLE)
PX1270125-00 WOOD BLOCK (WITH RUBBER,T=100)
PX1270161-01 WOOD BLOCK (KANDEN/DETACHABLE TYPE,L)
PX1270162-00 WOOD BLOCK (KANSAI DENRYOKU/DETACHABLE)
PX1270163-01 BLOCK,WOOD (LEFT REAR:KANSAI DENRYOKU/DETACHABLE TYPE)
PX1270165-00 WOOD BLOCK (KANDEN/DETACHABLE TYPE,B)
PX1310050-00 MOUNT,LAMP (BUCKET,FOR NTT,OPTION)
PX1350832-00 BOX,TOOL
PX1350973-01 BOX,TOOL
PX1350975-00 BOX,TOOL
PX1351074-01 BOX,TOOL
PX1351323-00 BOX,TOOL
PX1351333-00 BOX,TOOL
PX1351348-00 BOX,TOOL (LEFT/F:2-DECKER,R:1-DECKER)
PX1351349-01 BOX,TOOL (RIGHT/F:2-DECKER,R:NONE)
PX1360104-00 REFLECTOR
AT-147-3 43010100062 UPPER
000012
PX1360109-00 REFLECTOR (SWING ALIGNMENT MARK/FRONT)
PX1620033-00 MOUNT,COLOR CONE SUPPORT
PX5060008-01 MOUNT ASSY,BATTERY (MOUNT/MOTOR UNIT)
PX5220001-00 MOUNT ASSY,CHARGER (MOUNT/MOTOR UNIT)
PX5260017-02 MOUNT ASSY,COVER (BOOM)
PX5620004-01 MOUNT ASSY,REFLECTOR
PX5690010-00 MOUNT ASSY,SUPPORT
PX5690015-00 MOUNT ASSY,SUPPORT (DISTORTED DETECTION/LEVELING CYL)
PY1010034-04 OPTION UNIT,1
PY1020001-10 OPTION UNIT,2
PY1050000-00 CLAMP HEAD (IZUMI 12TON 2.5M)
PY1050001-01 CLAMP HEAD (IZUMI 8TON,2.5M)
PY1050004-00 CLAMP HEAD (O.D.K 7.5TON 3M)
PY1050005-00 CLAMP HEAD (O.D.K 10TON ELECTRIC)
PY1050007-00 CLAMP HEAD (SANWA,12TON)
PY1050008-01 CLAMP HEAD (IZUMI 8TON 3.5M ELECTRIC)
PY1050009-01 CLAMP HEAD (IZUMI 8TO,3.5M)
PY1050010-00 CLAMP HEAD (IZUMI 8TON,2.5M/YONDENKOU)
PY1050012-00 CLAMP HEAD (SANWA,12TON,TITANIUM)
PY1060000-01 CUTTER HEAD (IZUMI 6.4TON AIR)
PY1060001-00 CUTTER HEAD (IZUMI 6.4TON 2.5M ELECTRIC)
PY1060004-01 CUTTER HEAD (IZUMI 6.4TON 2.5M ELECTRICSANWA)
PY1070000-00 ROPE (SAFETY,YELLOW:TD-TYPE)
PY1070000-00 ROPE (SAFETY,YELLOW:TD-TYPE)
PY1070001-00 ROPE (SAFETY,1.5M,WITH HOOK)
PY1070003-00 ROPE (SAFETY,WHITE)
PY1070004-00 ROPE (SAFETY,0.5M,D=24)
PY1080020-00 ARM
PY1080032-00 ARM
PY1080033-00 ARM
PY1080034-00 ARM
PY1080035-00 ARM
PY1080036-00 ARM
PY1080037-00 ARM (HOLDER WITH INSULATOR, FOUR FACE ROLLER,HOT STICK)
PY1160205-00 BOOSTER
PY1160206-01 BOOSTER
PY1160211-01 BOOSTER (JOINT)
PY1160213-02 BOOSTER
PY1180208-00 LAMP (12V60W,WITH CIGARETTE LIGHTER)
PY1500050-00 SELECTOR,BOOSTER (ELECTRIC,SANWA)
PY1540039-00 COVER,BUCKET (INNER CASE)
PY1580024-01 PIPING,BOOSTER
PY1590000-02 HOSE,BOOSTER (WITH AIR BALLOON)
PY1590001-01 HOSE,BOOSTER (FEMALE-FEMALE,3M)
PY1590002-02 HOSE,BOOSTER (MAIL-FEMALE,3M)
PY1590005-01 HOSE,BOOSTER (SMALL,WITH AIR BALLOON)
PY1590006-00 HOSE,BOOSTER (LARGE,AIR BALLOON ONLY)
PY1590007-00 HOSE,BOOSTER (FEMALE-FEMALE,5M)
PY1590008-00 HOSE,BOOSTER (MALE-FEMALE,5M)
PY1590010-00 HOSE,BOOSTER (WITH AIR BALLOON,2M)
PY1590012-00 HOSE,BOOSTER (WITH AIR BALLOON,5M)
PY1640000-01 DRIL,HYDRAULIC
PY1650030-00 EARTHING DEVICE
PY1650113-03 EARTHING DEVICE (8X20M,TOP CLIP)
PY1660000-00 ARM,ATTACHMENT (L-TYPE JIB)
PY1680000-02 WRENCH,IMPACT (HYDRAULIC)
PY1760001-00 STEP,BUCKET
PY1760003-00 STEP,BUCKET (GRAY,FOR BUCKET INNER)
PY1760004-00 STEP,BUCKET (NON SLIP)
PY1760005-00 STEP,BUCKET
PY1790001-00 HANGER (FOR BUCKET)
PY1790001-00 HANGER (FOR BUCKET)
PY1790004-01 HANGER (FOR BUCKET,FRP)
PY1790005-01 HANGER (FOR BUCKET,FRP)
AT-147-3 43010100062 UPPER
000012
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
PY2120000-00 BOX,TOOL (FOR BUCKET)
PY2120001-00 BOX,TOOL (FOR BUCKET)
PY2120005-00 BOX,TOOL (FOR BUCKET,FRP)
PY2130001-00 COVER,LAMP (WORKING)
PY2170005-00 COVER,WINCH (CLOTH,WHITE/WINCH)
PY2170006-01 COVER,WINCH (GRAY,FOR KANDENKO)
PY2370026-01 PANEL,CONTROL
PY5240003-01 ARM ASSY
PY5240006-01 ARM ASSY

Need help? Contact: [email protected]

https://vimeo.com/757910988

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
