Tadano Crane AT-150-1 42018120700 LOWER,MITSUBISHI U-FE447CHX Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-150-1 42018120700 LOWER MITSUBISHI U-FE447CHX Spare Parts Catalog Manual – PDF DOWNLOAD

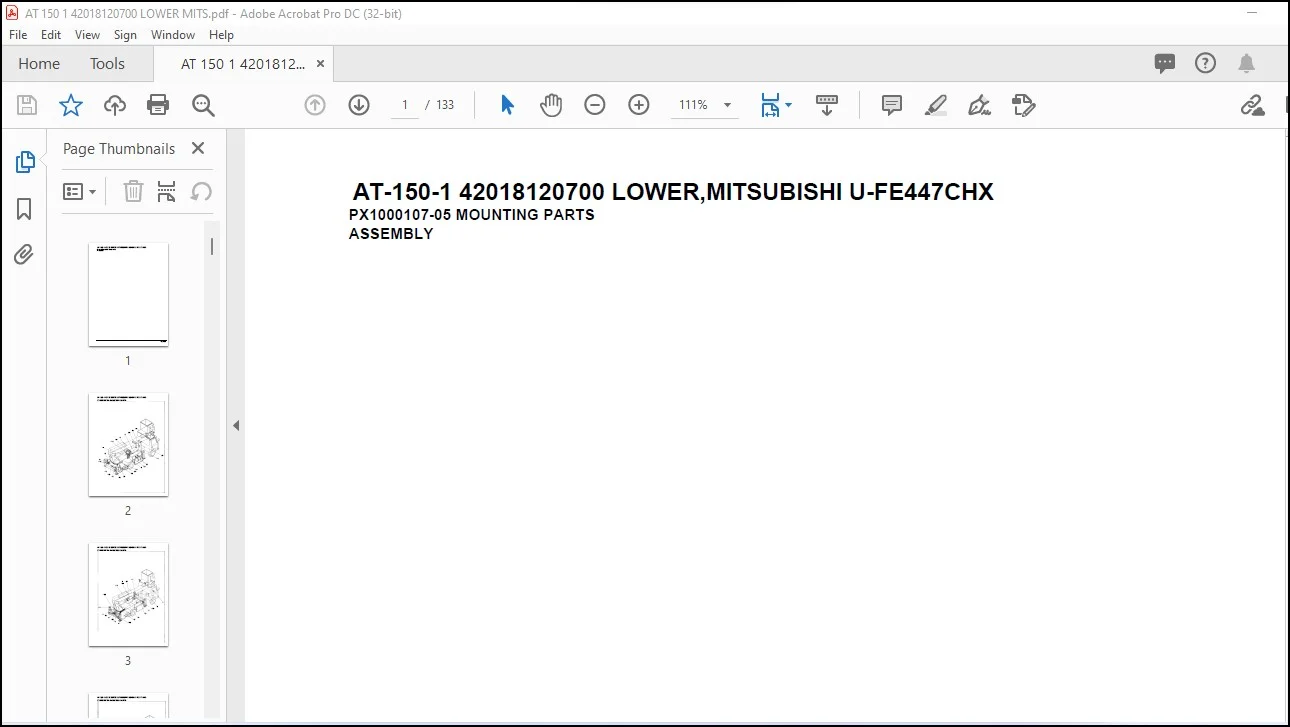

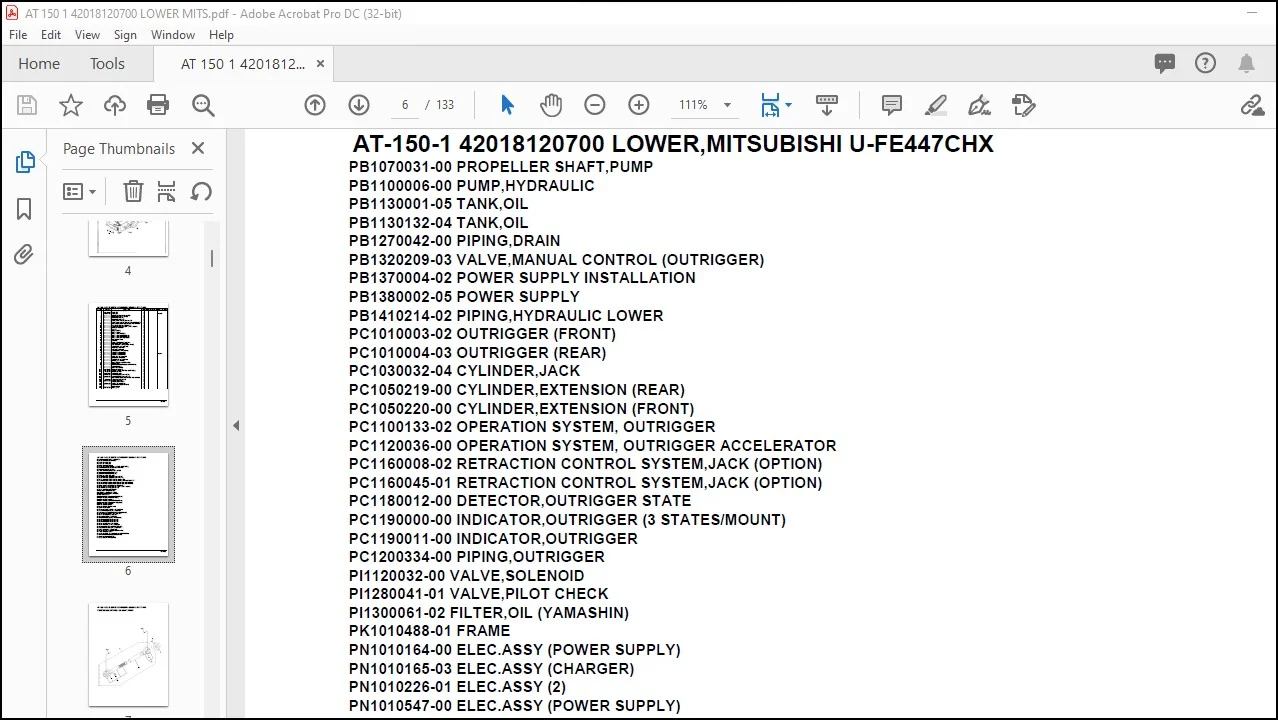

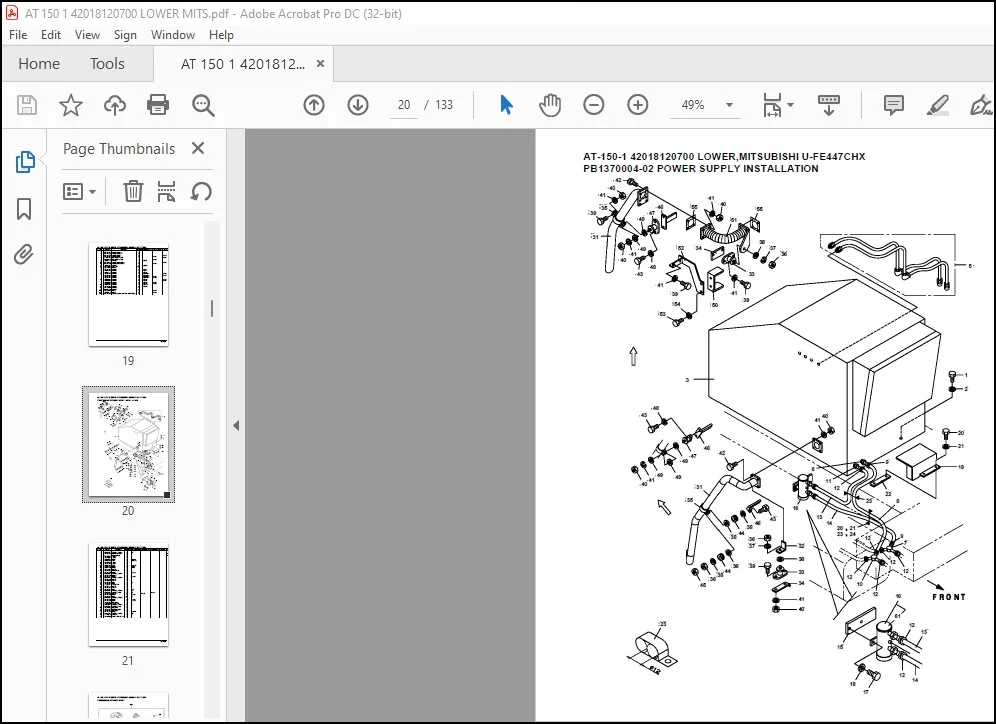

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-150-1 42018120700 LOWER,MITSUBISHI U-FE447CHX Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :133
Downloadable : Yes
File Type : PDF
Size:2.23 MB
TABLE OF CONTENTS:

Tadano Crane AT-150-1 42018120700 LOWER,MITSUBISHI U-FE447CHX Spare Parts Catalog Manual – PDF DOWNLOAD

AT-150-1 42018120700 LOWER,MITSUBISHI U-FE447CHX
PX1000107-05 MOUNTING PARTS
ASSEMBLY

AT-150-1 42018120700 LOWER,MITSUBISHI U-FE447CHX
PB1070031-00 PROPELLER SHAFT,PUMP
PB1100006-00 PUMP,HYDRAULIC
PB1130001-05 TANK,OIL
PB1130132-04 TANK,OIL
PB1270042-00 PIPING,DRAIN
PB1320209-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1370004-02 POWER SUPPLY INSTALLATION
PB1380002-05 POWER SUPPLY
PB1410214-02 PIPING,HYDRAULIC LOWER
PC1010003-02 OUTRIGGER (FRONT)
PC1010004-03 OUTRIGGER (REAR)
PC1030032-04 CYLINDER,JACK
PC1050219-00 CYLINDER,EXTENSION (REAR)
PC1050220-00 CYLINDER,EXTENSION (FRONT)
PC1100133-02 OPERATION SYSTEM, OUTRIGGER
PC1120036-00 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1160008-02 RETRACTION CONTROL SYSTEM,JACK (OPTION)
PC1160045-01 RETRACTION CONTROL SYSTEM,JACK (OPTION)
PC1180012-00 DETECTOR,OUTRIGGER STATE
PC1190000-00 INDICATOR,OUTRIGGER (3 STATES/MOUNT)
PC1190011-00 INDICATOR,OUTRIGGER
PC1200334-00 PIPING,OUTRIGGER
PI1120032-00 VALVE,SOLENOID
PI1280041-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010488-01 FRAME
PN1010164-00 ELEC.ASSY (POWER SUPPLY)
PN1010165-03 ELEC.ASSY (CHARGER)
PN1010226-01 ELEC.ASSY (2)
PN1010547-00 ELEC.ASSY (POWER SUPPLY)
PN1010548-01 ELEC.ASSY (SWITCH,ENGINE)
PN1010984-01 ELEC.ASSY (1)
PN1350032-02 REEL,CORD
PO1010631-02 PLATE,INDICATION
PX1030101-00 FENDER
PX1100085-00 TANK SUPPORT INSTALLATION
PX1120048-01 BOOM REST INSTALLATION
PX1170036-00 ATTACHMENT PARTS, CRANE FRAME
PX1200141-01 SIDE GUARD INSTALLATION
PX1220017-03 PUMP INSTALLATION
PX1260070-00 STEP INSTALLATION
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290115-01 WEIGHT INSTALLATION
PX1290117-00 WEIGHT INSTALLATION
PX1290176-00 WEIGHT INSTALLATION
PX1350113-00 BOX,TOOL (ON BOOM)
PX1350117-01 TOOL BOX INSTALLATION
PX1350304-01 BOX,TOOL (BOOM,LEFT SIDE)
PX1370027-00 CAB GUARD INSTALLATION
PX1370047-00 GUARD,CAB (OPTION)
PX1390095-00 PARTS,CHASSIS MODIFICATION
PX1410087-01 MOUNT,TIRE
PX1620001-00 MOUNT,COLOR CONE SUPPORT (OPTION)
PY1180011-01 LAMP (WORKING LAMP/ CAB)
PY1180066-00 LAMP (FLICKER)
PY1650021-01 EARTHING DEVICE
