Tadano Crane AT-150-1 42018141500 LOWER ISUZU U-NPR66GDR-5LX Spare Parts Catalog Manual – PDF DOWNLOAD

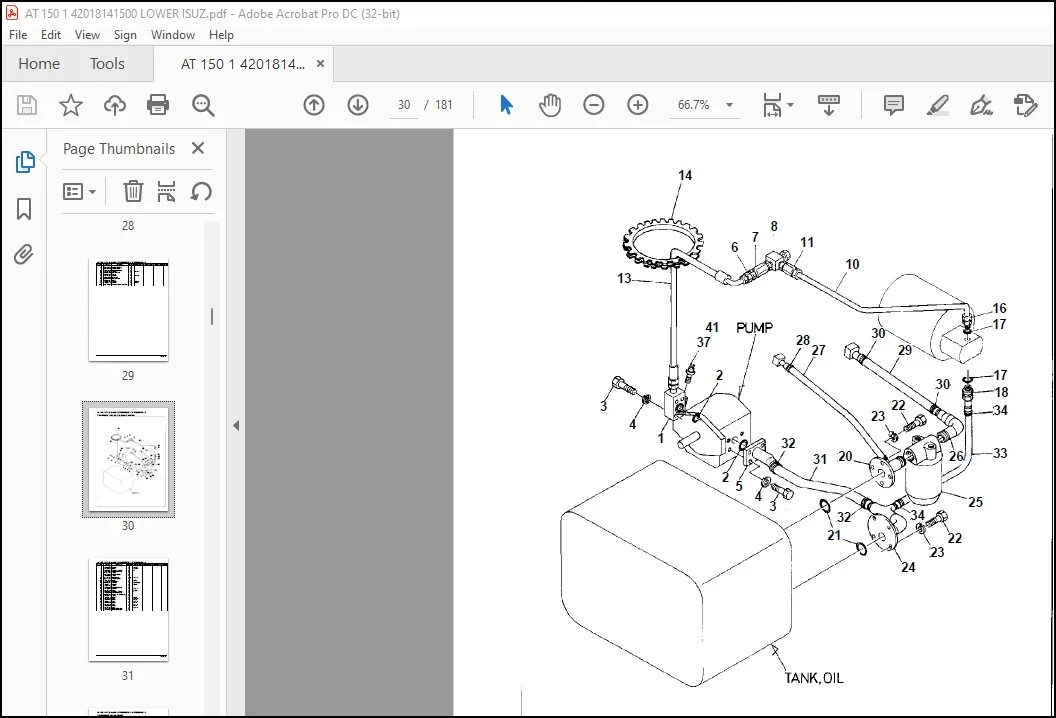

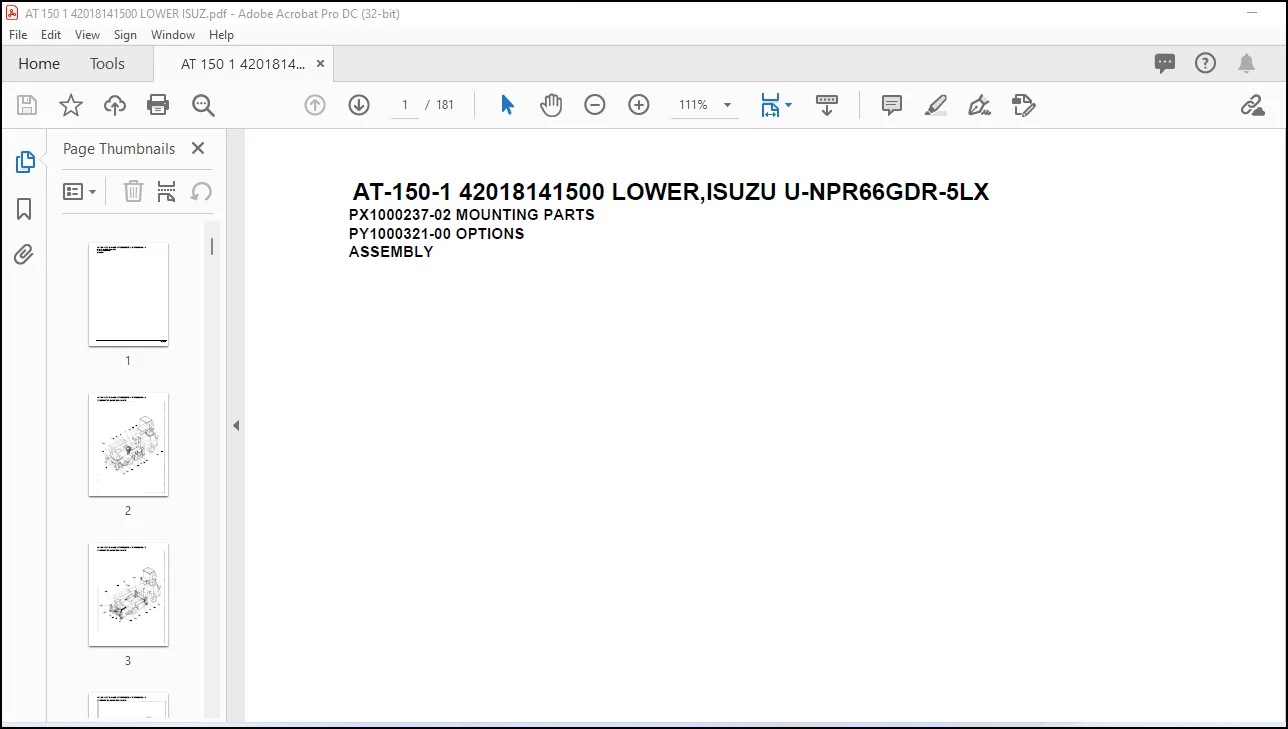

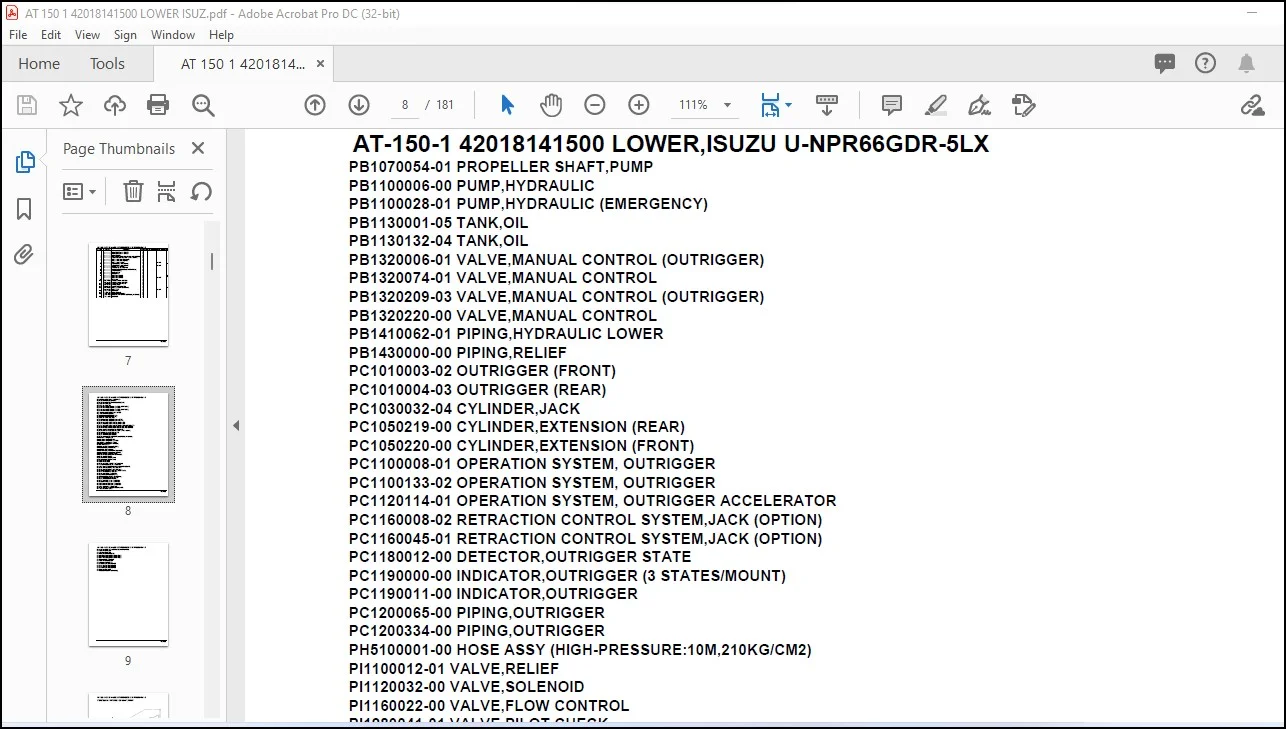

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-150-1 42018141500 LOWER ISUZU U-NPR66GDR-5LX Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :181
Downloadable : Yes
File Type : PDF
Size:2.83 MB
TABLE OF CONTENTS:

Tadano Crane AT-150-1 42018141500 LOWER ISUZU U-NPR66GDR-5LX Spare Parts Catalog Manual – PDF DOWNLOAD

AT-150-1 42018141500 LOWER,ISUZU U-NPR66GDR-5LX
PX1000237-02 MOUNTING PARTS
PY1000321-00 OPTIONS
ASSEMBLY

AT-150-1 42018141500 LOWER,ISUZU U-NPR66GDR-5LX
PB1070054-01 PROPELLER SHAFT,PUMP
PB1100006-00 PUMP,HYDRAULIC
PB1100028-01 PUMP,HYDRAULIC (EMERGENCY)
PB1130001-05 TANK,OIL
PB1130132-04 TANK,OIL
PB1320006-01 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320074-01 VALVE,MANUAL CONTROL
PB1320209-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320220-00 VALVE,MANUAL CONTROL
PB1410062-01 PIPING,HYDRAULIC LOWER
PB1430000-00 PIPING,RELIEF
PC1010003-02 OUTRIGGER (FRONT)
PC1010004-03 OUTRIGGER (REAR)
PC1030032-04 CYLINDER,JACK
PC1050219-00 CYLINDER,EXTENSION (REAR)
PC1050220-00 CYLINDER,EXTENSION (FRONT)
PC1100008-01 OPERATION SYSTEM, OUTRIGGER
PC1100133-02 OPERATION SYSTEM, OUTRIGGER
PC1120114-01 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1160008-02 RETRACTION CONTROL SYSTEM,JACK (OPTION)
PC1160045-01 RETRACTION CONTROL SYSTEM,JACK (OPTION)
PC1180012-00 DETECTOR,OUTRIGGER STATE
PC1190000-00 INDICATOR,OUTRIGGER (3 STATES/MOUNT)
PC1190011-00 INDICATOR,OUTRIGGER
PC1200065-00 PIPING,OUTRIGGER
PC1200334-00 PIPING,OUTRIGGER
PH5100001-00 HOSE ASSY (HIGH-PRESSURE:10M,210KG/CM2)
PI1100012-01 VALVE,RELIEF
PI1120032-00 VALVE,SOLENOID
PI1160022-00 VALVE,FLOW CONTROL
PI1280041-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010488-01 FRAME
PN1010165-03 ELEC.ASSY (CHARGER)
PN1010222-00 ELEC.ASSY (TAIL)
PN1010227-04 ELEC.ASSY (1)
PN1010548-01 ELEC.ASSY (SWITCH,ENGINE)
PN1010549-00 ELEC.ASSY (SWITCH,LAMP)
PN1010626-00 ELEC.ASSY (OPTION)
PN1350026-01 REEL,CORD (FOR EARTHING)
PN1350032-02 REEL,CORD
PO1010206-02 PLATE,INDICATION
PO1011668-00 PLATE,INDICATION
PX1030058-00 FENDER
PX1030098-00 FENDER
PX1100125-00 TANK SUPPORT INSTALLATION
PX1120048-01 BOOM REST INSTALLATION
PX1170037-01 ATTACHMENT PARTS, CRANE FRAME (STD)
PX1200082-01 SIDE GUARD INSTALLATION
PX1200083-01 SIDE GUARD INSTALLATION
PX1220003-00 PUMP INSTALLATION (EMERGENCY)
PX1220017-03 PUMP INSTALLATION
PX1260001-01 STEP INSTALLATION
PX1260048-00 STEP (SWING FRAME)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290029-01 WEIGHT INSTALLATION
PX1290033-00 WEIGHT (TANK OIL)
PX1350034-01 TOOL BOX INSTALLATION
PX1350063-00 TOOL BOX INSTALLATION
PX1370028-00 CAB GUARD INSTALLATION
PX1370045-00 CAB GUARD INSTALLATION
PX1370047-00 GUARD,CAB (OPTION)
PX1390144-01 PARTS,CHASSIS MODIFICATION
PX1410026-00 MOUNT,TIRE
AT-150-1 42018141500 LOWER,ISUZU U-NPR66GDR-5LX
000003
PX1620001-00 MOUNT,COLOR CONE SUPPORT (OPTION)
PY1170009-00 BOOSTER
PY1170022-00 BOOSTER
PY1180009-02 LAMP (FLICKER)
PY1210075-00 PIPING,HYDRAULIC OUTLET
PY1210076-01 PIPING,HYDRAULIC OUTLET
PY1210077-02 PIPING,HYDRAULIC OUTLET
PY1240003-00 CONTROL UNIT
PY1510001-00 HOUR METER
PY1530003-00 REFLECTOR
PY1650002-00 EARTHING DEVICE
PY1650013-00 EARTHING DEVICE
PY1650021-01 EARTHING DEVICE
PY1650048-00 EARTHING DEVICE
PY1840000-00 BREAKER
PY1910002-01 HOSE (10M.70KG/CM2)
