Tadano Crane AT-150S-2 42068231200 LOWER,HINO BDG-XZU414M-TKFRD3 Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-150S-2 42068231200 LOWER HINO BDG-XZU414M-TKFRD3 Spare Parts Catalog Manual – PDF DOWNLOAD

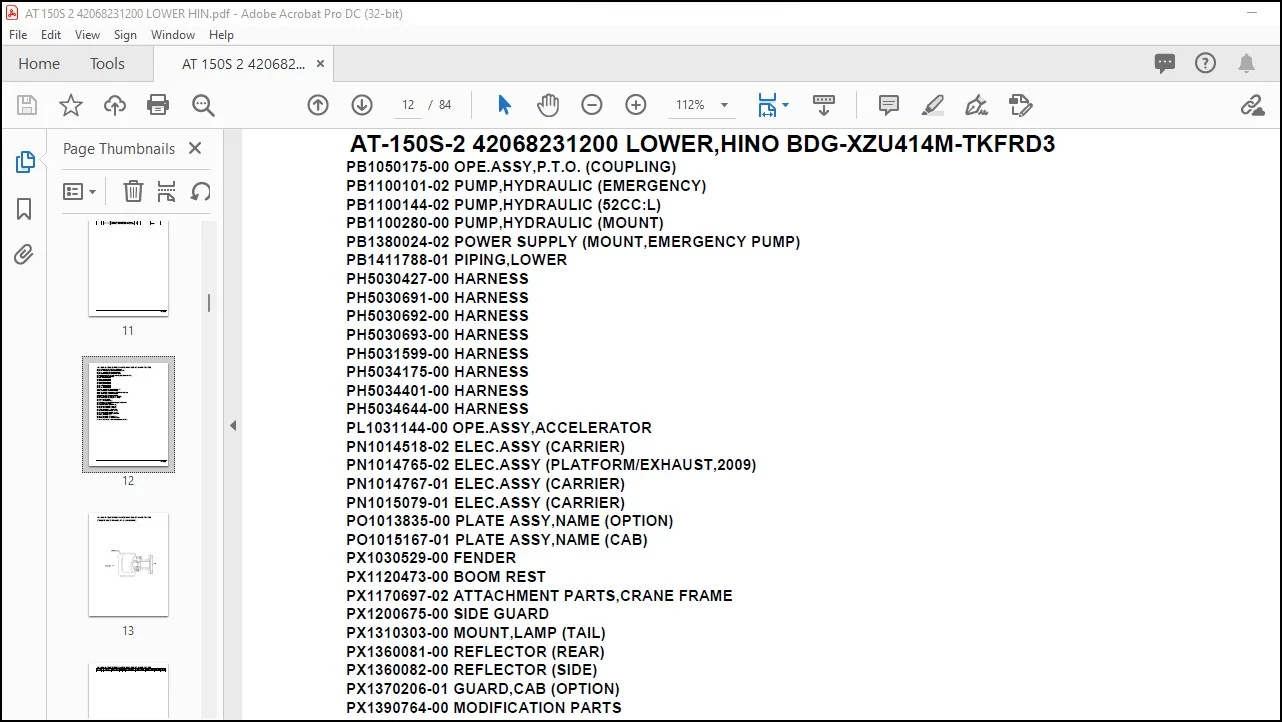

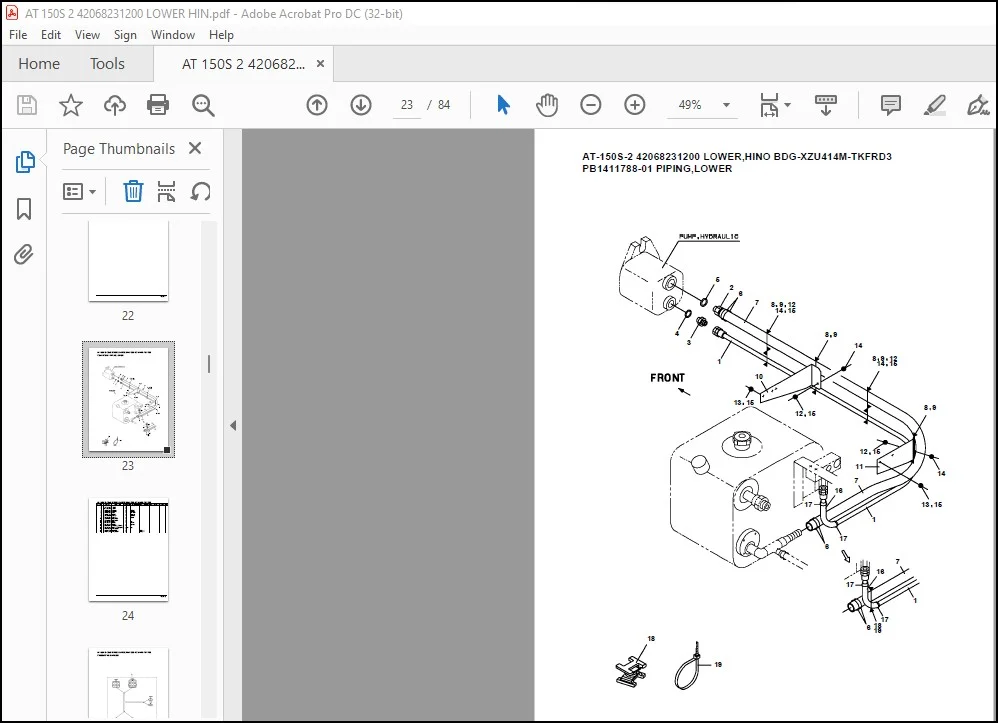

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-150S-2 42068231200 LOWER HINO BDG-XZU414M-TKFRD3 Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :84
Downloadable : Yes
File Type : PDF
Size:860 KB
TABLE OF CONTENTS:

Tadano Crane AT-150S-2 42068231200 LOWER HINO BDG-XZU414M-TKFRD3 Spare Parts Catalog Manual – PDF DOWNLOAD

AT-150S-2 42068231200 LOWER,HINO BDG-XZU414M-TKFRD3
PB3000135-01 POWER UNIT
PO1000127-01 INDICATION PLATES
PX2001057-00 CARRIER UNIT
PX3000568-00 MOUNTING UNIT
PY1001342-00 OPTIONS,1
ASSEMBLY

AT-150S-2 42068231200 LOWER,HINO BDG-XZU414M-TKFRD3
000006
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411788-01 PIPING,LOWER
PH5030427-00 HARNESS
PH5030691-00 HARNESS
PH5030692-00 HARNESS
PH5030693-00 HARNESS
PH5031599-00 HARNESS
PH5034175-00 HARNESS
PH5034401-00 HARNESS
PH5034644-00 HARNESS
PL1031144-00 OPE.ASSY,ACCELERATOR
PN1014518-02 ELEC.ASSY (CARRIER)
PN1014765-02 ELEC.ASSY (PLATFORM/EXHAUST,2009)
PN1014767-01 ELEC.ASSY (CARRIER)
PN1015079-01 ELEC.ASSY (CARRIER)
PO1013835-00 PLATE ASSY,NAME (OPTION)
PO1015167-01 PLATE ASSY,NAME (CAB)
PX1030529-00 FENDER
PX1120473-00 BOOM REST
PX1170697-02 ATTACHMENT PARTS,CRANE FRAME
PX1200675-00 SIDE GUARD
PX1310303-00 MOUNT,LAMP (TAIL)
PX1360081-00 REFLECTOR (REAR)
PX1360082-00 REFLECTOR (SIDE)
PX1370206-01 GUARD,CAB (OPTION)
PX1390764-00 MODIFICATION PARTS
PX1390948-00 MODIFICATION PARTS
PX1650012-01 BUMPER IMSTALLATION
PX1830012-01 COUPLING
PX5360029-00 MOUNT ASSY,FRAME
PX5740008-00 MOUNT ASSY,TAIL LAMP
PY1560072-00 ALARM SYSTEM (HINO:EXHAUST,2008)
