Tadano Crane AT-150S-2 42068242115 UPPER,LOWER,ISUZU TPG-NPR85N-HN5AY-M Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-150S-2 42068242115 UPPERLOWERISUZU TPG-NPR85N-HN5AY-M Spare Parts Catalog Manual – PDF DOWNLOAD

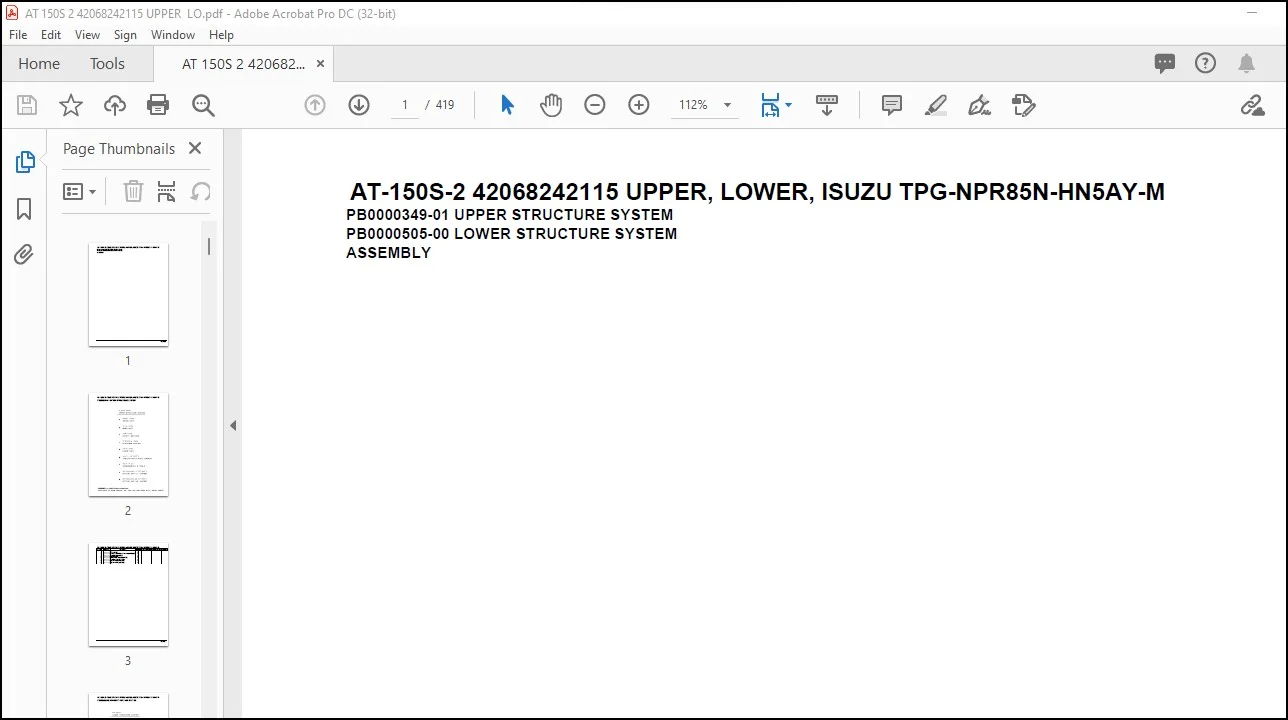

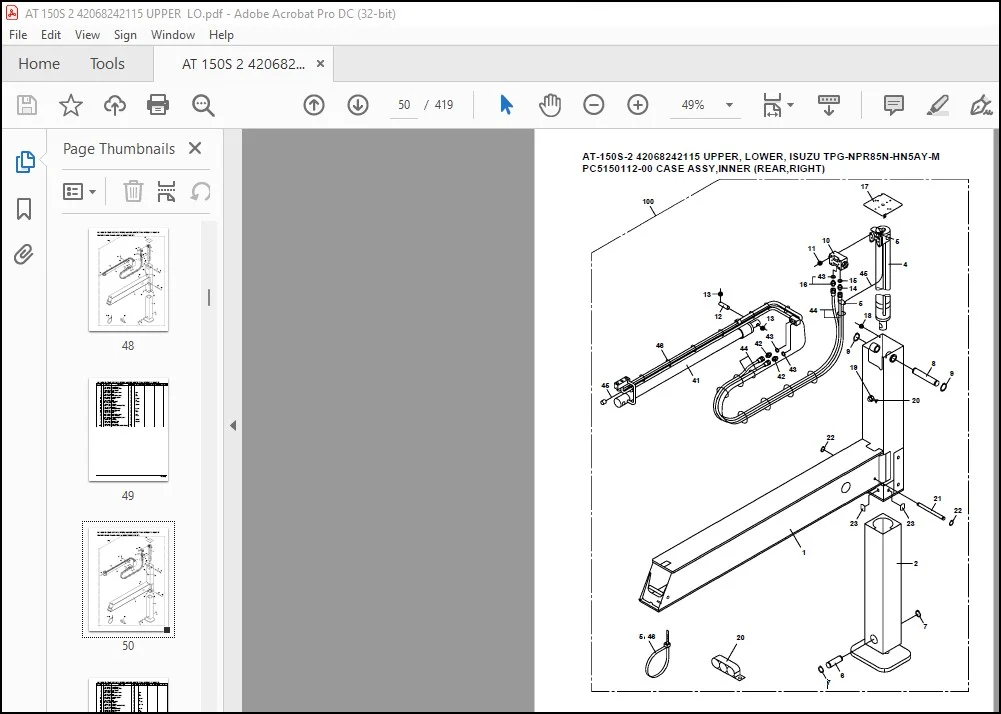

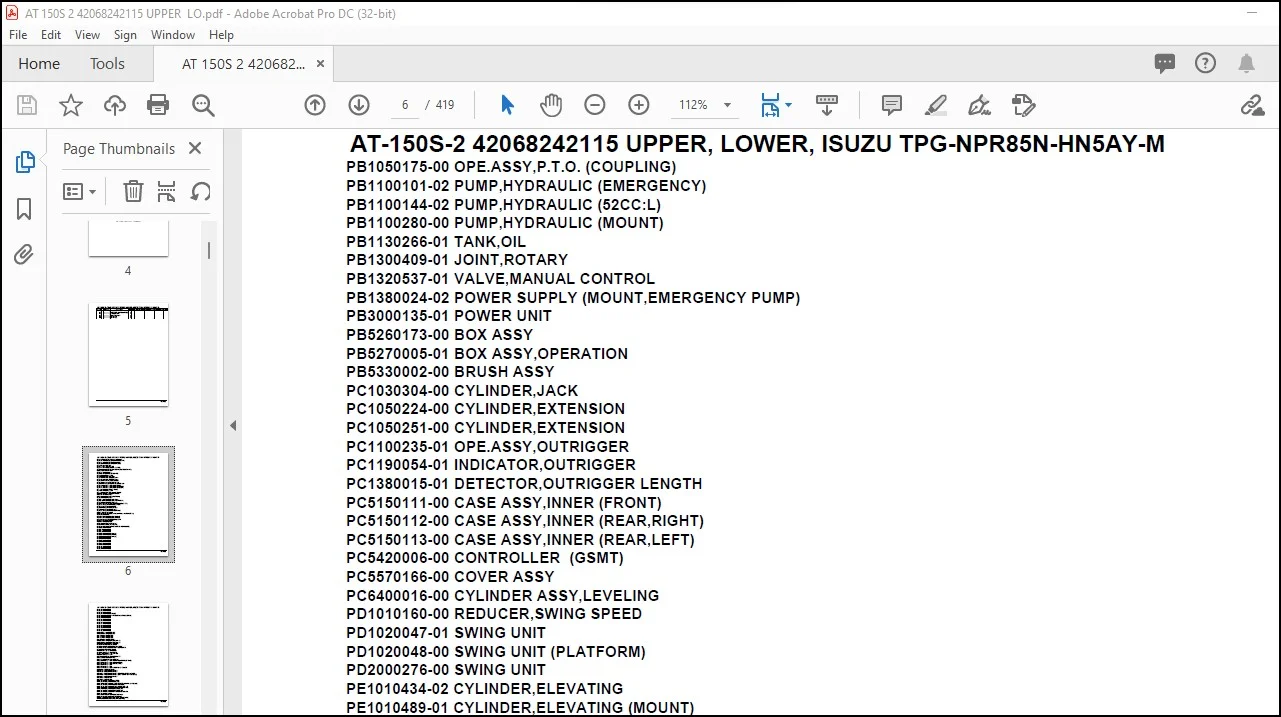

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-150S-2 42068242115 UPPERLOWERISUZU TPG-NPR85N-HN5AY-M Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :419
Downloadable : Yes
File Type : PDF
Size:5.01 MB
TABLE OF CONTENTS:

Tadano Crane AT-150S-2 42068242115 UPPERLOWERISUZU TPG-NPR85N-HN5AY-M Spare Parts Catalog Manual – PDF DOWNLOAD

AT-150S-2 42068242115 UPPER, LOWER, ISUZU TPG-NPR85N-HN5AY-M
PB0000349-01 UPPER STRUCTURE SYSTEM
PB0000505-00 LOWER STRUCTURE SYSTEM
ASSEMBLY

AT-150S-2 42068242115 UPPER, LOWER, ISUZU TPG-NPR85N-HN5AY-M
000003
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1130266-01 TANK,OIL
PB1300409-01 JOINT,ROTARY
PB1320537-01 VALVE,MANUAL CONTROL
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB3000135-01 POWER UNIT
PB5260173-00 BOX ASSY
PB5270005-01 BOX ASSY,OPERATION
PB5330002-00 BRUSH ASSY
PC1030304-00 CYLINDER,JACK
PC1050224-00 CYLINDER,EXTENSION
PC1050251-00 CYLINDER,EXTENSION
PC1100235-01 OPE.ASSY,OUTRIGGER
PC1190054-01 INDICATOR,OUTRIGGER
PC1380015-01 DETECTOR,OUTRIGGER LENGTH
PC5150111-00 CASE ASSY,INNER (FRONT)
PC5150112-00 CASE ASSY,INNER (REAR,RIGHT)
PC5150113-00 CASE ASSY,INNER (REAR,LEFT)
PC5420006-00 CONTROLLER (GSMT)
PC5570166-00 COVER ASSY
PC6400016-00 CYLINDER ASSY,LEVELING
PD1010160-00 REDUCER,SWING SPEED
PD1020047-01 SWING UNIT
PD1020048-00 SWING UNIT (PLATFORM)
PD2000276-00 SWING UNIT
PE1010434-02 CYLINDER,ELEVATING
PE1010489-01 CYLINDER,ELEVATING (MOUNT)
PE1050127-03 CYLINDER,LEVELING
PE5010029-00 EARTH ASSY (8X10M,CROCODILE CLIP)
PE5021313-00 ELEC.ASSY (TELEMATICS)
PE5050020-00 ELEC.ASSY,BOOM
PE5070157-01 ELEC.ASSY,CARRIER
PE5110089-02 ELEC.ASSY,FRAME
PE5190033-00 ELEC.ASSY,SWING FRAME
PF5100466-00 FRAME ASSY
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1010921-00 BOOM
PG1050530-00 CYLINDER,TELESCOPING
PG1050531-01 CYLINDER,TELESCOPING
PG1120191-01 DETECTOR,BOOM LENGTH
PG1220110-01 PIPING,BOOM
PG2000378-00 BOOM UNIT
PG5180006-00 GENERATOR ASSY
PG5200009-03 GUARD ASSY (HEAD)
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PH5030309-00 HARNESS
PH5030404-00 HARNESS
PH5030421-00 HARNESS
PH5030427-00 HARNESS
PH5030728-00 HARNESS (L=15300)
PH5030729-00 HARNESS (L=15500)
PH5030730-00 HARNESS (L=15200)
PH5030979-00 HARNESS
PH5031393-00 HARNESS
PH5031600-00 HARNESS
PH5031711-00 HARNESS
PH5031756-00 HARNESS
PH5031985-02 HARNESS
PH5032114-00 HARNESS
PH5032700-00 HARNESS
PH5033857-00 HARNESS
AT-150S-2 42068242115 UPPER, LOWER, ISUZU TPG-NPR85N-HN5AY-M
000003
PH5033858-00 HARNESS
PH5033859-00 HARNESS
PH5033860-00 HARNESS
PH5033861-00 HARNESS (FRAME)
PH5033862-00 HARNESS (OUTRIGGER LENGTH DETECTION)
PH5033863-00 HARNESS
PH5033864-00 HARNESS
PH5033865-00 HARNESS
PH5033866-00 HARNESS
PH5033965-00 HARNESS
PH5034174-00 HARNESS
PH5034181-00 HARNESS
PH5034229-00 HARNESS
PH5034230-00 HARNESS
PH5034231-00 HARNESS
PH5034232-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1120303-00 VALVE,SOLENOID
PI1140158-00 VALVE,CHECK
PI1140212-00 VALVE,CHECK
PI1140227-00 VALVE,CHECK
PI1230018-00 VALVE,SHUTTLE
PI1250027-00 VALVE,COUNTERBALANCE
PI1250137-00 VALVE,COUNTERBALANCE
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3000551-00 PLATFORM SYSTEM
PJ3060001-00 COVER,BEARING (PLATFORM)
PJ3170003-00 REDUCER,PLATFORM SWING SPEED
PJ3200086-00 PIPING,PLATFORM
PJ5090125-01 JOINT ASSY,SWIVEL
PK1010800-00 FRAME (PLATFORM)
PK1200403-03 COVER,SWING FRAME
PK2002195-00 FRAME UNIT
PL1031147-01 OPE.ASSY,ACCELERATOR
PL1250039-03 VALVE,CONTROL
PL1920022-07 OPE.ASSY (PLATFORM)
PL5020064-01 LAMP ASSY (WORKING LAMP FOR STD DECK)
PL5020135-02 LAMP ASSY (WORK LAMP:LED)
PL5020192-00 LAMP ASSY (SQUARE TYPE)
PL5020200-02 LAMP ASSY
PL5020201-00 LAMP ASSY
PL5020245-00 LAMP ASSY (MARKER LAMP/YELLOW)
PM1030032-01 PIPING,GREASE
PM5150269-01 MODIFICATION ASSY
PM5150282-00 MODIFICATION ASSY
PM5150489-00 MODIFICATION ASSY (YELLOW MARKER LAMP/LED)
PM5150600-01 MODIFICATION ASSY (DECK:WORKING RANGE CHART)
PM5150618-00 MODIFICATION ASSY
PM5230001-01 MOTOR,OIL
PM5230005-01 MOTOR,OIL
PN1013366-02 ELEC.ASSY (PLATFORM)
PN1013368-05 ELEC.ASSY (DETECTOR)
PN1013371-03 ELEC.ASSY (INTERFERENCE PREVENTION CANCEL SW)
PN1013372-03 ELEC.ASSY (VEHICLE WIDTH SW)
PN1013373-04 ELEC.ASSY (DISPLAY ALTERATION SW)
PN1013375-00 ELEC.ASSY (SWING FRAME,OPTION SW)
PN1013376-00 ELEC.ASSY (DECK OPTION,SW)
PN1013377-00 ELEC.ASSY (DECK OPTION,SW)
PN1014765-02 ELEC.ASSY (PLATFORM/EXHAUST,2009)
PN1014766-02 ELEC.ASSY
PN1020030-01 POWER SOURCE (UPPER/100V)
PN1350029-01 REEL,CORD (FOR EARTHING)
PN5011420-00 NAME PLATE ASSY (NON-SLIP/YELLOW)
PN5011627-00 NAME PLATE ASSY (TELEMATICS)
AT-150S-2 42068242115 UPPER, LOWER, ISUZU TPG-NPR85N-HN5AY-M
000003
PN5012025-00 NAME PLATE ASSY (VEHICLE)
PN5012026-00 NAME PLATE ASSY (TADANO,TANK,NON-SLIP,FUSE)
PN5012027-00 NAME PLATE ASSY (OUTRIGGER CONTROLS)
PO1000182-00 INDICATION PLATES (UPPER)
PO1000183-00 INDICATION PLATES (LOWER)
PO1013835-00 PLATE ASSY,NAME (OPTION)
PO1013958-00 PLATE ASSY,NAME (BOX,OPERATION)
PO1015156-01 PLATE ASSY,NAME (CAB)
PO1015549-01 PLATE ASSY,NAME (SMOOTHER-EX/PTO OPERATION)
PO5280004-02 OUTRIGGER ASSY,FRONT
PO5290019-02 OUTRIGGER ASSY,REAR
PP5010042-01 PANEL ASSY
PP5020040-01 PANEL ASSY,CONTROL
PP5100187-00 PARTS ASSY,ELECTRICITY (100V/LOWER)
PP5270023-00 PLATFORM ASSY (4.6MX1.94M)
PP5270024-01 PLATFORM ASSY
PP5450003-00 PUMP,GREASE (240CC)
PP5450004-00 PUMP,GREASE (400CC)
PP6130054-03 PIPING ASSY,FRAME
PP6210010-00 PIPING ASSY,MOUNTING
PP6330025-01 PIPING ASSY,SWING FRAME
PR5100132-00 RELAY BOX ASSY
PS5510074-00 SWING FRAME ASSY
PS5530267-00 SWITCH ASSY (WITH HARNESS,5 SW)
PS5530449-00 SWITCH ASSY
PV5140025-00 VALVE ASSY,RELIEF
PW1000118-00 ACCESSORIES & TOOLS
PW1010252-03 ACCESSORIES
PW1030049-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PX1120474-00 BOOM REST
PX1260195-00 STEP
PX1260217-00 STEP
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1360081-00 REFLECTOR (REAR)
PX1360082-00 REFLECTOR (SIDE)
PX1370310-02 GUARD,CAB (OPTION)
PX1650012-01 BUMPER IMSTALLATION
PX1830012-01 COUPLING
PX2001902-00 CARRIER UNIT
PX3000146-01 MOUNTING UNIT
PX5280016-01 MOUNT ASSY,DECK
PX5360036-01 MOUNT ASSY,FRAME
PX5420021-00 MOUNT ASSY,GENERATOR
PX5420022-00 MOUNT ASSY,GENERATOR
PX5420023-00 MOUNT ASSY,GENERATOR
PX5420024-00 MOUNT ASSY,GENERATOR
PX5420025-00 MOUNT ASSY,GENERATOR
PX5420026-00 MOUNT ASSY,GENERATOR
PX5650019-00 MOUNT ASSY,SIDE GUARD
PX5730016-00 MOUNT ASSY,SWIVEL JOINT
PX5740010-00 MOUNT ASSY,TAIL LAMP
PX5760030-00 MOUNT ASSY,TANK SUPPORT
PY1001343-02 OPTIONS,1
PY1001926-01 OPTION UNIT,1 (UPPER)
PY1090001-00 BELT,SAFETY
PY1560071-00 ALARM SYSTEM (ISUZU:EXHAUST,2007)
PY1840005-00 BREAKER
PY1910021-00 HOSE (FOR GREASE PUMP)
PY2000050-01 OPTIONS,2
PY2000225-04 OPTION UNIT,2 (UPPER)
PY5310003-00 AUTOMATIC MOTION CONTROLLER
PZ0000000-00 MODIFICATION ASSY (AMC DATA)
