Tadano Crane AT-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 125
Downloadable : Yes
File Type : PDF
Size: 1.88 MB

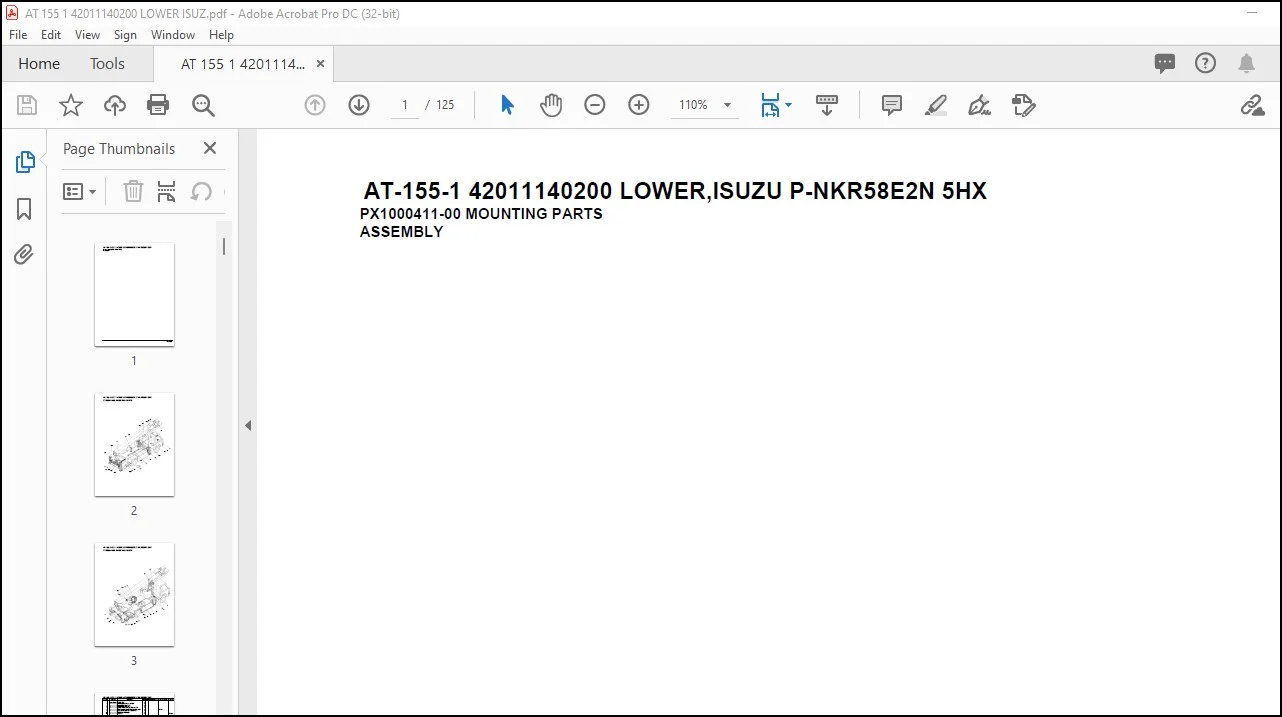

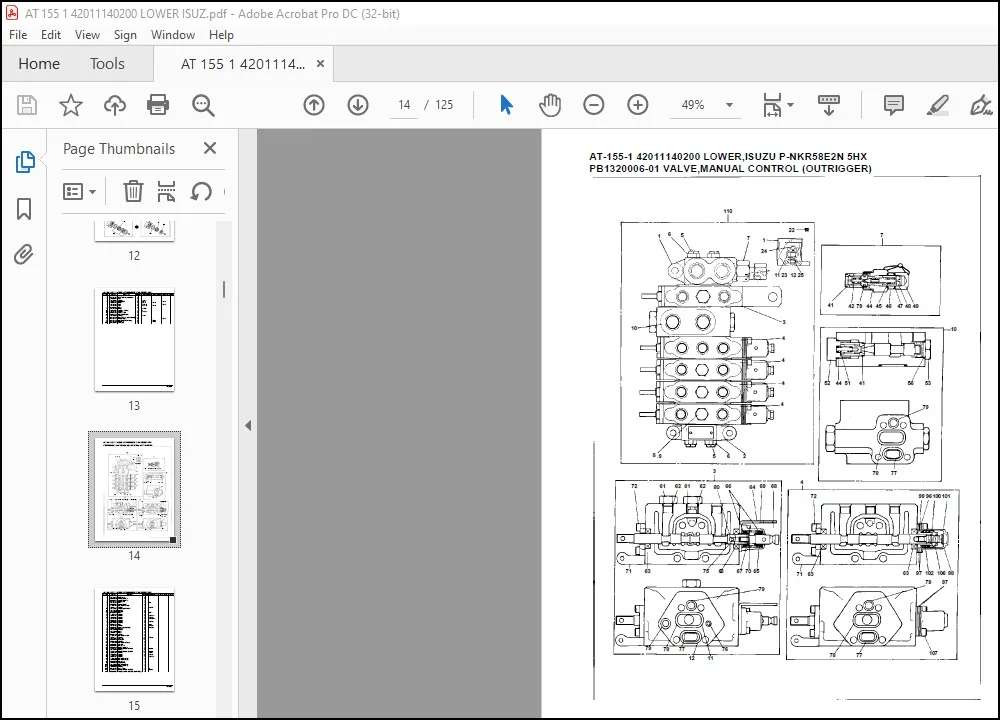

IMAGES PREVIEW OF THE MANUAL:

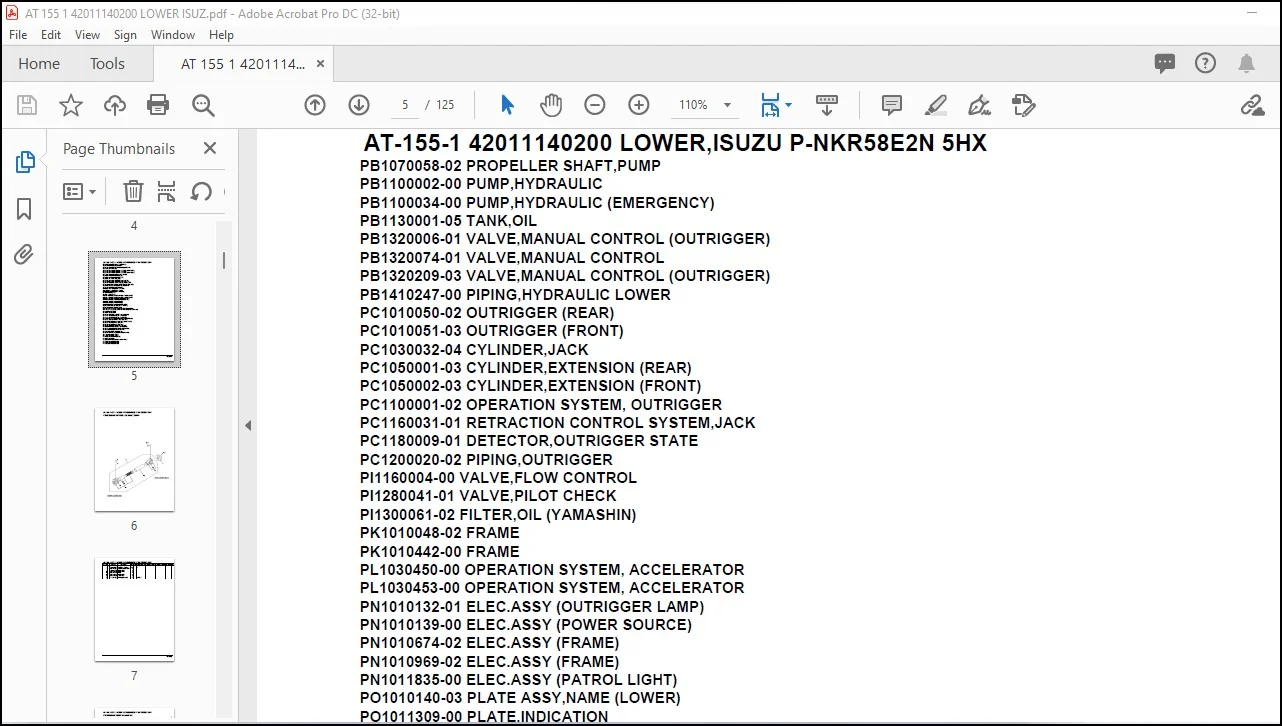

TABLE OF CONTENTS:

Tadano Crane AT-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX Parts Catalog Manual – PDF DOWNLOAD

AT-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX
PX1000411-00 MOUNTING PARTS
ASSEMBLY

T-155-1 42011140200 LOWER,ISUZU P-NKR58E2N 5HX
PB1070058-02 PROPELLER SHAFT,PUMP
PB1100002-00 PUMP,HYDRAULIC
PB1100034-00 PUMP,HYDRAULIC (EMERGENCY)
PB1130001-05 TANK,OIL
PB1320006-01 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320074-01 VALVE,MANUAL CONTROL
PB1320209-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1410247-00 PIPING,HYDRAULIC LOWER
PC1010050-02 OUTRIGGER (REAR)
PC1010051-03 OUTRIGGER (FRONT)
PC1030032-04 CYLINDER,JACK
PC1050001-03 CYLINDER,EXTENSION (REAR)
PC1050002-03 CYLINDER,EXTENSION (FRONT)
PC1100001-02 OPERATION SYSTEM, OUTRIGGER
PC1160031-01 RETRACTION CONTROL SYSTEM,JACK
PC1180009-01 DETECTOR,OUTRIGGER STATE
PC1200020-02 PIPING,OUTRIGGER
PI1160004-00 VALVE,FLOW CONTROL
PI1280041-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010048-02 FRAME
PK1010442-00 FRAME
PL1030450-00 OPERATION SYSTEM, ACCELERATOR
PL1030453-00 OPERATION SYSTEM, ACCELERATOR
PN1010132-01 ELEC.ASSY (OUTRIGGER LAMP)
PN1010139-00 ELEC.ASSY (POWER SOURCE)
PN1010674-02 ELEC.ASSY (FRAME)
PN1010969-02 ELEC.ASSY (FRAME)
PN1011835-00 ELEC.ASSY (PATROL LIGHT)
PO1010140-03 PLATE ASSY,NAME (LOWER)
PO1011309-00 PLATE,INDICATION
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1030116-00 FENDER
PX1030117-00 FENDER
PX1100001-01 TANK SUPPORT INSTALLATION
PX1120044-00 BOOM REST INSTALLATION
PX1120044-00 BOOM REST INSTALLATION
PX1170085-00 ATTACHMENT PARTS, CRANE FRAME
PX1200012-02 SIDE GUARD INSTALLATION
PX1220003-00 PUMP INSTALLATION (EMERGENCY)
PX1220047-00 PUMP INSTALLATION
PX1220156-00 PUMP INSTALLATION
PX1250065-00 COVER (OUTRIGGER SIDE)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290025-01 WEIGHT (WITH BUCKET SWING)
PX1290078-00 WEIGHT INSTALLATION
PX1310076-00 MOUNT,LAMP (TAIL)
PX1390108-01 PARTS,CHASSIS MODIFICATION
PX1410018-00 MOUNT,TIRE
PX1410065-00 MOUNT,TIRE
PY1180009-02 LAMP (FLICKER)
PY1180029-02 LAMP
PY1210036-01 PIPING,HYDRAULIC OUTLET
PY1510008-00 HOUR METER
PY1510009-00 HOUR METER
PY1510010-00 HOUR METER
