Tadano Crane AT-157-1 43002100008 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-157-1 43002100008 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-157-1 43002100008 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 332
Downloadable : Yes
File Type : PDF
Size: 4.31 MB

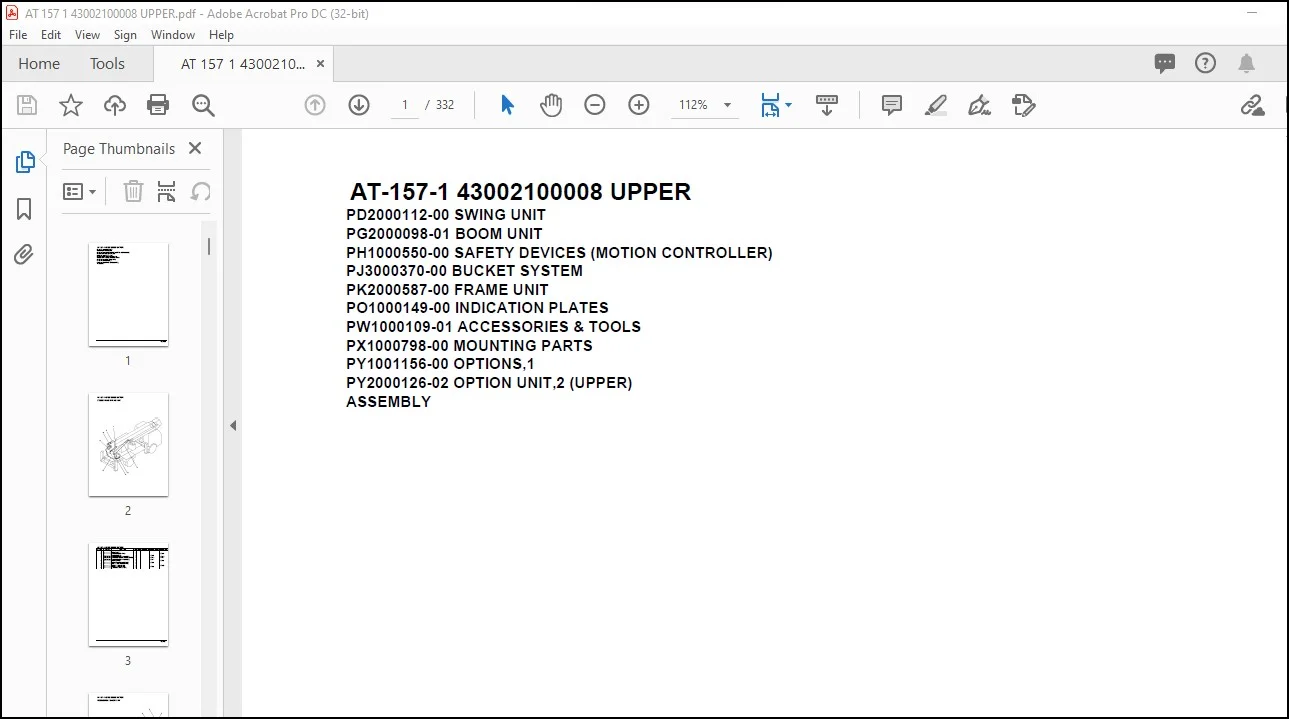

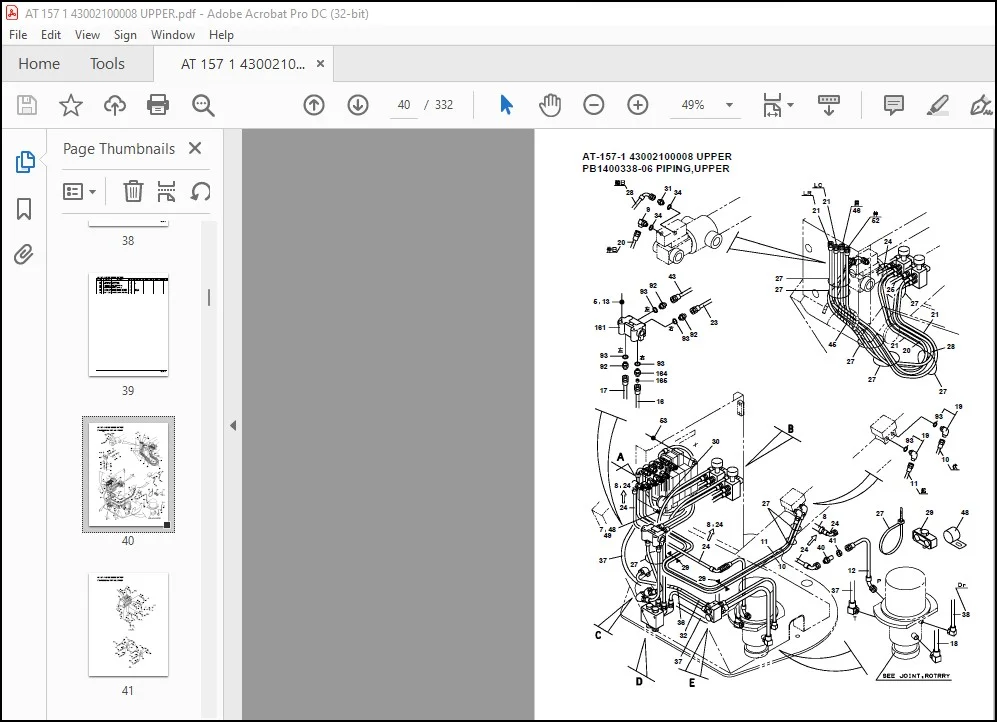

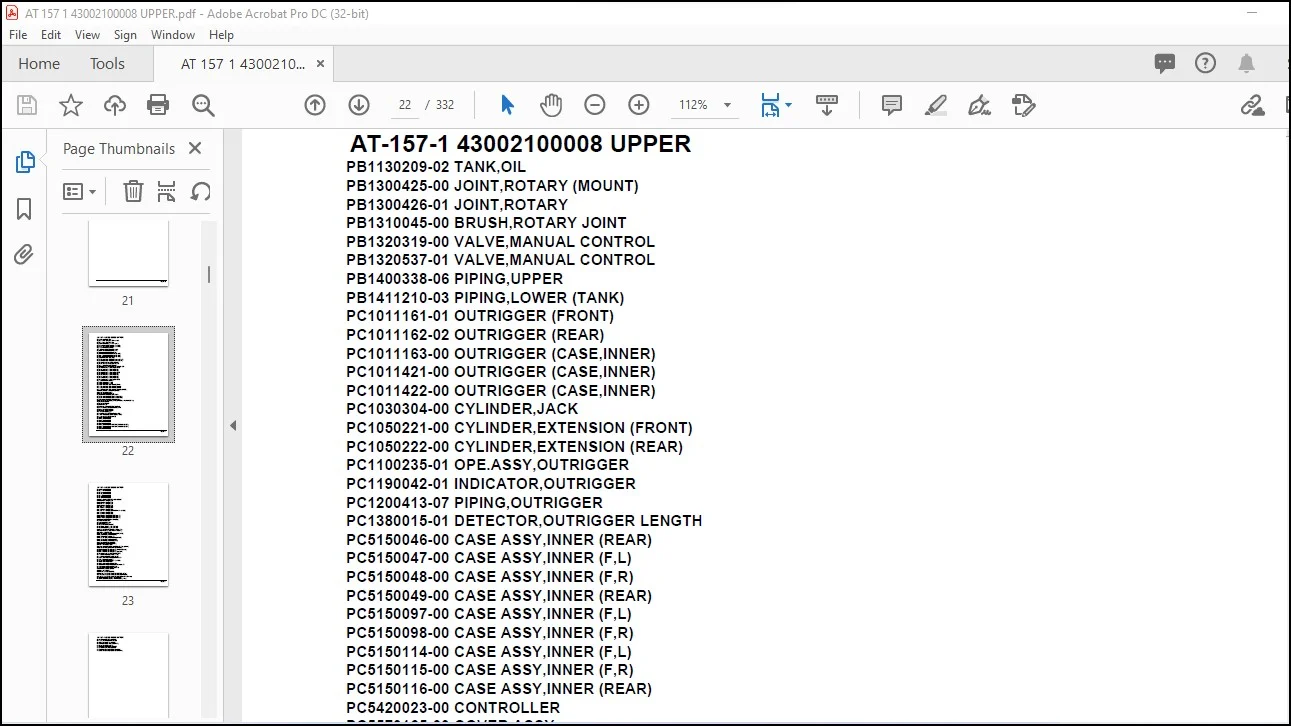

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-157-1 43002100008 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

AT-157-1 43002100008 UPPER
PD2000112-00 SWING UNIT
PG2000098-01 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ3000370-00 BUCKET SYSTEM
PK2000587-00 FRAME UNIT
PO1000149-00 INDICATION PLATES
PW1000109-01 ACCESSORIES & TOOLS
PX1000798-00 MOUNTING PARTS
PY1001156-00 OPTIONS,1
PY2000126-02 OPTION UNIT,2 (UPPER)
ASSEMBLY

AT-157-1 43002100008 UPPER
PB1130209-02 TANK,OIL
PB1300425-00 JOINT,ROTARY (MOUNT)
PB1300426-01 JOINT,ROTARY
PB1310045-00 BRUSH,ROTARY JOINT
PB1320319-00 VALVE,MANUAL CONTROL
PB1320537-01 VALVE,MANUAL CONTROL
PB1400338-06 PIPING,UPPER
PB1411210-03 PIPING,LOWER (TANK)
PC1011161-01 OUTRIGGER (FRONT)
PC1011162-02 OUTRIGGER (REAR)
PC1011163-00 OUTRIGGER (CASE,INNER)
PC1011421-00 OUTRIGGER (CASE,INNER)
PC1011422-00 OUTRIGGER (CASE,INNER)
PC1030304-00 CYLINDER,JACK
PC1050221-00 CYLINDER,EXTENSION (FRONT)
PC1050222-00 CYLINDER,EXTENSION (REAR)
PC1100235-01 OPE.ASSY,OUTRIGGER
PC1190042-01 INDICATOR,OUTRIGGER
PC1200413-07 PIPING,OUTRIGGER
PC1380015-01 DETECTOR,OUTRIGGER LENGTH
PC5150046-00 CASE ASSY,INNER (REAR)
PC5150047-00 CASE ASSY,INNER (F,L)
PC5150048-00 CASE ASSY,INNER (F,R)
PC5150049-00 CASE ASSY,INNER (REAR)
PC5150097-00 CASE ASSY,INNER (F,L)
PC5150098-00 CASE ASSY,INNER (F,R)
PC5150114-00 CASE ASSY,INNER (F,L)
PC5150115-00 CASE ASSY,INNER (F,R)
PC5150116-00 CASE ASSY,INNER (REAR)
PC5420023-00 CONTROLLER
PC5570165-00 COVER ASSY
PC5570166-00 COVER ASSY
PC6370037-00 CYLINDER ASSY,DERRICK
PC6400005-00 CYLINDER ASSY,LEVELING
PC6400006-00 CYLINDER ASSY,LEVELING
PC6400007-00 CYLINDER ASSY,LEVELING (LOWER)
PD1010160-00 REDUCER,SWING SPEED
PD1020021-01 SWING UNIT
PD5020025-00 DERRICK ASSY
PE1010367-03 CYLINDER,ELEVATING
PE1050083-01 CYLINDER,LEVELING (LOWER)
PE1050114-01 CYLINDER,LEVELING (UPPER)
PE1070036-01 CYLINDER,ARTICULATING
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1010856-03 BOOM
PG1010918-03 BOOM
PG1040266-05 JIB
PG1050365-04 CYLINDER,TELESCOPING
PG1130136-00 DETECTOR,BOOM LENGTH
PG1220135-01 PIPING,BOOM
PG1220150-04 PIPING,BOOM
PG1400120-01 PIPING,JIB
PH1140039-03 DETECTOR,SWING ANGLE
PH1480044-00 MOTION CONTROLLER (AMC)
PH1490001-03 DETECTOR,ANGLE
PH5030773-00 HARNESS
PH5031072-00 HARNESS
PH5031073-00 HARNESS
PH5031078-00 HARNESS
PH5031370-00 HARNESS
PH5031372-00 HARNESS (FOR DETECTOR,O/R LENGTH)
PH5031373-00 HARNESS (FOR DETECTOR,O/R LENGTH)
PH5031374-00 HARNESS
PH5031375-00 HARNESS
AT-157-1 43002100008 UPPER
PH5031596-00 HARNESS
PH5032447-01 HARNESS
PH5032641-00 HARNESS
PH5034232-00 HARNESS
PH5034497-00 HARNESS
PH5034553-00 HARNESS
PH5034554-00 HARNESS
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1100007-00 VALVE,RELIEF
PI1100122-00 VALVE,RELIEF
PI1100134-01 VALVE,RELIEF
PI1100135-00 VALVE,RELIEF
PI1140094-01 VALVE,CHECK
PI1140133-01 VALVE,CHECK
PI1140158-00 VALVE,CHECK
PI1140164-01 VALVE,CHECK (MORIKAWA GAUGE)
PI1140213-00 VALVE,CHECK
PI1140227-00 VALVE,CHECK
PI1250135-00 VALVE,COUNTERBALANCE
PI1250137-00 VALVE,COUNTERBALANCE
PI1250141-00 VALVE,COUNTERBALANCE
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3010265-02 BUCKET
PJ3040029-00 OPE.ASSY
PK1011040-00 FRAME
PK1100345-01 SWING FRAME
PK1200354-04 COVER,SWING FRAME
PK1200397-02 COVER,SWING FRAME
PL1100223-03 BOX,OPERATION (WITH DATA)
PL5330001-00 LAMP (EMERGENCY SIGNAL)
PM5230001-01 MOTOR,OIL
PN1012525-02 ELEC.ASSY (BOOM,DETECTOR)
PN1012739-02 ELEC.ASSY (BOOM)
PN1012740-06 ELEC.ASSY (JIB)
PN1012742-04 ELEC.ASSY (SWING FRAME)
PN1012756-03 ELEC.ASSY (FRAME)
PN1013845-02 ELEC.ASSY (BUCKET)
PN1020041-00 POWER SOURCE
PN1080252-00 LAMP (BOOM REST)
PN1110417-03 RELAY ASSY
PN1140161-00 SWITCH ASSY (WITH HARNESS,4 SWICH)
PN1350029-01 REEL,CORD (FOR EARTHING)
PO1012229-02 PLATE ASSY,NAME (HYDRAULIC OIL)
PO1013425-02 PLATE ASSY,NAME
PO1014336-02 PLATE ASSY,NAME (BUCKET)
PP5100064-00 PARTS ASSY,ELECTRICITY
PP5450003-00 PUMP,GREASE (240CC)
PP5450004-00 PUMP,GREASE (400CC)
PP6330013-01 PIPING ASSY,SWING FRAME
PS5530450-00 SWITCH ASSY
PV1020268-02 VALVE,REMOTE CONTROL
PV5010001-00 VALVE ASSY
PV5040021-00 VALVE ASSY,CHECK
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140019-00 VALVE ASSY,RELIEF
PV5170018-00 VALVE ASSY,SELECTOR
PW1010419-00 ACCESSORIES
PW1030049-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1270125-00 WOOD BLOCK (WITH RUBBER,T=100)
AT-157-1 43002100008 UPPER
PX1350738-01 BOX,TOOL (MOUNT)
PX1490013-00 FIRE EXTINGUISHER
PX1810220-00 MOUNT,SUPPORT
PX1940162-00 MOUNT (PLATE/EARTH)
PY1090001-00 BELT,SAFETY
PY1180280-05 LAMP (O/R FLICKER)
PY1650080-00 EARTHING DEVICE
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
