Tadano Crane AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 322
Downloadable : Yes
File Type : PDF
Size: 4.21 MB

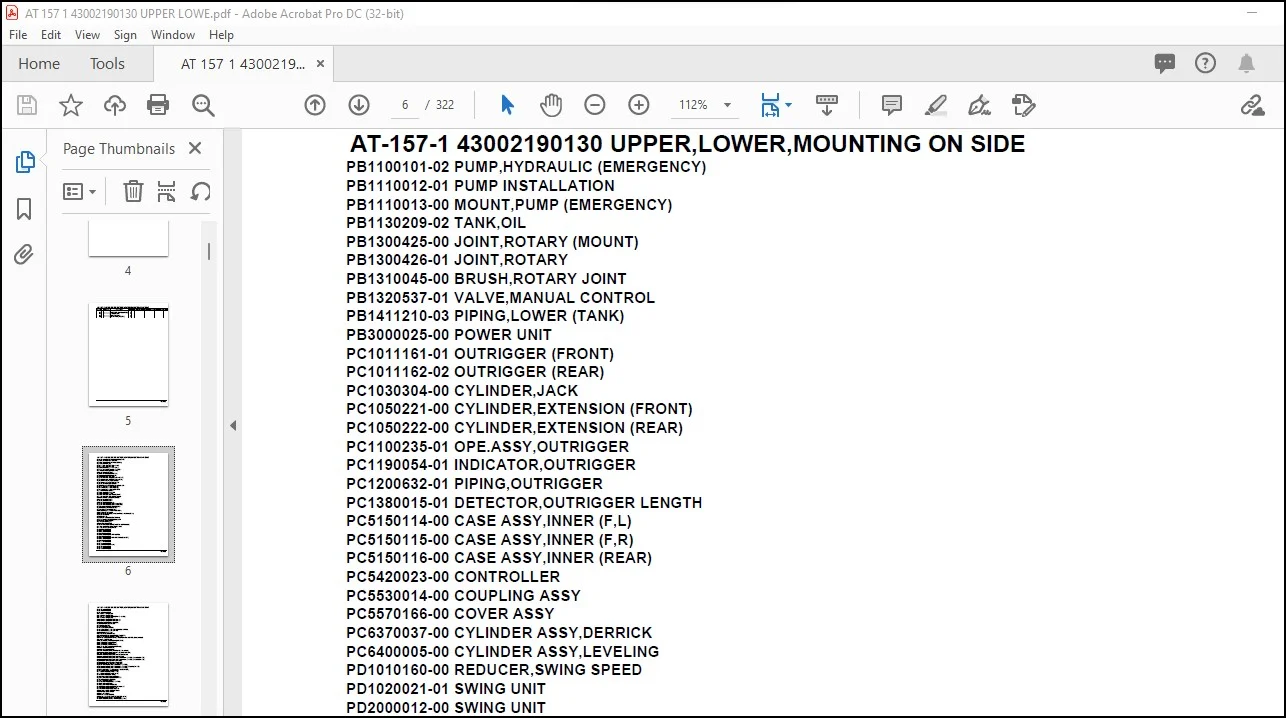

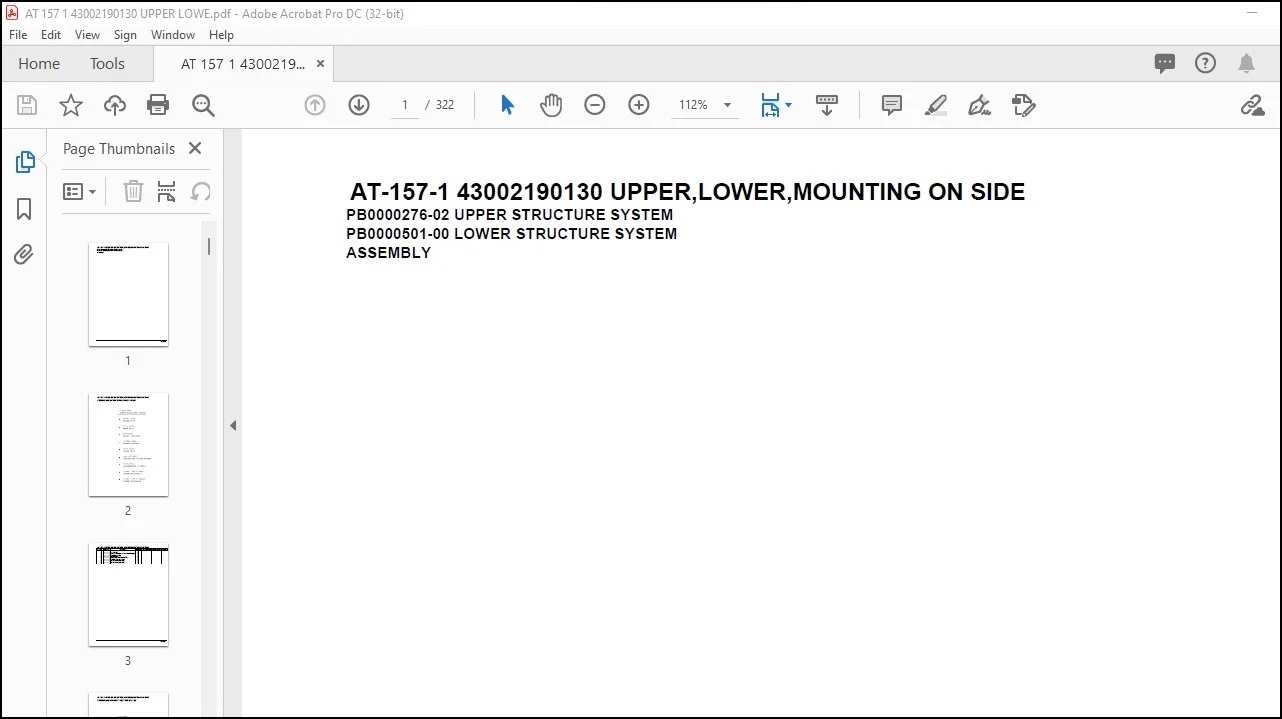

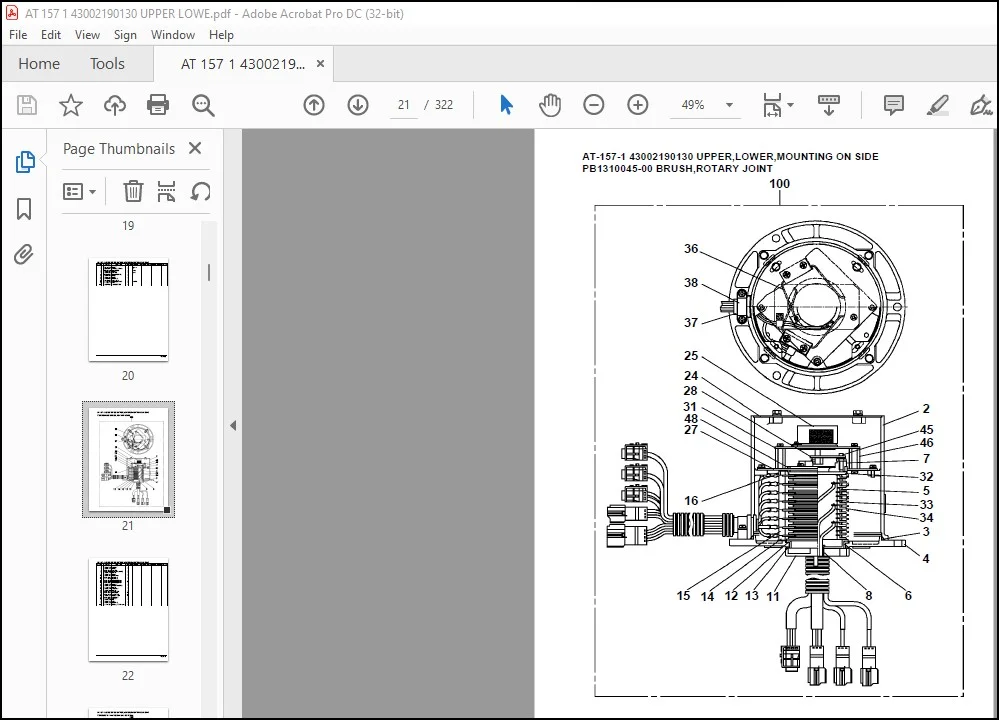

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE Parts Catalog Manual – PDF DOWNLOAD

AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE
PB0000276-02 UPPER STRUCTURE SYSTEM
PB0000501-00 LOWER STRUCTURE SYSTEM
ASSEMBLY

AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1110012-01 PUMP INSTALLATION
PB1110013-00 MOUNT,PUMP (EMERGENCY)
PB1130209-02 TANK,OIL
PB1300425-00 JOINT,ROTARY (MOUNT)
PB1300426-01 JOINT,ROTARY
PB1310045-00 BRUSH,ROTARY JOINT
PB1320537-01 VALVE,MANUAL CONTROL
PB1411210-03 PIPING,LOWER (TANK)
PB3000025-00 POWER UNIT
PC1011161-01 OUTRIGGER (FRONT)
PC1011162-02 OUTRIGGER (REAR)
PC1030304-00 CYLINDER,JACK
PC1050221-00 CYLINDER,EXTENSION (FRONT)
PC1050222-00 CYLINDER,EXTENSION (REAR)
PC1100235-01 OPE.ASSY,OUTRIGGER
PC1190054-01 INDICATOR,OUTRIGGER
PC1200632-01 PIPING,OUTRIGGER
PC1380015-01 DETECTOR,OUTRIGGER LENGTH
PC5150114-00 CASE ASSY,INNER (F,L)
PC5150115-00 CASE ASSY,INNER (F,R)
PC5150116-00 CASE ASSY,INNER (REAR)
PC5420023-00 CONTROLLER
PC5530014-00 COUPLING ASSY
PC5570166-00 COVER ASSY
PC6370037-00 CYLINDER ASSY,DERRICK
PC6400005-00 CYLINDER ASSY,LEVELING
PD1010160-00 REDUCER,SWING SPEED
PD1020021-01 SWING UNIT
PD2000012-00 SWING UNIT
PD5020025-00 DERRICK ASSY
PE1050083-01 CYLINDER,LEVELING (LOWER)
PE1050114-01 CYLINDER,LEVELING (UPPER)
PE1070036-01 CYLINDER,ARTICULATING
PE5070122-01 ELEC.ASSY,CARRIER
PE5110070-02 ELEC.ASSY,FRAME
PF1100004-01 LOAD HANDING ASSY (EXP.)
PF5100370-00 FRAME ASSY
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1010918-03 BOOM
PG1040266-05 JIB
PG1050365-04 CYLINDER,TELESCOPING
PG1130136-00 DETECTOR,BOOM LENGTH
PG1220150-04 PIPING,BOOM
PG1400120-01 PIPING,JIB
PG2000137-01 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PH1480044-00 MOTION CONTROLLER (AMC)
PH1490001-03 DETECTOR,ANGLE
PH5030971-01 HARNESS
PH5031072-00 HARNESS
PH5031073-00 HARNESS
PH5031078-00 HARNESS
PH5031298-00 HARNESS (WITH SWITCH)
PH5031370-00 HARNESS
PH5031373-00 HARNESS (FOR DETECTOR,O/R LENGTH)
PH5031374-00 HARNESS
PH5031375-00 HARNESS
PH5032447-01 HARNESS
PH5032641-00 HARNESS
PH5032971-00 HARNESS (MAIN)
PH5032990-00 HARNESS
PH5034137-00 HARNESS
PH5034148-00 HARNESS
AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE
PH5034365-00 HARNESS
PH5034553-00 HARNESS
PH5034554-00 HARNESS
PI1140133-01 VALVE,CHECK
PI1140158-00 VALVE,CHECK
PI1140164-01 VALVE,CHECK (MORIKAWA GAUGE)
PI1140227-00 VALVE,CHECK
PI1250135-00 VALVE,COUNTERBALANCE
PI1250137-00 VALVE,COUNTERBALANCE
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3000178-01 BASKET SYSTEM
PJ3010173-05 BASKET
PJ3040029-00 OPE.ASSY
PK1100345-01 SWING FRAME
PK1200375-03 COVER,SWING FRAME (MODIF./OPTION)
PK1200397-02 COVER,SWING FRAME
PK2002007-00 FRAME UNIT
PL1020062-00 LEVER,CONTROL
PL1031110-01 OPE.ASSY,ACCELERATOR (MOTOR)
PL1100223-03 BOX,OPERATION (WITH DATA)
PM5150752-00 MODIFICATION ASSY (PROPORTIONAL CONTROL/ENG.&CHINESE)
PM5230001-01 MOTOR,OIL
PN1012525-02 ELEC.ASSY (BOOM,DETECTOR)
PN1012739-02 ELEC.ASSY (BOOM)
PN1012740-06 ELEC.ASSY (JIB)
PN1012741-06 ELEC.ASSY (BASKET)
PN1012742-04 ELEC.ASSY (SWING FRAME)
PN1080117-02 LAMP (BASKET)
PN1080309-05 LAMP (YELLOW)
PN1140161-00 SWITCH ASSY (WITH HARNESS,4 SWICH)
PN1180023-01 CONTROLLER (AC2/ADJUSTING PUMP REV.)
PN1410014-00 MOTOR,ELECTRIC
PN5011508-02 NAME PLATE ASSY (VEHICLE/ENGLISH)
PN5011509-00 NAME PLATE ASSY (INSIDE CAB)
PN5011679-00 NAME PLATE ASSY (PROPORTIONAL CONTROL/ENGLISH&CHINESE)
PN5011680-00 NAME PLATE ASSY (PROPORTIONAL CONTROL/ENGLISH&CHINESE)
PO1000182-00 INDICATION PLATES (UPPER)
PO1000183-00 INDICATION PLATES (LOWER)
PO1013908-02 PLATE ASSY,NAME (BASKET)
PO5010047-00 OPE.ASSY (PROPORTIONAL CONTROL)
PO5010048-00 OPE.ASSY (PROPORTIONAL CONTROL/ENGLISH&CHINESE)
PO5010049-00 OPE.ASSY (PROPORTIONAL CONTROL)
PO5260118-00 OUTER COVERING ASSY (SWING TABLE)
PP5020040-01 PANEL ASSY,CONTROL
PP5450003-00 PUMP,GREASE (240CC)
PP5450004-00 PUMP,GREASE (400CC)
PP5500003-00 PUMP,OIL (32CC:L)
PP6210049-00 PIPING ASSY,MOUNTING
PP6330013-01 PIPING ASSY,SWING FRAME
PR5100097-00 RELAY BOX ASSY
PS5530450-00 SWITCH ASSY
PV1020268-02 VALVE,REMOTE CONTROL
PV5010001-00 VALVE ASSY
PV5040021-00 VALVE ASSY,CHECK
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140019-00 VALVE ASSY,RELIEF
PV5170018-00 VALVE ASSY,SELECTOR
PW1000109-01 ACCESSORIES & TOOLS
PW1010252-03 ACCESSORIES
PW1030049-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1270125-00 WOOD BLOCK (WITH RUBBER,T=100)
AT-157-1 43002190130 UPPER,LOWER,MOUNTING ON SIDE
PX1410189-01 MOUNT,TIRE
PX2001758-00 CARRIER UNIT
PX3000745-00 MOUNTING UNIT
PX5110060-00 MOUNT ASSY,BOOM SUPPORT
PX5280020-00 MOUNT ASSY,DECK (FENDER)
PX5480001-00 MOUNT ASSY,LIFTING DEVICE
PX5580009-00 MOUNT ASSY,PTO
PX5650021-00 MOUNT ASSY,SIDE GUARD
PX5740045-00 MOUNT ASSY,TAIL LAMP
PX5820114-00 MOUNT ASSY,WEIGHT
PY1001806-01 OPTION UNIT,1 (UPPER)
PY1090001-00 BELT,SAFETY
PY1890015-00 COVER,CYLINDER
PY2000126-02 OPTION UNIT,2 (UPPER)
PY5000006-00 OPTION UNIT,2 (LOWER)
