Tadano Crane AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3 Spare Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3 Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3 Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 119
Downloadable : Yes
File Type : PDF
Size: 1.24 MB

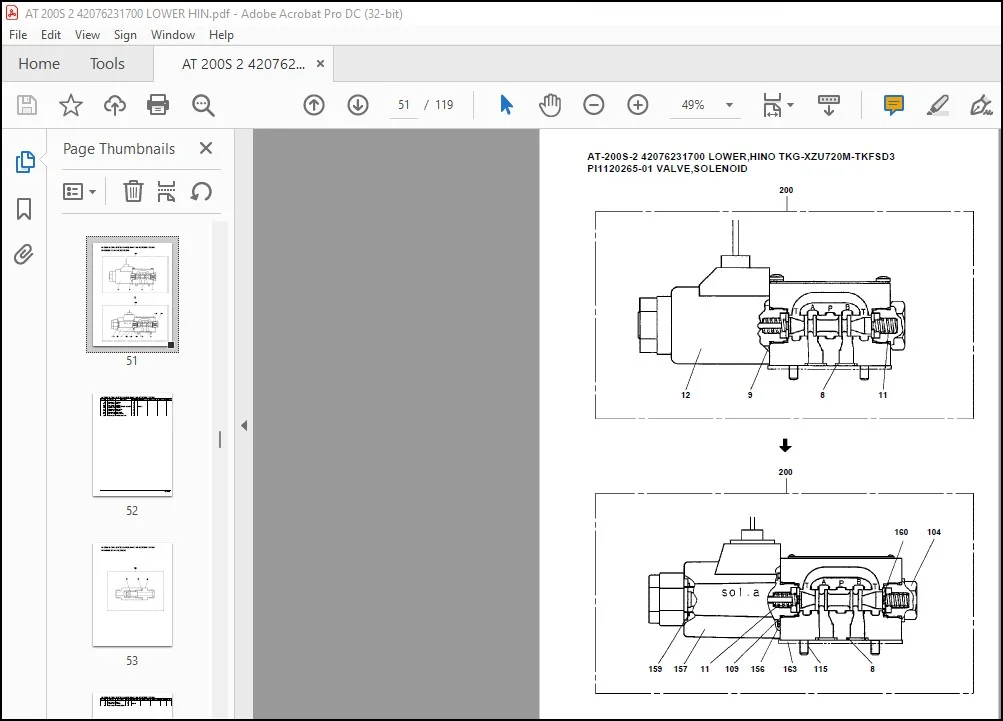

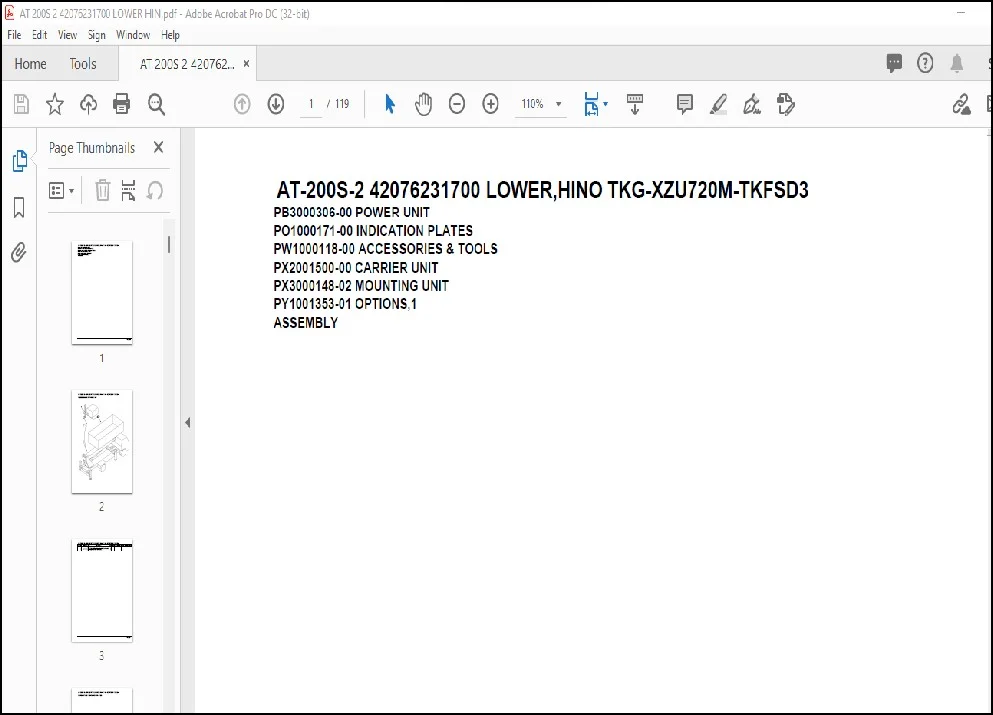

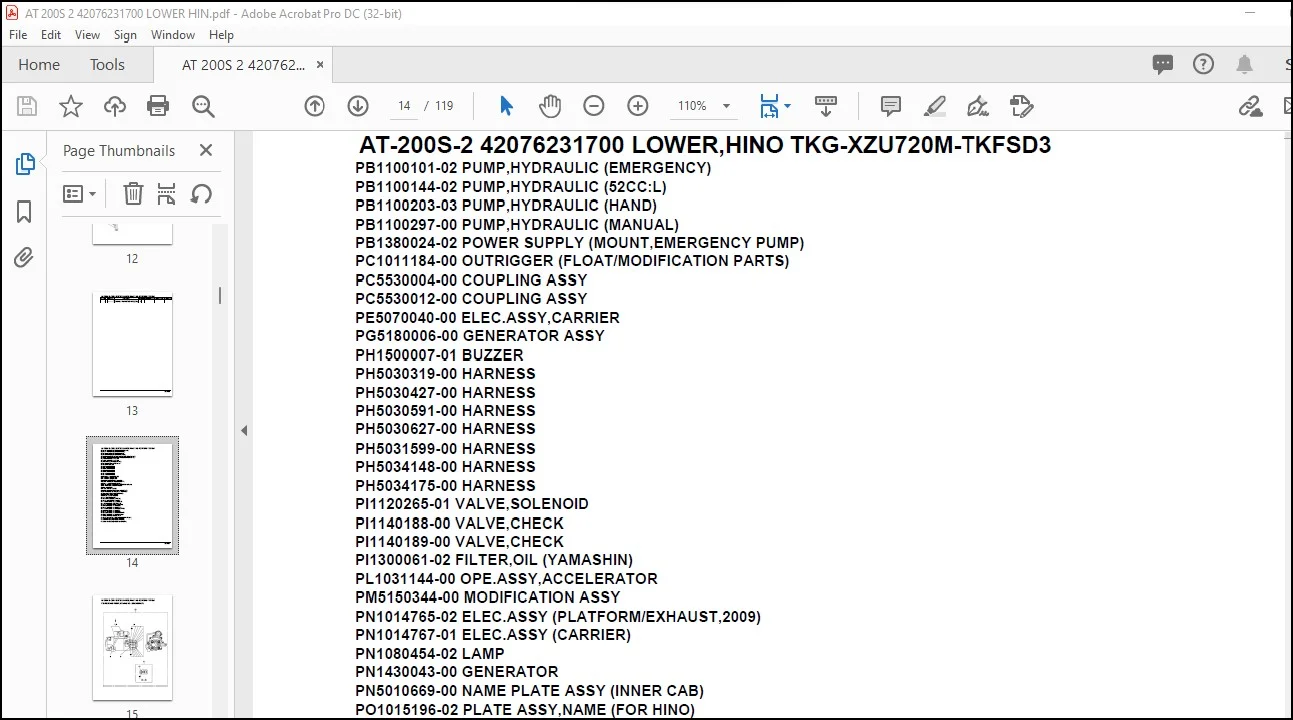

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3 Spare Parts Manual – PDF DOWNLOAD

AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3
PB3000306-00 POWER UNIT
PO1000171-00 INDICATION PLATES
PW1000118-00 ACCESSORIES & TOOLS
PX2001500-00 CARRIER UNIT
PX3000148-02 MOUNTING UNIT
PY1001353-01 OPTIONS,1
ASSEMBLY

AT-200S-2 42076231700 LOWER,HINO TKG-XZU720M-TKFSD3
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100203-03 PUMP,HYDRAULIC (HAND)
PB1100297-00 PUMP,HYDRAULIC (MANUAL)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PC1011184-00 OUTRIGGER (FLOAT/MODIFICATION PARTS)
PC5530004-00 COUPLING ASSY
PC5530012-00 COUPLING ASSY
PE5070040-00 ELEC.ASSY,CARRIER
PG5180006-00 GENERATOR ASSY
PH1500007-01 BUZZER
PH5030319-00 HARNESS
PH5030427-00 HARNESS
PH5030591-00 HARNESS
PH5030627-00 HARNESS
PH5031599-00 HARNESS
PH5034148-00 HARNESS
PH5034175-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1140188-00 VALVE,CHECK
PI1140189-00 VALVE,CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1031144-00 OPE.ASSY,ACCELERATOR
PM5150344-00 MODIFICATION ASSY
PN1014765-02 ELEC.ASSY (PLATFORM/EXHAUST,2009)
PN1014767-01 ELEC.ASSY (CARRIER)
PN1080454-02 LAMP
PN1430043-00 GENERATOR
PN5010669-00 NAME PLATE ASSY (INNER CAB)
PO1015196-02 PLATE ASSY,NAME (FOR HINO)
PP6210023-00 PIPING ASSY,MOUNTING
PW1010252-03 ACCESSORIES
PW1050011-00 STOPPER,TIRE
PX1120475-00 BOOM REST
PX1360076-00 REFLECTOR (REAR)
PX1360077-01 REFLECTOR (SIDE)
PX1460003-02 MOUNT,COMPRESSOR
PX1480039-01 MOUNT,GENERATOR
PX1650012-01 BUMPER IMSTALLATION
PX5280040-01 MOUNT ASSY,DECK
PX5360037-01 MOUNT ASSY,FRAME
PX5420016-03 MOUNT ASSY,GENERATOR
PX5580004-00 MOUNT ASSY,PTO
PX5590017-00 MOUNT ASSY,PUMP
PX5650023-00 MOUNT ASSY,SIDE GUARD
PX5740017-01 MOUNT ASSY,TAIL LAMP
PY1380068-00 COMPRESSOR ASSY
PY1560072-00 ALARM SYSTEM (HINO:EXHAUST,2008)
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
