Tadano crane AT-230-1 42014130200 LOWER HINO P-FD162CA Spare Parts Manual – PDF DOWNLOAD

Description

Tadano crane AT-230-1 42014130200 LOWER HINO P-FD162CA Spare Parts Manual – PDF DOWNLOAD

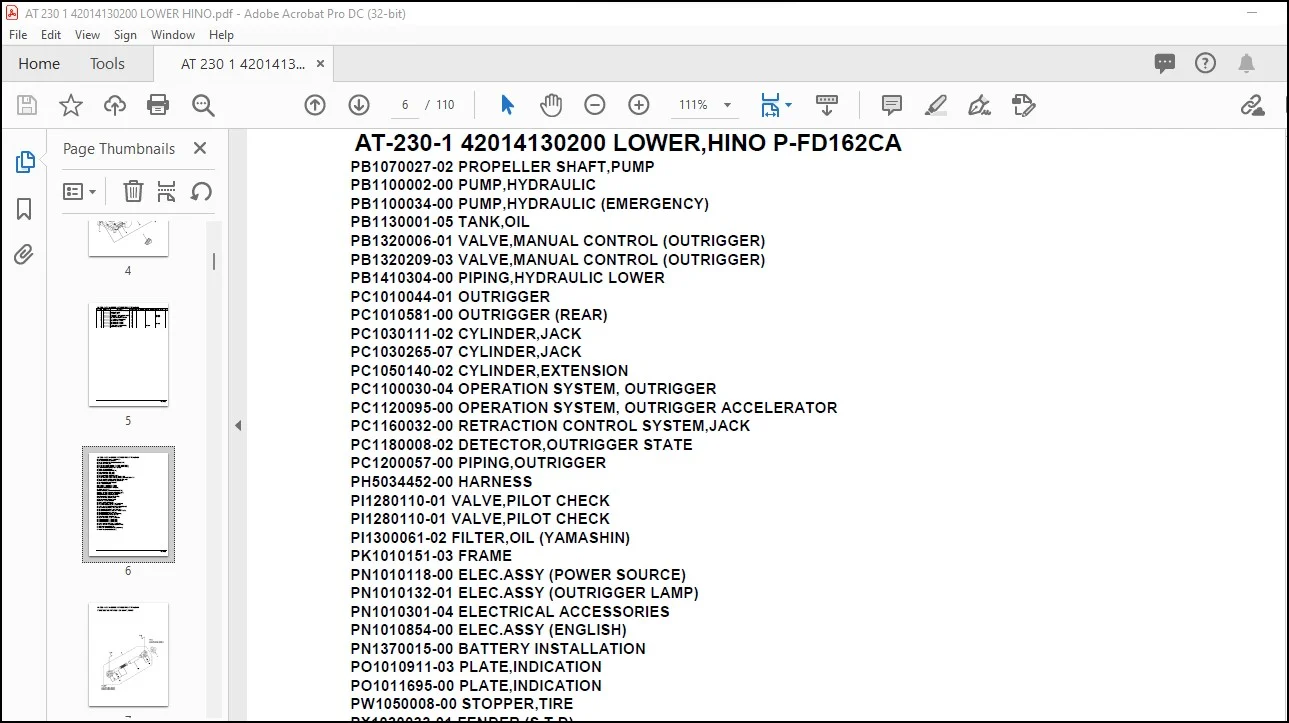

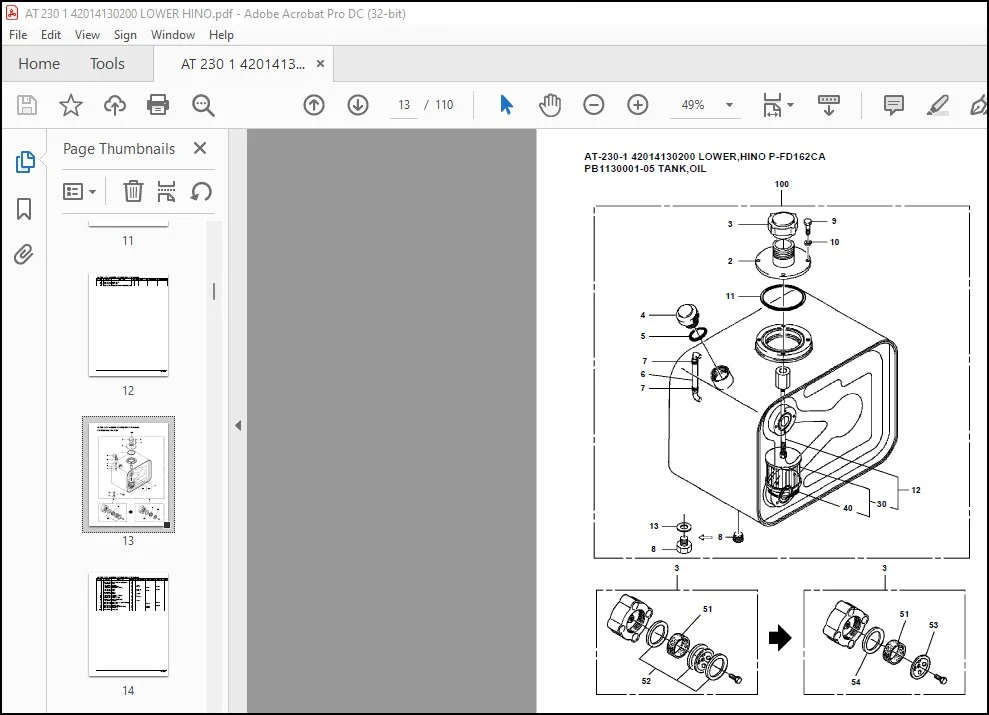

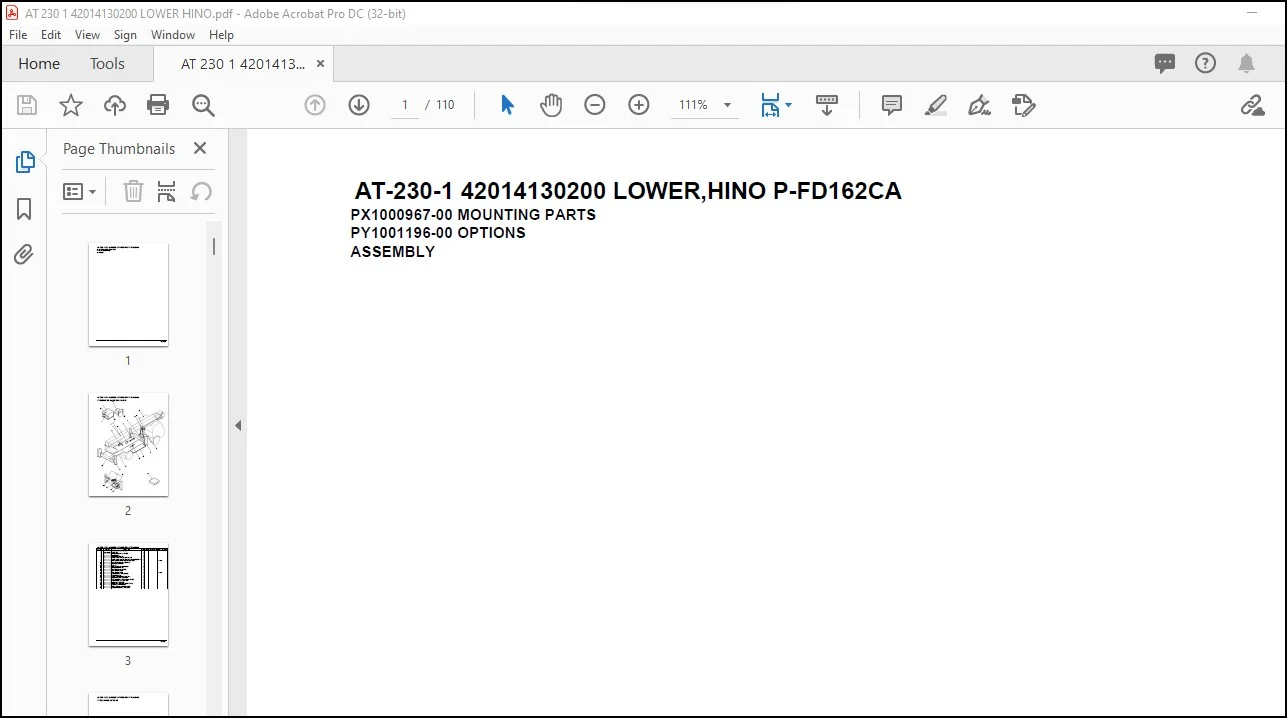

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano crane AT-230-1 42014130200 LOWER HINO P-FD162CA Spare Parts Manual – PDF DOWNLOAD
Language : English
Pages :110
Downloadable : Yes
File Type : PDF
Size:1.57 MB
TABLE OF CONTENTS:

Tadano crane AT-230-1 42014130200 LOWER HINO P-FD162CA Spare Parts Manual – PDF DOWNLOAD

AT-230-1 42014130200 LOWER,HINO P-FD162CA
PX1000967-00 MOUNTING PARTS
PY1001196-00 OPTIONS
ASSEMBLY

AT-230-1 42014130200 LOWER,HINO P-FD162CA
PB1070027-02 PROPELLER SHAFT,PUMP
PB1100002-00 PUMP,HYDRAULIC
PB1100034-00 PUMP,HYDRAULIC (EMERGENCY)
PB1130001-05 TANK,OIL
PB1320006-01 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320209-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1410304-00 PIPING,HYDRAULIC LOWER
PC1010044-01 OUTRIGGER
PC1010581-00 OUTRIGGER (REAR)
PC1030111-02 CYLINDER,JACK
PC1030265-07 CYLINDER,JACK
PC1050140-02 CYLINDER,EXTENSION
PC1100030-04 OPERATION SYSTEM, OUTRIGGER
PC1120095-00 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1160032-00 RETRACTION CONTROL SYSTEM,JACK
PC1180008-02 DETECTOR,OUTRIGGER STATE
PC1200057-00 PIPING,OUTRIGGER
PH5034452-00 HARNESS
PI1280110-01 VALVE,PILOT CHECK
PI1280110-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010151-03 FRAME
PN1010118-00 ELEC.ASSY (POWER SOURCE)
PN1010132-01 ELEC.ASSY (OUTRIGGER LAMP)
PN1010301-04 ELECTRICAL ACCESSORIES
PN1010854-00 ELEC.ASSY (ENGLISH)
PN1370015-00 BATTERY INSTALLATION
PO1010911-03 PLATE,INDICATION
PO1011695-00 PLATE,INDICATION
PW1050008-00 STOPPER,TIRE
PX1030033-01 FENDER (S.T.D)
PX1100031-00 TANK SUPPORT INSTALLATION
PX1120038-00 BOOM REST INSTALLATION
PX1170042-00 ATTACHMENT PARTS, CRANE FRAME
PX1200024-00 SIDE GUARD INSTALLATION
PX1200122-00 SIDE GUARD INSTALLATION
PX1220007-01 PUMP INSTALLATION (EMERGENCY)
PX1220139-01 PUMP INSTALLATION
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1290103-00 WEIGHT INSTALLATION
PX1310078-00 MOUNT,LAMP (TAIL)
PX1350172-00 TOOL BOX INSTALLATION
PX1370062-00 GUARD,CAB (OPTION)
PX1370063-00 GUARD,CAB (OPTION)
PX1370064-00 GUARD,CAB (OPTION)
PX1370072-00 CAB GUARD INSTALLATION
PX1390037-00 PARTS,CHASSIS MODIFICATION
PY1180024-00 LAMP (FLICKER)
PY1180025-04 LAMP (BOOM REST,WORKING)
PY1180101-00 LAMP (BOOM REST)
