Spare Parts Catalog for Tadano Crane AT-255-1 42098131600 PDF Download

Description

Tadano Crane AT-255-1 42098131600 LOWER,HINO SKG-FC9JGAA-SKD Spare Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-255-1 42098131600 LOWER,HINO SKG-FC9JGAA-SKD Spare Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 85
Downloadable : Yes
File Type : PDF
Size: 0.92 MB

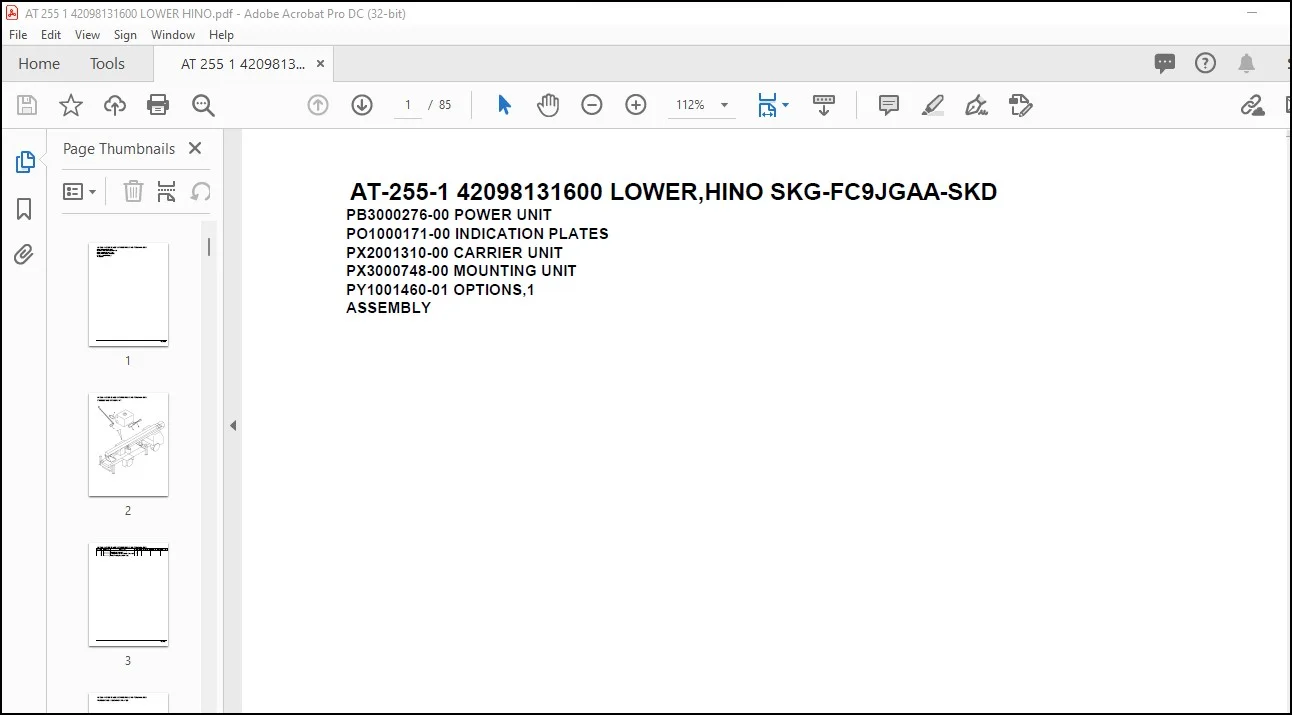

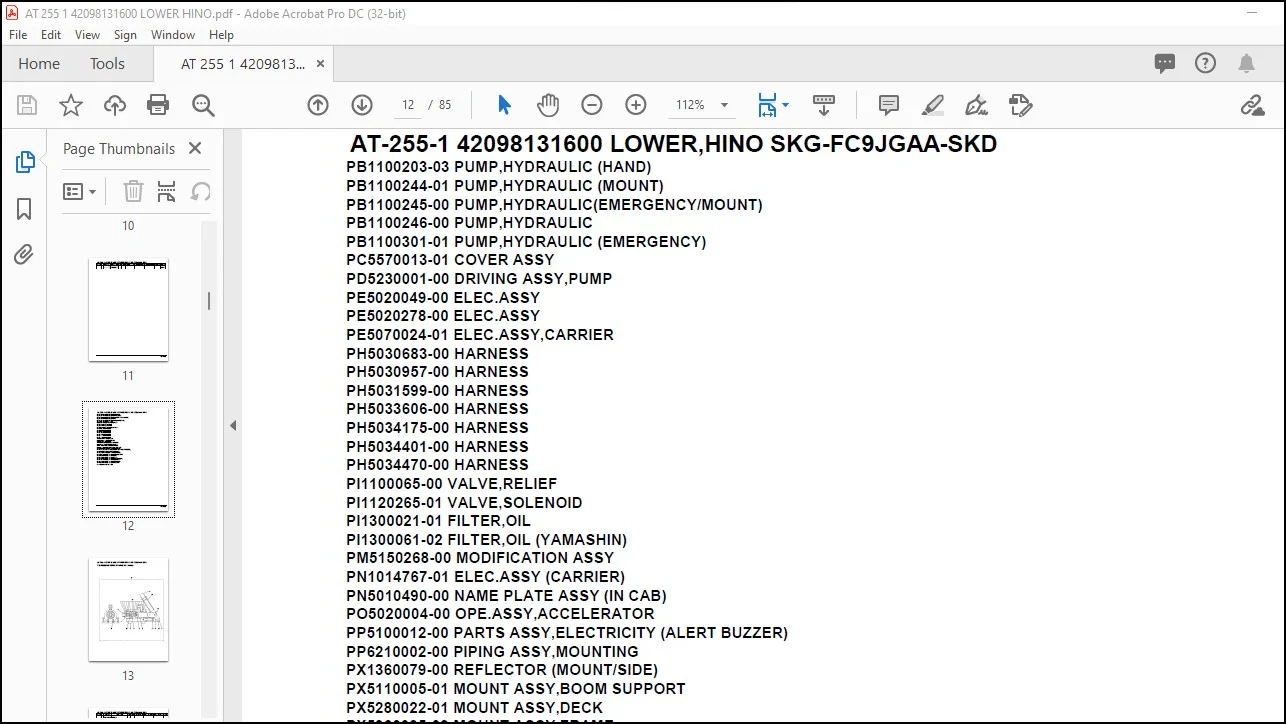

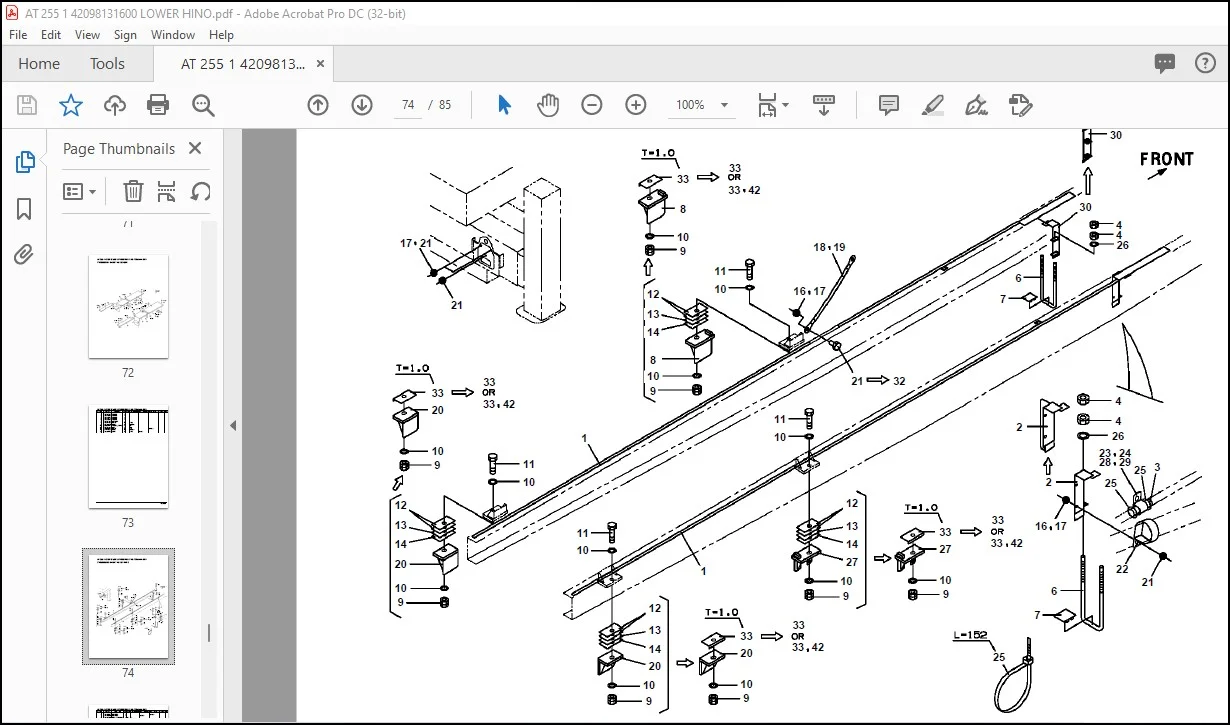

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-255-1 42098131600 LOWER,HINO SKG-FC9JGAA-SKD Spare Parts Catalog Manual – PDF DOWNLOAD

AT-255-1 42098131600 LOWER,HINO SKG-FC9JGAA-SKD
PB3000276-00 POWER UNIT
PO1000171-00 INDICATION PLATES
PX2001310-00 CARRIER UNIT
PX3000748-00 MOUNTING UNIT
PY1001460-01 OPTIONS,1
ASSEMBLY

AT-255-1 42098131600 LOWER,HINO SKG-FC9JGAA-SKD
PB1100203-03 PUMP,HYDRAULIC (HAND)
PB1100244-01 PUMP,HYDRAULIC (MOUNT)
PB1100245-00 PUMP,HYDRAULIC(EMERGENCY/MOUNT)
PB1100246-00 PUMP,HYDRAULIC
PB1100301-01 PUMP,HYDRAULIC (EMERGENCY)
PC5570013-01 COVER ASSY
PD5230001-00 DRIVING ASSY,PUMP
PE5020049-00 ELEC.ASSY
PE5020278-00 ELEC.ASSY
PE5070024-01 ELEC.ASSY,CARRIER
PH5030683-00 HARNESS
PH5030957-00 HARNESS
PH5031599-00 HARNESS
PH5033606-00 HARNESS
PH5034175-00 HARNESS
PH5034401-00 HARNESS
PH5034470-00 HARNESS
PI1100065-00 VALVE,RELIEF
PI1120265-01 VALVE,SOLENOID
PI1300021-01 FILTER,OIL
PI1300061-02 FILTER,OIL (YAMASHIN)
PM5150268-00 MODIFICATION ASSY
PN1014767-01 ELEC.ASSY (CARRIER)
PN5010490-00 NAME PLATE ASSY (IN CAB)
PO5020004-00 OPE.ASSY,ACCELERATOR
PP5100012-00 PARTS ASSY,ELECTRICITY (ALERT BUZZER)
PP6210002-00 PIPING ASSY,MOUNTING
PX1360079-00 REFLECTOR (MOUNT/SIDE)
PX5110005-01 MOUNT ASSY,BOOM SUPPORT
PX5280022-01 MOUNT ASSY,DECK
PX5360035-03 MOUNT ASSY,FRAME
PX5590007-00 MOUNT ASSY,PUMP (MANUAL)
PX5620005-01 MOUNT ASSY,REFLECTOR
PX5650022-00 MOUNT ASSY,SIDE GUARD
PX5740015-03 MOUNT ASSY,TAIL LAMP
PY5170004-00 ALARM ASSY
