Tadano Crane AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 61
Downloadable : Yes
File Type : PDF
Size: 0.74 MB

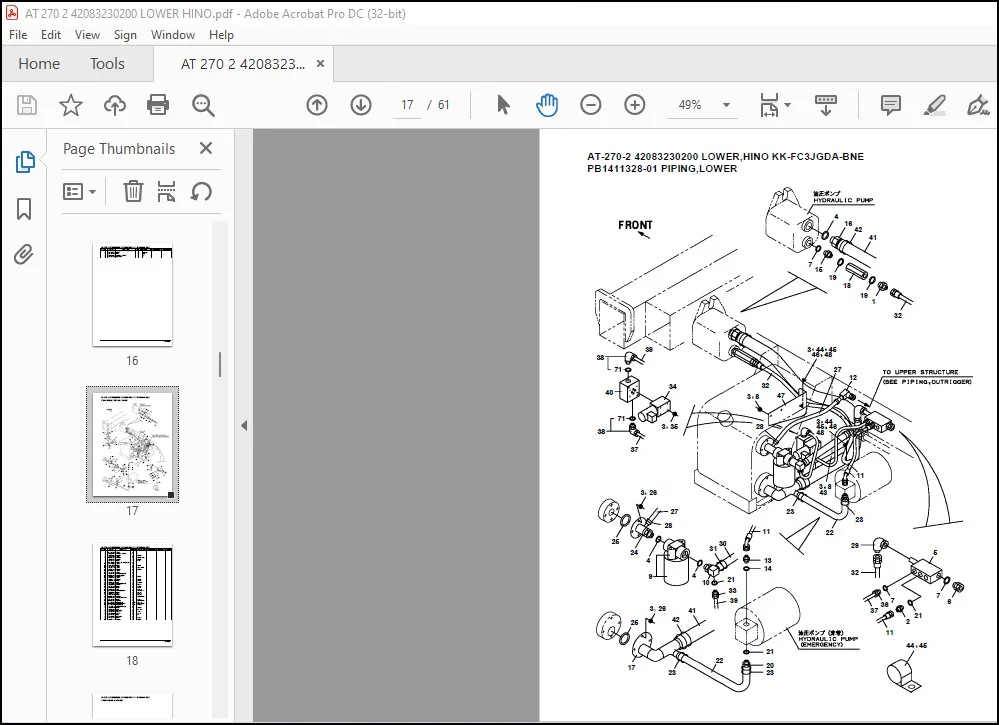

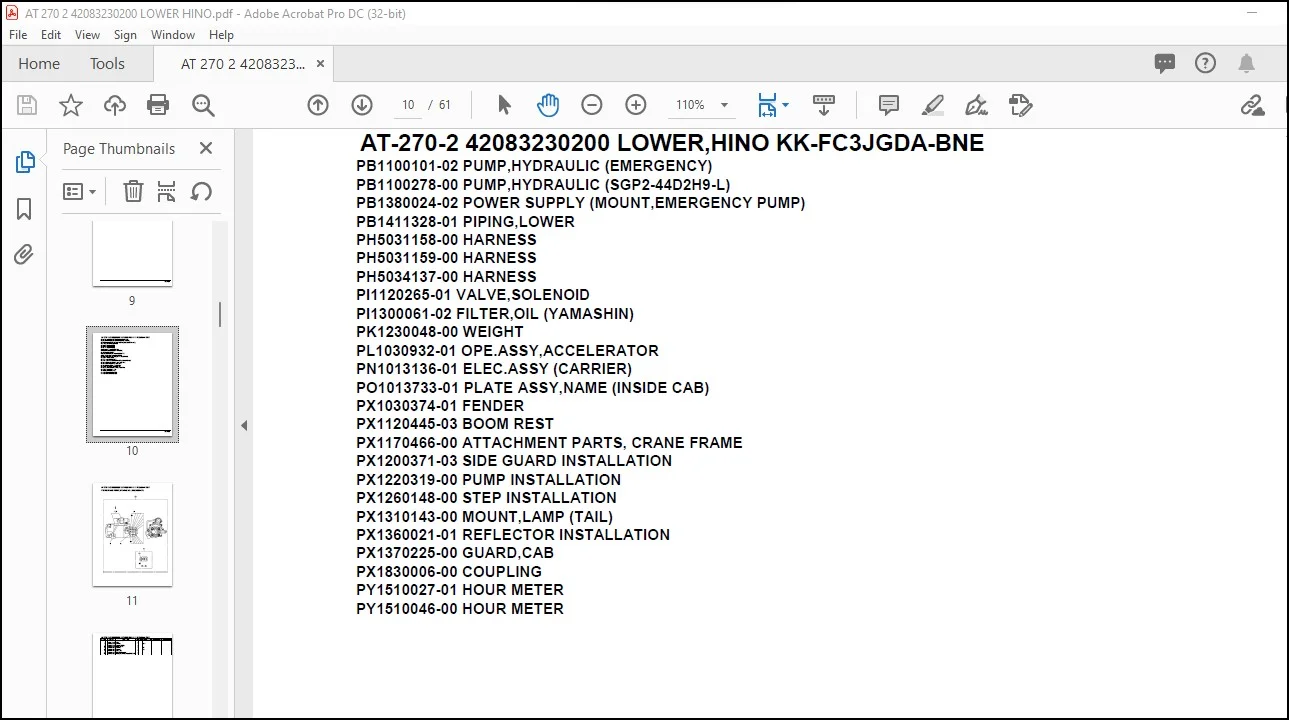

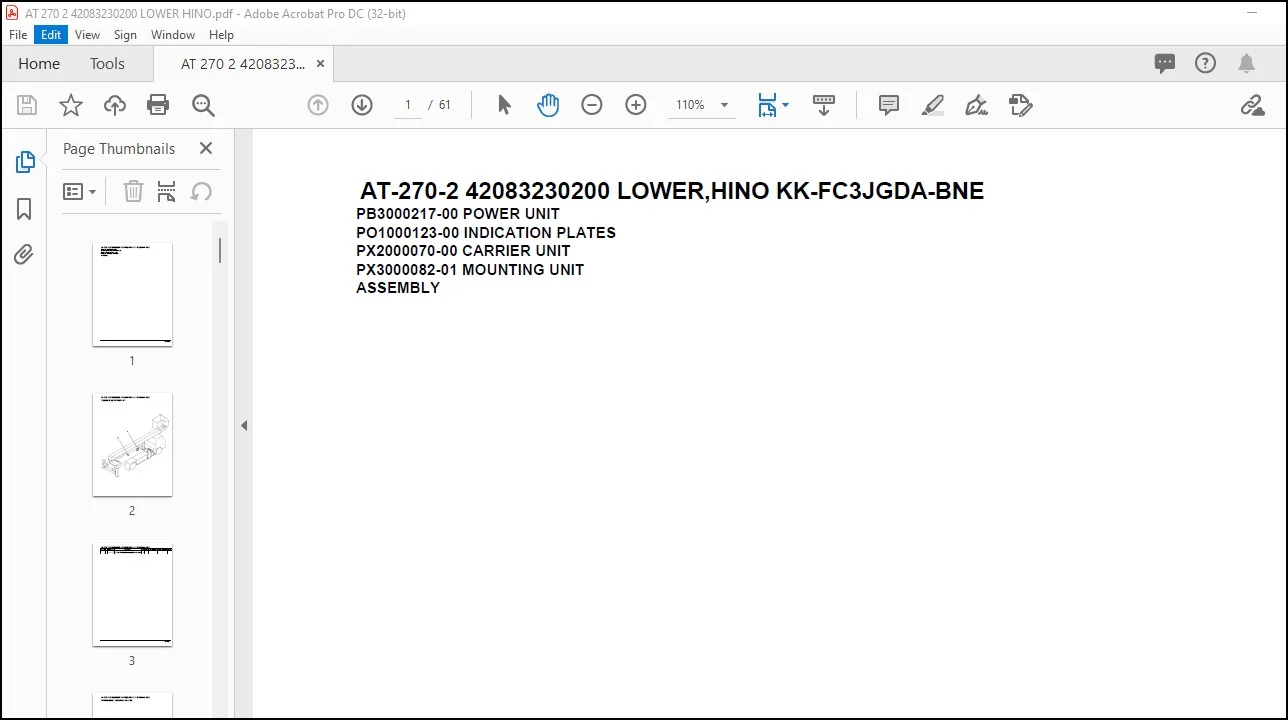

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE Parts Catalog Manual – PDF DOWNLOAD

AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE
PB3000217-00 POWER UNIT
PO1000123-00 INDICATION PLATES
PX2000070-00 CARRIER UNIT
PX3000082-01 MOUNTING UNIT
ASSEMBLY

AT-270-2 42083230200 LOWER,HINO KK-FC3JGDA-BNE
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411328-01 PIPING,LOWER
PH5031158-00 HARNESS
PH5031159-00 HARNESS
PH5034137-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1230048-00 WEIGHT
PL1030932-01 OPE.ASSY,ACCELERATOR
PN1013136-01 ELEC.ASSY (CARRIER)
PO1013733-01 PLATE ASSY,NAME (INSIDE CAB)
PX1030374-01 FENDER
PX1120445-03 BOOM REST
PX1170466-00 ATTACHMENT PARTS, CRANE FRAME
PX1200371-03 SIDE GUARD INSTALLATION
PX1220319-00 PUMP INSTALLATION
PX1260148-00 STEP INSTALLATION
PX1310143-00 MOUNT,LAMP (TAIL)
PX1360021-01 REFLECTOR INSTALLATION
PX1370225-00 GUARD,CAB
PX1830006-00 COUPLING
PY1510027-01 HOUR METER
PY1510046-00 HOUR METER
