Tadano Crane AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M Parts Manual – PDF DOWNLOAD

Language : English
Pages : 101
Downloadable : Yes
File Type : PDF
Size: 1.04 MB

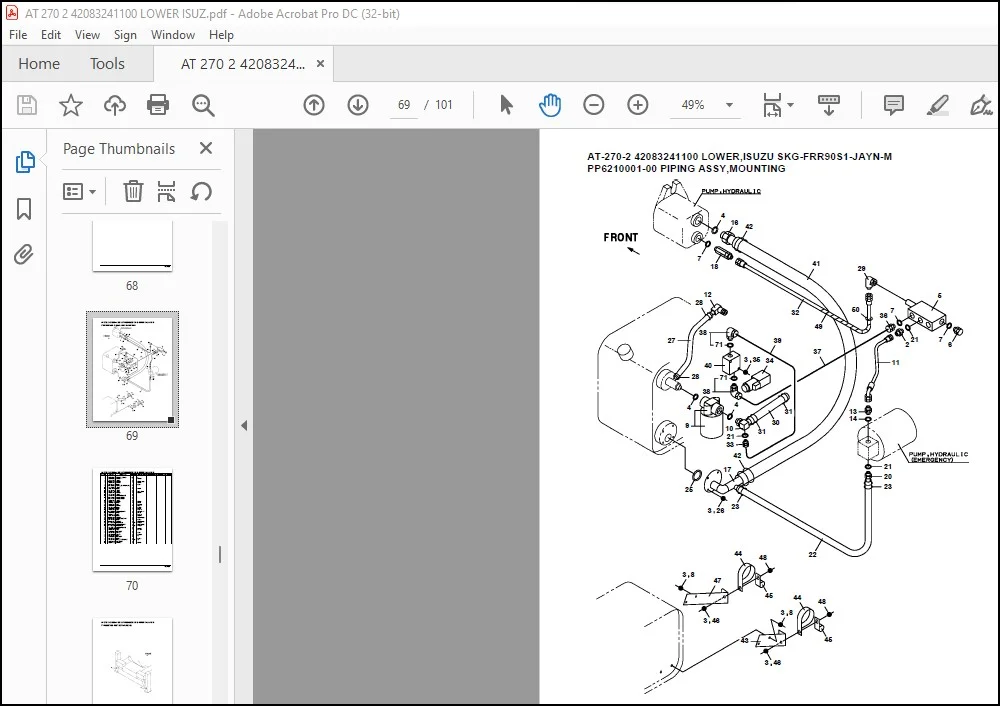

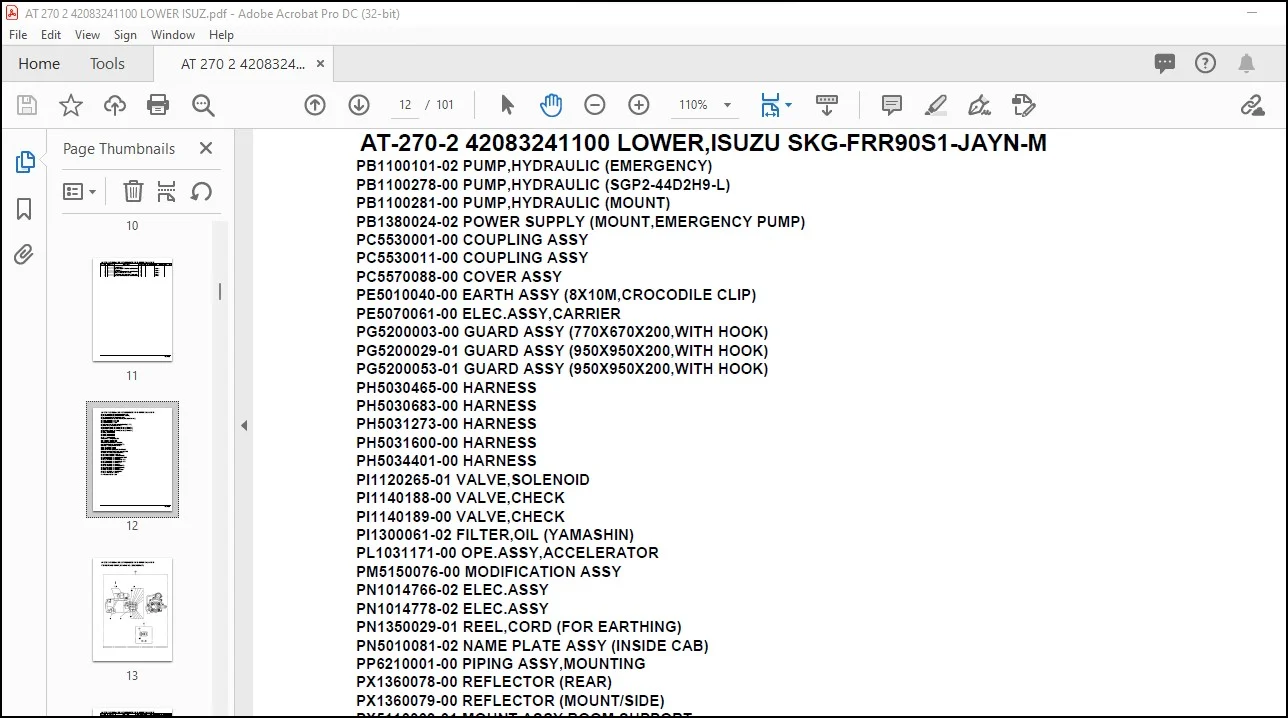

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M Parts Manual – PDF DOWNLOAD

AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M
PB3000275-00 POWER UNIT
PO1000123-00 INDICATION PLATES
PX2001562-00 CARRIER UNIT
PX3000814-00 MOUNTING UNIT
PY1001455-06 OPTIONS,1
ASSEMBLY

AT-270-2 42083241100 LOWER,ISUZU SKG-FRR90S1-JAYN-M
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1100281-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PC5530001-00 COUPLING ASSY
PC5530011-00 COUPLING ASSY
PC5570088-00 COVER ASSY
PE5010040-00 EARTH ASSY (8X10M,CROCODILE CLIP)
PE5070061-00 ELEC.ASSY,CARRIER
PG5200003-00 GUARD ASSY (770X670X200,WITH HOOK)
PG5200029-01 GUARD ASSY (950X950X200,WITH HOOK)
PG5200053-01 GUARD ASSY (950X950X200,WITH HOOK)
PH5030465-00 HARNESS
PH5030683-00 HARNESS
PH5031273-00 HARNESS
PH5031600-00 HARNESS
PH5034401-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1140188-00 VALVE,CHECK
PI1140189-00 VALVE,CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1031171-00 OPE.ASSY,ACCELERATOR
PM5150076-00 MODIFICATION ASSY
PN1014766-02 ELEC.ASSY
PN1014778-02 ELEC.ASSY
PN1350029-01 REEL,CORD (FOR EARTHING)
PN5010081-02 NAME PLATE ASSY (INSIDE CAB)
PP6210001-00 PIPING ASSY,MOUNTING
PX1360078-00 REFLECTOR (REAR)
PX1360079-00 REFLECTOR (MOUNT/SIDE)
PX5110003-01 MOUNT ASSY,BOOM SUPPORT
PX5280022-01 MOUNT ASSY,DECK
PX5290032-00 MOUNT ASSY,DECK ON CAB
PX5290048-01 MOUNT ASSY,DECK ON CAB
PX5360089-01 MOUNT ASSY,FRAME
PX5580001-00 MOUNT ASSY,PTO
PX5620005-01 MOUNT ASSY,REFLECTOR
PX5650022-00 MOUNT ASSY,SIDE GUARD
PX5670006-00 MOUNT ASSY,STEP
PX5740051-02 MOUNT ASSY,TAIL LAMP
PX5820044-00 MOUNT ASSY,WEIGHT
PY1560077-01 ALARM SYSTEM
PY5170030-00 ALARM ASSY
