Tadano Crane AW-120-1-00101 3 BOOM,WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AW-120-1-00101 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

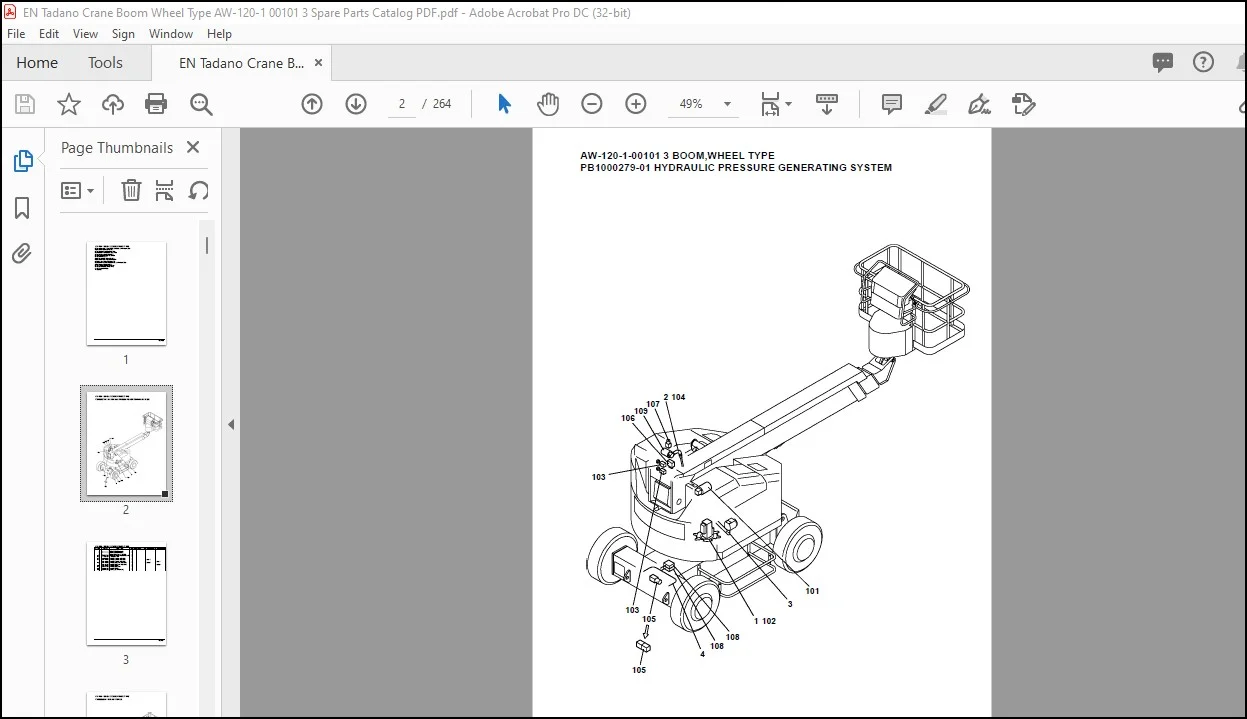

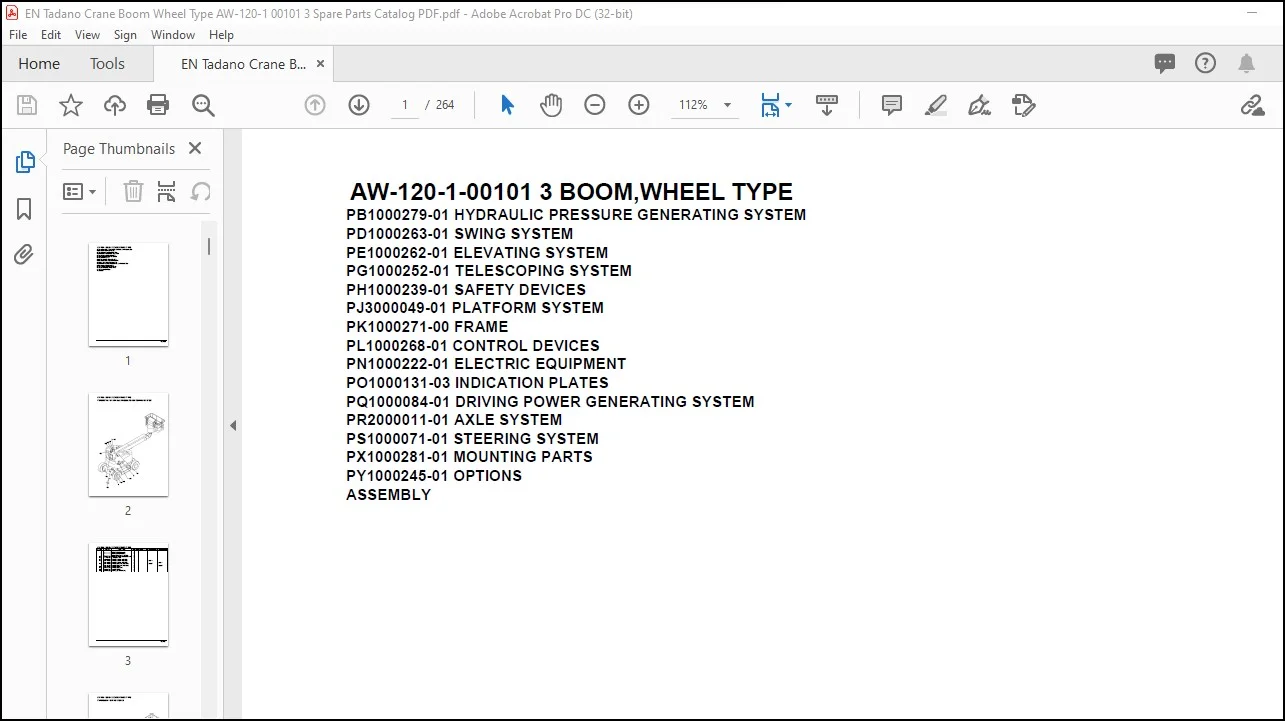

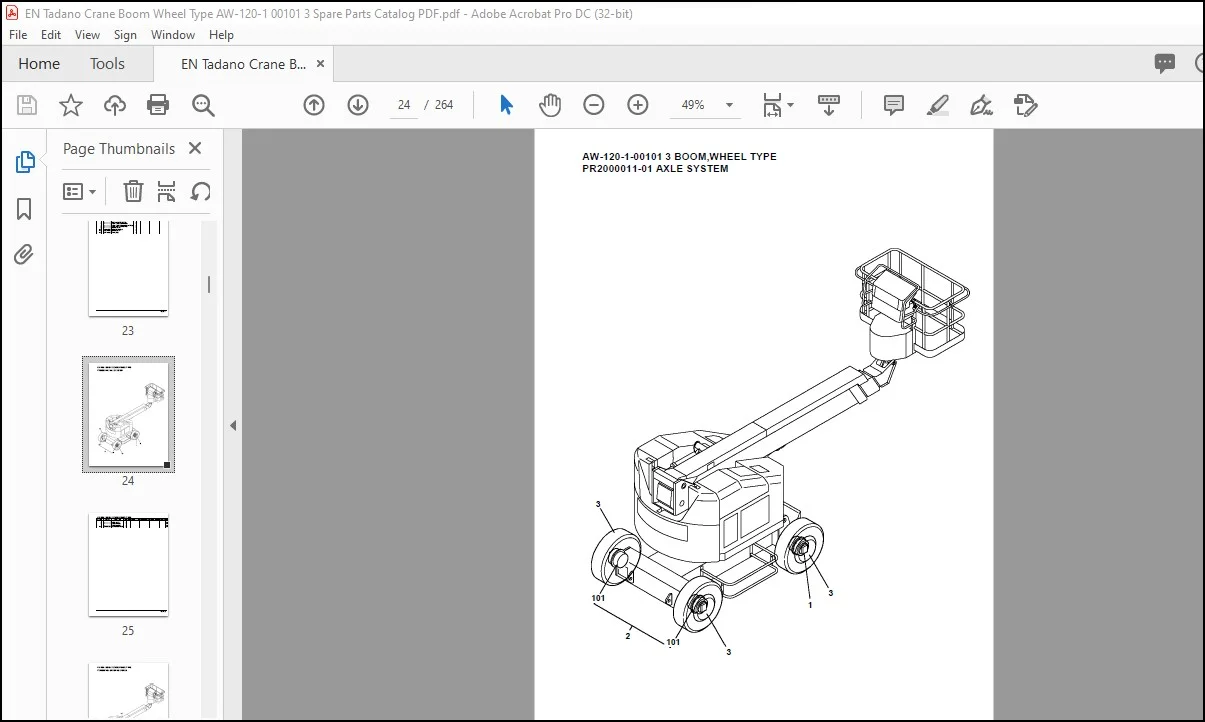

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AW-120-1-00101 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :264
Downloadable : Yes
File Type : PDF
Size:3.76 MB
TABLE OF CONTENTS:

Tadano Crane AW-120-1-00101 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

AW-120-1-00101 3 BOOM,WHEEL TYPE
PB1000279-01 HYDRAULIC PRESSURE GENERATING SYSTEM
PD1000263-01 SWING SYSTEM
PE1000262-01 ELEVATING SYSTEM
PG1000252-01 TELESCOPING SYSTEM
PH1000239-01 SAFETY DEVICES
PJ3000049-01 PLATFORM SYSTEM
PK1000271-00 FRAME
PL1000268-01 CONTROL DEVICES
PN1000222-01 ELECTRIC EQUIPMENT
PO1000131-03 INDICATION PLATES
PQ1000084-01 DRIVING POWER GENERATING SYSTEM
PR2000011-01 AXLE SYSTEM
PS1000071-01 STEERING SYSTEM
PX1000281-01 MOUNTING PARTS
PY1000245-01 OPTIONS
ASSEMBLY

AW-120-1-00101 3 BOOM,WHEEL TYPE
PB1100006-00 PUMP,HYDRAULIC
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1130105-01 TANK,OIL
PB1300175-00 JOINT,ROTARY
PB1300180-00 JOINT,ROTARY
PB1320001-00 VALVE,MANUAL CONTROL
PB1320362-00 VALVE,MANUAL CONTROL
PB1320483-00 VALVE,MANUAL CONTROL
PB1340026-00 VALVE,SOLENOID CONTROL
PB1340027-00 VALVE,SOLENOID CONTROL
PB1400184-01 PIPING,UPPER (VALVE)
PB1400185-00 PIPING,UPPER (PUMP)
PB1410537-01 PIPING,HYDRAULIC LOWER
PD1010023-01 REDUCER,SWING SPEED
PD1010083-01 REDUCER,SWING SPEED
PE1010211-00 CYLINDER,ELEVATING
PE1010216-00 CYLINDER,ELEVATING
PE1050059-00 CYLINDER,LEVELING (UPPER)
PE1050062-00 CYLINDER,LEVELING (UPPER)
PE1050063-00 CYLINDER,LEVELING (LOWER)
PE1050104-00 CYLINDER,LEVELING (LOWER)
PE5210007-01 ENGINE ASSY
PG1010379-01 BOOM
PG1010504-00 BOOM
PG1050207-02 CYLINDER,TELESCOPING
PG1120096-01 DETECTOR SYSTEM, BOOM LENGTH
PG1130000-01 DETECTOR,BOOM LENGTH
PG1220050-01 PIPING,BOOM
PG1220051-01 PIPING,BOOM
PG1350008-00 WELDED PARTS (MODIFICATION,OPTION)
PG1410011-00 COVER,BOOM
PH1350010-00 WORKING AREA LIMITER (AWL-A7)
PH1550009-02 TOUCH SWITCH
PH5031865-00 HARNESS
PI1010059-01 MOTOR,HYDRAULIC (SWING)
PI1100007-00 VALVE,RELIEF
PI1120032-00 VALVE,SOLENOID
PI1140002-00 VALVE,CHECK
PI1140003-01 VALVE,CHECK
PI1140044-00 VALVE,CHECK
PI1140133-01 VALVE,CHECK
PI1250040-02 VALVE,COUNTERBALANCE
PI1250063-00 VALVE,COUNTERBALANCE
PI1300022-00 FILTER,OIL
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3040012-01 OPE.ASSY,BUCKET
PJ3040013-00 OPE.ASSY (BUCKET,COVER)
PJ3050032-02 BASKET
PJ3090015-00 GUARD (OPTION)
PJ3090016-00 GUARD (OPTION)
PJ3100063-01 PIPING,BOOM
PK1010322-00 FRAME
PK1100189-00 SWING FRAME
PK1130002-00 COVER,BEARING
PK1130013-00 COVER,BEARING
PK1200219-01 COVER,SWING FRAME
PK1220125-01 WEIGHT, COUNTERBALANCE
PK1330017-01 COVER INSTALLATION
PL1010505-01 OPERATION SYSTEM, CONTROL VALVE
PL1030367-00 OPERATION SYSTEM, ACCELERATOR
PL1100073-01 BOX,OPERATION
PM5150717-00 MODIFICATION ASSY
PM5210002-00 MOTOR ASSY,OIL
PM5210026-00 MOTOR ASSY,OIL
AW-120-1-00101 3 BOOM,WHEEL TYPE
PN1011240-00 ELEC.ASSY (BOOM)
PN1011243-01 ELEC.ASSY (SWING FRAME)
PN1011244-00 ELEC.ASSY (FRAME)
PN1011245-00 ELEC.ASSY (ENGINE)
PN1110117-01 RELAY
PN1180002-00 CONTROLLER (FAMOTH)
PN1180006-00 CONTROLLER (SHIKOKUKEISOKU)
PN1370068-01 BATTERY INSTALLATION
PO1011489-01 PLATE,INDICATION
PO1013187-00 PLATE ASSY,NAME (MODIFICATION,OPTION)
PQ1020041-01 RADIATOR INSTALLATION
PQ1040014-01 EXHAUST INSTALLATION
PQ1060015-01 AIR INTAKE INSTALLATION
PQ1060024-00 AIR INTAKE INSTALLATION (OPTION)
PQ1090053-00 TANK,FUEL INSTALLATION
PQ1100013-01 TANK,FUEL
PQ1140057-01 POWER TRAIN
PR2010026-01 AXLE (FRONT)
PR2010027-01 AXLE (REAR)
PR2050011-00 DRIVE UNIT,WHEEL
PR2150005-00 TIRE & WHEEL
PR2150005-00 TIRE & WHEEL
PR5020006-00 RADIATOR ASSY
PS1010016-00 OPERATION SYSTEM, STEERING
PS1360037-02 CYLINDER,STEERING
PS5530450-00 SWITCH ASSY
PV5240036-00 VALVE ASSY,SOLENOID
PX1100147-00 TANK SUPPORT INSTALLATION
PX1200175-00 SIDE GUARD INSTALLATION
PX1200288-00 GUARD,SIDE (OPTION)
PY1090001-00 BELT,SAFETY
PY1180137-01 LAMP
PY1740016-00 COVER (CONTROL BOX)
PY1870001-00 COVER,HOSE (OPTION)
PY1890007-00 COVER,CYLINDER (ELEVATING)
PY1890008-01 COVER,CYLINDER (LEVELING)
