Tadano Crane AW-190S-1-80202 4 BOOM,WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AW-190S-1-80202 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

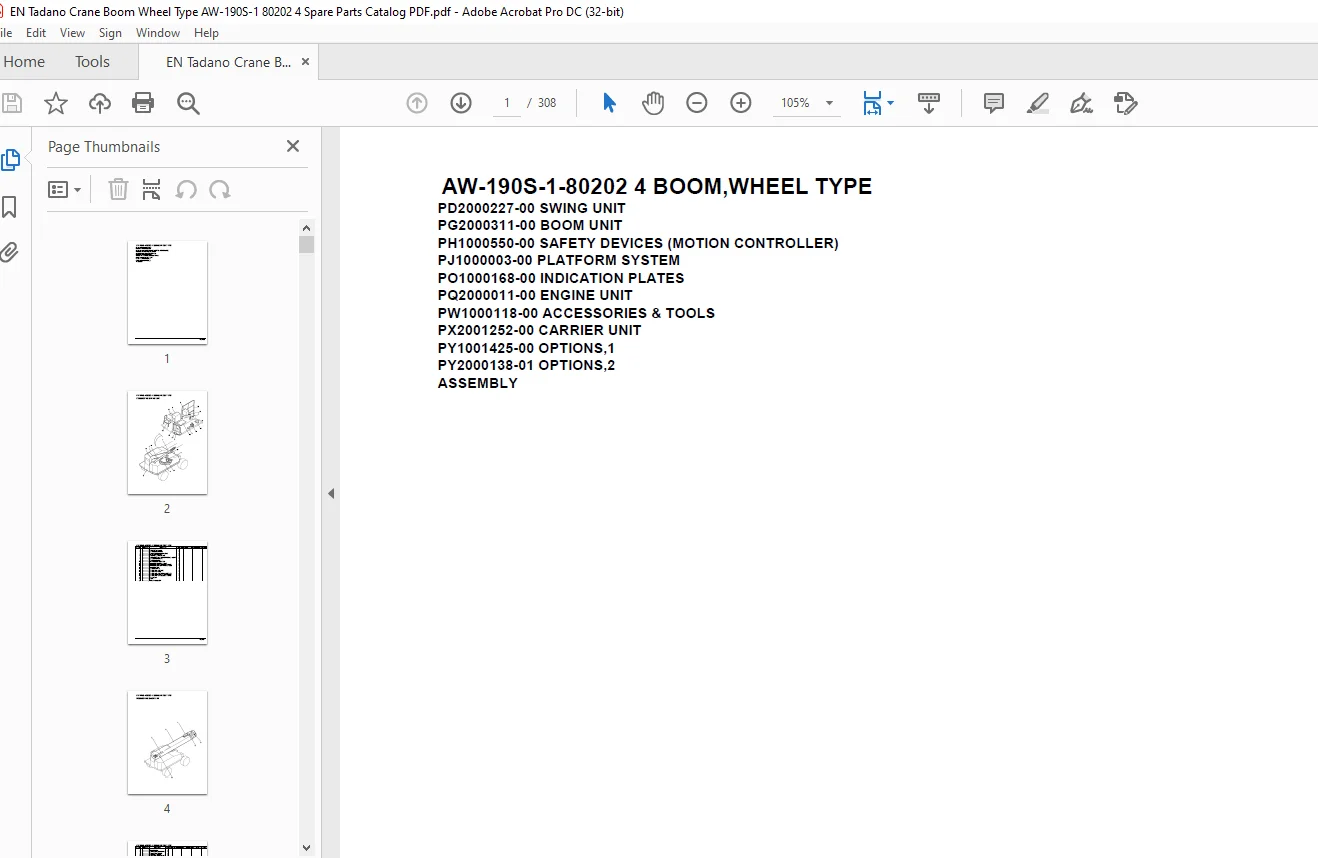

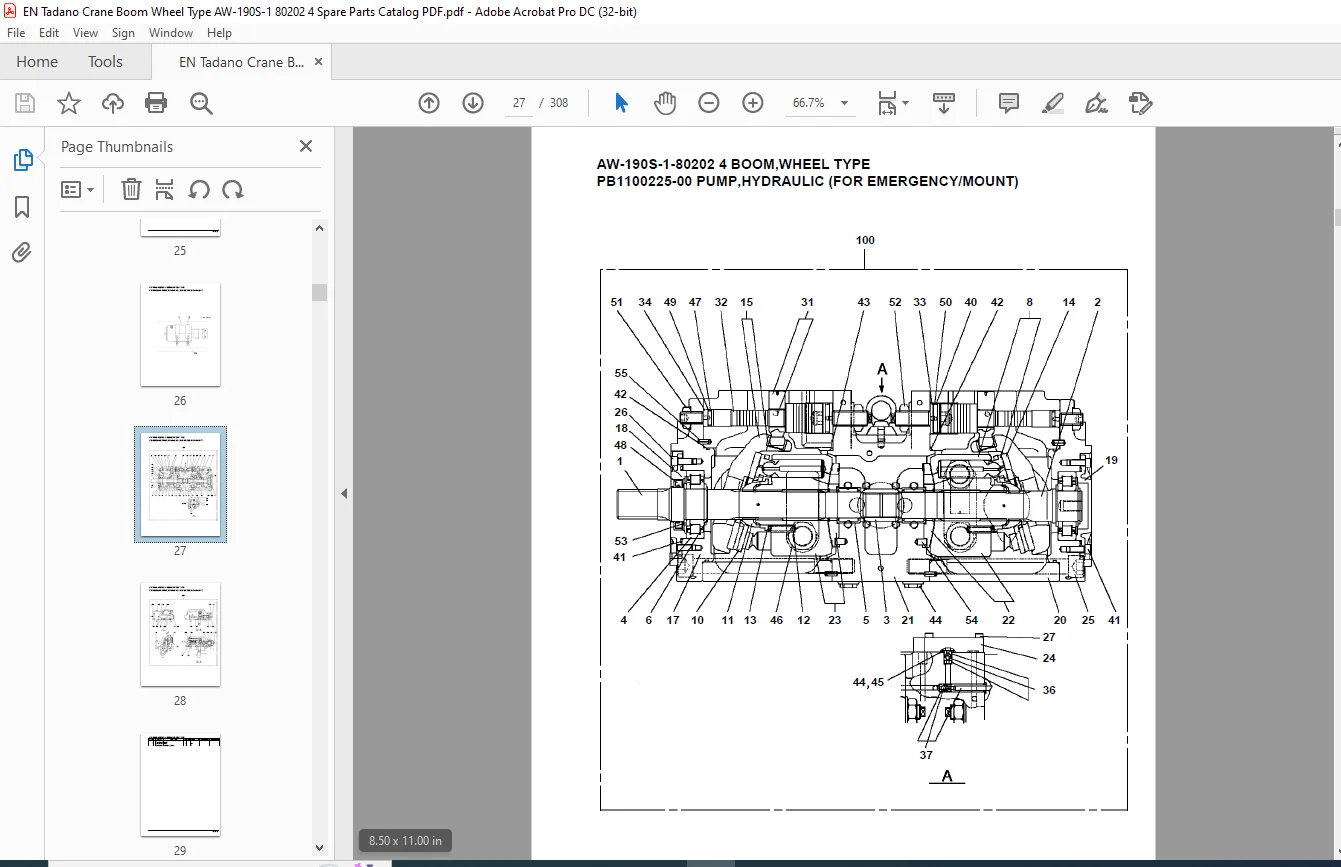

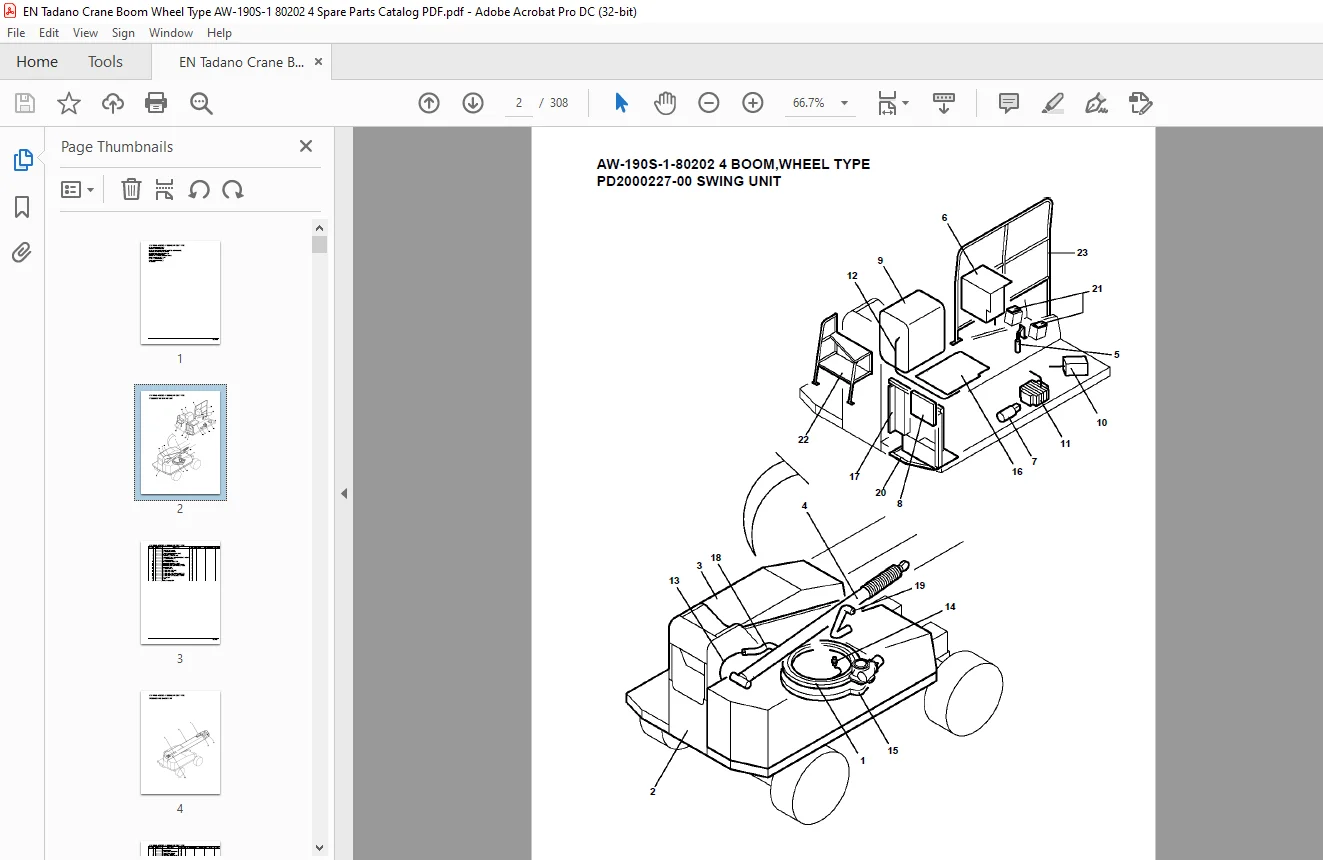

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AW-190S-1-80202 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :308
Downloadable : Yes
File Type : PDF
Size:4.31 MB
TABLE OF CONTENTS:

Tadano Crane AW-190S-1-80202 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

AW-190S-1-80202 4 BOOM,WHEEL TYPE
PD2000227-00 SWING UNIT
PG2000311-00 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ1000003-00 PLATFORM SYSTEM
PO1000168-00 INDICATION PLATES
PQ2000011-00 ENGINE UNIT
PW1000118-00 ACCESSORIES & TOOLS
PX2001252-00 CARRIER UNIT
PY1001425-00 OPTIONS,1
PY2000138-01 OPTIONS,2
ASSEMBLY

AW-190S-1-80202 4 BOOM,WHEEL TYPE
000011
PB1100034-00 PUMP,HYDRAULIC (EMERGENCY)
PB1100225-00 PUMP,HYDRAULIC (FOR EMERGENCY/MOUNT)
PB1100248-01 PUMP,HYDRAULIC
PB1130113-03 TANK,OIL
PB1130247-00 TANK,OIL (MOUNT)
PB1300368-00 JOINT,ROTARY (PLATFORM)
PB1300369-00 JOINT,ROTARY (FRAME)
PB1310033-00 BRUSH,ROTARY JOINT
PB1310052-01 BRUSH,ROTARY JOINT
PB1400342-00 PIPING,UPPER (ELEVATING CYLINDER)
PB1400347-02 PIPING,UPPER (OTHER CONT. VALVE)
PB1400348-02 PIPING,UPPER (CONT. VALVE)
PB1910008-02 PIPING (FRAME/FRONT)
PB1910009-02 PIPING (FRAME/REAR)
PB5270001-00 BOX ASSY,OPERATION
PC5570001-00 COVER ASSY
PD1010119-01 REDUCER,SWING SPEED
PD1020024-00 SWING UNIT
PD1140037-00 LOCK,SWING FRAME
PE1010357-02 CYLINDER,ELEVATING (MOUNT)
PE1010358-05 CYLINDER ASSY,DERRICK
PE1050143-01 CYLINDER,LEVELING
PE5020005-00 ELEC.ASSY (PLATFORM)
PE5190001-00 ELEC.ASSY,SWING FRAME
PE5210008-01 ENGINE ASSY
PF5100002-00 FRAME ASSY (PLATFORM)
PG1010931-01 BOOM
PG1050358-01 CYLINDER,TELESCOPING
PG1130143-00 DETECTOR,BOOM LENGTH
PG1220072-03 PIPING,BOOM
PH1480039-01 MOTION CONTROLLER (AMC)
PH1480042-01 MOTION CONTROLLER (AMC)
PH5030398-00 HARNESS
PH5033723-00 HARNESS
PH5034450-00 HARNESS
PH5034451-00 HARNESS
PH5034452-00 HARNESS
PH5034670-00 HARNESS
PI1010089-01 MOTOR,HYDRAULIC (PLATFORM)
PI1100007-00 VALVE,RELIEF
PI1100095-00 VALVE,RELIEF
PI1120128-01 VALVE,SOLENOID
PI1120183-00 VALVE,SOLENOID
PI1120238-02 VALVE,SOLENOID
PI1120240-02 VALVE,SOLENOID
PI1120265-01 VALVE,SOLENOID
PI1120353-00 VALVE,SOLENOID
PI1130045-00 VALVE,HYDRAULIC
PI1140086-00 VALVE,CHECK
PI1140171-00 VALVE,CHECK
PI1230018-00 VALVE,SHUTTLE
PI1240017-00 VALVE
PI1250027-00 VALVE,COUNTERBALANCE
PI1250039-00 VALVE,COUNTERBALANCE
PI1250127-00 VALVE,COUNTERBALANCE
PI1270005-00 VALVE,SEQUENCE
PJ3060001-00 COVER,BEARING (PLATFORM)
PJ3110019-01 PIPING,PLATFORM
PJ3160003-01 BEAR,CABLE
PJ3170003-00 REDUCER,PLATFORM SWING SPEED
PJ3170006-02 REDUCER,PLATFORM SWING SPEED (MOUNT)
PK1010695-00 FRAME
PK1130003-00 COVER,BEARING
PK1200368-00 COVER,SWING FRAME
AW-190S-1-80202 4 BOOM,WHEEL TYPE
000011
PK1330073-00 COVER (SWING FRAME)
PK1330074-01 COVER (RADIATOR)
PK1330095-00 COVER
PK1330096-00 COVER
PK1330097-00 COVER
PK1330108-00 COVER
PK1330305-00 COVER (SWING FRAME/DUST-PROOF)
PK1330306-00 COVER (FRONT MOTOR/DUST-PROOF)
PK1330307-00 COVER (SWING TABLE/DUST-PROOF)
PL1030813-00 OPE.ASSY,ACCELERATOR
PL5020001-00 LAMP ASSY
PM1030025-00 PIPING,GREASE
PM5230010-00 MOTOR,OIL
PN1012789-02 ELEC.ASSY (BOOM)
PN1012971-00 ELEC.ASSY (FRAME)
PN1020056-00 POWER SOURCE (LOWER)
PN1370092-01 BATTERY
PN5010004-00 NAME PLATE ASSY
PO5010002-00 OPE.ASSY (PLATFORM)
PP5100001-00 PARTS ASSY,ELECTRICITY
PP5100002-00 PARTS ASSY,ELECTRICITY (UPPER POWER SOURCE)
PP5270001-00 PLATFORM ASSY
PP5450003-00 PUMP,GREASE (240CC)
PP6020002-00 PIPING ASSY,AIR
PQ1020072-00 RADIATOR
PQ1020076-00 RADIATOR
PQ1040041-00 EXHAUST
PQ1060036-00 AIR INTAKE
PQ1070040-00 CLEANER,AIR
PQ1100011-02 TANK,FUEL (200L)
PQ1100024-00 TANK,FUEL
PQ1140103-00 POWER TRAIN
PR2010048-00 AXLE
PR2050023-00 DRIVE UNIT,WHEEL
PR2050024-00 DRIVE UNIT,WHEEL
PR2150008-00 TIRE & WHEEL
PR5020007-00 RADIATOR ASSY
PS1010042-00 OPE.ASSY,STEERING
PS1360055-00 CYLINDER,STEERING
PS5510001-00 SWING FRAME ASSY
PS5530037-00 SWITCH ASSY (WITH HARNESS,5 SW)
PS5530449-00 SWITCH ASSY
PT1200100-00 PIPING,BRAKE
PV1020281-01 VALVE,REMOTE CONTROL
PV5040021-00 VALVE ASSY,CHECK
PW1010301-00 ACCESSORIES (PUMP,GREASE)
PW1030063-00 TOOLS
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1120411-00 BOOM REST
PX1260164-00 STEP
PX1350211-00 TOOL BOX INSTALLATION
PX1830009-00 COUPLING
PX5670001-00 MOUNT ASSY,STEP
PY1090001-00 BELT,SAFETY
PY1300026-01 COOLER,OIL (MOUNT)
PY1840006-00 BREAKER
PY1910021-00 HOSE (FOR GREASE PUMP)
PZ0000000-00 SOLENOID ASSY
