Tadano Crane AW-250-1-00401 3 BOOM,WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AW-250-1-00401 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

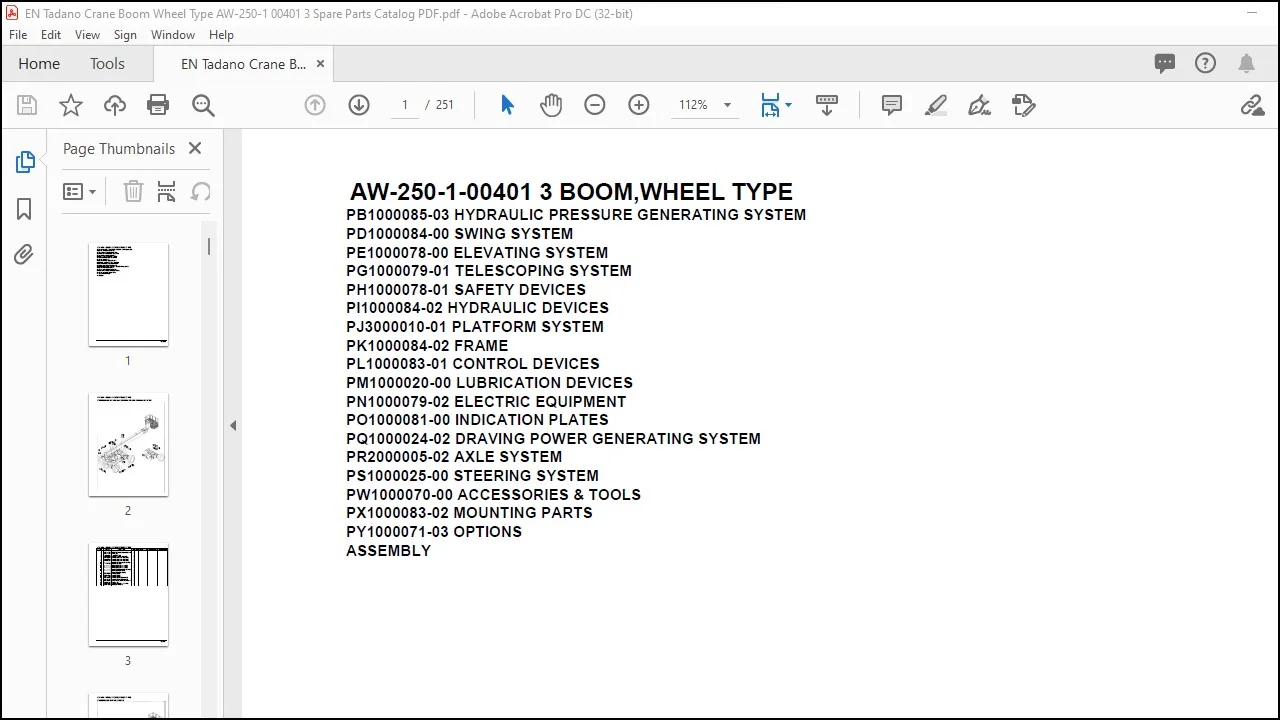

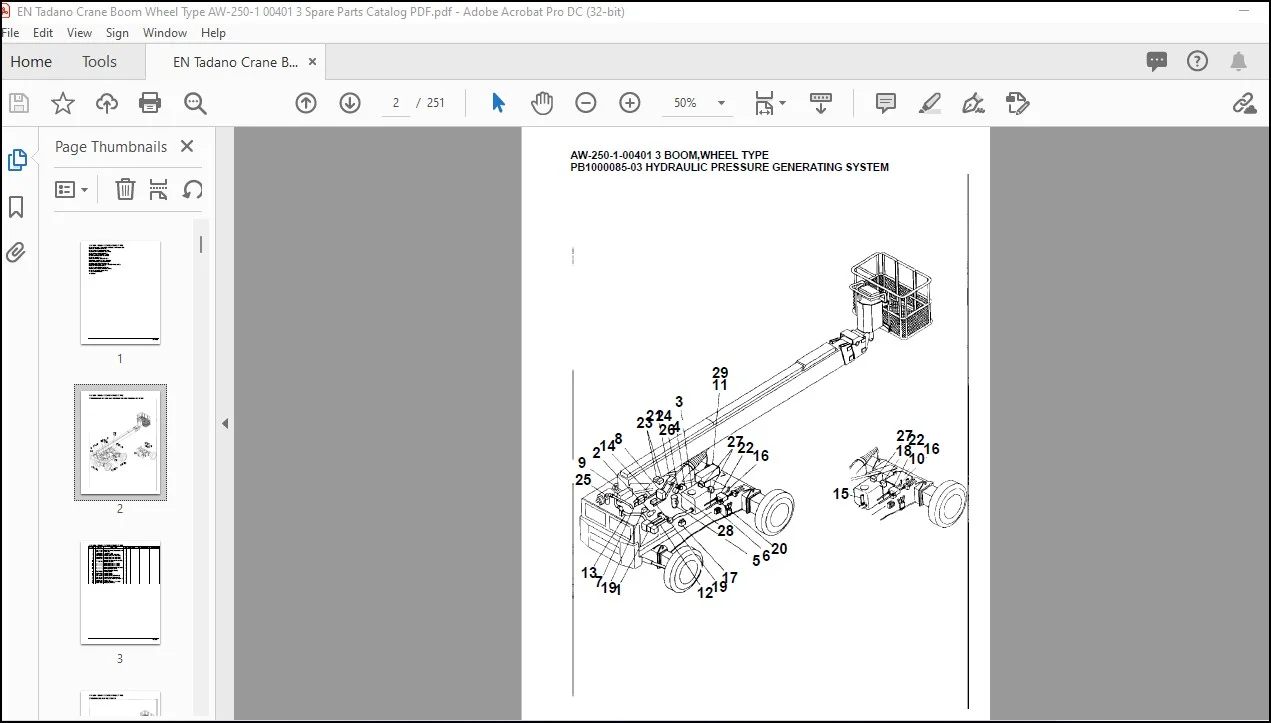

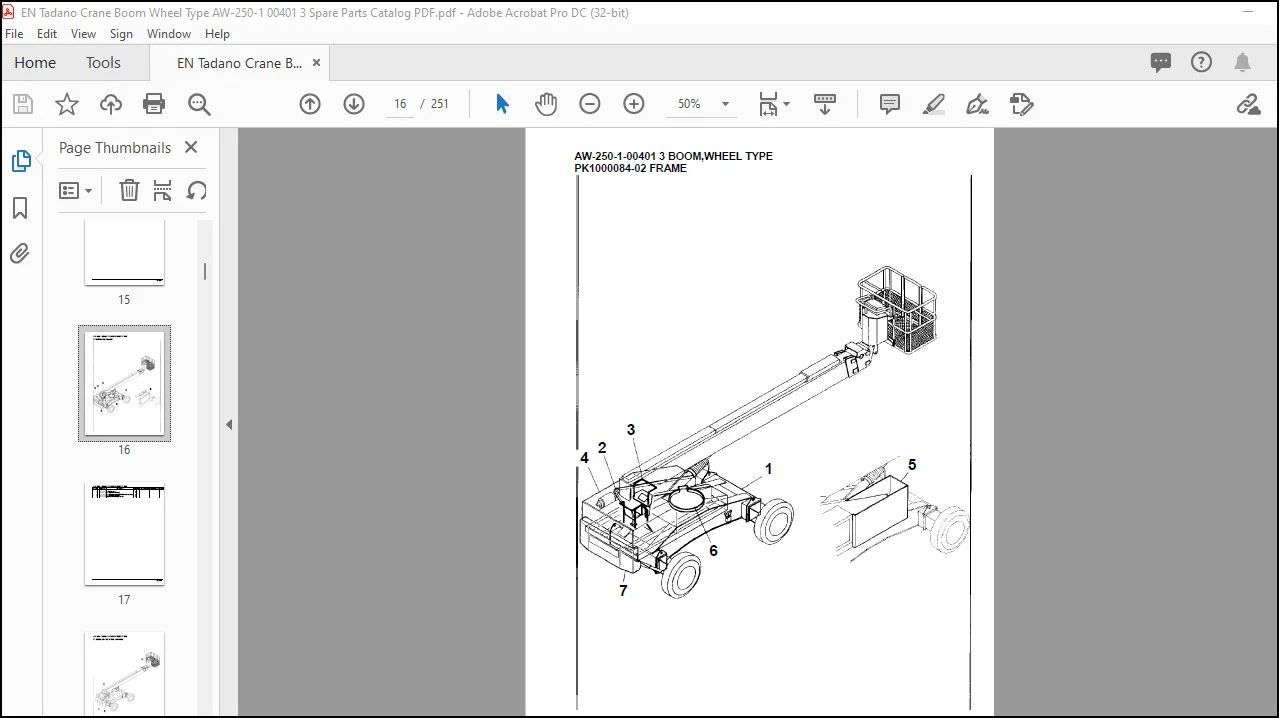

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AW-250-1-00401 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :251
Downloadable : Yes
File Type : PDF
Size:4.08 MB
TABLE OF CONTENTS:

Tadano Crane AW-250-1-00401 3 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

AW-250-1-00401 3 BOOM,WHEEL TYPE
000019
PB1100013-00 PUMP,HYDRAULIC
PB1100034-00 PUMP,HYDRAULIC (EMERGENCY)
PB1100151-00 PUMP,HYDRAULIC
PB1100167-00 PUMP,HYDRAULIC
PB1130012-04 TANK,OIL
PB1130168-00 TANK,OIL
PB1300126-00 JOINT,ROTARY
PB1320042-00 VALVE,MANUAL CONTROL
PB1340001-00 VALVE,SOLENOID CONTROL
PB1340002-00 VALVE,SOLENOID CONTROL
PB1340004-01 VALVE,SOLENOID CONTROL
PB1370029-00 POWER SUPPLY INSTALLATION
PB1380068-00 POWER SUPPLY
PB1400014-02 PIPING,HYDRAULIC UPPER
PB1400046-01 PIPING,HYDRAULIC UPPER
PB1400170-00 PIPING,HYDRAULIC UPPER
PB1400171-00 PIPING,UPPER (POWER SUPPLY)
PB1410322-00 PIPING,LOWER (FRONT)
PB1410323-01 PIPING,LOWER (REAR)
PD1010007-00 REDUCER,SWING SPEED
PD1140021-00 LOCK,SWING FRAME
PE1010030-03 CYLINDER,ELEVATING
PE1050010-00 CYLINDER,LEVELING
PE1050012-02 CYLINDER,LEVELING (LOWER)
PG1010045-02 BOOM
PG1050032-06 TELESCOPE ASSY
PG1130053-00 DETECTOR,BOOM LENGTH
PG1410027-00 COVER,BOOM
PH1180134-01 CONNECTION,MOMENT LIMITER SYSTEM
PI1010013-01 MOTOR,HYDRAULIC
PI1100002-01 VALVE,RELIEF
PI1100005-01 VALVE,RELIEF
PI1100041-00 VALVE,RELIEF
PI1120013-00 VALVE,SOLENOID
PI1140002-00 VALVE,CHECK
PI1140014-00 VALVE,CHECK
PI1140015-00 VALVE,CHECK
PI1140016-00 VALVE,CHECK
PI1250015-01 VALVE,COUNTERBALANCE
PI1250016-01 VALVE,COUNTERBALANCE
PI1250017-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1300008-00 FILTER,OIL
PI1330000-00 VALVE,DIVIDER & COMBINE
PJ3050020-01 BASKET
PJ3090014-00 GUARD (OPTION)
PJ3100010-02 PIPING,BOOM
PJ3230002-00 PIPING,BASKET (WITHOUT HYDRAULIC OUTLET)
PJ3300000-01 MOTOR,HYDRAULIC BUSKET
PK1010046-00 FRAME
PK1100166-00 SWING FRAME
PK1200192-01 COVER,SWING FRAME
PK1200193-00 COVER,SWING FRAME (FOR POWER SUPPLY)
PK1200261-00 COVER,SWING FRAME
PK1220034-00 WEIGHT, COUNTERBALANCE
PL1030014-03 OPERATION SYSTEM, ACCELERATOR
PL1100094-00 BOX,OPERATION (SWING FRAME)
PL1100150-00 BOX,OPERATION (BASKET)
PM1030001-00 PIPING,GREASE
PM5170010-01 MOMENT LIMITER:AML (450KG)
PN1010107-03 ELEC.ASSY (BOOM)
PN1011105-00 ELEC.ASSY (SWING FRAME)
PN1011106-00 ELEC.ASSY (BASKET)
PN1011109-00 ELEC.ASSY (POWER SUPPLY)
AW-250-1-00401 3 BOOM,WHEEL TYPE
000019
PN1370005-00 BATTERY INSTALLATION
PN1400011-00 WIRING,MATERIALS
PO1010107-03 PLATE ASSY,NAME (JAPANESE)
PP5100182-00 PARTS ASSY,ELECTRICITY
PQ1010002-00 ENGINE
PQ1020004-00 RADIATOR INSTALLATION
PQ1030025-00 RADIATOR
PQ1050015-00 MUFFLER
PQ1070026-01 CLEANER,AIR
PQ1090004-02 TANK,FUEL INSTALLATION
PQ1140003-01 POWER TRAIN
PR1820009-00 WHEEL,TIRE
PR2010020-01 AXLE (FRONT HI-POWER)
PR2010021-00 AXLE (REAR HI-POWER)
PR2050008-01 DRIVE UNIT,WHEEL
PR2100003-01 CYLINDER,AXLE JACK
PR2120000-00 CYLINDER,AXLE
PR2150001-00 TIRE & WHEEL (SOLID)
PR2200000-00 DETECTOR,AXLE STATE
PR2250000-01 OPE.ASSY,AXLE
PS1010001-00 OPERATION SYSTEM, STEERING
PS1360004-01 CYLINDER,STEERING
PT5080002-00 TANK ASSY,FUEL
PW1010010-00 ACCESSORIES
PW1030010-00 TOOLS
PX1100012-00 TANK SUPPORT INSTALLATION
PX1200059-00 GUARD,SIDE (STEERING.OPTION)
PX1220015-00 PUMP INSTALLATION (EMERGENCY)
PX1350007-01 TOOL BOX INSTASLLATION
PY1180038-02 LAMP (HEAD)
PY1180039-00 LAMP (WORKING)
PY1700001-00 GUARD,BASKET
PY1700007-00 GUARD,BASKET (PROTECTOR)
PY1740007-00 COVER (OPERATION BOX)
