Tadano Crane AW-370-1-81014 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AW-370-1-81014 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

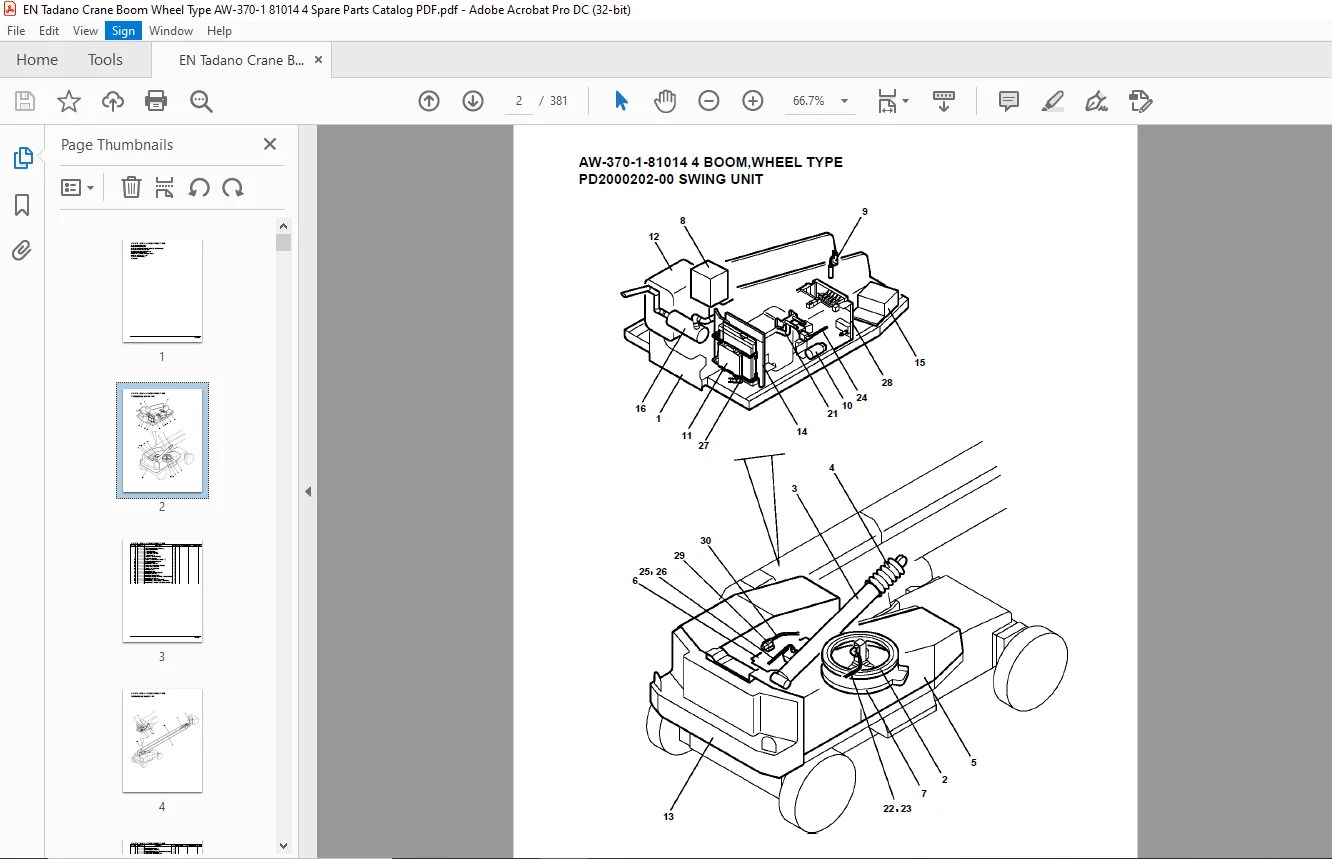

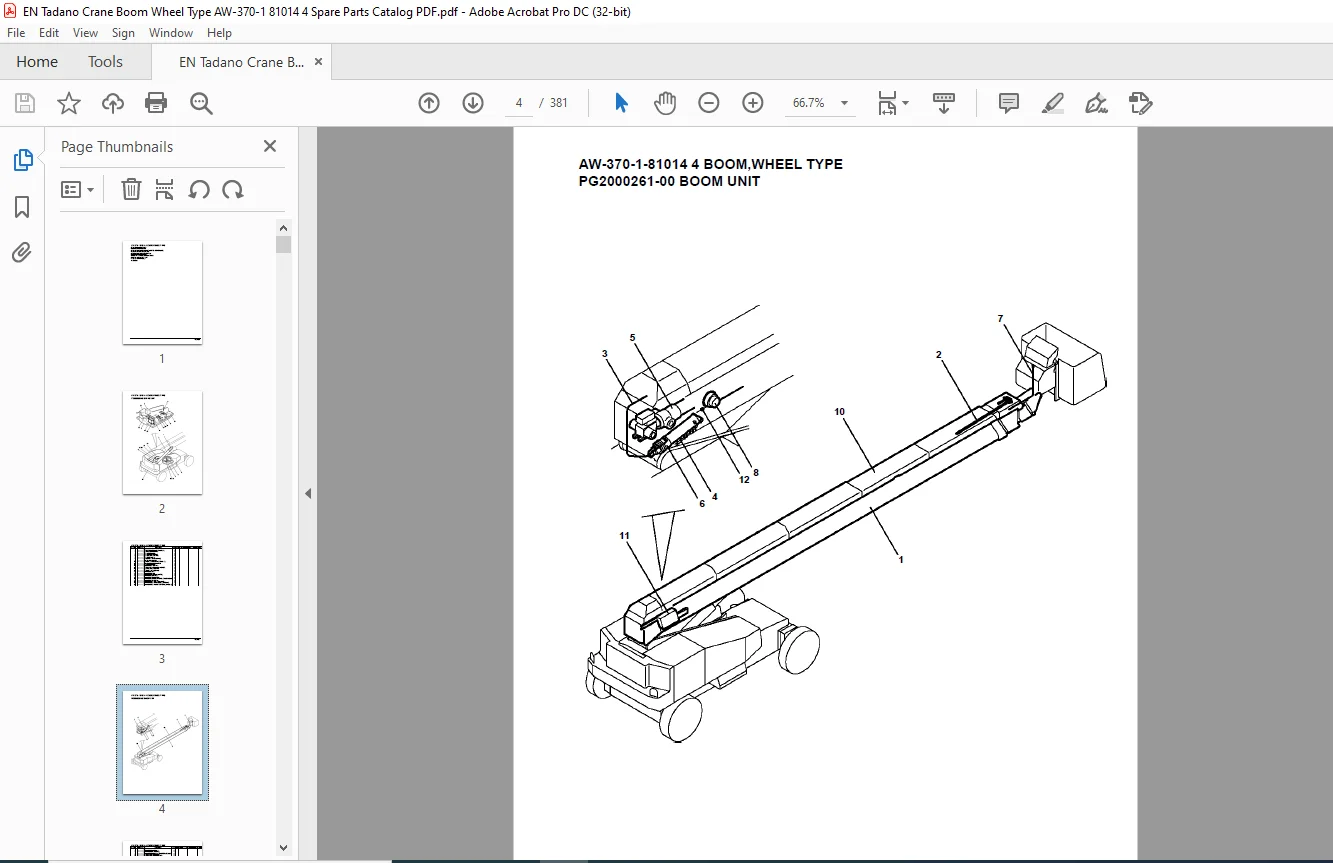

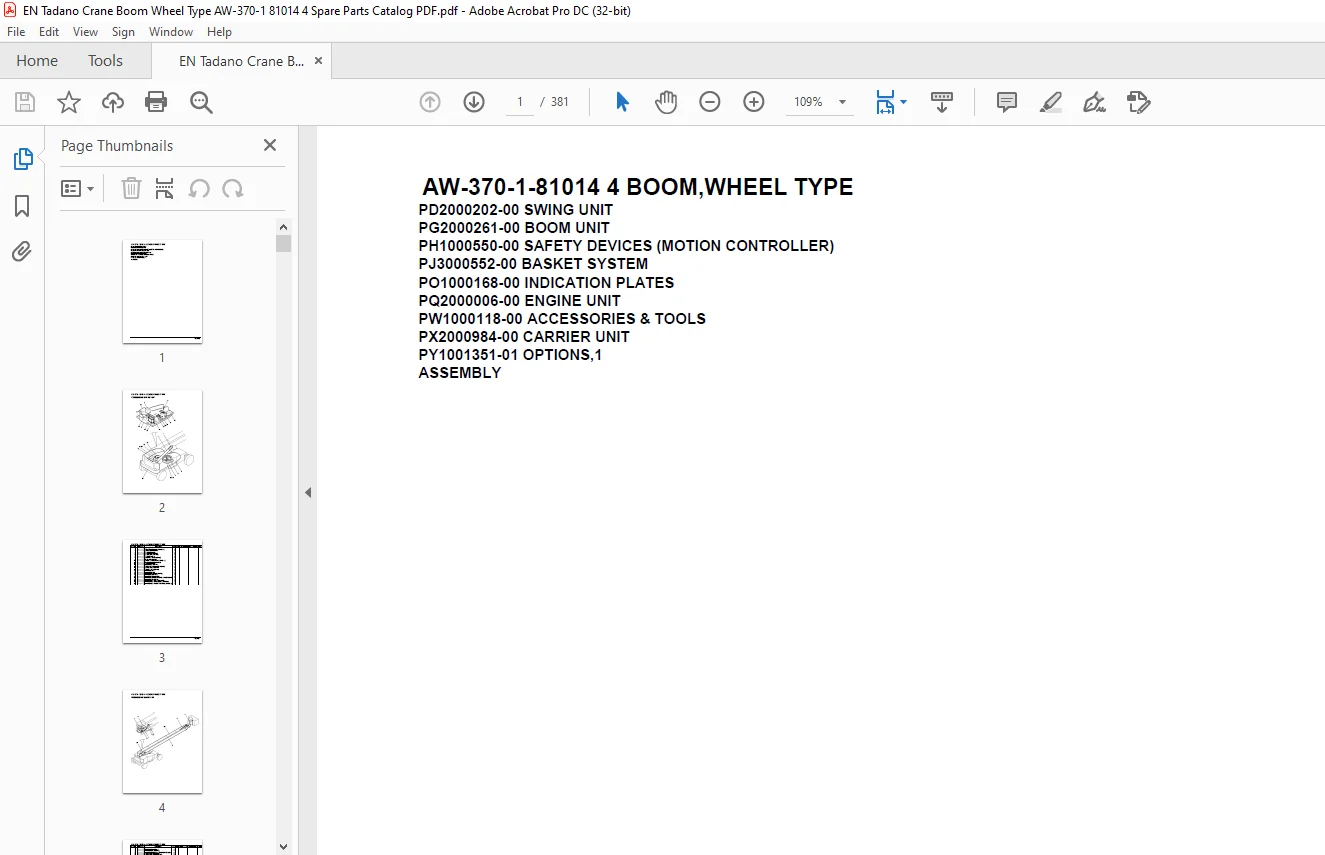

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AW-370-1-81014 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :381
Downloadable : Yes
File Type : PDF
Size:5.97 MB
TABLE OF CONTENTS:

Tadano Crane AW-370-1-81014 4 BOOM WHEEL TYPE Spare Parts Catalog Manual – PDF DOWNLOAD

AW-370-1-81014 4 BOOM,WHEEL TYPE
PD2000202-00 SWING UNIT
PG2000261-00 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ3000552-00 BASKET SYSTEM
PO1000168-00 INDICATION PLATES
PQ2000006-00 ENGINE UNIT
PW1000118-00 ACCESSORIES & TOOLS
PX2000984-00 CARRIER UNIT
PY1001351-01 OPTIONS,1
ASSEMBLY

AW-370-1-81014 4 BOOM,WHEEL TYPE
000010
PB1100230-00 PUMP,HYDRAULIC
PB1100308-00 PUMP,HYDRAULIC (EMERGENCY)
PB1130113-03 TANK,OIL
PB1130253-01 TANK,OIL (MOUNT)
PB1200103-00 PIPING,SUCTION
PB1220182-01 PIPING,DELIVERY
PB1220183-00 PIPING,DELIVERY (INSULATOR)
PB1260142-03 PIPING,UPPER RETURN
PB1300321-00 JOINT,ROTARY
PB1300324-00 JOINT,ROTARY (MOUNT)
PB1320475-00 VALVE,MANUAL CONTROL
PB1320600-00 VALVE,MANUAL CONTROL
PB1320621-01 VALVE,MANUAL CONTROL
PB1400190-01 PIPING,UPPER (PUMP)
PB1400268-01 PIPING,UPPER (INSULATOR/EL.BASKET SWING)
PB1400272-02 PIPING,UPPER (B-SWING)
PB1410927-01 PIPING,LOWER (INSULATOR/TELES.,LEVELING)
PB1411616-02 PIPING,LOWER (CARRIER/HYDRAULIC)
PB1411618-02 PIPING,LOWER (SWING,TELES.,LEVELING)
PB1411619-03 PIPING,LOWER (CONTROL VALVE)
PC5290001-00 CLEANER,AIR
PD1010119-01 REDUCER,SWING SPEED
PD1010120-01 REDUCER,SWING SPEED (MOUNT)
PD1140034-00 LOCK,SWING FRAME
PE1010321-03 CYLINDER,ELEVATING
PE1050069-00 CYLINDER,LEVELING (MOUNT)
PE1050091-04 CYLINDER,LEVELING (LOWER)
PE1050092-02 CYLINDER,LEVELING (UPPER)
PE5210009-01 ENGINE ASSY
PG1010835-02 BOOM
PG1050317-01 CYLINDER,TELESCOPING
PG1130084-00 DETECTOR,BOOM LENGTH
PG1220127-02 PIPING,BOOM (TOP-2ND)
PG1220128-00 PIPING,BOOM (2ND-BASE)
PG1220163-01 PIPING,BOOM (INSULATOR/LOWER LEVELING)
PG1410060-04 COVER,BOOM
PG1410109-00 COVER,BOOM
PH1480062-00 MOTION CONTROLLER (AMC)
PH1540017-05 FOOT SWITCH(FLOOR MADE OF STEEL NETTING)
PH1550010-05 TOUCH SWITCH
PH5032559-00 HARNESS
PI1010097-03 MOTOR,HYDRAULIC
PI1100059-00 VALVE,RELIEF
PI1100135-00 VALVE,RELIEF
PI1120094-02 VALVE,SOLENOID
PI1120240-02 VALVE,SOLENOID
PI1120353-00 VALVE,SOLENOID
PI1140012-00 VALVE,CHECK
PI1140014-00 VALVE,CHECK
PI1140015-00 VALVE,CHECK
PI1140068-00 VALVE,CHECK
PI1140133-01 VALVE,CHECK
PI1250015-01 VALVE,COUNTERBALANCE
PI1250016-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1270006-00 VALVE,SEQUENCE
PI1300021-01 FILTER,OIL
PI1330004-00 VALVE,DIVIDING & COMBINING
PI1330007-00 VALVE,DIVIDER & COMBINE
PJ3010368-00 BASKET (WITH DOOR)
PJ3010370-00 BASKET
PJ3010371-00 BASKET
PJ3010374-00 BASKET
PJ3040037-01 OPE.ASSY (BUCKET/STD)
AW-370-1-81014 4 BOOM,WHEEL TYPE
000010
PJ3160007-01 BEAR,CABLE
PJ3230010-02 PIPING,BASKET (ACTUATED WITH MOTOR)
PK1011313-02 FRAME
PK1011362-00 FRAME
PK1100401-00 SWING FRAME
PK1130003-00 COVER,BEARING
PK1200411-01 COVER,SWING FRAME
PK1230193-00 WEIGHT
PK1330200-00 COVER (SWING FRAME)
PL1020087-00 LEVER,CONTROL
PL1031022-00 OPE.ASSY,ACCELERATOR
PM5230010-00 MOTOR,OIL
PN1012097-00 ELEC.ASSY (CARRIER/HYDRAU.)
PN1012098-00 ELEC.ASSY (MOUNT DETECTOR)
PN1013567-01 ELEC.ASSY (BASKET)
PN1013570-04 ELEC.ASSY (SWING FRAME)
PN1013571-01 ELEC.ASSY
PN1013572-01 ELEC.ASSY
PN1013592-01 ELEC.ASSY (BOOM)
PN1060190-02 SWITCH PANEL
PN1060271-00 SWITCH PANEL
PN1080199-02 LAMP (REAR HEAD LIGHT)
PN1080416-00 LAMP (REOVLVING LAMP:RED/SAUDI ARABIA)
PN1110372-00 RELAY ASSY
PN1140154-00 SWITCH ASSY
PN1210146-00 TRANSMITTER,SIGNAL
PN1370082-02 BATTERY INSTALLATION
PN1450041-00 HARNESS
PN1450077-00 HARNESS
PO1014858-01 PLATE ASSY,NAME
PO1015033-01 PLATE ASSY,NAME
PO1015255-00 PLATE ASSY,NAME(KOREA/FOR BASKET W/DOOR)
PO1015269-00 PLATE ASSY,NAME (BASKET)
PO1015511-00 PLATE ASSY,NAME (PART NUMBER OF AMC DATA)
PO1015512-00 PLATE ASSY,NAME (BOOM,SIMULTANEOUS TRAVELING/OPERATION)
PP5450003-00 PUMP,GREASE (240CC)
PP5550001-00 PRESSURE DEJECTA (MAIL,3/8)
PP5550002-00 PRESSURE DEJECTA (FEMAIL,3/8)
PP5550003-00 PRESSURE DEJECTA (MAIL,1/2)
PP5550004-00 PRESSURE DEJECTA (FEMALE,1/2)
PP5550005-00 PRESSURE DEJECTA (MAIL,1/4)
PP5550006-00 PRESSURE DEJECTA (FEMALE,1/4)
PQ1020042-00 RADIATOR INSTALLATION (COVER)
PQ1020043-04 RADIATOR INSTALLATION
PQ1030047-01 RADIATOR (WITH TANK/FOR MITHUBISHI 4D32)
PQ1040034-00 EXHAUST INSTALLATION
PQ1060016-02 AIR INTAKE INSTALLATION
PQ1090054-01 TANK,FUEL INSTALLATION
PQ1100011-02 TANK,FUEL (200L)
PQ1140104-00 POWER TRAIN
PQ1200003-01 ACCESSORIES,ENGINE (PIPE)
PR1820009-00 WHEEL,TIRE
PR1820015-00 WHEEL,TIRE
PR2010037-03 AXLE (FRONT)
PR2010038-04 AXLE (REAR)
PR2050025-00 DRIVE UNIT,WHEEL
PR2100001-04 CYLINDER,AXLE JACK
PR2150001-00 TIRE & WHEEL (SOLID)
PR2250003-03 OPE.ASSY,AXLE (HYDRAULIC)
PS1010032-01 OPERATION SYSTEM, STEERING
PS1360037-02 CYLINDER,STEERING
PS5260001-00 SPARE PARTS ASSY
PS5380006-00 STOPPER
PS5530450-00 SWITCH ASSY
AW-370-1-81014 4 BOOM,WHEEL TYPE
000010
PV5060016-00 VALVE ASSY,CONTROL
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140019-00 VALVE ASSY,RELIEF
PV5170026-00 VALVE ASSY,SELECTOR
PW1010253-01 ACCESSORIES (FOR CHINA)
PW1010383-00 ACCESSORIES (PIPING,FASTNER)
PW1030010-00 TOOLS
PX1210177-01 GUARD(HEAD/WITH INTERFERENCE PREVENTION)
PX1210188-00 GUARD (HEAD/WITHOUT INTERFERENCE PREVENT)
PX1220370-00 PUMP INSTALLATION (EMERGENCY)
PX1250140-00 COVER (BOOM SIDE)
PX1290298-01 WEIGHT INSTALLATION
PX1350211-00 TOOL BOX INSTALLATION
PX1810054-00 MOUNT,SUPPORT (RESOLUTION)
PX1830010-00 COUPLING
PY1090001-00 BELT,SAFETY
PY1180164-02 LAMP (WORKING,BASKET/SINGLE)
PY1230022-00 OIL COOLER INSTALLATION
PY1890012-00 COVER,CYLINDER
