Tadano Crane BT-400-1-32000 LOWER,HINO QDG-FS1EWBA-ZAF Parts Manual PDF

Description

Tadano Crane BT-400-1-32000 LOWER,HINO QDG-FS1EWBA-ZAF Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane BT-400-1-32000 LOWER,HINO QDG-FS1EWBA-ZAF Parts Manual – PDF DOWNLOAD

Language : English
Pages : 163
Downloadable : Yes
File Type : PDF

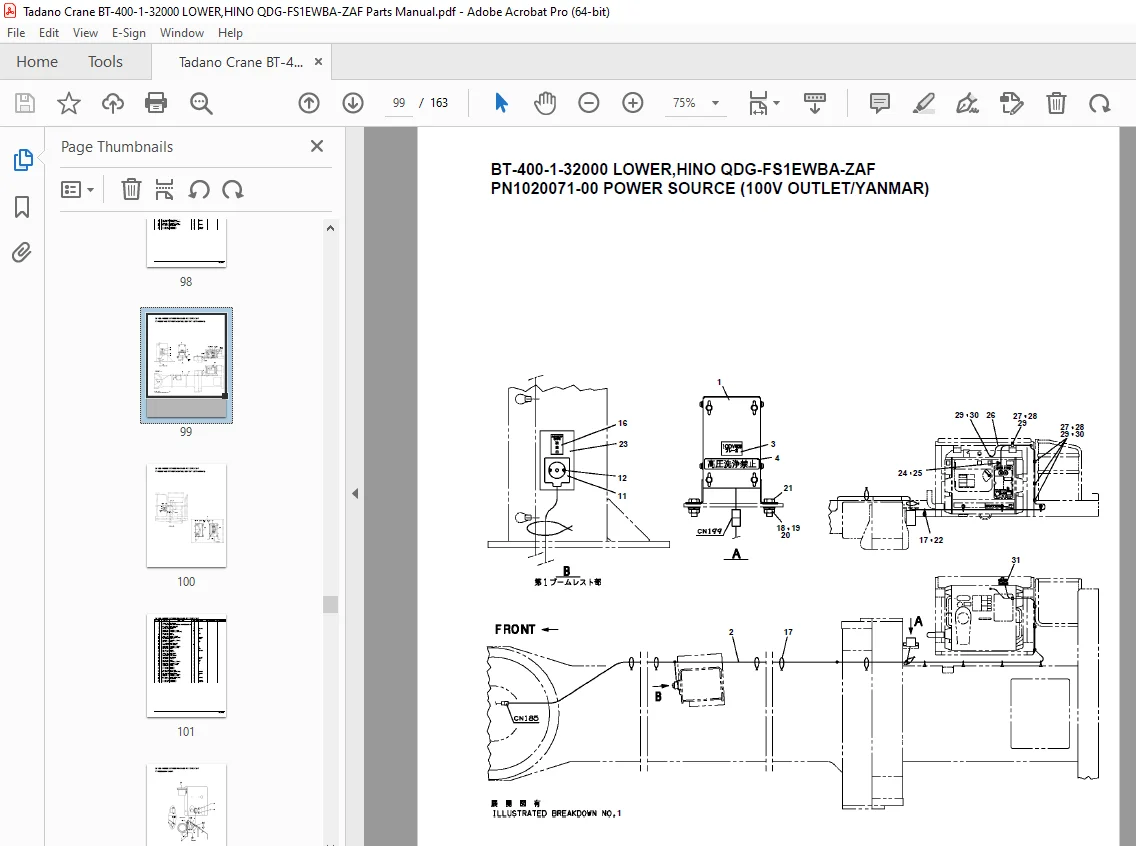

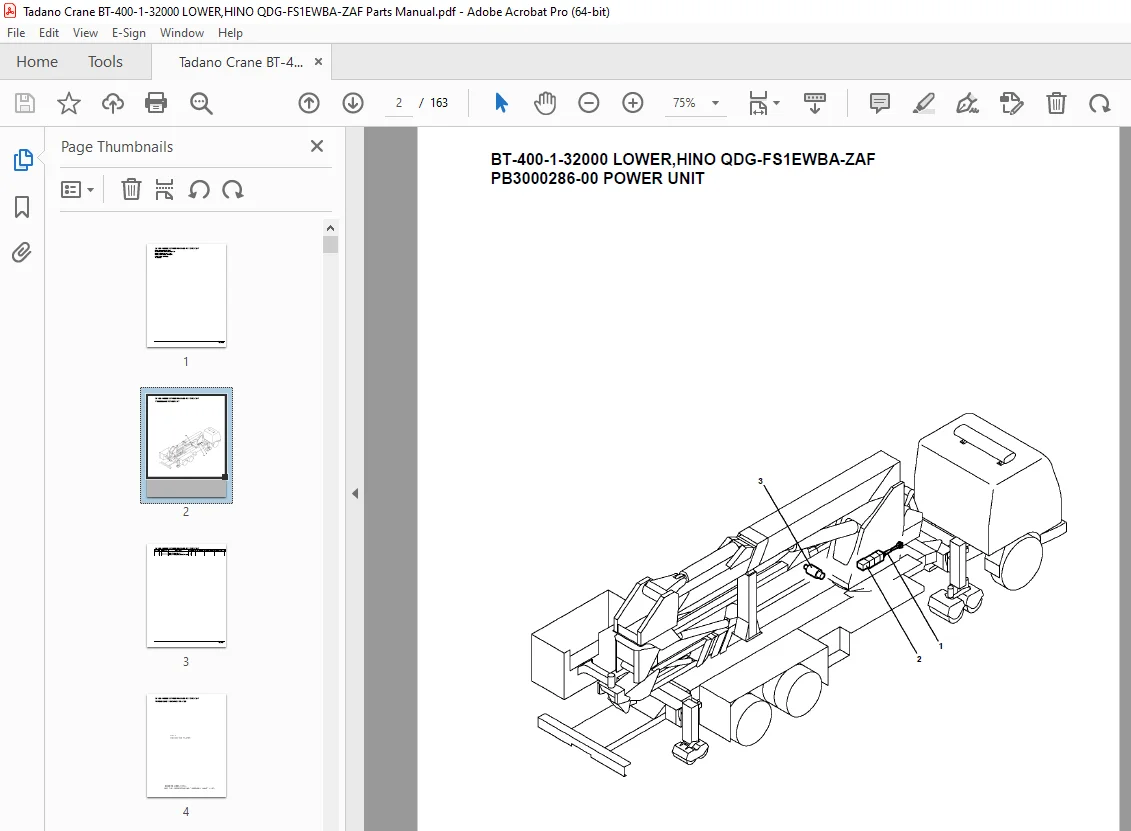

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane BT-400-1-32000 LOWER,HINO QDG-FS1EWBA-ZAF Parts Manual – PDF DOWNLOAD

PB3000286-00 POWER UNIT
PO1000156-00 INDICATION PLATES
PX2001618-00 CARRIER UNIT
PX3000839-00 MOUNTING UNIT
PY2000215-04 OPTIONS
ASSEMBLY

PB1070352-00 PROPELLER SHAFT,PUMP
PB1100204-00 PUMP,HYDRAULIC (EMERGENCY)
PB1100306-00 PUMP,HYDRAULIC
PB1130012-04 TANK,OIL
PC1010935-03 CASE ASSY,INNER
PC1010964-01 OUTRIGGER (FRONT)
PC1011373-00 OUTRIGGER (REAR)
PC1011546-01 OUTRIGGER (REAR)
PC1030035-02 CYLINDER,JACK
PC1030338-02 CYLINDER,JACK
PC1050244-01 CYLINDER,EXTENSION
PC5150181-01 CASE ASSY,INNER (FRONT)
PE5070016-02 ELEC.ASSY,CARRIER
PF1080261-02 SUPPORT (JACK UP SCALE)
PH1700279-01 VIEW SYSTEM
PH1700345-00 VIEW SYSTEM (BACK MONITOR)
PH1700384-00 VIEW SYSTEM (COLOR/BACK MONITOR,DC12V,DC24V/ICHIKO)
PH1750007-01 CAMERA
PH5031104-00 HARNESS
PH5031105-00 HARNESS
PH5031286-00 HARNESS
PH5031709-00 HARNESS
PH5031743-00 HARNESS
PH5031744-00 HARNESS
PH5031745-00 HARNESS
PH5031746-00 HARNESS
PH5031752-00 HARNESS
PH5031753-00 HARNESS
PH5031754-00 HARNESS (WITH SW)
PH5032886-00 HARNESS
PH5034137-00 HARNESS
PH5034232-00 HARNESS
PH5034319-00 HARNESS
PH5034559-00 HARNESS
PH5034606-00 HARNESS
PI1280069-00 VALVE,PILOT CHECK (OUTRIGGER)
PL1031132-00 OPE.ASSY,ACCELERATOR
PM5150156-02 MODIFICATION ASSY
PN1014913-00 ELEC.ASSY (REAR FRUORESCENT LIGHT/YUTAKA)
PN1014914-00 ELEC.ASSY (CAMERA)
PN1020069-01 POWER SOURCE (100V OUTLET:50HZ,2.2KW/DENYO)
PN1020071-00 POWER SOURCE (100V OUTLET/YANMAR)
PN1080366-04 LAMP
PN1080367-01 LAMP (REAR WHEEL LAMP)
PN1410014-00 MOTOR,ELECTRIC
PO1014820-03 PLATE ASSY,NAME (FRAME)
PO1014821-03 PLATE ASSY,NAME (CARRIER)
PP5100088-00 PARTS ASSY,ELECTRICITY (REAR FRUORESCENT LIGHT/RIGHT)
PP5100143-01 PARTS ASSY,ELECTRICITY (100V POWER OUTLET/2-PIN PLUG)
PP6210013-01 PIPING ASSY,MOUNTING
PV5040012-00 VALVE ASSY,CHECK
PV5040022-00 VALVE ASSY,CHECK
PX1100252-00 TANK SUPPORT
PX1120451-02 BOOM REST (NO.1)
PX1480050-01 MOUNT,GENERATOR (100V,50HZ,2.2KW/DENYO)
PX1480052-00 MOUNT,GENERATOR (100V,60HZ,2.5KVA/YANMAR)
PX1480053-00 MOUNT,GENERATOR (100V,50HZ,2.0KVA/YANMAR)
PX1810263-05 MOUNT,SUPPORT (BUCKET)
PX5280013-00 MOUNT ASSY,DECK
PX5300002-00 MOUNT ASSY,EMERGENCY PUMP
PX5360023-01 MOUNT ASSY,FRAME
PX5420012-00 MOUNT ASSY,GENERATOR
PX5590013-00 MOUNT ASSY,PUMP
PX5650052-01 MOUNT ASSY,SIDE GUARD
