Tadano Crane DT-620-1-00002 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane DT-620-1-00002 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

TABLE OF CONTENTS:

Tadano Crane DT-620-1-00002 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

DT-620-1-00002 UPPERPB1000399-03 HYDRAULIC PRESSURE GENERATING SYSTEM
PD1000369-02 SWING SYSTEM
PE1000370-02 ELEVATING SYSTEM
PF1000340-02 WINCH SYSTEM
PG1000337-02 TELESCOPING SYSTEM
PH1000333-01 SAFETY DEVICES
PK1000380-02 FRAME
PL1000389-02 CONTROL DEVICES
PN1000272-02 ELECTRIC EQUIPMENT
PO1000131-03 INDICATION PLATES
PP2000012-01 AUGER SYSTEM
PY1001238-02 OPTIONS
ASSEMBLY

PB1320073-01 VALVE,MANUAL CONTROL
PB1320168-00 VALVE,MANUAL CONTROL (RELIEF VALVE)
PB1400294-03 PIPING,HYDRAULIC UPPER
PD1010148-00 REDUCER,SWING SPEED (MOUNT)
PD1010149-00 REDUCER,SWING SPEED
PE1010343-01 CYLINDER,ELEVATING
PF1010187-00 WINCH
PF1010346-01 WINCH
PF1050101-00 HOOK (SHEAVE 1 PC)
PF1050201-01 HOOK
PF1070005-00 ROPE,WIRE
PF1400298-01 MOUNT,WINCH
PF1400408-01 MOUNT,WINCH
PG1010383-05 BOOM
PG1050042-05 CYLINDER ASSY,TELESCOPING
PG1220080-01 PIPING,BOOM
PG1220139-02 PIPING,BOOM
PG5200002-01 GUARD ASSY
PH1100039-00 DETECTOR,OVER FRONT AREA
PH5031651-00 HARNESS
PH5031652-00 HARNESS
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1100008-01 VALVE,RELIEF
PI1120034-01 VALVE,SOLENOID
PI1250035-00 VALVE,COUNTERBALANCE
PI1250063-00 VALVE,COUNTERBALANCE
PI5070003-00 INDICATOR ASSY,OVERWIND
PK1100191-01 SWING FRAME
PK1120179-02 SWING TABLE
PK1150026-01 SEAT,OPERATOR
PK1200137-00 COVER,SWING FRAME
PL1010079-02 OPERATION SYSTEM, CONTROL VALVE
PL1030067-02 OPERATION SYSTEM, ACCELERATOR
PM5230001-01 MOTOR,OIL
PN1012262-04 ELECTRICAL ACCESSORIES
PN1350070-02 REEL,CORD
PO1012579-01 PLATE ASSY,NAME (OIL)
PO1012965-03 PLATE,INDICATION
PP2050012-06 MOUNT,AUGER
PP2100013-00 PIPING,AUGER
PR5050008-00 REEL ASSY,CORD
PR5050015-00 REEL ASSY,CORD
PR5050034-00 REEL ASSY,CORD
PS5050006-01 SEAT ASSY
PS5050009-00 SEAT ASSY
PS5530237-00 SWITCH ASSY (WITH HARNESS,4 SW)
PV5180003-00 VALVE ASSY,SELECTOR (MANUAL CONT.)
PX1940020-00 MOUNT (MARK)

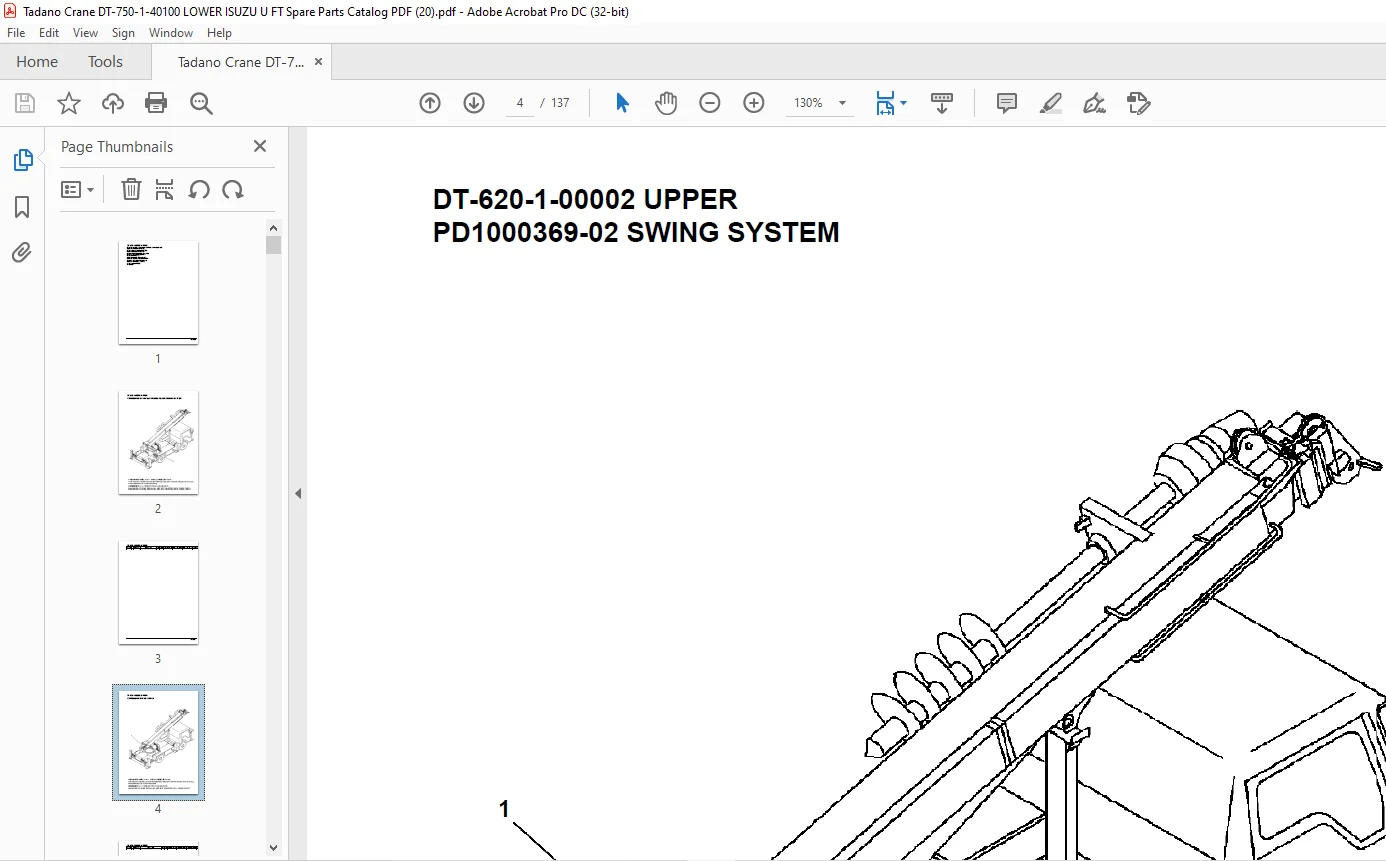

IMAGES PREVIEW OF THE MANUAL:
