Tadano Crane DT-700-1-00004 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane DT-700-1-00004 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

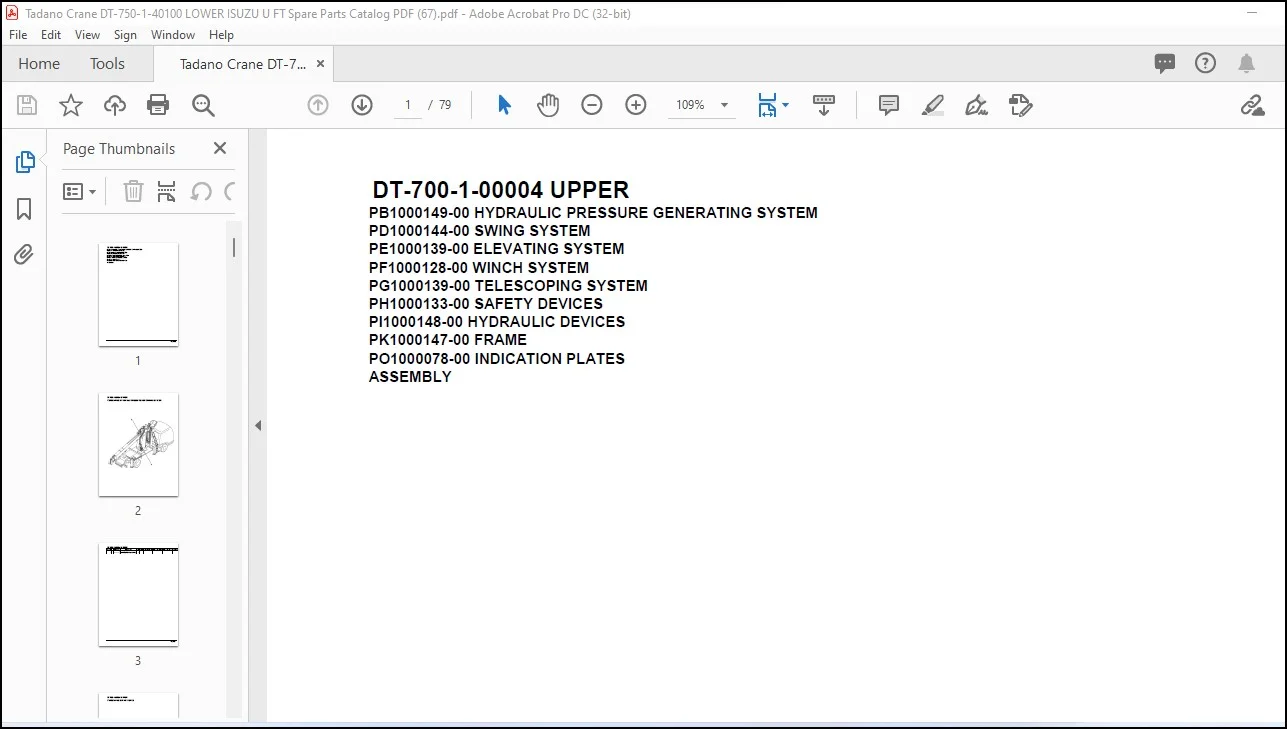

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane DT-700-1-00004 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

DT-700-1-00004 UPPER
PB1000149-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PD1000144-00 SWING SYSTEM
PE1000139-00 ELEVATING SYSTEM
PF1000128-00 WINCH SYSTEM
PG1000139-00 TELESCOPING SYSTEM
PH1000133-00 SAFETY DEVICES
PI1000148-00 HYDRAULIC DEVICES
PK1000147-00 FRAME
PO1000078-00 INDICATION PLATES
ASSEMBLY

DT-700-1-00004 UPPER
PB1300032-03 JOINT,ROTARY
PB1400074-00 PIPING,HYDRAULIC UPPER
PD1010010-04 REDUCER,SWING SPEED
PE1010338-02 CYLINDER,ELEVATING
PF1010020-00 WINCH
PF1010119-00 WINCH
PF1050042-00 HOOK
PF1050101-00 HOOK (SHEAVE 1 PC)
PF1070005-00 ROPE,WIRE
PF1400030-01 MOUNT,WINCH
PG1010044-04 BOOM
PG1050031-05 CYLINDER,TELESCOPING
PG1360046-00 GUIDE,WIRE
PH1100014-00 DETECTOR,OVER FRONT AREA
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010145-00 MOTOR,HYDRAULIC
PI1060001-00 CYLINDER,BRAKE
PI1140028-00 VALVE,CHECK
PI1250023-00 VALVE,COUNTERBALANCE
PI1250063-00 VALVE,COUNTERBALANCE
PI1250105-01 VALVE,COUNTERBALANCE
PI5070003-00 INDICATOR ASSY,OVERWIND
PK1100031-02 SWING FRAME
PM5230001-01 MOTOR,OIL
PM5230010-00 MOTOR,OIL
PO1010467-01 PLATE ASSY,NAME
