Tadano Crane DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN Spare parts catalog manual – PDF DOWNLOAD

Description

Tadano Crane DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN Spare parts catalog manual – PDF DOWNLOAD

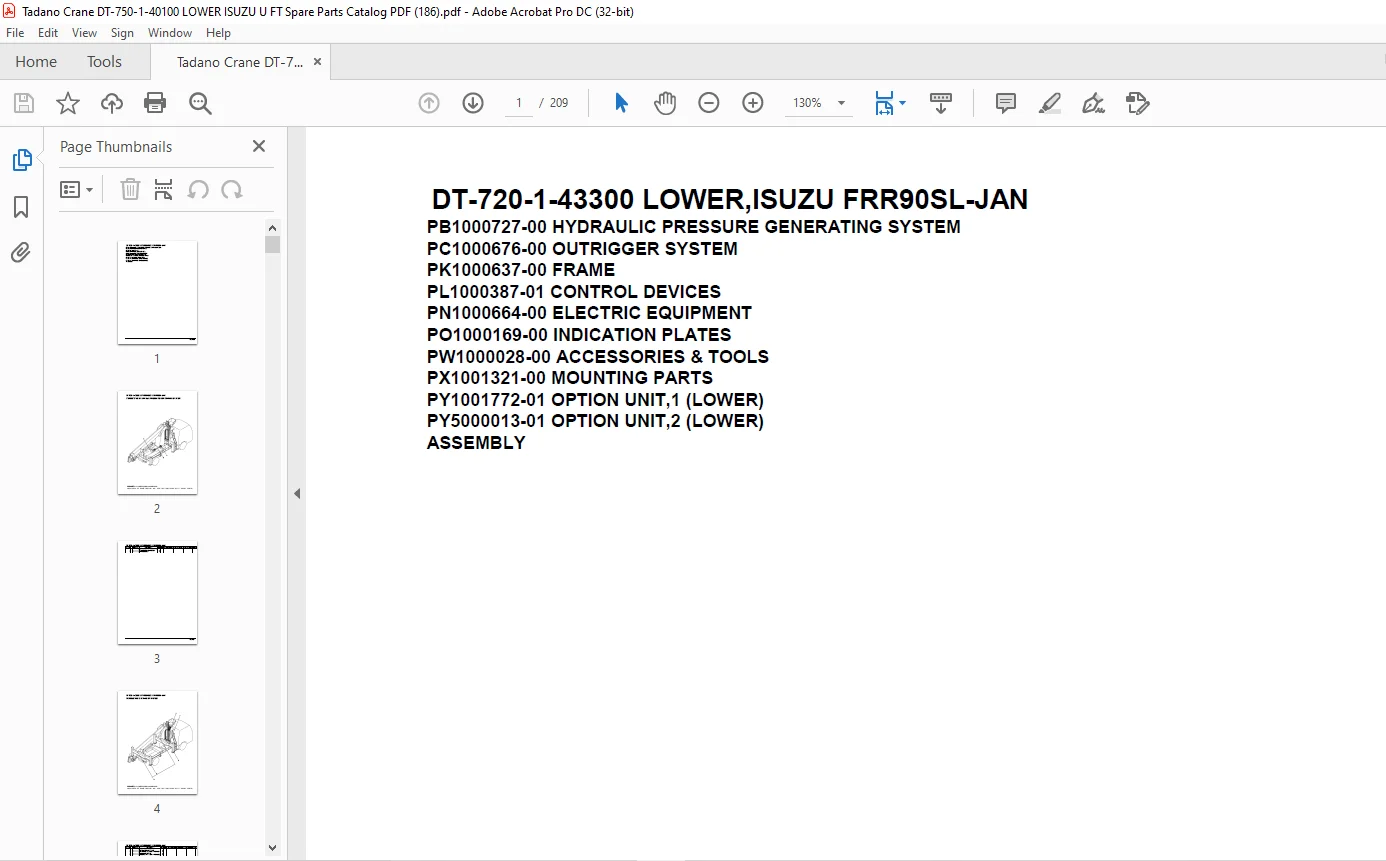

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN Spare parts catalog manual – PDF DOWNLOAD

DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN
PB1000727-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000676-00 OUTRIGGER SYSTEM
PK1000637-00 FRAME
PL1000387-01 CONTROL DEVICES
PN1000664-00 ELECTRIC EQUIPMENT
PO1000169-00 INDICATION PLATES
PW1000028-00 ACCESSORIES & TOOLS
PX1001321-00 MOUNTING PARTS
PY1001772-01 OPTION UNIT,1 (LOWER)
PY5000013-01 OPTION UNIT,2 (LOWER)
ASSEMBLY

DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN
PB1050210-01 OPE.ASSY,P.T.O. (COUPLING)
PB1070355-01 PROPELLER SHAFT,PUMP
PB1100010-00 PUMP,HYDRAULIC
PB1100258-01 PUMP,HYDRAULIC (MOUNT)
PB1130308-01 TANK,OIL
PB1320078-02 VALVE,MANUAL CONTROL
PB1320506-00 VALVE,MANUAL CONTROL
PB1411154-04 PIPING,LOWER
PB5140007-00 BLOCK,WOOD
PC1030094-01 CYLINDER,JACK
PC1050020-04 CYLINDER,EXTENSION (FRONT)
PC1050214-02 CYLINDER,EXTENSION (REAR)
PC1100226-00 OPERATION SYSTEM, OUTRIGGER
PC1200384-07 PIPING,OUTRIGGER
PC5150092-00 CASE ASSY,INNER (FRONT)
PC5150093-00 CASE ASSY,INNER (REAR)
PC5190001-00 CHAIN SAW ASSY (STANLEY)
PF5030003-00 FILTER ASSY
PH1390001-02 LEVEL GAUGE (OPTION)
PH5030720-01 HARNESS (INSIDE CAB)
PH5030721-00 HARNESS (OUTSIDE CAB)
PH5031310-02 HARNESS (WITH 4 SW)
PH5031311-00 HARNESS
PH5034251-00 HARNESS
PH5034375-00 HARNESS
PH5034401-00 HARNESS
PH5034422-00 HARNESS
PH5034423-00 HARNESS
PH5034424-00 HARNESS
PH5100001-00 HOSE ASSY (HIGH-PRESSURE:10M,210KG/CM2)
PH5100017-00 HOSE ASSY (FOR EXTENSION)
PH5100018-00 HOSE ASSY (FOR RETRACTION)
PI1120034-01 VALVE,SOLENOID
PI1120242-01 VALVE,SOLENOID
PK1010032-00 FRAME (CRANE)
PK1010638-00 FRAME (REAR)
PK1120178-02 SWING TABLE
PK1150026-01 SEAT,OPERATOR
PL1010039-03 OPERATION SYSTEM, CONTROL VALVE
PL1030051-03 OPE.ASSY,ACCELERATOR (
PL1031120-01 OPE.ASSY,ACCELERATOR (ENGINE)
PM5150435-00 MODIFICATION ASSY
PM5150614-00 MODIFICATION ASSY (OUTRIGGER)
PN1012248-07 ELEC.ASSY (WITH BOOM RETRACTION DETECTOR)
PN1350027-01 REEL,CORD
PN5010760-01 NAME PLATE ASSY (CRANE)
PN5011268-00 NAME PLATE ASSY (VEHICLE)
PO5280014-01 OUTRIGGER ASSY,FRONT
PO5290048-01 OUTRIGGER ASSY,REAR
PP5100076-00 PARTS ASSY,ELECTRICITY
PP5330012-02 POWER SUPPLY ASSY
PP5460001-01 PULLER ASSY
PP5460005-00 PULLER ASSY (PHILIPPINES/TIMBER PULLER)
PR5050015-00 REEL ASSY,CORD
PR5050034-00 REEL ASSY,CORD
PS5050006-01 SEAT ASSY
PS5050009-00 SEAT ASSY
PS5530216-00 SWITCH ASSY
PV5040006-00 VALVE ASSY,CHECK
PW1030013-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1100000-00 CHAIN
PX1100102-01 TANK SUPPORT INSTALLATION
PX1120127-00 BOOM REST INSTALLATION
DT-720-1-43300 LOWER,ISUZU FRR90SL-JAN
PX1200430-01 GUARD,SIDE (FENDER)
PX1270021-02 WOOD BLOCK INSTALLATION
PX1350183-00 TOOL BOX INSTALLATION
PX1350415-01 BOX,TOOL
PX1450001-01 MOUNT,POLE PULLER (OPTION)
PX1940031-00 MOUNT(PUMP SUPPORT)
PX5280068-00 MOUNT ASSY,DECK
PX5360136-00 MOUNT ASSY,FRAME
PX5620019-00 MOUNT ASSY,REFLECTOR (SIDE)
PX5650039-00 MOUNT ASSY,SIDE GUARD
PY1180302-07 LAMP (FLICKER)
PY1600003-04 CYLINDER,POLE PULLER
PY1650004-00 EARTHING DEVICE
PY1840001-04 BREAKER (BR37)
PY1840002-04 BREAKER (BR45)
PY1840003-03 BREAKER (BR67)
PY1910000-03 HOSE (6M.210KG/CM2)
PY1910001-01 HOSE (6M.70KG/CM2)
PY1910002-01 HOSE (10M.70KG/CM2)
PY1910004-00 HOSE (15M.70KG/CM2)
PY1910005-02 HOSE (15M.210KG/CM2)
PY1920000-00 CHAIN SAW (STANLEY)
