Tadano Crane DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M Spare Parts Catalog Manual – PDF DOWNLOAD

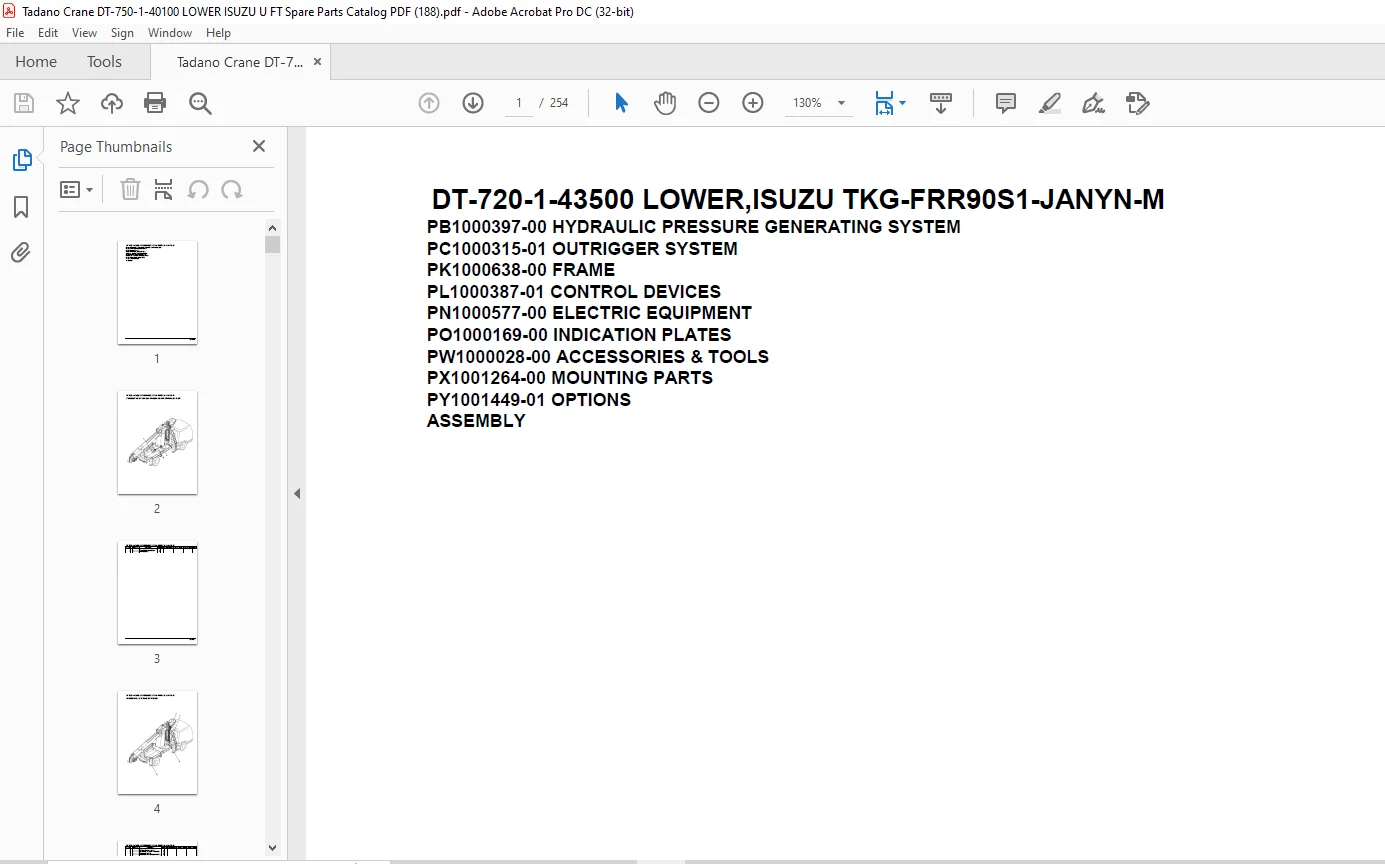

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M Spare Parts Catalog Manual – PDF DOWNLOAD

DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M
PB1000397-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000315-01 OUTRIGGER SYSTEM
PK1000638-00 FRAME
PL1000387-01 CONTROL DEVICES
PN1000577-00 ELECTRIC EQUIPMENT
PO1000169-00 INDICATION PLATES
PW1000028-00 ACCESSORIES & TOOLS
PX1001264-00 MOUNTING PARTS
PY1001449-01 OPTIONS
ASSEMBLY

DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M
PB1050210-01 OPE.ASSY,P.T.O. (COUPLING)
PB1070355-01 PROPELLER SHAFT,PUMP
PB1100010-00 PUMP,HYDRAULIC
PB1100085-00 PUMP,HYDRAULIC
PB1100258-01 PUMP,HYDRAULIC (MOUNT)
PB1130308-01 TANK,OIL
PB1320078-02 VALVE,MANUAL CONTROL
PB1320506-00 VALVE,MANUAL CONTROL
PB1411154-04 PIPING,LOWER
PB5140007-00 BLOCK,WOOD
PC1030345-00 CYLINDER,JACK
PC1050020-04 CYLINDER,EXTENSION (FRONT)
PC1050214-02 CYLINDER,EXTENSION (REAR)
PC1100226-00 OPERATION SYSTEM, OUTRIGGER
PC1200384-07 PIPING,OUTRIGGER
PC1200472-02 PIPING,OUTRIGGER (MODIF. PARTS)
PC5190001-00 CHAIN SAW ASSY (STANLEY)
PC6010030-00 CYLINDER ASSY (SLIDE)
PC6010031-00 CYLINDER ASSY (SLIDE)
PE5070100-02 ELEC.ASSY,CARRIER
PF1070037-00 ROPE,WIRE (FOR RIGGING:12X2.5M)
PF5030003-00 FILTER ASSY
PH1390001-02 LEVEL GAUGE (OPTION)
PH5030509-00 HARNESS
PH5031676-02 HARNESS
PH5031762-00 HARNESS (OUTSIDE CAB)
PH5032441-01 HARNESS (INSIDE CAB)
PH5032853-00 HARNESS
PH5032970-00 HARNESS
PH5034251-00 HARNESS
PH5034424-00 HARNESS
PH5034426-00 HARNESS
PH5100017-00 HOSE ASSY (FOR EXTENSION)
PH5100018-00 HOSE ASSY (FOR RETRACTION)
PH5100019-00 HOSE ASSY (FOR HIGHT PRESSURE)
PH5100020-00 HOSE ASSY (FOR BRAKER TANK)
PH5100021-00 HOSE ASSY (FOR BRAKER HIGHT PRESSURE)
PH5100022-00 HOSE ASSY (FOR TANK)
PH5100023-00 HOSE ASSY (FOR LOW PRESSURE)
PH5100024-00 HOSE ASSY (FOR HIGHT PRESSURE)
PH5100030-00 HOSE ASSY (FOR LOW PRESSURE)
PH5100031-00 HOSE ASSY (FOR TANK)
PH5110002-00 HOUR METER ASSY
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1100006-01 VALVE,RELIEF
PI1120002-01 VALVE,SOLENOID
PI1120034-01 VALVE,SOLENOID
PI1120242-01 VALVE,SOLENOID
PI1120251-01 VALVE,SOLENOID
PI1120326-00 VALVE,SOLENOID
PI1140229-00 VALVE,CHECK
PI1300006-00 FILTER,OIL
PK1010032-00 FRAME (CRANE)
PK1010638-00 FRAME (REAR)
PK1120178-02 SWING TABLE
PK1120209-00 SWING TABLE
PL1010961-00 OPE.ASSY,CONT.VALVE
PL1030051-03 OPE.ASSY,ACCELERATOR (
PL1030286-00 OPE.ASSY,ACCELERATOR (OPTION,OIL)
PL1031120-01 OPE.ASSY,ACCELERATOR (ENGINE)
PM5150710-00 MODIFICATION ASSY
PN1010869-01 ELEC.ASSY (OP.,OIL COOLER
PN1013598-04 ELEC.ASSY (WITH BOOM RETRACTION DETECTOR)
PN1350032-02 REEL,CORD
DT-720-1-43500 LOWER,ISUZU TKG-FRR90S1-JANYN-M
PN1350111-02 REEL,CORD
PN5010027-00 NAME PLATE ASSY (CRANE)
PN5010028-00 NAME PLATE ASSY (OIL)
PN5010801-00 NAME PLATE ASSY (LLC)
PN5010804-00 NAME PLATE ASSY (CARRIER)
PO5270180-01 OUTRIGGER ASSY (FRONT)
PO5270186-02 OUTRIGGER ASSY (REAR)
PP5460001-01 PULLER ASSY
PR5050034-00 REEL ASSY,CORD
PR5100098-00 RELAY BOX ASSY
PS5050009-00 SEAT ASSY
PS5530239-01 SWITCH ASSY
PT5160012-01 TOOL ASSY
PV5040006-00 VALVE ASSY,CHECK
PW1100000-00 CHAIN
PW5110005-00 WEDGE (YELLOW)
PX1100102-01 TANK SUPPORT INSTALLATION
PX1120127-00 BOOM REST INSTALLATION
PX1270021-02 WOOD BLOCK INSTALLATION
PX1350415-01 BOX,TOOL
PX1940030-01 MOUNT(FRAME)
PX5010154-01 MOUNT ASSY
PX5280008-00 MOUNT ASSY,DECK
PX5360066-01 MOUNT ASSY,FRAME
PX5590025-02 MOUNT ASSY,PUMP (WATER)
PX5620012-00 MOUNT ASSY,REFLECTOR
PX5650035-00 MOUNT ASSY,SIDE GUARD
PX5740039-01 MOUNT ASSY,TAIL LAMP
PX5750004-02 MOUNT ASSY,TANK (WATER)
PX5780012-00 MOUNT ASSY,TOOL BOX
PX5820052-00 MOUNT ASSY,WEIGHT
PY1180302-07 LAMP (FLICKER)
PY1230009-01 OIL COOLER INSTALLATION (HYDRAULIC)
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1560009-00 ALARM SYSTEM (OVERRUN/OVER FRONT AREA)
PY1600003-04 CYLINDER,POLE PULLER
PY1650088-01 EARTHING DEVICE
PY1840001-04 BREAKER (BR37)
PY1840002-04 BREAKER (BR45)
PY1840003-03 BREAKER (BR67)
PY1910011-00 HOSE
PY5020072-00 ACCESSORIES ASSY
PZ0000000-00 HARNESS
