Tadano Crane GR-120N-1-00115 4.9T,X,WINCH(W/O FREE-FALL),JIB(PT) Parts Manual PDF

Description

Tadano Crane GR-120N-1-00115 4.9T,X,WINCH(W/O FREE-FALL),JIB(PT) Parts Manual- PDF DOWNLOAD

FILE DETAILS:

Tadano Crane GR-120N-1-00115 4.9T,X,WINCH(W/O FREE-FALL),JIB(PT) Parts Manual- PDF DOWNLOAD

Language : English
Pages : 922
Downloadable : Yes
File Type : PDF

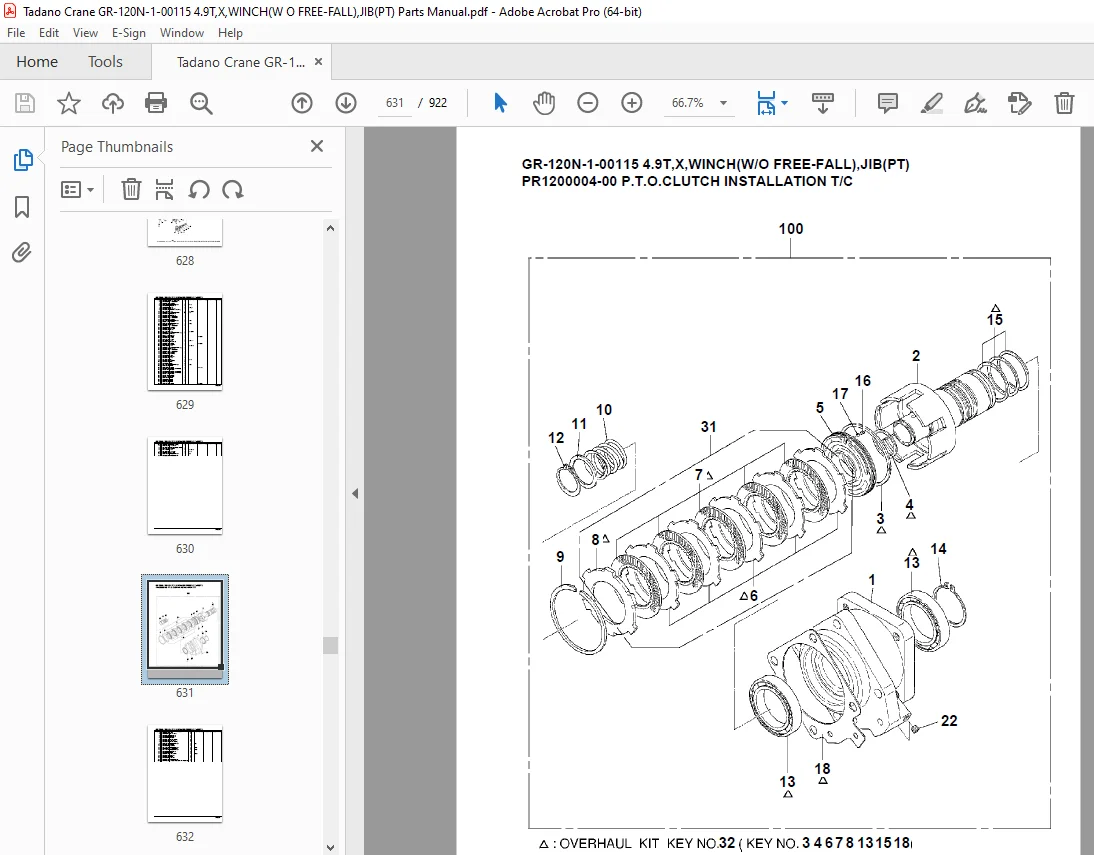

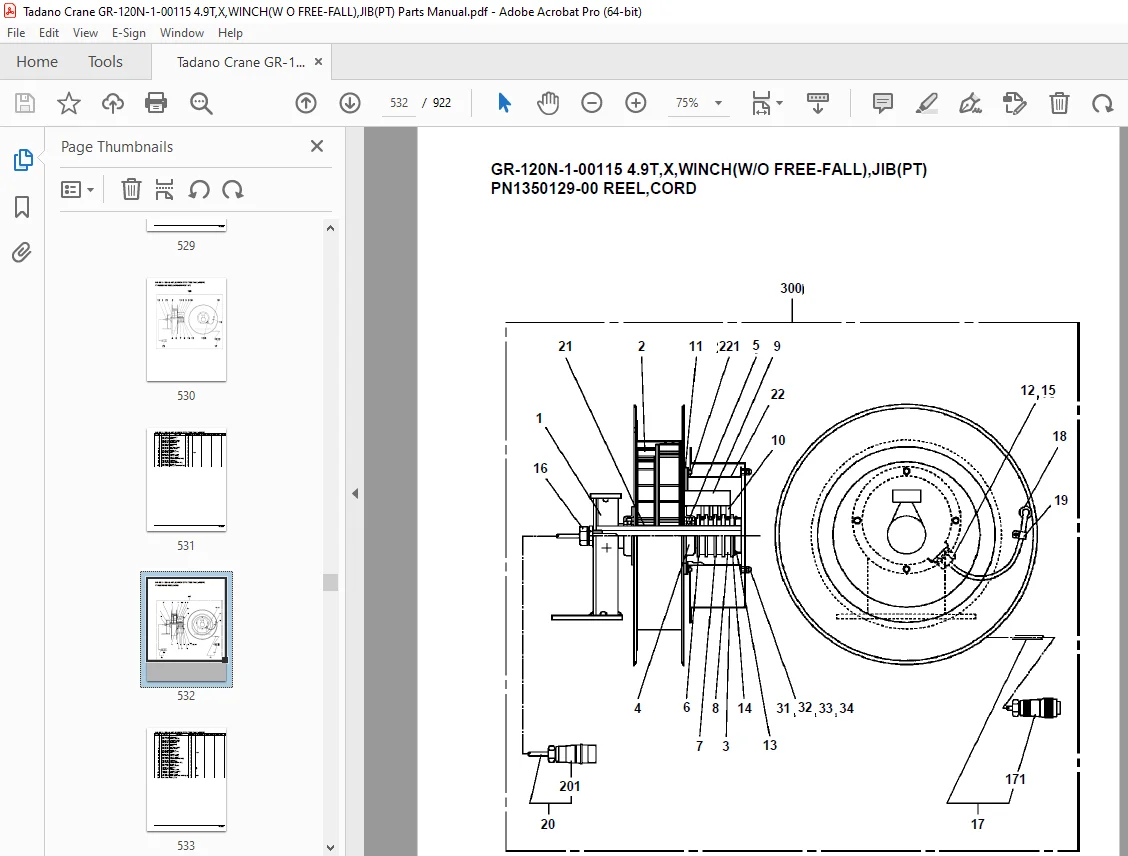

IMAGES PREVIEW OF THE MANUAL:

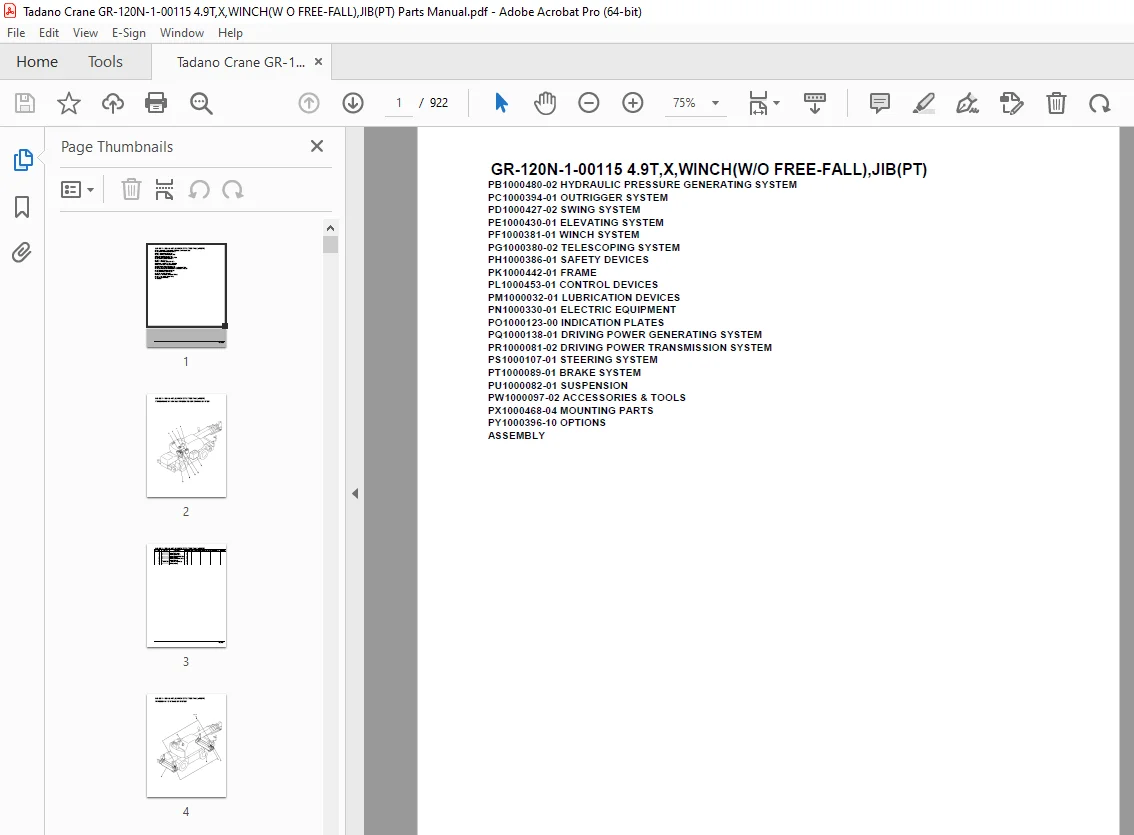

TABLE OF CONTENTS:

Tadano Crane GR-120N-1-00115 4.9T,X,WINCH(W/O FREE-FALL),JIB(PT) Parts Manual- PDF DOWNLOAD

PB1000480-02 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000394-01 OUTRIGGER SYSTEM
PD1000427-02 SWING SYSTEM
PE1000430-01 ELEVATING SYSTEM
PF1000381-01 WINCH SYSTEM
PG1000380-02 TELESCOPING SYSTEM
PH1000386-01 SAFETY DEVICES
PK1000442-01 FRAME
PL1000453-01 CONTROL DEVICES
PM1000032-01 LUBRICATION DEVICES
PN1000330-01 ELECTRIC EQUIPMENT
PO1000123-00 INDICATION PLATES
PQ1000138-01 DRIVING POWER GENERATING SYSTEM
PR1000081-02 DRIVING POWER TRANSMISSION SYSTEM
PS1000107-01 STEERING SYSTEM
PT1000089-01 BRAKE SYSTEM
PU1000082-01 SUSPENSION
PW1000097-02 ACCESSORIES & TOOLS
PX1000468-04 MOUNTING PARTS
PY1000396-10 OPTIONS
ASSEMBLY

S.V 09/24
