Tadano Crane HT-380-2-30100 LOWER HINO DUTRO PB-XZU404X-TMFSW3 Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane HT-380-2-30100 LOWER HINO DUTRO PB-XZU404X-TMFSW3 Spare Parts Catalog Manual – PDF DOWNLOAD

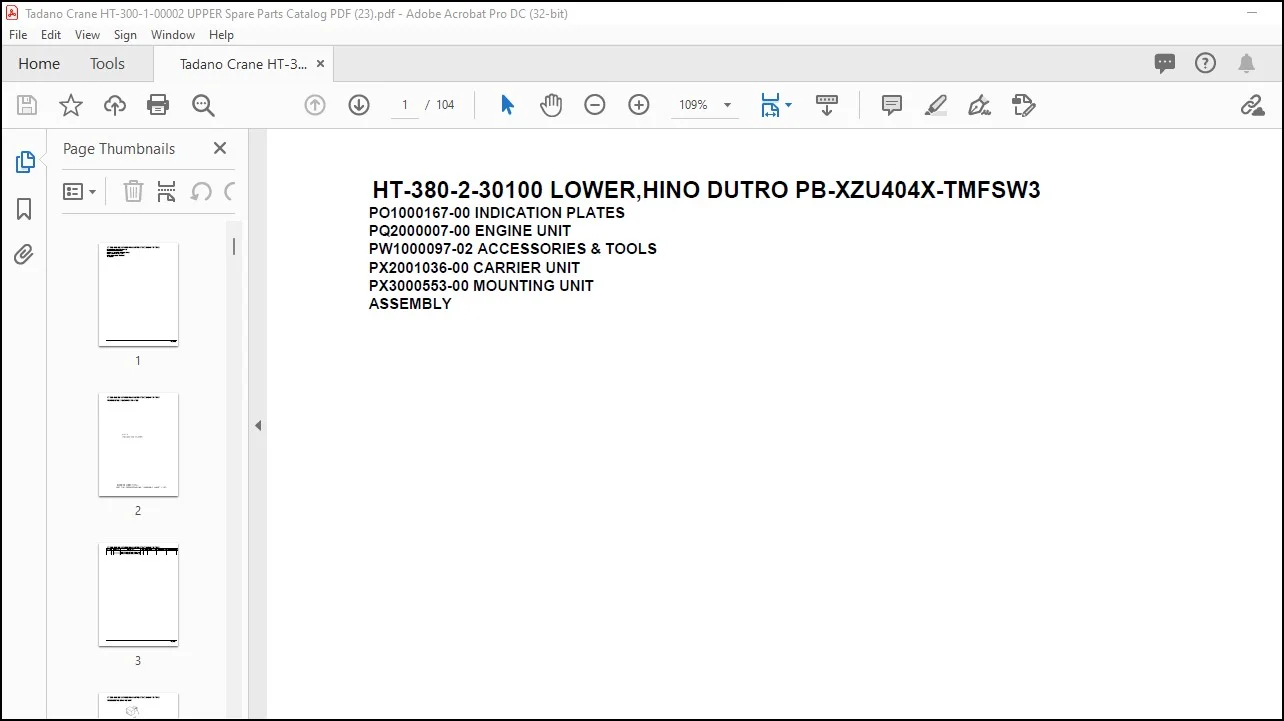

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane HT-380-2-30100 LOWER HINO DUTRO PB-XZU404X-TMFSW3 Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :104
Downloadable : Yes
File Type : PDF
Size:1.13 MB
TABLE OF CONTENTS:

Tadano Crane HT-380-2-30100 LOWER HINO DUTRO PB-XZU404X-TMFSW3 Spare Parts Catalog Manual – PDF DOWNLOAD

HT-380-2-30100 LOWER,HINO DUTRO PB-XZU404X-TMFSW3
PO1000167-00 INDICATION PLATES
PQ2000007-00 ENGINE UNIT
PW1000097-02 ACCESSORIES & TOOLS
PX2001036-00 CARRIER UNIT
PX3000553-00 MOUNTING UNIT
ASSEMBLY

HT-380-2-30100 LOWER,HINO DUTRO PB-XZU404X-TMFSW3
PC5490018-00 COOLER ASSY,OIL
PC5570121-00 COVER ASSY
PE5010019-00 EARTH ASSY
PE5070103-00 ELEC.ASSY,CARRIER
PE5180052-00 ELEC.ASSY,POWER UNIT
PE5230028-00 EXHAUST ASSY
PH1700240-00 VIEW SYSTEM (MONITOR)
PH1700241-00 VIEW SYSTEM (MAIN UNIT)
PH1710017-00 DISPLAY
PH1750007-01 CAMERA
PH5031067-00 HARNESS
PH5031068-00 HARNESS
PH5031804-00 HARNESS
PM5150588-00 MODIFICATION ASSY
PN1350029-01 REEL,CORD (FOR EARTHING)
PN5011224-00 NAME PLATE ASSY
PP5100102-00 PARTS ASSY,ELECTRICITY (CAMERA/ICHIKOH:XC-200A)
PP6110060-00 PIPING ASSY,DRAIN
PS5420368-00 SUPPORT ASSY (BOX TOOL/FRP JIB,ARM)
PS5420369-00 SUPPORT ASSY
PV5450058-00 VIEW SYSTEM (COLOR MONITOR/ICHIKOH)
PW1010091-04 ACCESSORIES
PW1010381-00 ACCESSORIES (WRENCH)
PW1030047-01 TOOLS
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1350551-00 BOX,TOOL
PX1350552-00 BOX,TOOL
PX5010423-00 MOUNT ASSY (OIL COOLER)
PX5110051-00 MOUNT ASSY,BOOM SUPPORT
PX5280065-00 MOUNT ASSY,DECK (FENDER)
PX5290044-00 MOUNT ASSY,DECK ON CAB
PX5360131-00 MOUNT ASSY,FRAME
PX5390003-00 MOUNT ASSY,FUEL PUMP
PX5620016-00 MOUNT ASSY,REFLECTOR (REAR)
PX5620017-00 MOUNT ASSY,REFLECTOR (SIDE)
PX5650071-00 MOUNT ASSY,SIDE GUARD
PX5670048-00 MOUNT ASSY,STEP (BUCKET)
PX5670050-00 MOUNT ASSY,STEP (LADDER)
PX5740074-01 MOUNT ASSY,TAIL LAMP
PX5770015-00 MOUNT ASSY,TIRE
PX5780234-00 MOUNT ASSY,TOOL BOX
PX5820098-00 MOUNT ASSY,WEIGHT
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
