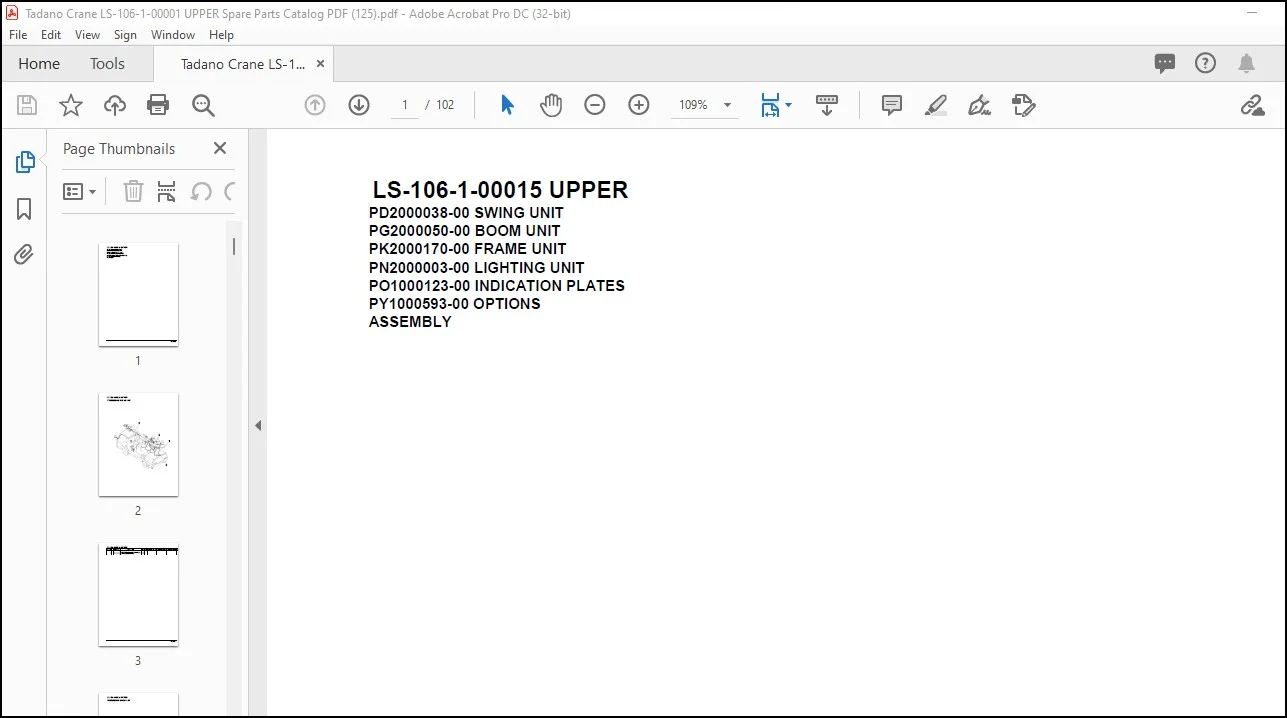

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane LS-106-1-00015 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

LS-106-1-00015 UPPER
PD2000038-00 SWING UNIT
PG2000050-00 BOOM UNIT
PK2000170-00 FRAME UNIT
PN2000003-00 LIGHTING UNIT
PO1000123-00 INDICATION PLATES
PY1000593-00 OPTIONS
ASSEMBLY

LS-106-1-00015 UPPER
PB1130158-02 TANK,OIL
PB1130231-00 TANK,OIL (MOUNT)
PB1320419-01 VALVE,MANUAL CONTROL (SANWA)
PB1320444-00 VALVE,MANUAL CONTROL (NABCO)
PC1030339-01 CYLINDER,JACK
PD1010035-01 REDUCER,SWING SPEED
PD1010108-01 REDUCER,SWING SPEED (MOUNT)
PE1010186-00 CYLINDER,ELEVATING
PE1070012-01 CYLINDER, ARTICULATING
PE1390003-01 CYLINDER,TILT
PE1400000-01 TILTING LAMP
PG1010332-01 BOOM
PG1220003-01 PIPING,BOOM
PH1140025-01 DETECTOR,SWING ANGLE
PH5034660-00 HARNESS
PI1010106-00 MOTOR,HYDRAULIC
PI1250027-00 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PK1100164-00 SWING FRAME
PK1200097-00 COVER,SWING FRAME
PK1330128-00 COVER (TILTING LAMP)
PL1010469-04 OPE.ASSY,CONT.VALVE
PN1011571-02 ELEC.ASSY (FRAME)
PN1013048-00 ELEC.ASSY
PN1060056-00 SWITCH PANEL
PN1060135-01 SWITCH PANEL
PN1070003-00 ELECTRICAL PARTS, BOOM
PN1350026-01 REEL,CORD (FOR EARTHING)
PN1430042-00 GENERATOR (60HZ)
PO1011874-01 PLATE ASSY.NAME (FRAME)
PO1013642-00 PLATE ASSY,NAME (GENERATOR/60HZ)
PO1013643-00 PLATE ASSY,NAME (FRAME)
PO1013644-00 PLATE ASSY,NAME (NON SLIP)
PO1013645-00 PLATE ASSY,NAME (KEY INDICATION)
PX1480004-00 MOUNT,GENERATOR
PX1640003-00 BOARD (SWITCH BOARD)
PY1180125-03 LAMP (12V WORKING)
PY1180163-01 LAMP (FLOOD LIGHT/MOUNT)
PY1180267-00 LAMP (FLOOD LIGHT)
PY1180268-00 LAMP (FLOOD LIGHT)
PY1650036-00 EARTHING DEVICE
