Tadano Crane OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF Parts Manual PDF

Description

Tadano Crane OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF Parts Manual – PDF DOWNLOAD

Language : English
Pages : 180
Downloadable : Yes
File Type : PDF

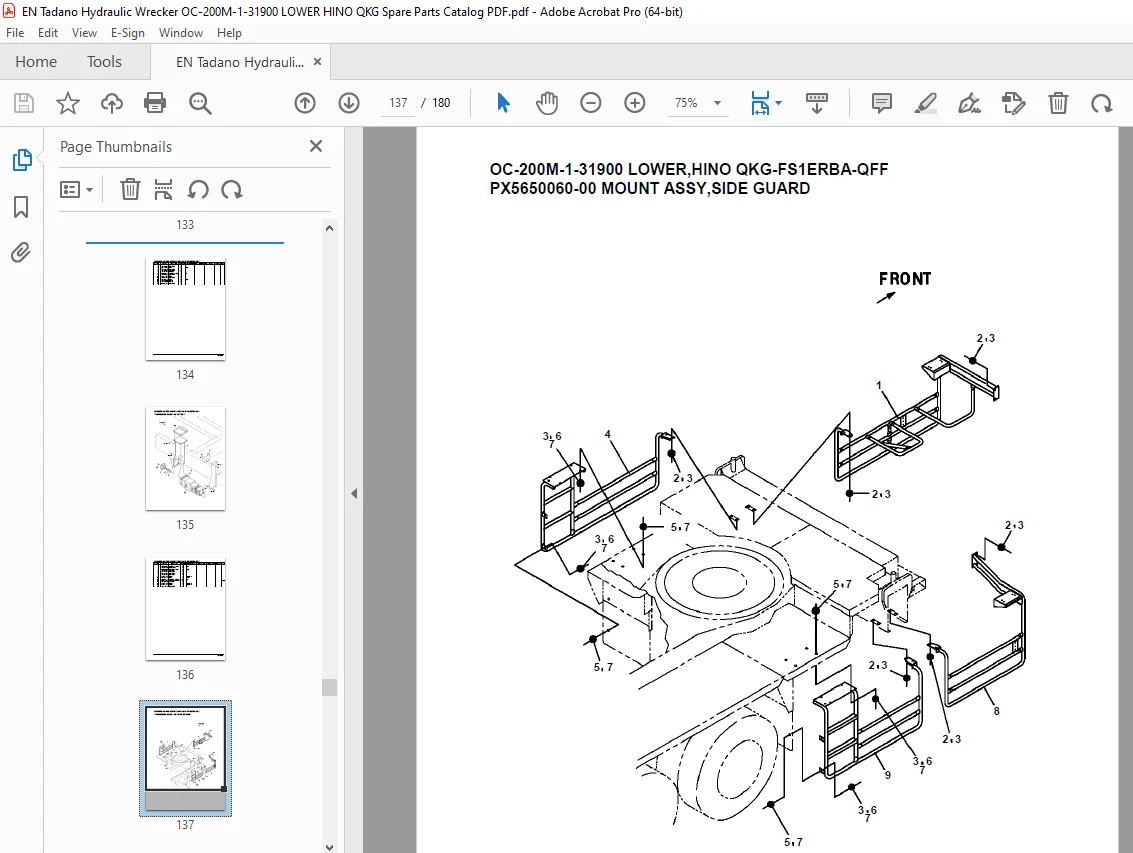

IMAGES PREVIEW OF THE MANUAL:

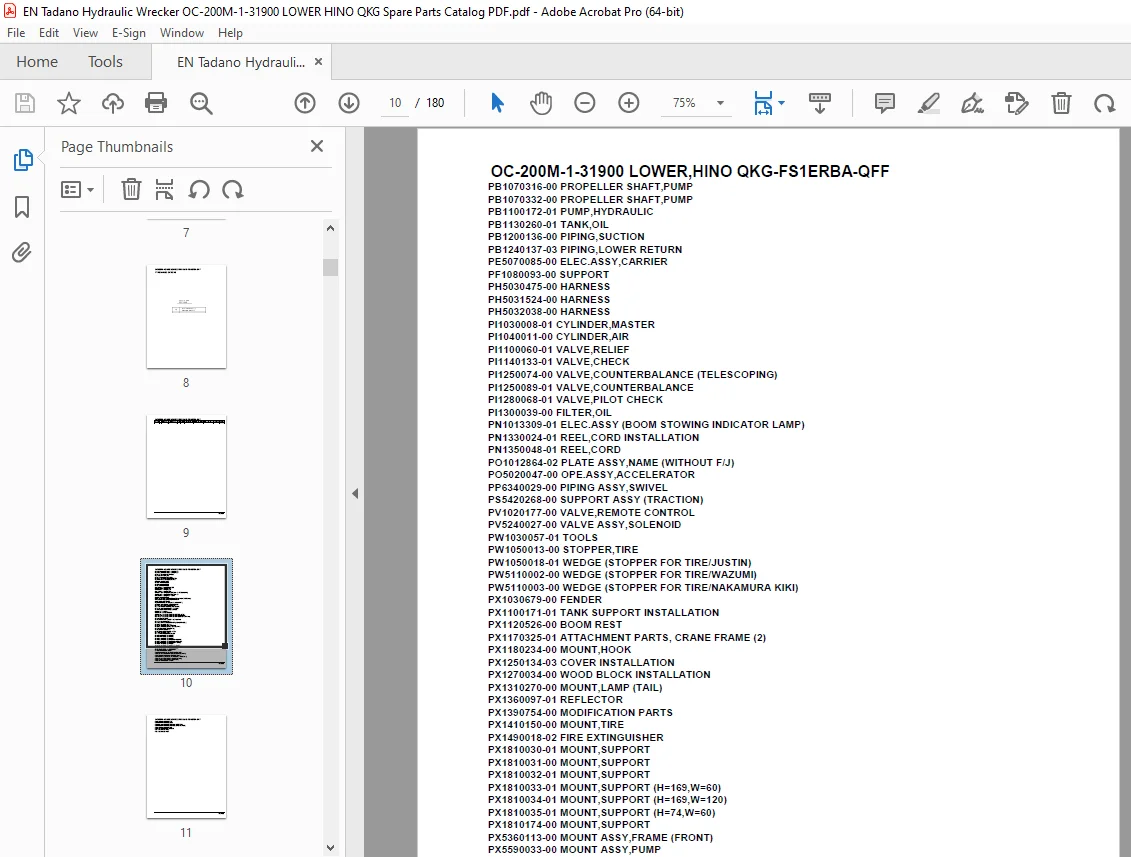

TABLE OF CONTENTS:

Tadano Crane OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF Parts Manual – PDF DOWNLOAD

OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF
000005
PB1070316-00 PROPELLER SHAFT,PUMP
PB1070332-00 PROPELLER SHAFT,PUMP
PB1100172-01 PUMP,HYDRAULIC
PB1130260-01 TANK,OIL
PB1200136-00 PIPING,SUCTION
PB1240137-03 PIPING,LOWER RETURN
PE5070085-00 ELEC.ASSY,CARRIER
PF1080093-00 SUPPORT
PH5030475-00 HARNESS
PH5031524-00 HARNESS
PH5032038-00 HARNESS
PI1030008-01 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1100060-01 VALVE,RELIEF
PI1140133-01 VALVE,CHECK
PI1250074-00 VALVE,COUNTERBALANCE (TELESCOPING)
PI1250089-01 VALVE,COUNTERBALANCE
PI1280068-01 VALVE,PILOT CHECK
PI1300039-00 FILTER,OIL
PN1013309-01 ELEC.ASSY (BOOM STOWING INDICATOR LAMP)
PN1330024-01 REEL,CORD INSTALLATION
PN1350048-01 REEL,CORD
PO1012864-02 PLATE ASSY,NAME (WITHOUT F/J)
PO5020047-00 OPE.ASSY,ACCELERATOR
PP6340029-00 PIPING ASSY,SWIVEL
PS5420268-00 SUPPORT ASSY (TRACTION)
PV1020177-00 VALVE,REMOTE CONTROL
PV5240027-00 VALVE ASSY,SOLENOID
PW1030057-01 TOOLS
PW1050013-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1030679-00 FENDER
PX1100171-01 TANK SUPPORT INSTALLATION
PX1120526-00 BOOM REST
PX1170325-01 ATTACHMENT PARTS, CRANE FRAME (2)
PX1180234-00 MOUNT,HOOK
PX1250134-03 COVER INSTALLATION
PX1270034-00 WOOD BLOCK INSTALLATION
PX1310270-00 MOUNT,LAMP (TAIL)
PX1360097-01 REFLECTOR
PX1390754-00 MODIFICATION PARTS
PX1410150-00 MOUNT,TIRE
PX1490018-02 FIRE EXTINGUISHER
PX1810030-01 MOUNT,SUPPORT
PX1810031-00 MOUNT,SUPPORT
PX1810032-01 MOUNT,SUPPORT
PX1810033-01 MOUNT,SUPPORT (H=169,W=60)
PX1810034-01 MOUNT,SUPPORT (H=169,W=120)
PX1810035-01 MOUNT,SUPPORT (H=74,W=60)
PX1810174-00 MOUNT,SUPPORT
PX5360113-00 MOUNT ASSY,FRAME (FRONT)
PX5590033-00 MOUNT ASSY,PUMP
PX5650060-00 MOUNT ASSY,SIDE GUARD
PX5820088-00 MOUNT ASSY,WEIGHT
PY1010071-01 OPTION UNIT,1
PY3010004-00 OPE.ASSY,CONT.VALVE (REMO.)
PY3060001-00 RADIO CONTROL SYSTEM (WRECKING)
PY3060002-01 RADIO CONTROL (WRECKING)
PY3070004-00 ELECTRICAL ACCESSORIES (WRECKING)
PY3100009-02 PIPING,HYDRAULIC (WRECKING)
PY3100010-03 PIPING,HYDRAULIC (FORK)
PY3200005-05 WRECKING FORK
OC-200M-1-31900 LOWER,HINO QKG-FS1ERBA-QFF
000005
PY3320003-02 CYLINDER,LIFT
PY3330004-01 CYLINDER,FORK
PY3340001-01 CYLINDER,FORK SLIDE (FOR TOP)
PY3340002-01 CYLINDER,FORK SLIDE (FOR SECOND)
PY3350002-01 CYLINDER,TILT
PY3390000-00 WRECKING WINCH
PY3420000-00 SHACKLE
PY3420000-00 SHACKLE
