Tadano Crane OC-200N-1-10200 LOWER,NISSAN DIESEL ADG-CD4XMH Parts Manual PDF

Description

Tadano Crane OC-200N-1-10200 LOWER,NISSAN DIESEL ADG-CD4XMH Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane OC-200N-1-10200 LOWER,NISSAN DIESEL ADG-CD4XMH Parts Manual – PDF DOWNLOAD

Language : English
Pages : 169
Downloadable : Yes
File Type : PDF

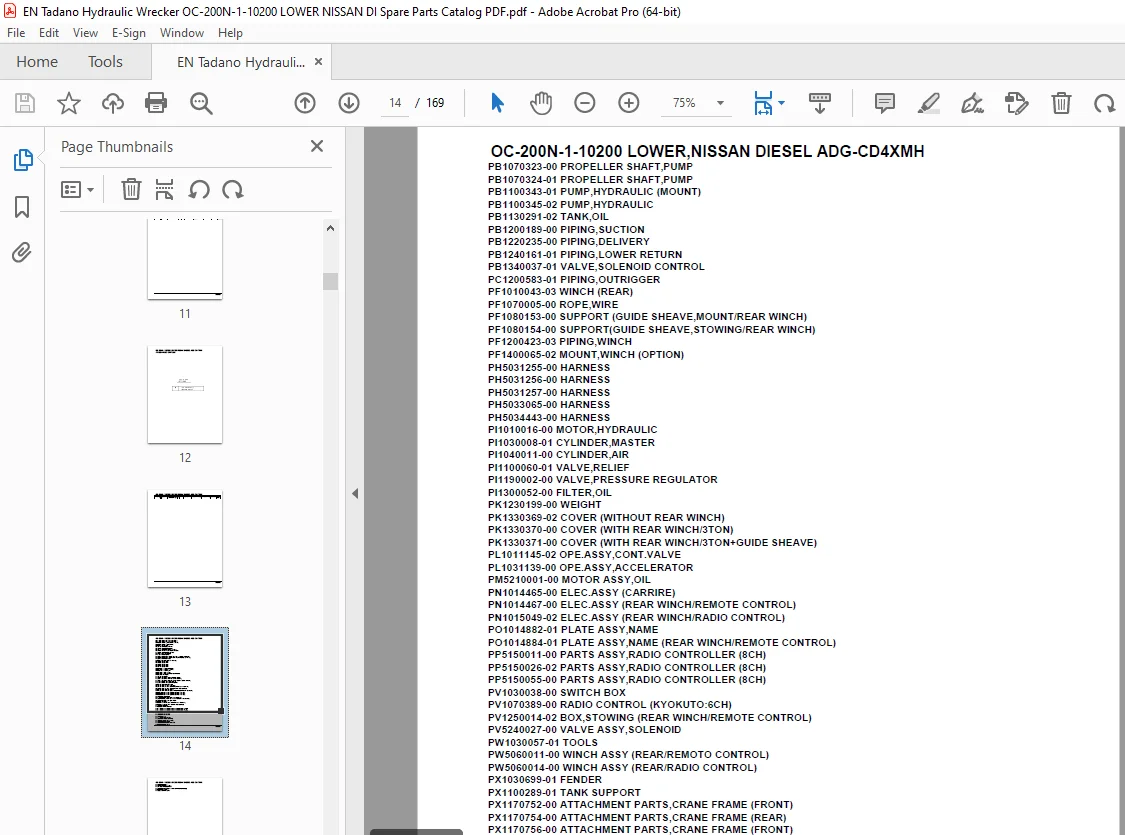

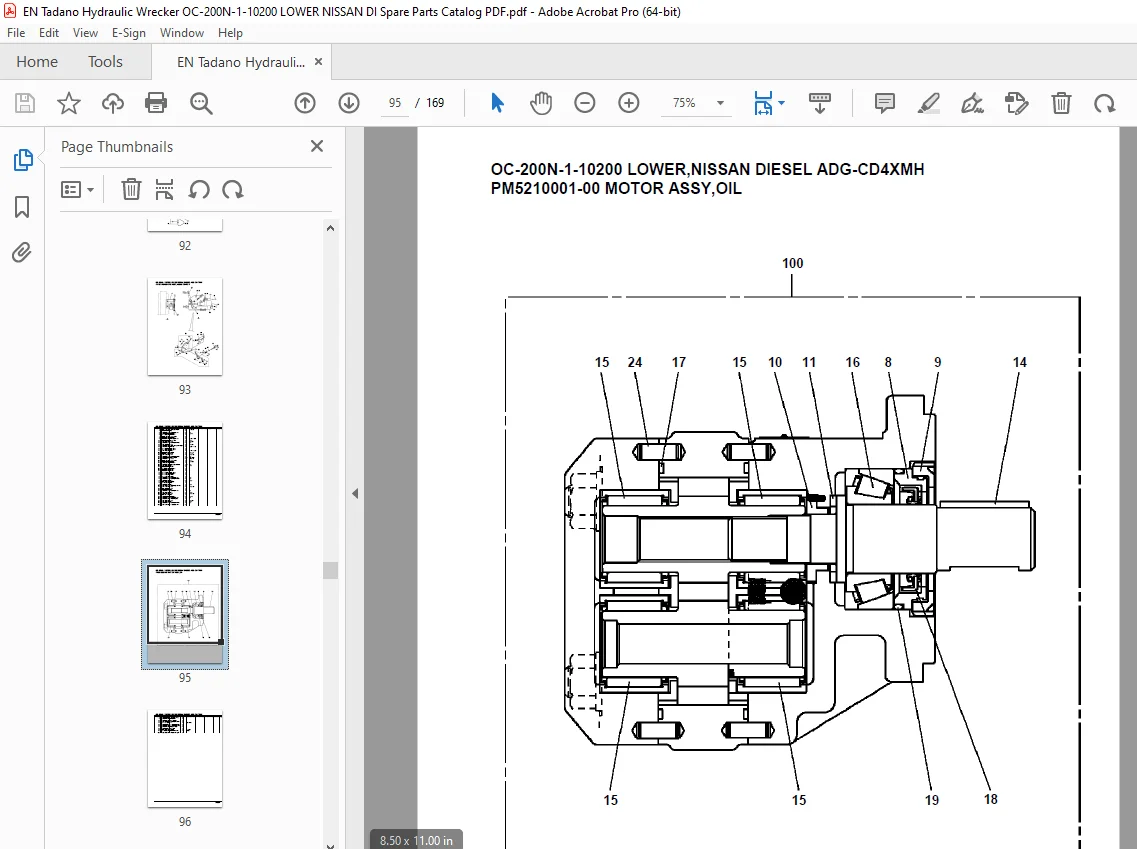

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane OC-200N-1-10200 LOWER,NISSAN DIESEL ADG-CD4XMH Parts Manual – PDF DOWNLOAD

PB1070323-00 PROPELLER SHAFT,PUMP
PB1070324-01 PROPELLER SHAFT,PUMP
PB1100343-01 PUMP,HYDRAULIC (MOUNT)
PB1100345-02 PUMP,HYDRAULIC
PB1130291-02 TANK,OIL
PB1200189-00 PIPING,SUCTION
PB1220235-00 PIPING,DELIVERY
PB1240161-01 PIPING,LOWER RETURN
PB1340037-01 VALVE,SOLENOID CONTROL
PC1200583-01 PIPING,OUTRIGGER
PF1010043-03 WINCH (REAR)
PF1070005-00 ROPE,WIRE
PF1080153-00 SUPPORT (GUIDE SHEAVE,MOUNT/REAR WINCH)
PF1080154-00 SUPPORT(GUIDE SHEAVE,STOWING/REAR WINCH)
PF1200423-03 PIPING,WINCH
PF1400065-02 MOUNT,WINCH (OPTION)
PH5031255-00 HARNESS
PH5031256-00 HARNESS
PH5031257-00 HARNESS
PH5033065-00 HARNESS
PH5034443-00 HARNESS
PI1010016-00 MOTOR,HYDRAULIC
PI1030008-01 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1100060-01 VALVE,RELIEF
PI1190002-00 VALVE,PRESSURE REGULATOR
PI1300052-00 FILTER,OIL
PK1230199-00 WEIGHT
PK1330369-02 COVER (WITHOUT REAR WINCH)
PK1330370-00 COVER (WITH REAR WINCH/3TON)
PK1330371-00 COVER (WITH REAR WINCH/3TON+GUIDE SHEAVE)
PL1011145-02 OPE.ASSY,CONT.VALVE
PL1031139-00 OPE.ASSY,ACCELERATOR
PM5210001-00 MOTOR ASSY,OIL
PN1014465-00 ELEC.ASSY (CARRIRE)
PN1014467-00 ELEC.ASSY (REAR WINCH/REMOTE CONTROL)
PN1015049-02 ELEC.ASSY (REAR WINCH/RADIO CONTROL)
PO1014882-01 PLATE ASSY,NAME
PO1014884-01 PLATE ASSY,NAME (REAR WINCH/REMOTE CONTROL)
PP5150011-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PP5150026-02 PARTS ASSY,RADIO CONTROLLER (8CH)
PP5150055-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PV1030038-00 SWITCH BOX
PV1070389-00 RADIO CONTROL (KYOKUTO:6CH)
PV1250014-02 BOX,STOWING (REAR WINCH/REMOTE CONTROL)
PV5240027-00 VALVE ASSY,SOLENOID
PW1030057-01 TOOLS
PW5060011-00 WINCH ASSY (REAR/REMOTO CONTROL)
PW5060014-00 WINCH ASSY (REAR/RADIO CONTROL)
PX1030699-01 FENDER
PX1100289-01 TANK SUPPORT
PX1170752-00 ATTACHMENT PARTS,CRANE FRAME (FRONT)
PX1170754-00 ATTACHMENT PARTS,CRANE FRAME (REAR)
PX1170756-00 ATTACHMENT PARTS,CRANE FRAME (FRONT)
PX1180064-00 MOUNT,HOOK
PX1200645-00 SIDE GUARD
PX1200650-00 SIDE GUARD
PX1260263-00 STEP
PX1270146-00 WOOD BLOCK
PX1290212-00 WEIGHT (OPTION)
PX1310293-01 MOUNT,LAMP (TAIL)
PX1360096-00 REFLECTOR
PX1390886-00 MODIFICATION PARTS
PX1410232-00 MOUNT,TIRE
OC-200N-1-10200 LOWER,NISSAN DIESEL ADG-CD4XMH
000007
PX1940388-00 MOUNT
PY1010067-00 OPTION UNIT,1
PY1210133-01 PIPING,OUTLET
PY2060003-00 ROPE,GUIDE (GUIDE SHEAVE/REAR WINCH)
PY3420000-00 SHACKLE
PZ0000000-00 VALVE ASSY
