Tadano Crane OC-200N-1-20500 LOWER,MITSUBISHI QKG-FU50VNY3X Parts Manual PDF

Description

Tadano Crane OC-200N-1-20500 LOWER,MITSUBISHI QKG-FU50VNY3X Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane OC-200N-1-20500 LOWER,MITSUBISHI QKG-FU50VNY3X Parts Manual – PDF DOWNLOAD

Language : English
Pages : 150
Downloadable : Yes
File Type : PDF

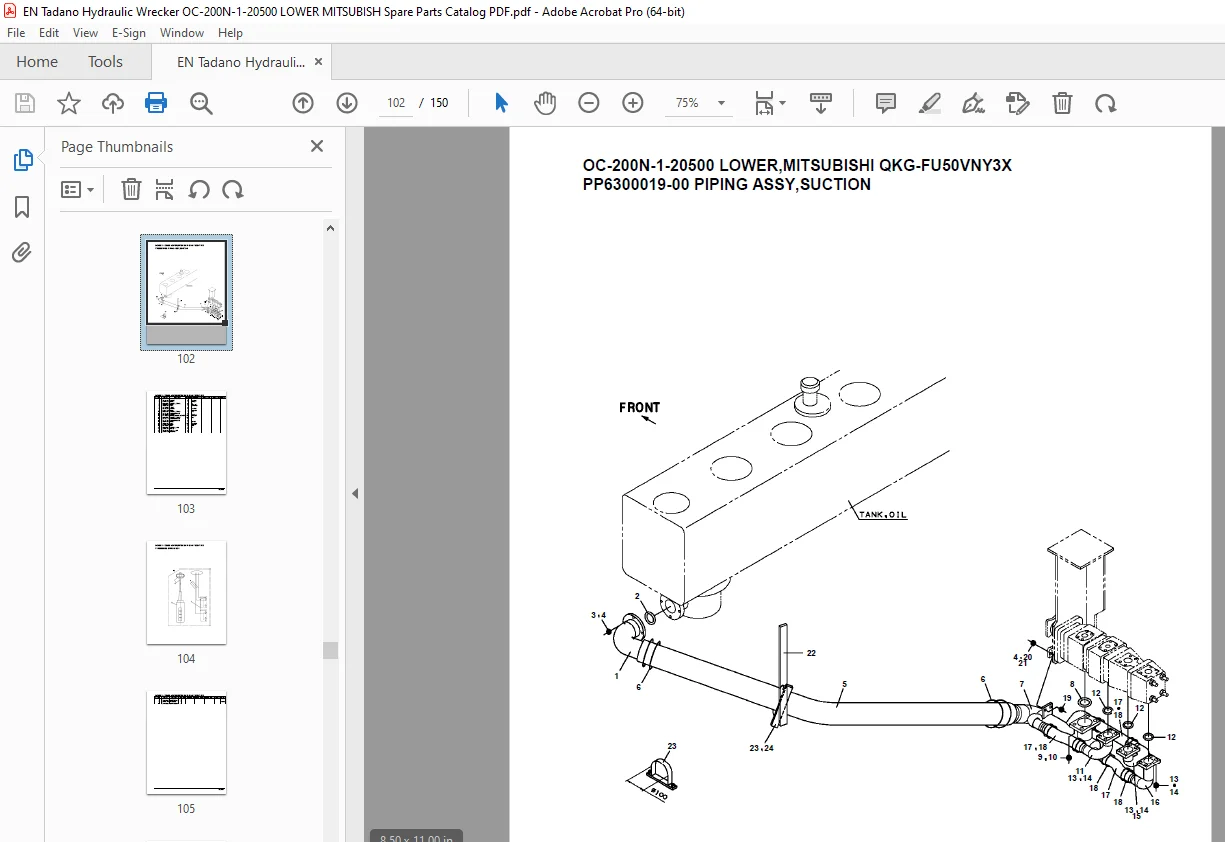

IMAGES PREVIEW OF THE MANUAL:

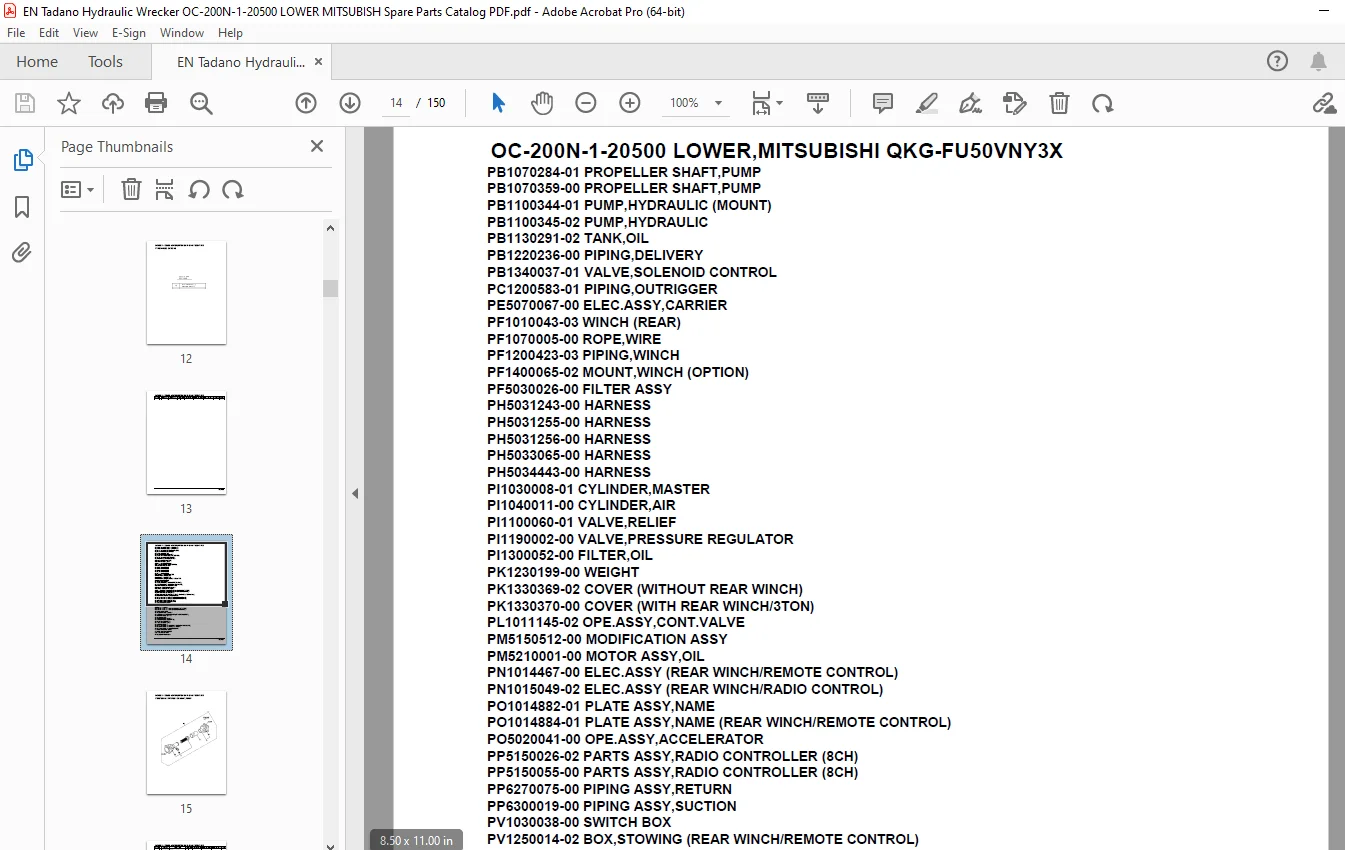

TABLE OF CONTENTS:

Tadano Crane OC-200N-1-20500 LOWER,MITSUBISHI QKG-FU50VNY3X Parts Manual – PDF DOWNLOAD

PB1070284-01 PROPELLER SHAFT,PUMP
PB1070359-00 PROPELLER SHAFT,PUMP
PB1100344-01 PUMP,HYDRAULIC (MOUNT)
PB1100345-02 PUMP,HYDRAULIC
PB1130291-02 TANK,OIL
PB1220236-00 PIPING,DELIVERY
PB1340037-01 VALVE,SOLENOID CONTROL
PC1200583-01 PIPING,OUTRIGGER
PE5070067-00 ELEC.ASSY,CARRIER
PF1010043-03 WINCH (REAR)
PF1070005-00 ROPE,WIRE
PF1200423-03 PIPING,WINCH
PF1400065-02 MOUNT,WINCH (OPTION)
PF5030026-00 FILTER ASSY
PH5031243-00 HARNESS
PH5031255-00 HARNESS
PH5031256-00 HARNESS
PH5033065-00 HARNESS
PH5034443-00 HARNESS
PI1030008-01 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1100060-01 VALVE,RELIEF
PI1190002-00 VALVE,PRESSURE REGULATOR
PI1300052-00 FILTER,OIL
PK1230199-00 WEIGHT
PK1330369-02 COVER (WITHOUT REAR WINCH)
PK1330370-00 COVER (WITH REAR WINCH/3TON)
PL1011145-02 OPE.ASSY,CONT.VALVE
PM5150512-00 MODIFICATION ASSY
PM5210001-00 MOTOR ASSY,OIL
PN1014467-00 ELEC.ASSY (REAR WINCH/REMOTE CONTROL)
PN1015049-02 ELEC.ASSY (REAR WINCH/RADIO CONTROL)
PO1014882-01 PLATE ASSY,NAME
PO1014884-01 PLATE ASSY,NAME (REAR WINCH/REMOTE CONTROL)
PO5020041-00 OPE.ASSY,ACCELERATOR
PP5150026-02 PARTS ASSY,RADIO CONTROLLER (8CH)
PP5150055-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PP6270075-00 PIPING ASSY,RETURN
PP6300019-00 PIPING ASSY,SUCTION
PV1030038-00 SWITCH BOX
PV1250014-02 BOX,STOWING (REAR WINCH/REMOTE CONTROL)
PV5240027-00 VALVE ASSY,SOLENOID
PW1030057-01 TOOLS
PW5060011-00 WINCH ASSY (REAR/REMOTO CONTROL)
PW5060014-00 WINCH ASSY (REAR/RADIO CONTROL)
PX1030699-01 FENDER
PX1100289-01 TANK SUPPORT
PX1170754-00 ATTACHMENT PARTS,CRANE FRAME (REAR)
PX1180064-00 MOUNT,HOOK
PX1260263-00 STEP
PX1270146-00 WOOD BLOCK
PX1310293-01 MOUNT,LAMP (TAIL)
PX1360096-00 REFLECTOR
PX1410232-00 MOUNT,TIRE
PX1940388-00 MOUNT
PX5260025-00 MOUNT ASSY,COVER (WITH REAR WINCH/3TON)
PX5360094-00 MOUNT ASSY,FRAME (FRONT)
PX5650049-00 MOUNT ASSY,SIDE GUARD
PY1010068-00 OPTION UNIT,1
PY1210133-01 PIPING,OUTLET
PY3420000-00 SHACKLE
PZ0000000-00 VALVE ASSY
