Tadano Crane OC-200N-1-90400 LOWER,SCANIA P360 B6X2*4LB Parts Manual PDF

Description

Tadano Crane OC-200N-1-90400 LOWER,SCANIA P360 B6X2*4LB Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane OC-200N-1-90400 LOWER,SCANIA P360 B6X2*4LB Parts Manual – PDF DOWNLOAD

Language : English
Pages : 129
Downloadable : Yes
File Type : PDF

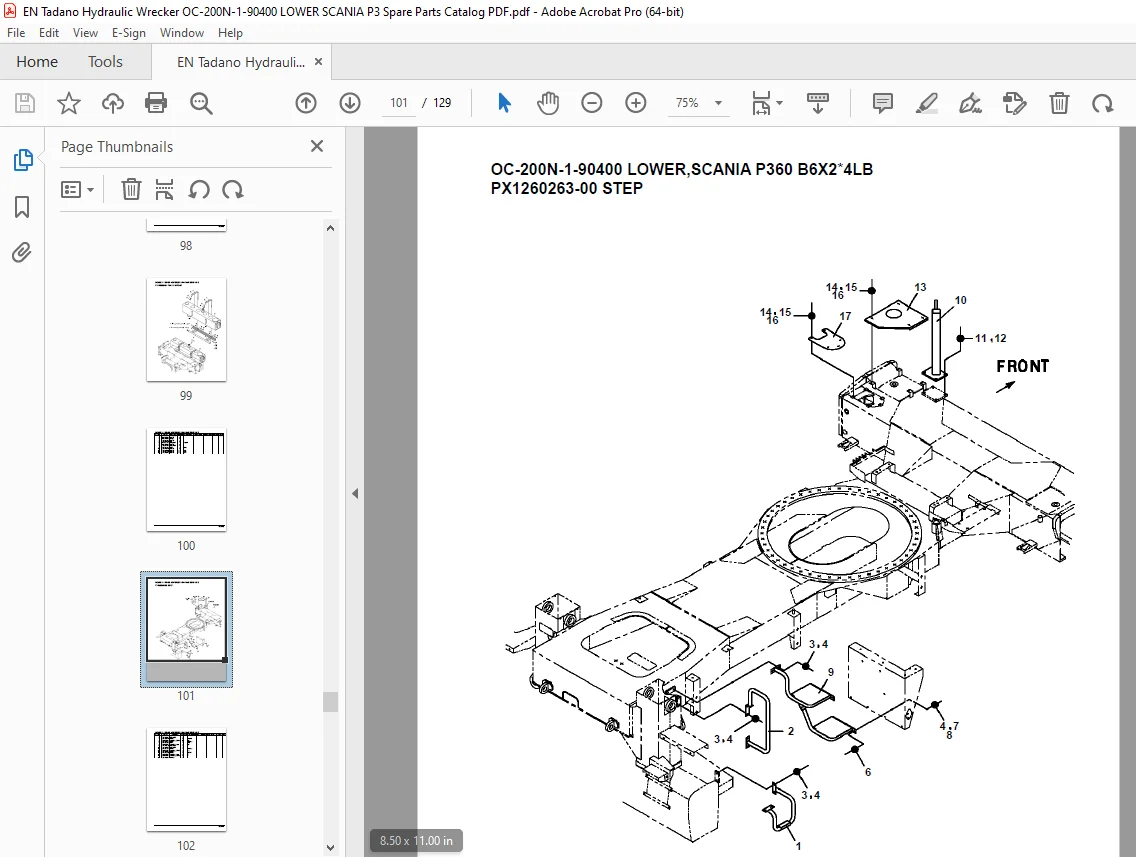

IMAGES PREVIEW OF THE MANUAL:

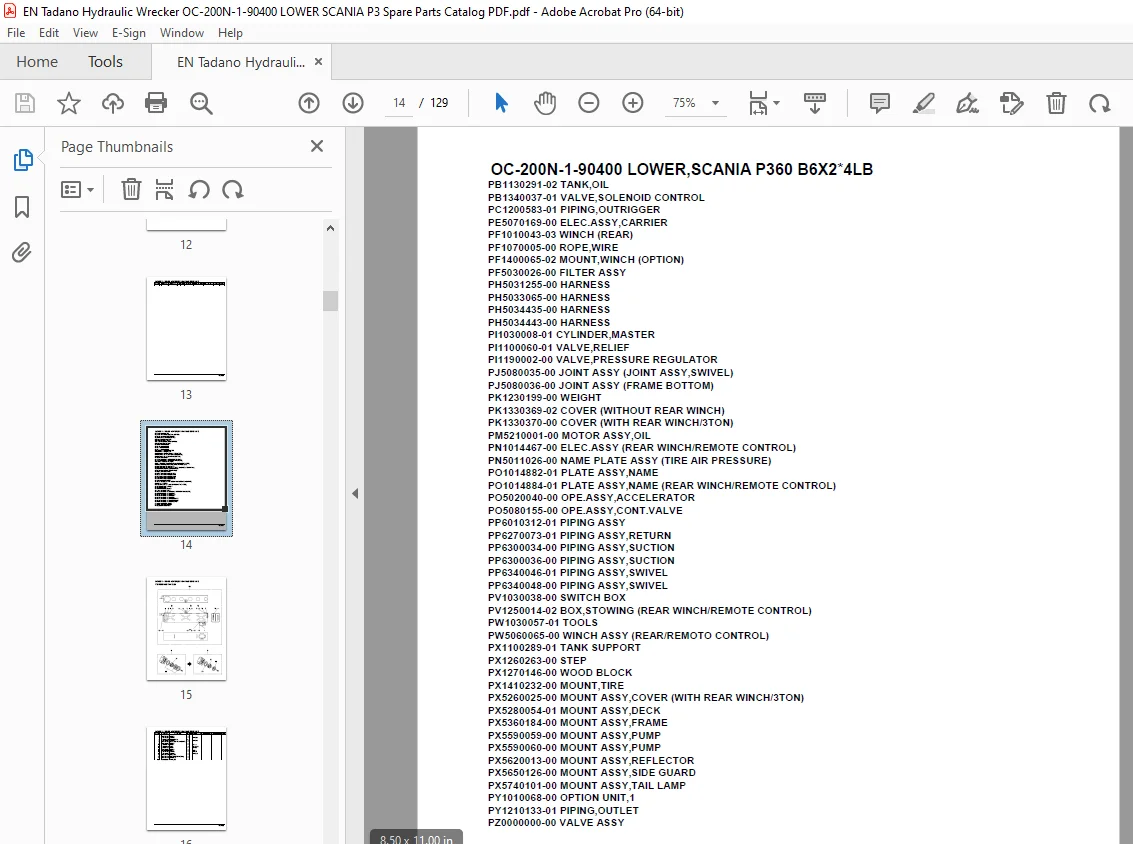

TABLE OF CONTENTS:

Tadano Crane OC-200N-1-90400 LOWER,SCANIA P360 B6X2*4LB Parts Manual – PDF DOWNLOAD

PB1130291-02 TANK,OIL
PB1340037-01 VALVE,SOLENOID CONTROL
PC1200583-01 PIPING,OUTRIGGER
PE5070169-00 ELEC.ASSY,CARRIER
PF1010043-03 WINCH (REAR)
PF1070005-00 ROPE,WIRE
PF1400065-02 MOUNT,WINCH (OPTION)
PF5030026-00 FILTER ASSY
PH5031255-00 HARNESS
PH5033065-00 HARNESS
PH5034435-00 HARNESS
PH5034443-00 HARNESS
PI1030008-01 CYLINDER,MASTER
PI1100060-01 VALVE,RELIEF
PI1190002-00 VALVE,PRESSURE REGULATOR
PJ5080035-00 JOINT ASSY (JOINT ASSY,SWIVEL)
PJ5080036-00 JOINT ASSY (FRAME BOTTOM)
PK1230199-00 WEIGHT
PK1330369-02 COVER (WITHOUT REAR WINCH)
PK1330370-00 COVER (WITH REAR WINCH/3TON)
PM5210001-00 MOTOR ASSY,OIL
PN1014467-00 ELEC.ASSY (REAR WINCH/REMOTE CONTROL)
PN5011026-00 NAME PLATE ASSY (TIRE AIR PRESSURE)
PO1014882-01 PLATE ASSY,NAME
PO1014884-01 PLATE ASSY,NAME (REAR WINCH/REMOTE CONTROL)
PO5020040-00 OPE.ASSY,ACCELERATOR
PO5080155-00 OPE.ASSY,CONT.VALVE
PP6010312-01 PIPING ASSY
PP6270073-01 PIPING ASSY,RETURN
PP6300034-00 PIPING ASSY,SUCTION
PP6300036-00 PIPING ASSY,SUCTION
PP6340046-01 PIPING ASSY,SWIVEL
PP6340048-00 PIPING ASSY,SWIVEL
PV1030038-00 SWITCH BOX
PV1250014-02 BOX,STOWING (REAR WINCH/REMOTE CONTROL)
PW1030057-01 TOOLS
PW5060065-00 WINCH ASSY (REAR/REMOTO CONTROL)
PX1100289-01 TANK SUPPORT
PX1260263-00 STEP
PX1270146-00 WOOD BLOCK
PX1410232-00 MOUNT,TIRE
PX5260025-00 MOUNT ASSY,COVER (WITH REAR WINCH/3TON)
PX5280054-01 MOUNT ASSY,DECK
PX5360184-00 MOUNT ASSY,FRAME
PX5590059-00 MOUNT ASSY,PUMP
PX5590060-00 MOUNT ASSY,PUMP
PX5620013-00 MOUNT ASSY,REFLECTOR
PX5650126-00 MOUNT ASSY,SIDE GUARD
PX5740101-00 MOUNT ASSY,TAIL LAMP
PY1010068-00 OPTION UNIT,1
PY1210133-01 PIPING,OUTLET
PZ0000000-00 VALVE ASSY
