Tadano Crane SL-15-1-00011 INTEGRAL FRONT GUARD,WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane SL-15-1-00011 INTEGRAL FRONT GUARD WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

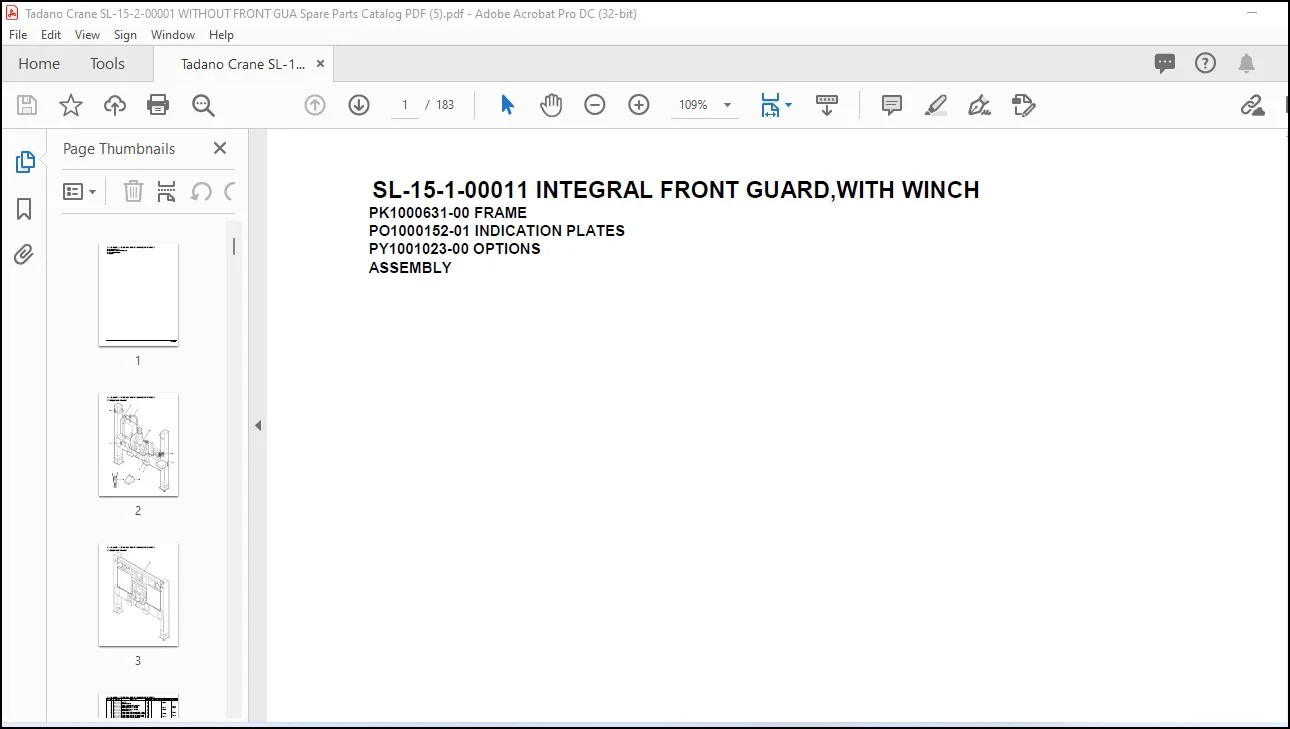

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane SL-15-1-00011 INTEGRAL FRONT GUARD WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :183
Downloadable : Yes
File Type : PDF
Size:2.61 mb
TABLE OF CONTENTS:

Tadano Crane SL-15-1-00011 INTEGRAL FRONT GUARD WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

SL-15-1-00011 INTEGRAL FRONT GUARD,WITH WINCH
PK1000631-00 FRAME
PO1000152-01 INDICATION PLATES
PY1001023-00 OPTIONS
ASSEMBLY

SL-15-1-00011 INTEGRAL FRONT GUARD,WITH WINCH
PB1130134-01 TANK,OIL
PB1320378-00 VALVE,MANUAL CONTROL
PB1410690-01 PIPING,HYDRAULIC LOWER
PB1410691-01 PIPING,HYDRAULIC LOWER
PB1410820-01 PIPING,HYDRAULIC LOWER
PB1410823-01 PIPING,LOWER (AUTO RAMP)
PC1030206-01 CYLINDER,JACK
PC1030257-02 OUTRIGGER ASSY
PF1010138-02 WINCH
PF1050126-01 HOOK
PF1050242-00 HOOK
PF1050243-01 HOOK (8TON)
PF1050270-02 HOOK (10TON,3-PART-LINE)
PF1050274-00 HOOK (10TON)
PF1050279-00 HOOK (4 TON,1 PART LINE)
PF1400224-00 MOUNT,WINCH
PI1010117-00 MOTOR,HYDRAULIC
PI1250083-00 VALVE,COUNTERBALANCE
PI1280067-01 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PI1300061-02 FILTER,OIL (YAMASHIN)
PI1330006-00 VALVE,DIVIDING & COMBINING (MURAKAMI)
PK1010402-01 FRAME
PK1010464-00 FRAME
PK1340002-00 CYLINDER,REAR GATE
PK1360017-00 MOUNT,RAMP
PK1360018-00 MOUNT,RAMP
PK1360019-00 MOUNT,RAMP
PK1360020-00 MOUNT,RAMP
PK1360021-00 MOUNT,RAMP
PK1360374-00 MOUNT,RAMP (APITONG)
PK1360375-00 MOUNT,RAMP (APITONG)
PK1360376-00 MOUNT,RAMP (APITONG)
PK1360377-00 MOUNT,RAMP (ALUM.)
PK1360378-00 MOUNT,RAMP (ALUM.)
PK1450074-00 GATE
PL1010615-01 OPERATION SYSTEM,CONTROL VALVE
PL1010714-00 OPERATION SYSTEM, CONTROL VALVE
PL1010717-01 OPE.ASSY,CONT,VALVE (AUTO RAM)
PL1030534-00 OPERATION SYSTEM, ACCELERATOR
PL1030535-01 OPERATION SYSTEM, ACCELERATOR
PN1011578-01 ELEC.ASSY (JACK ALARM)
PN1011579-03 ELECTRICAL ACCESSORIES
PN1011580-02 ELECTRICAL ACCESSORIES
PN1011855-02 ELECTRICAL ACCESSORIES
PN1011861-00 ELEC.ASSY (AUTO RAMP)
PN1014248-00 ELEC.ASSY
PN1140194-00 SWITCH ASSY
PO1012375-00 PLATE,INDICATION
PO1012376-00 PLATE,INDICATION
PO1012378-00 PLATE ASSY,NAME (AUTO RAMP)
PR1060005-01 OPERATION SYSTEM, CLUTCH
PV1020114-01 VALVE,REMOTE CONTROL
PV1020146-04 VALVE,REMOTE CONTROL
PV1030029-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1040032-01 CONTROL BOX (SELF WINCH RADIO CONTROL)
PV1050008-01 CYLINDER,ACCELERATOR
PV1050010-00 CYLINDER,ACCELERATOR
PV1050015-00 CYLINDER,ACCELERATOR
PV1070413-01 RADIO CONTROL
PV1070414-00 RADIO CONTROL
PV1300008-00 CABLE,REMOTE CONTROL (15M,OPTION)
PV1400021-01 ANTENNA (FOR RADIO CONTROL)
SL-15-1-00011 INTEGRAL FRONT GUARD,WITH WINCH
000004
PW1050005-00 STOPPER,TIRE
PW1050011-00 STOPPER,TIRE
PX1100178-00 TANK SUPPORT INSTALLATION
PX1940224-00 MOUNT (FRAME)
PX1940225-00 MOUNT
PY1180202-02 LAMP (WARKING)
PY1740017-00 COVER (OPERATION BOX)
