Tadano Crane SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

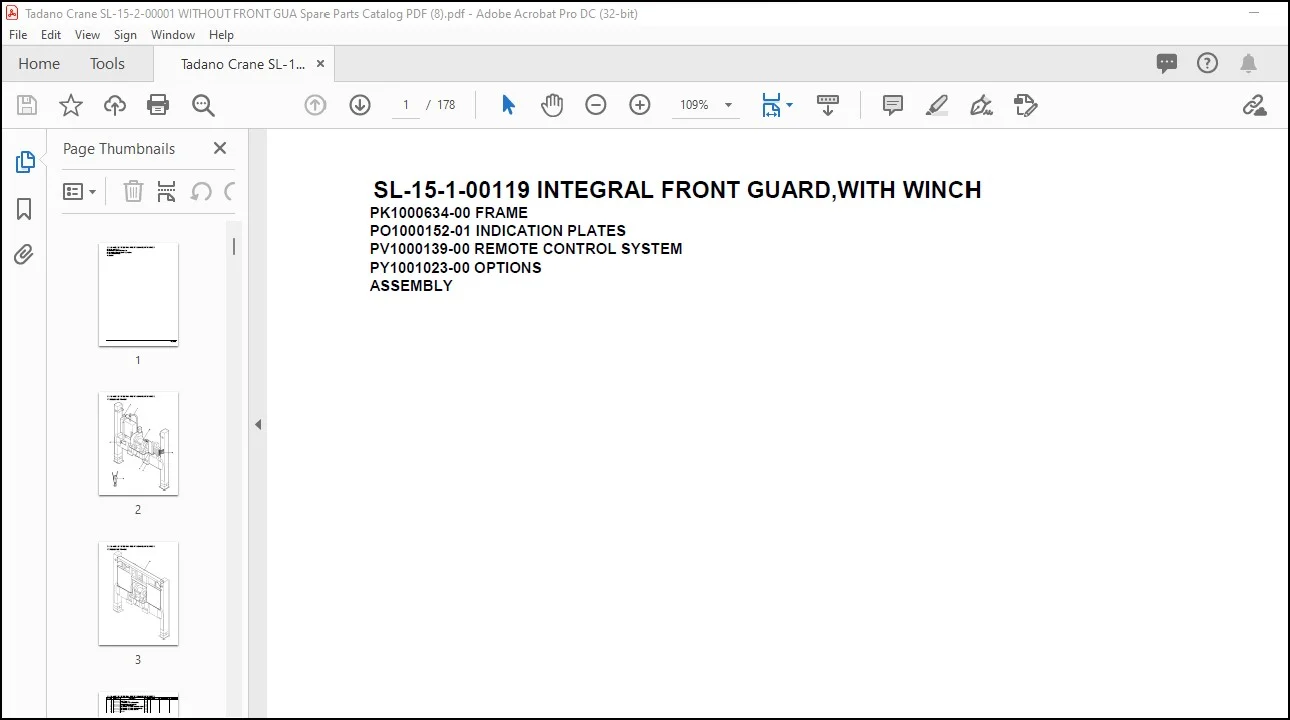

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :178
Downloadable : Yes
File Type : PDF
Size:2.45 MB
TABLE OF CONTENTS:

Tadano Crane SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH Spare Parts Catalog Manual – PDF DOWNLOAD

SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH
PK1000634-00 FRAME
PO1000152-01 INDICATION PLATES
PV1000139-00 REMOTE CONTROL SYSTEM
PY1001023-00 OPTIONS
ASSEMBLY

SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH
PB1130134-01 TANK,OIL
PB1320378-00 VALVE,MANUAL CONTROL
PB1410823-01 PIPING,LOWER (AUTO RAMP)
PB1410895-00 PIPING,HYDRAULIC LOWER
PC1030274-01 CYLINDER,JACK
PF1010138-02 WINCH
PF1050126-01 HOOK
PF1050270-02 HOOK (10TON,3-PART-LINE)
PF1050274-00 HOOK (10TON)
PF1050279-00 HOOK (4 TON,1 PART LINE)
PF1050282-00 HOOK
PF1050284-00 HOOK (SHEAVE 1 PC’S)
PF1400224-00 MOUNT,WINCH
PI1010117-00 MOTOR,HYDRAULIC
PI1250083-00 VALVE,COUNTERBALANCE
PI1280067-01 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PI1300061-02 FILTER,OIL (YAMASHIN)
PI1330006-00 VALVE,DIVIDING & COMBINING (MURAKAMI)
PK1010504-00 FRAME
PK1340002-00 CYLINDER,REAR GATE
PK1360017-00 MOUNT,RAMP
PK1360018-00 MOUNT,RAMP
PK1360019-00 MOUNT,RAMP
PK1360020-00 MOUNT,RAMP
PK1360021-00 MOUNT,RAMP
PK1360374-00 MOUNT,RAMP (APITONG)
PK1360375-00 MOUNT,RAMP (APITONG)
PK1360376-00 MOUNT,RAMP (APITONG)
PK1360377-00 MOUNT,RAMP (ALUM.)
PK1360378-00 MOUNT,RAMP (ALUM.)
PK1450074-00 GATE
PL1010717-01 OPE.ASSY,CONT,VALVE (AUTO RAM)
PL1010735-00 OPERATION SYSTEM, CONTROL VALVE
PL1030667-01 OPERATION SYSTEM, ACCELERATOR
PN1011578-01 ELEC.ASSY (JACK ALARM)
PN1011861-00 ELEC.ASSY (AUTO RAMP)
PN1011996-01 ELEC.ASSY (ANTENNA)
PN1011997-02 ELEC.ASSY (LOWER)
PN1014248-00 ELEC.ASSY
PO1012058-01 PLATE,INDICATION
PO1012064-00 PLATE ASSY,NAME (FOR RADIO CONTROL)
PO1012378-00 PLATE ASSY,NAME (AUTO RAMP)
PO1014638-00 PLATE ASSY,NAME (SWITCH BOX)
PR1060005-01 OPERATION SYSTEM, CLUTCH
PV1020146-04 VALVE,REMOTE CONTROL
PV1020156-01 VALVE,REMOTE CONTROL
PV1030029-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030037-05 SWITCH BOX (RADIO CONTROL,TYPE-E)
PV1040032-01 CONTROL BOX (SELF WINCH RADIO CONTROL)
PV1040036-01 CONTROL BOX (RADIO CONTROL,D)
PV1040038-02 CONTROL BOX (RADIO CONTROL,TYPE-E)
PV1050007-02 CYLINDER,ACCELERATOR
PV1050008-01 CYLINDER,ACCELERATOR
PV1050010-00 CYLINDER,ACCELERATOR
PV1050015-00 CYLINDER,ACCELERATOR
PV1070413-01 RADIO CONTROL
PV1070414-00 RADIO CONTROL
PV1250006-00 STOWING BOX (BAG,RADIO CONTROL)
PV1300008-00 CABLE,REMOTE CONTROL (15M,OPTION)
PV1400019-00 ANTENNA (FOR RADIO CONTROL)
PV1400019-00 ANTENNA (FOR RADIO CONTROL)
SL-15-1-00119 INTEGRAL FRONT GUARD,WITH WINCH
000005
PV1400021-01 ANTENNA (FOR RADIO CONTROL)
PX1100178-00 TANK SUPPORT INSTALLATION
PX1250133-00 COVER INSTALLATION
PX1940225-00 MOUNT
PY1180202-02 LAMP (WARKING)
PY1740017-00 COVER (OPERATION BOX)
