Tadano Crane SL-15-2-00101 WITH WINCH FULL RADIO CONT. Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane SL-15-2-00101 WITH WINCH,FULL RADIO CONT. Spare Parts Catalog Manual – PDF DOWNLOAD

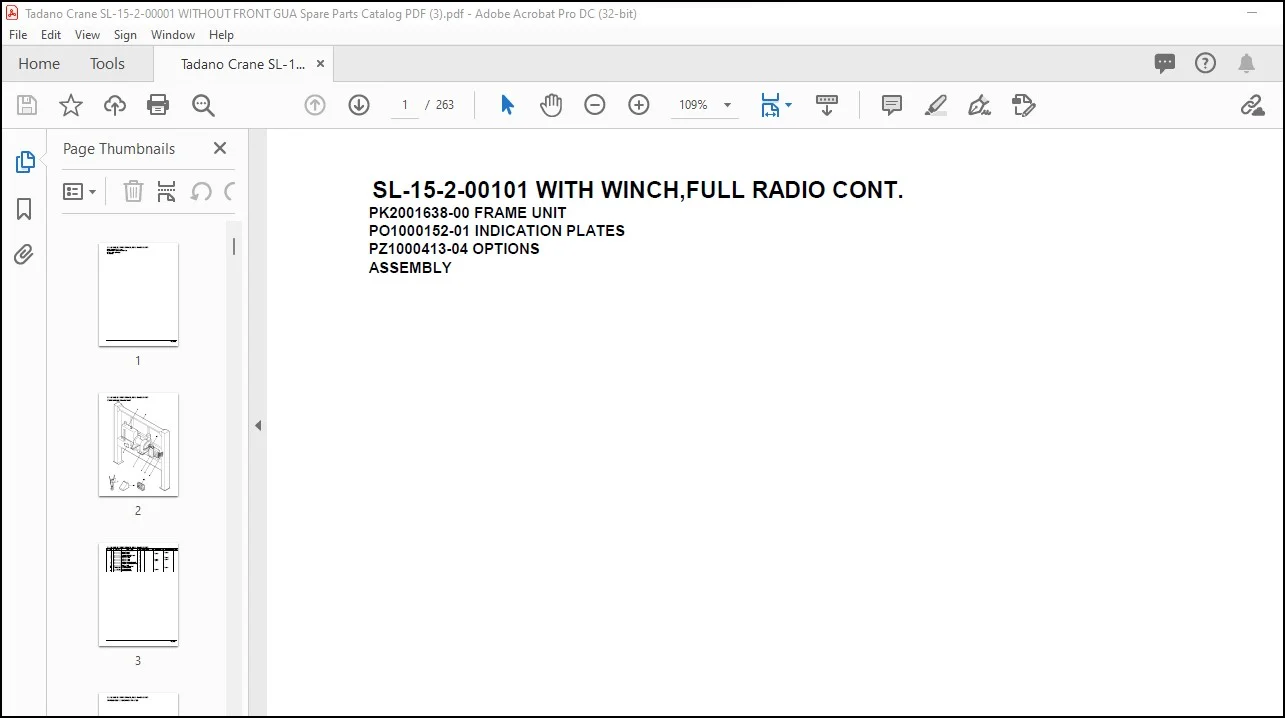

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane SL-15-2-00101 WITH WINCH ,FULL RADIO CONT. Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :263
Downloadable : Yes
File Type : PDF
Size:3.68 MB
TABLE OF CONTENTS:

Tadano Crane SL-15-2-00101 WITH WINCH ,FULL RADIO CONT. Spare Parts Catalog Manual – PDF DOWNLOAD

SL-15-2-00101 WITH WINCH,FULL RADIO CONT.
PK2001638-00 FRAME UNIT
PO1000152-01 INDICATION PLATES
PZ1000413-04 OPTIONS
ASSEMBLY

SL-15-2-00101 WITH WINCH,FULL RADIO CONT.
PB1130222-01 TANK,OIL
PB1130228-00 TANK,OIL (MOUNT)
PB1411857-00 PIPING,LOWER
PB1411858-00 PIPING,LOWER
PC1010928-00 OUTRIGGER (FLOAT)
PC1030257-02 OUTRIGGER ASSY
PE5020124-00 ELEC.ASSY
PE5020259-00 ELEC.ASSY (6CH ON/OFF RADICON JACK OPE.FUNCTION ADDIT.)
PE5020490-00 ELEC.ASSY
PE5020898-00 ELEC.ASSY (JACK STOWING FAILURE ALARM)
PE5020899-00 ELEC.ASSY
PF1010207-00 WINCH (HARTYS)
PF1010242-01 WINCH (YG.TEC)
PF1010363-01 WINCH (SELF)
PF1050126-01 HOOK
PF1050243-01 HOOK (8TON)
PF1050274-00 HOOK (10TON)
PF1050279-00 HOOK (4 TON,1 PART LINE)
PF1050352-01 LIFTING DEVICE ASSY
PF1050356-01 LIFTING DEVICE ASSY
PF1050494-00 LIFTING DEVICE ASSY (10 TON,3 PART LINES)
PF1050540-02 HOOK (5TON)
PF1050583-00 LIFTING DEVICE ASSY
PF1160066-02 OPE.ASSY,CLUTCH (SL WINCH,RADIO CONTROL)
PF1200302-01 PIPING,WINCH
PF1200405-00 PIPING,WINCH
PF1400322-00 MOUNT,WINCH (3T SELF)
PF1400327-00 MOUNT,WINCH
PF1930001-01 ELEC.ASSY (RADIO CONTROL/MITSUMI)
PF1940001-00 MOUNT
PF5100097-00 FRAME ASSY
PF5100198-00 FRAME ASSY
PF5100199-00 FRAME ASSY
PH5030678-00 HARNESS
PH5030679-00 HARNESS
PH5033082-00 HARNESS
PH5033083-00 HARNESS
PH5034275-00 HARNESS
PI1010085-01 MOTOR,HYDRAULIC
PI1010117-00 MOTOR,HYDRAULIC
PI1120142-02 VALVE,SOLENOID
PI1160047-00 VALVE,FLOW CONTROL
PI1160048-00 VALVE,FLOW CONTROL
PI1280067-01 VALVE,PILOT CHECK
PK1340002-00 CYLINDER,REAR GATE
PK1360017-00 MOUNT,RAMP
PK1360380-00 MOUNT,RAMP (APITONG)
PL1011064-00 OPE.ASSY,CONT.VALVE
PL1030791-01 OPE.ASSY,ACCELERATOR
PN1011861-00 ELEC.ASSY (AUTO RAMP)
PN1011996-01 ELEC.ASSY (ANTENNA)
PN1012609-01 ELEC.ASSY (FOR RELEASING WHEEL BRAKE)
PN1014312-01 ELEC.ASSY (RADIO CONTROL/KYOKUTO)
PN1014313-00 ELEC.ASSY (MODIFICATION PARTS)
PN1014314-00 ELEC.ASSY
PN1014315-01 ELEC.ASSY (RADIO CONTROL)
PN1014367-01 ELEC.ASSY (RADICON JACK OPERATION FUNCTION ADDITION)
PN1014395-01 ELEC.ASSY
PN1014396-00 ELEC.ASSY (JACK STOWING FAILURE ALARM)
PN1140125-00 SWITCH ASSY
PN1140128-00 SWITCH ASSY
PN1140129-00 SWITCH ASSY
PN1140220-00 SWITCH ASSY (PLATING:NACC)
PN1140221-00 SWITCH ASSY (GREEN:PANASONIC)
SL-15-2-00101 WITH WINCH,FULL RADIO CONT.
000004
PN1140234-00 SWITCH ASSY (PLATING:NACC)
PN1140235-00 SWITCH ASSY (GREEN:PANASONIC)
PN1140239-00 SWITCH ASSY (WITH HARNESS,2-SW)
PN5010449-00 NAME PLATE ASSY (RADICON JACK OPE. FUNCTION ADDITION)
PN5010843-00 NAME PLATE ASSY (WINCH)
PN5010844-00 NAME PLATE ASSY
PO1013265-00 PLATE ASSY.NAME (WINCH)
PO1014638-00 PLATE ASSY,NAME (SWITCH BOX)
PO1014700-00 PLATE ASSY,NAME
PO1014701-00 PLATE ASSY,NAME (RADIO CONTROL)
PP5150011-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PP5150026-02 PARTS ASSY,RADIO CONTROLLER (8CH)
PP6010264-00 PIPING ASSY
PP6010265-00 PIPING ASSY
PR1060008-02 OPE.ASSY,CLUTCH
PT5060030-00 TANK ASSY
PV1020156-01 VALVE,REMOTE CONTROL
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030037-05 SWITCH BOX (RADIO CONTROL,TYPE-E)
PV1030084-01 SWITCH BOX
PV1030086-00 SWITCH BOX (FUTABA)
PV1030091-00 SWITCH BOX
PV1030107-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1040032-01 CONTROL BOX (SELF WINCH RADIO CONTROL)
PV1040076-00 CONTROL BOX
PV1040077-00 CONTROL BOX
PV1040106-00 CONTROL UNIT
PV1040108-00 CONTROL UNIT
PV1050007-02 CYLINDER,ACCELERATOR
PV1050011-00 CYLINDER,ACCELERATOR
PV1070389-00 RADIO CONTROL (KYOKUTO:6CH)
PV1070398-00 RADIO CONTROL (KIT:MITSUMI)
PV1070451-00 RADIO CONTROL
PV1070452-00 RADIO CONTROL
PV1250004-01 STOWING BOX
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400019-00 ANTENNA (FOR RADIO CONTROL)
PV1400019-00 ANTENNA (FOR RADIO CONTROL)
PV1400021-01 ANTENNA (FOR RADIO CONTROL)
PV1400030-01 ANTENNA
PV1410012-02 MOUNT,ANTENNA (RADIO CONTROL,D.E-TYPE)
PW1050005-00 STOPPER,TIRE
PW1050011-00 STOPPER,TIRE
PW5060043-00 WINCH ASSY (FOR NO WINCH/5TON,2-PART-LINE)
PW5060044-00 WINCH ASSY (FOR NO WINCH/10TON,3-PART-LINE)
PX1250169-00 COVER (#763067-763099)
PX1250170-00 COVER (WITHOUT WINCH)
PX1250175-00 COVER (#763100-)
PX1940225-00 MOUNT
PX5010494-00 MOUNT ASSY (RADIO CONTROLLER/KYOKUTO)
