Tadano Crane SS-02F-1-01111 FIXED SIDE GATE,WB 3.8 Parts Manual PDF

Description

Tadano Crane SS-02F-1-01111 FIXED SIDE GATE,WB 3.8 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane SS-02F-1-01111 FIXED SIDE GATE,WB 3.8 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 295
Downloadable : Yes
File Type : PDF

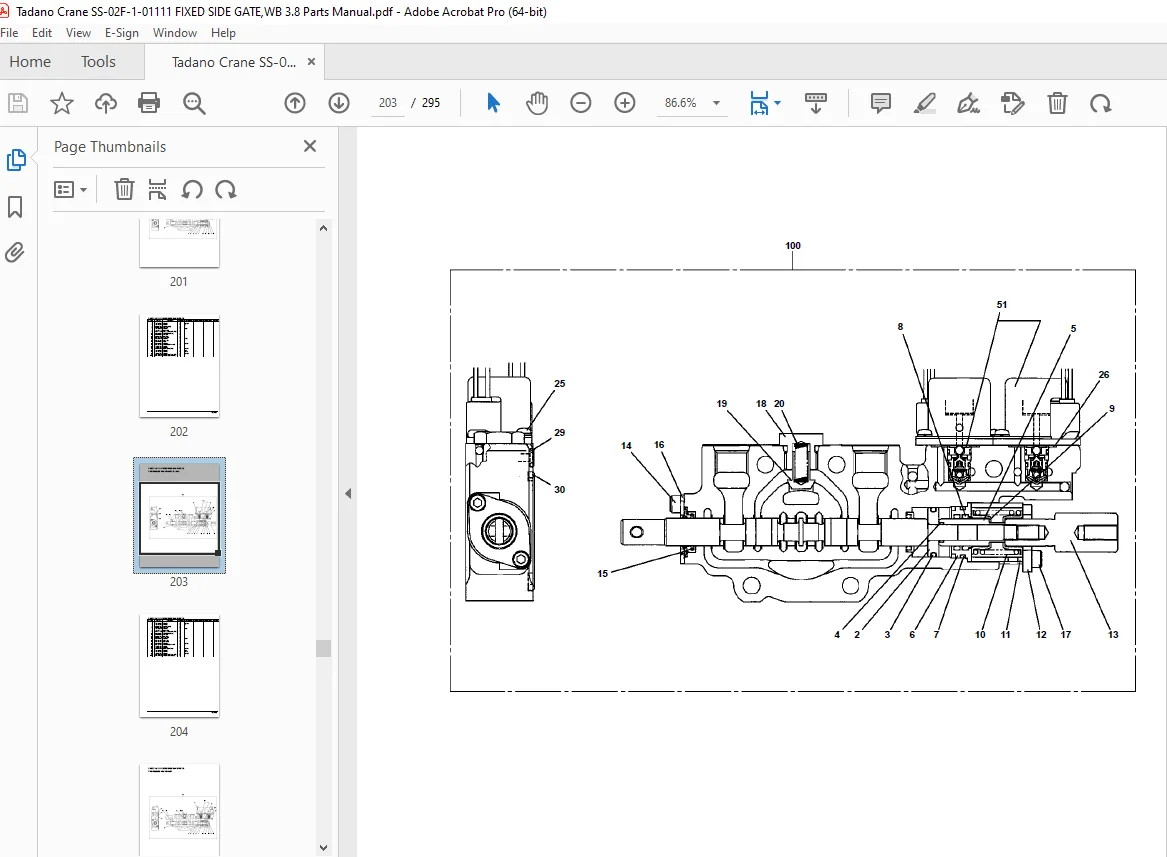

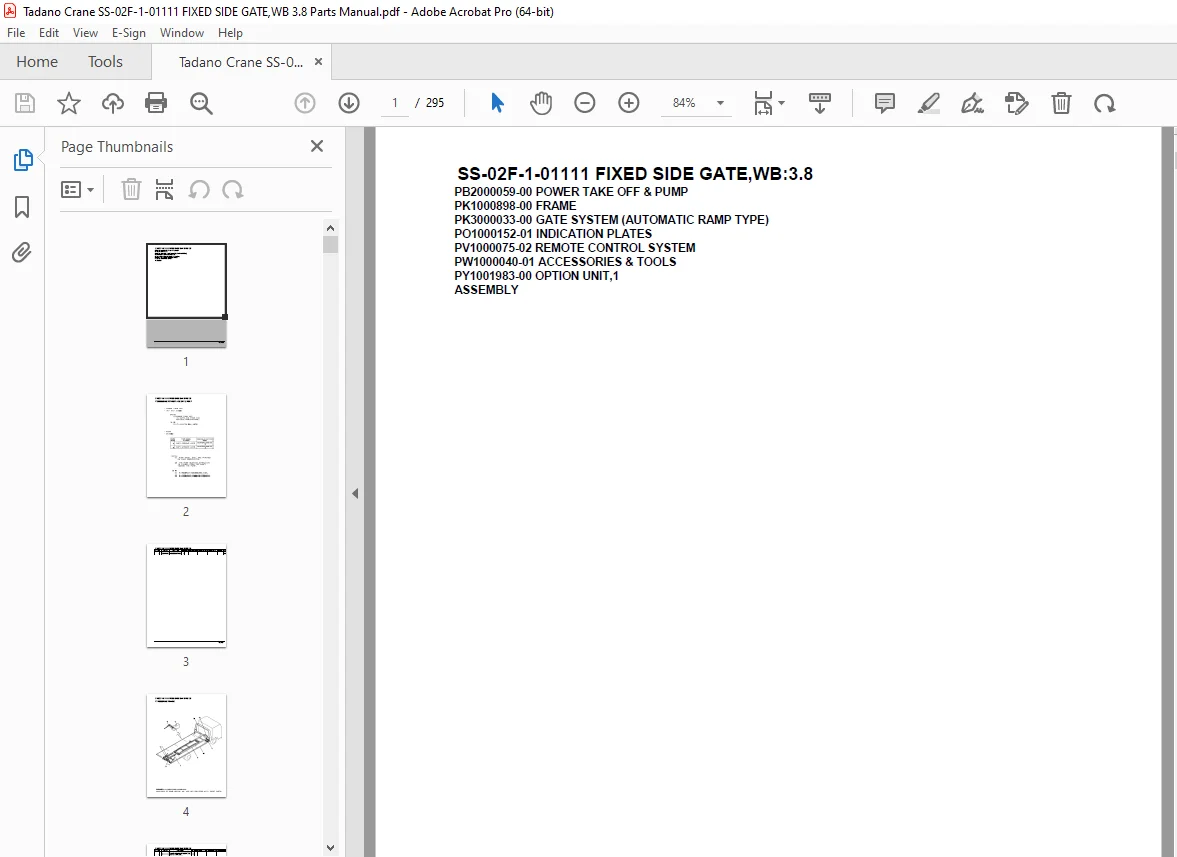

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane SS-02F-1-01111 FIXED SIDE GATE,WB 3.8 Parts Manual – PDF DOWNLOAD

PB1130275-00 TANK,OIL
PB5170068-00 BODY ASSY
PC5070003-00 CABLE CONVEYER
PC5070007-00 CABLE CONVEYER
PC5570036-00 COVER ASSY (FRONT)
PC6250002-01 CYLINDER ASSY (RAMP.)
PC6430015-00 CYLINDER ASSY,SLIDE (MOUNT)
PC6430017-00 CYLINDER ASSY,SLIDE
PC6430019-00 CYLINDER ASSY,SLIDE
PE5021484-00 ELEC.ASSY (WINCH)
PE5021485-00 ELEC.ASSY (BASE)
PE5021486-00 ELEC.ASSY (AG)
PE5021517-00 ELEC.ASSY (SIDE MARKER LAMP¥ TIRE LAMP)
PE5021518-00 ELEC.ASSY
PE5021519-00 ELEC.ASSY
PE5021520-00 ELEC.ASSY
PF1010306-00 WINCH
PF1010313-00 WINCH
PF1050252-00 HOOK (1.5TON)
PF1050346-03 HOOK (1-PART LINE, WITH G HOOK,9X15M)
PF1050424-00 HOOK
PF1150001-00 SHEAVE
PF5100530-00 FRAME ASSY (SUB)
PF5100531-00 FRAME ASSY (SLANT)
PF5100534-00 FRAME ASSY (BODY/SHINMAYWA)
PG5010205-00 GATE ASSY (IRON/1300MM STD TYPE)
PG5010207-00 GATE ASSY (REAR)
PH5030035-01 HARNESS
PH5034508-00 HARNESS
PH5034510-00 HARNESS
PH5034512-00 HARNESS
PH5034514-00 HARNESS
PH5034518-00 HARNESS
PH5034520-00 HARNESS
PH5034521-00 HARNESS
PH5034522-00 HARNESS
PH5034596-00 HARNESS
PH5034597-00 HARNESS
PH5034598-00 HARNESS (WITH SWITCH)
PH5034599-00 HARNESS
PH5034600-00 HARNESS
PI1010203-00 MOTOR,HYDRAULIC
PI1010204-01 MOTOR,HYDRAULIC
PI1250125-04 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3160012-01 BEAR,CABLE
PL5210033-00 LIFTING DEVICE ASSY
PL5270053-00 LOCK ASSY (GATE)
PL5290002-00 LOCK ASSY,BODY (RATTLING)
PL5290003-00 LOCK ASSY,BODY (SAFETY LOCK)
PM5151101-00 MODIFICATION ASSY (TIRE LAMP/LEFT)
PM5151102-00 MODIFICATION ASSY (TIRE LAMP/LEFT+RIGHT)
PM5151103-00 MODIFICATION ASSY ( WORKING LAMP,RADIO CONTROL)
PM5151104-00 MODIFICATION ASSY
PN1080436-00 LAMP (WAY SIDE LAMP)
PN1080437-00 LAMP (WAY SIDE LAMP)
PN1080453-00 LAMP
PN5010083-01 NAME PLATE ASSY
PN5010258-00 NAME PLATE ASSY (RADIO CONTROL TRANSMITTER)
PN5012367-00 NAME PLATE ASSY
PO1014632-00 PLATE ASSY,NAME
SS-02F-1-01111 FIXED SIDE GATE,WB:3.8
000008
PO5080336-00 OPE.ASSY,CONT.VALVE
PO5310001-00 OIL ASSY (INDICATION PLATES/ TADANO HYDRAULIC OIL LL)
PO5310002-00 OIL ASSY (INDICATION PLATES/ DAPHNE SUPERHYDRO 15X)
PP5150056-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PP5240026-00 PLATE,NAME
PP5500002-00 PUMP,OIL (27CC:L)
PP5500003-00 PUMP,OIL (32CC:L)
PP6010615-00 PIPING ASSY (SLIDE)
PP6010616-00 PIPING ASSY (BODY)
PP6010619-00 PIPING ASSY
PR5040059-00 RADIO CONTROLLER ASSY (8CH)
PR5090260-00 RELAY ASSY
PR5100164-00 RELAY BOX ASSY
PR5150051-00 ROLLER ASSY
PR5150053-00 ROLLER ASSY
PR5150054-00 ROLLER ASSY
PS5230008-00 SLIDE ASSY
PS5420580-00 SUPPORT ASSY (WINCH SHAVE)
PS5500060-00 SWING ASSY
PS5530500-00 SWITCH ASSY (WITH HARNESS,3 SW)
PS5640001-00 STOPPER (PLSTIC)
PS5640002-00 STOPPER (IRON)
PT5060039-00 TANK ASSY (MOUNT)
PT5160016-00 TOOL ASSY (EMERGENCY OPERATION)
PV5010058-00 VALVE ASSY (WINCH)
PV5010059-00 VALVE ASSY (SLIDE)
PV5010060-00 VALVE ASSY
PV5150060-00 VALVE ASSY,REMOTE CONTROL
PV5240003-00 VALVE ASSY,SOLENOID
PW1030052-00 TOOLS
PW1100005-00 CHAIN
PW5060115-00 WINCH ASSY (1-PART LINE/1.3TON)
PW5060116-00 WINCH ASSY (2-PART LINE/2.6TON)
PW5060117-00 WINCH ASSY
PX1190005-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190006-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190007-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190008-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190012-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190013-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190014-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190015-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190016-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190017-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190018-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190019-00 MOUNT,STOPPER (FOR E.P.M.)
PX5010711-00 MOUNT ASSY (ROLLER)
PX5010714-00 MOUNT ASSY
PX5010715-00 MOUNT ASSY
PX5010716-00 MOUNT ASSY (REAR)
PX5010718-00 MOUNT ASSY (GUARD)
PX5010719-00 MOUNT ASSY (GATE)
PX5010720-00 MOUNT ASSY (RUBBER)
PX5010721-00 MOUNT ASSY (STD BODY)
PX5010722-00 MOUNT ASSY
PX5010723-00 MOUNT ASSY (SIDOMARKER,2PAIRS/4PCS)
PX5010724-00 MOUNT ASSY (SIDOMARKER,3PAIRS/6PCS)
PX5010725-00 MOUNT ASSY (SIDOMARKER,4PAIRS/8PCS)
PX5010726-00 MOUNT ASSY (SIDOMARKER,5PAIRS/10PCS)
PX5010732-00 MOUNT ASSY
PX5010733-00 MOUNT ASSY
PX5040032-00 MOUNT ASSY,AUTO RAMP
PX5040033-00 MOUNT ASSY,AUTO RAMP
PX5620010-00 MOUNT ASSY,REFLECTOR
SS-02F-1-01111 FIXED SIDE GATE,WB:3.8
000008
PX5830004-00 MOUNT ASSY,WINCH
PY3420003-00 SHACKLE
PZ0000000-00 GUARD ASSY (STD)
PZ0000000-00 GUARD ASSY (LATTICE)
PZ0000000-00 HARNESS
PZ0000000-00 NAME PLATE ASSY (DESIGN FOR FIXED SIDE GATE BODY,BED)
