Tadano Crane SS-27-1-00061 FOR GENERAL,STD CAB,WB3.3 Parts Manual PDF

Description

Tadano Crane SS-27-1-00061 FOR GENERAL,STD CAB,WB3.3 Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

Tadano Crane SS-27-1-00061 FOR GENERAL,STD CAB,WB3.3 Parts Manual –  PDF DOWNLOAD

Language : English
Pages : 417
Downloadable : Yes
File Type : PDF

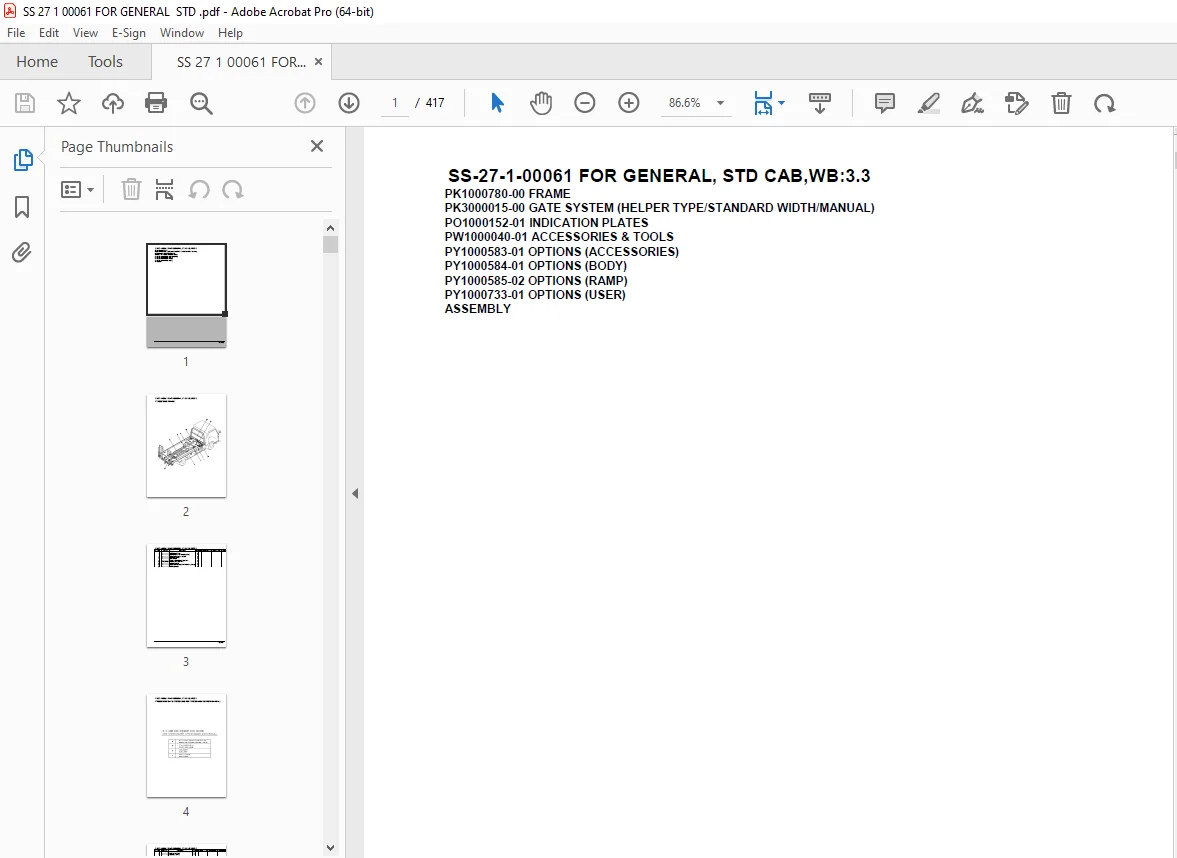

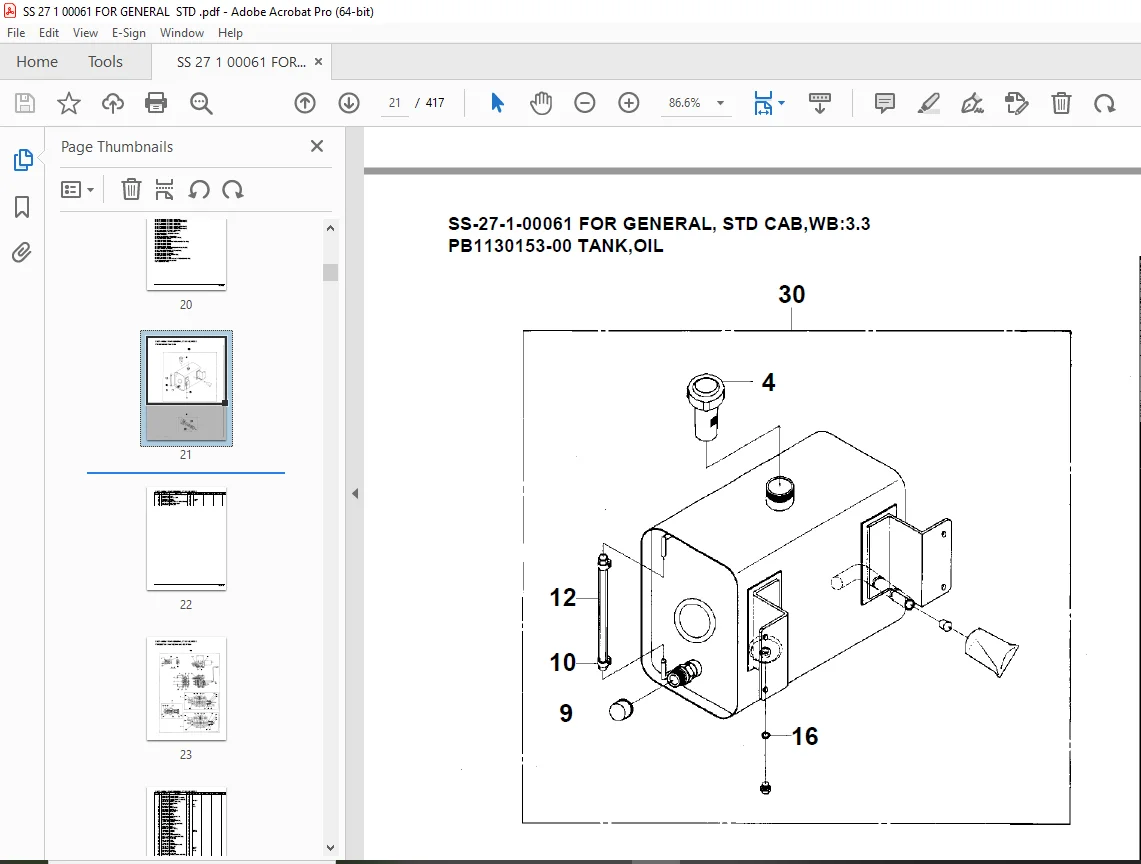

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

 Tadano Crane SS-27-1-00061 FOR GENERAL,STD CAB,WB3.3 Parts Manual –  PDF DOWNLOAD

SS-27-1-00061 FOR GENERAL, STD CAB,WB:3.3
000009
PB1130153-00 TANK,OIL
PB1320373-01 VALVE,MANUAL CONTROL
PB1320375-00 VALVE,MANUAL CONTROL (MANUAL,OPTION)
PB1400281-02 PIPING ASSY (CRANE/WITH REAR JACK)
PB1410748-01 PIPING,LOWER (RAMP)
PB1410749-03 PIPING,HYDRAULIC LOWER
PB1410751-02 PIPING,LOWER (NO WINCH)
PB5170016-01 BODY ASSY
PB5170017-00 BODY ASSY
PC5070003-00 CABLE CONVEYER
PC5570036-00 COVER ASSY (FRONT)
PC6250001-01 CYLINDER ASSY (RAMP)
PF1010157-00 WINCH
PF1050292-00 HOOK (OPTION)
PF1050293-00 HOOK (OPTION)
PF1050294-00 HOOK (OPTION)
PF1050295-00 HOOK (KWL+TM,KW,WL)
PF1050296-00 HOOK
PF1050297-00 HOOK
PF1050298-01 HOOK
PF1050346-03 HOOK (1-PART LINE, WITH G HOOK,9X15M)
PF1050424-00 HOOK
PF1050487-00 HOOK
PF1070023-00 ROPE,WIRE (OPTION)
PF1080005-00 SUPPORT (OPTION)
PF1080006-00 SUPPORT (OPTION)
PF1080007-00 SUPPORT (OPTION)
PF1080008-00 SUPPORT (KWL+E.X.P.-TYPE)
PF1200255-00 PIPING,WINCH
PF1400247-01 MOUNT,WINCH
PF5100221-00 FRAME ASSY
PF5100222-00 FRAME ASSY
PH1300014-01 LOCK,PLATFORM (SAFETY LOCK)
PH1300017-00 LOCK,PLATFORM
PH5031388-00 HARNESS
PH5032352-00 HARNESS
PH5032353-00 HARNESS
PH5032355-00 HARNESS (L=4000)
PH5032356-00 HARNESS
PH5032357-00 HARNESS
PH5032358-00 HARNESS
PH5032359-00 HARNESS
PH5034263-00 HARNESS
PH5034270-00 HARNESS
PH5034271-00 HARNESS
PH5034272-00 HARNESS
PH5034274-00 HARNESS
PH5034275-00 HARNESS
PH5034276-00 HARNESS
PH5034277-00 HARNESS
PH5080169-00 HOOK ASSY
PI1010109-00 MOTOR,HYDRAULIC
PI1280051-00 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010436-00 FRAME
PK1350062-01 PLATFORM
PK1350067-00 PLATFORM (WL.125MM,OPTION)
PK1350068-00 PLATFORM (WL+TM.125MM,OPTION)
PK1350069-00 PLATFORM (KWL.125MM,OPTION)
PK1350070-00 PLATFORM (KWL+TM.125MM,OPTION)
PK1350071-00 PLATFORM (E.P.M/KWL,OPTION)
PK1350072-00 PLATFORM (WL.250MM,OPTION)
PK1350073-01 PLATFORM (FOR ISUZU KANAGAWA)
PK1350075-00 PLATFORM (OPTION)
SS-27-1-00061 FOR GENERAL, STD CAB,WB:3.3
000009
PK1350076-00 PLATFORM (W.125,OPTION)
PK1350077-00 PLATFORM (MAZUDA/WL.125,OPTION)
PK1350078-00 PLATFORM (FOR HOKKAIDOU ISUZU)
PK1350079-00 PLATFORM (FOR ISUZU CYUKYO)
PK1350080-00 PLATFORM (FOR YANMA)
PK1350081-00 PLATFORM (OPTION)
PK1350082-01 PLATFORM (FOR SIMOIDESYARYO)
PK1350084-00 PLATFORM (FOR MARUYAMASEISAKUSYO)
PK1350085-00 PLATFORM (KW/L=125,OPTION)
PK1350086-00 PLATFORM (WL+TM/L=250,OPTION)
PK1350087-00 PLATFORM (W/L=250,OPTION)
PK1350091-00 PLATFORM (FOR ZAOUSANGYO)
PK1360009-02 MOUNT,RAMP
PK1360011-01 MOUNT,RAMP (L=700,OPTION)
PK1360012-01 MOUNT,RAMP (E.X.P,L=1500,OPTION)
PK1360013-00 MOUNT,RAMP (E.X.P,L=1150,AG-TYPE)
PK1360014-00 MOUNT,RAMP (L=700,AG-TYPE)
PK1360015-00 MOUNT,RAMP (E.X.P,L=1500,AG-TYPE)
PK1360022-01 MOUNT,RAMP (L=700,H=250,OPTION)
PK1360023-01 MOUNT,RAMP
PK1360024-01 MOUNT,RAMP (L=1150,OPTION)
PK1360025-00 MOUNT,RAMP (L=1150,AG-TYPE,OPTION)
PK1360026-02 MOUNT,RAMP (NO. BRACKET FOR REAR GATE)
PK1360027-01 MOUNT,RAMP (E.X.P.,L=1150)
PK1360028-00 MOUNT,RAMP (E.X.P.,L=1150,AG-TYPE)
PK1360029-01 MOUNT,RAMP (FOR SIMOIDESYARYOU)
PK1360031-01 MOUNT,RAMP
PK1370009-03 SLIDE ASSY
PK1450034-01 GATE
PK1450035-01 GATE
PK1450036-01 GATE
PK1450037-01 GATE
PK1450042-01 GATE
PK1450043-01 GATE
PK1450190-00 GATE
PL1010680-00 OPERATION SYSTEM, CONTROL VALVE
PL1010682-00 OPERATION SYSTEM, CONTROL VALVE
PL1010683-00 OPERATION SYSTEM, CONTROL VALVE
PL1010685-00 OPERATION SYSTEM, CONTROL VALVE
PL1010686-00 OPERATION SYSTEM, CONTROL VALVE
PL1010773-00 OPE.ASSY,CONT.VALVE (OP.)
PL1010774-00 OPE.ASSY,CONT.VALVE (AG)
PL1010775-00 OPE.ASSY,CONT.VALVE (WINCH)
PN1011734-07 ELEC.ASSY (BASE)
PN1011736-03 ELEC.ASSY (AUTOMATIC RAMP OPERATION)
PN1011737-02 ELEC.ASSY (RADIO CONTROL)
PN1012163-02 ELECTRICAL ACCESSORIES
PN1080436-00 LAMP (WAY SIDE LAMP)
PN1080437-00 LAMP (WAY SIDE LAMP)
PN1270002-00 CONNECTION PARTS (OPTION)
PO1012124-01 PLATE,INDICATION
PO1012127-00 PLATE ASSY,NAME
PO1012128-01 NAME PLATE ASSY (AUTOMATIC RAMP TYPE/REMOCON,RADICON.)
PO1012129-01 NAME PLATE ASSY
PO1012131-00 PLATE,INDICATION
PO1012132-00 PLATE,INDICATION
PO1012872-01 PLATE ASSY,NAME (OPTION)
PO1012873-00 PLATE ASSY,NAME (OPTION)
PO1012874-00 PLATE ASSY,NAME (WINCH,OPTION)
PO1012875-00 PLATE ASSY,NAME (OPTION)
PO1012876-01 NAME PLATE ASSY (REAR WHEEL LAMP)
PO1014632-00 PLATE ASSY,NAME
PP5150056-00 PARTS ASSY,RADIO CONTROLLER (8CH)
PS5230003-00 SLIDE ASSY
SS-27-1-00061 FOR GENERAL, STD CAB,WB:3.3
000009
PS5380002-00 STOPPER (PLASTIC)
PS5380003-00 STOPPER (IRON)
PV1020120-05 VALVE,REMOTE CONTROL (AG-TYPE,OPTION)
PV1020126-03 VALVE,REMOTE CONTROL
PV1030107-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1030108-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1040032-01 CONTROL BOX (SELF WINCH RADIO CONTROL)
PV1070213-02 RADIO CONTROL (KYOKUTO/6CH->8CH)
PV1070398-00 RADIO CONTROL (KIT:MITSUMI)
PV1400021-01 ANTENNA (FOR RADIO CONTROL)
PW1030052-00 TOOLS
PX1100199-00 TANK SUPPORT INSTALLATION
PX1180214-00 MOUNT,HOOK
PX1180215-00 MOUNT,HOOK
PX1180243-00 MOUNT,HOOK (OPTION)
PX1190005-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190006-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190007-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190008-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190012-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190013-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190014-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190015-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190016-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190017-01 MOUNT,STOPPER (FOR E.P.M.)
PX1190018-01 MOUNT,STOPPER (FOR CHECKER PLATE)
PX1190019-00 MOUNT,STOPPER (FOR E.P.M.)
PX1210003-00 GUARD INSTALLATION
PX1210011-00 GUARD (ISUZU KANAGAWA)
PX1210125-01 GUARD
PX1240006-00 MIRROR INSTALLATION
PX1250124-00 COVER INSTALLATION OPTION)
PX1310022-00 MOUNT,LAMP
PX1310058-03 MOUNT,LAMP
PX1310059-04 MOUNT,LAMP (MARKER LAMP:2PAIRS 4PCS)
PX1310060-03 MOUNT,LAMP
PX1310061-02 MOUNT,LAMP
PX1310062-02 MOUNT,LAMP
PX1310185-01 MOUNT,LAMP (TIRE LAMP 1PC/LEFT SIDE)
PX1330025-01 BODY,SUPPORT
PX1390402-00 MODIFICATION PARTS (OPTION)
PX1810055-00 MOUNT,SUPPORT
PX1810056-00 MOUNT,SUPPORT
PX1940132-03 MOUNT (RADIO CONTROL)
PX5010216-00 MOUNT ASSY
PX5010217-00 MOUNT ASSY
PX5010324-00 MOUNT ASSY (RADIO CONTROLLER/KYOKUTO)
PY1250007-03 SWITCH INSTALLATION
PY3420003-00 SHACKLE
