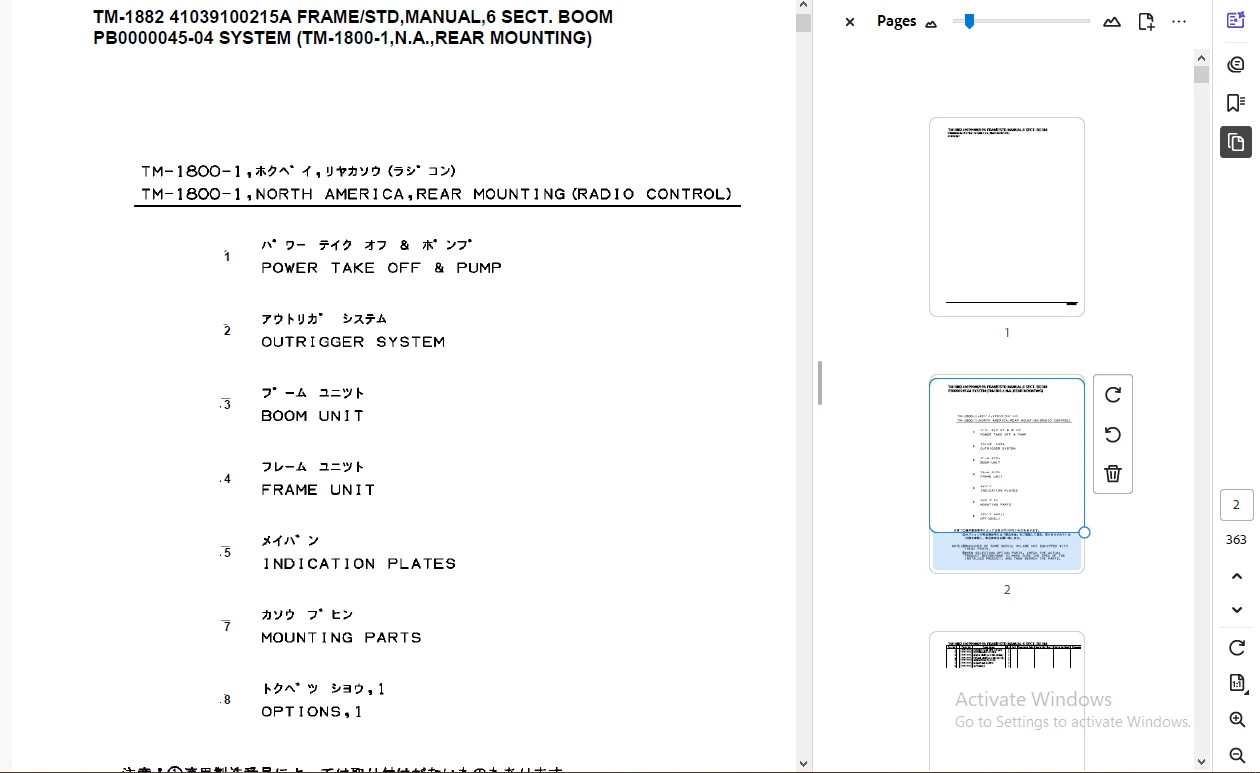

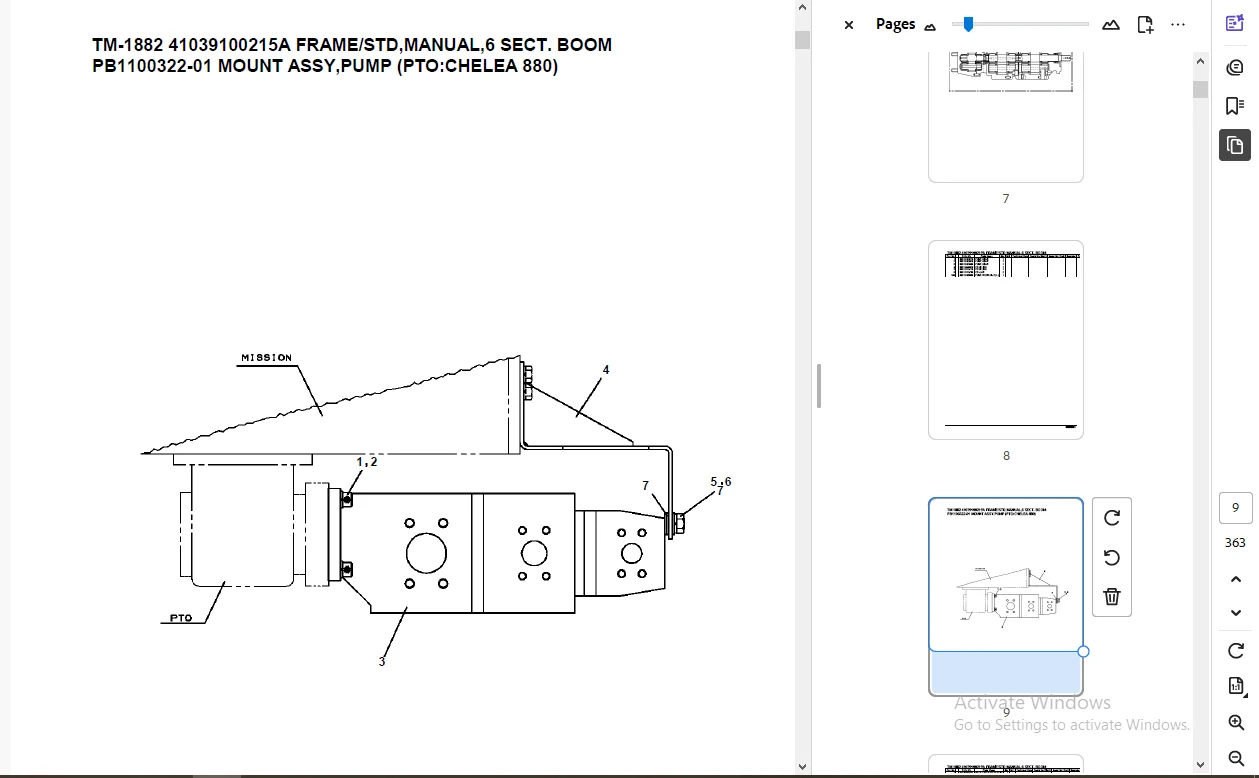

IMAGES PREVIEW OF THE  MANUAL:

TABLE OF CONTENTS:

Tadano Crane TM-1882 41039100215A FRAMESTD,MANUAL,6 Parts Manual  – PDF DOWNLOAD

TM-1882 41039100215A FRAME/STD,MANUAL,6 SECT. BOOM
000002
PB1100316-00 PUMP,HYDRAULIC (L)
PB1100322-01 MOUNT ASSY,PUMP (PTO:CHELEA 880)
PB1100323-01 MOUNT ASSY,PUMP (PTO:CHELEA 489)
PB1130287-00 TANK,OIL
PB1300452-05 JOINT,ROTARY
PB1320603-00 VALVE,MANUAL CONTROL
PB1320604-01 VALVE,MANUAL CONTROL
PB1320605-00 VALVE,MANUAL CONTROL
PB1320611-00 VALVE,MANUAL CONTROL
PB1400405-01 PIPING,UPPER
PB1411809-00 PIPING,LOWER (RADIO CONTROL)
PB1411865-03 PIPING,LOWER
PB1910134-00 PIPING (TANK)
PB1910161-01 PIPING (PUMP)
PB2000028-02 POWER TAKE OFF & PUMP
PB5280004-00 BOX,OPERATION
PC1000570-00 OUTRIGGER SYSTEM
PC1011168-02 OUTRIGGER (FRONT)
PC1011255-00 OUTRIGGER (FRONT)
PC1011257-00 OUTRIGGER (FRONT)
PC1011285-00 OUTRIGGER
PC1011286-00 OUTRIGGER
PC1011497-00 OUTRIGGER ASSY
PC1011498-00 OUTRIGGER ASSY
PC1030413-00 CYLINDER,JACK
PC1030414-00 CYLINDER,JACK
PC1030457-00 CYLINDER ASSY,JACK
PC1030458-00 CYLINDER ASSY,JACK
PC1050270-00 CYLINDER,EXTENSION
PC1200561-01 PIPING,OUTRIGGER
PC1200573-01 PIPING,OUTRIGGER (FRONT)
PC1200581-00 PIPING,OUTRIGGER
PC5410004-00 CONTROL UNIT
PC5410005-00 CONTROL UNIT
PD1010180-00 REDUCER,SWING SPEED
PD1020051-01 SWING UNIT
PD5080032-00 DETECTOR ASSY,LENGTH (BOOM)
PD5300001-00 DIODE ASSY
PE1010439-02 CYLINDER,ELEVATING
PF1010344-01 WINCH
PF1010345-00 WINCH
PF1050144-00 HOOK (MAIN)
PF1050183-01 HOOK (SHEAVE 2PC’S)
PF1050332-00 HOOK (SHEAVE 1 PC/ OPTION)
PF1050333-00 HOOK (AUXILIARY)
PF1050544-01 HOOK (6-PART-LINE,18TON)
PF1050545-01 HOOK (4-PART-LINE,12TON)
PF1050546-01 HOOK (2-PART-LINE,6TON)
PF1050547-01 HOOK (1-PART-LINE,3TON)
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1090024-00 SOCKET,ROPE
PF1400406-01 MOUNT,WINCH
PG1010901-05 BOOM (6 SECT.)
PG1120198-01 DETECTOR,BOOM LENGTH
PG1130148-01 DETECTOR,BOOM LENGTH
PG1200188-00 PIPING,TELESCOPING (JOINT)
PG2000132-02 BOOM UNIT (411-391-20060)
PH1010008-00 DETECTOR,LOAD
PH1250098-00 MOMENT LIMITER (BML)
PH5030835-00 HARNESS
PH5030836-00 HARNESS
PH5030837-00 HARNESS
PH5030838-00 HARNESS
PH5030839-00 HARNESS
TM-1882 41039100215A FRAME/STD,MANUAL,6 SECT. BOOM
000002
PH5030840-00 HARNESS
PH5030841-00 HARNESS
PH5030842-00 HARNESS
PH5030845-00 HARNESS (SWITCH)
PH5030873-00 HARNESS
PH5030889-00 HARNESS
PH5030890-00 HARNESS
PH5032722-00 HARNESS
PH5032723-00 HARNESS
PH5080152-00 HOOK ASSY(6-PART-LINE,18T /ENG.,SPANISH,PORTUGUESE)
PH5080153-00 HOOK ASSY (4-PART-LINE,12T /ENG.,SPANISH,PORTUGUESE)
PH5080154-00 HOOK ASSY (2-PART-LINE,6T /ENG.,SPANISH,PORTUGUESE)
PH5080155-00 HOOK ASSY (1-PART-LINE,3T /ENG.,SPANISH,PORTUGUESE)
PH5080179-00 HOOK ASSY (AUX.)
PI1010142-00 MOTOR,HYDRAULIC
PI1010199-01 MOTOR,HYDRAULIC
PI1120311-01 VALVE,SOLENOID
PI1120312-00 VALVE,SOLENOID
PI1120313-00 VALVE,SOLENOID
PI1120314-00 VALVE,SOLENOID
PI1130025-01 VALVE,HYDRAULIC
PI1140197-00 VALVE,CHECK
PI1140204-01 VALVE,CHECK
PI1190012-00 VALVE,PRESSURE REGULATOR
PI1230017-00 VALVE,SHUTTLE
PI1250122-00 VALVE,COUNTERBALANCE
PI1250134-02 VALVE,COUNTERBALANCE
PI1250155-02 VALVE,COUNTERBALANCE
PI1270005-00 VALVE,SEQUENCE
PI1280071-01 VALVE,PILOT CHECK
PI1300044-01 FILTER,OIL
PK1011192-01 FRAME
PK1100427-00 SWING FRAME
PK1130019-00 COVER,BEARING
PK2000884-02 FRAME UNIT (411-391-10110)
PL1011115-01 OPE.ASSY,CONT.VALVE (RADIO CONTROL)
PL1011122-04 OPE.ASSY,CONT.VALVE
PL1031055-00 OPE.ASSY,ACCELERATOR
PL1031117-00 OPE.ASSY,ACCELERATOR (RADIO CONTROL)
PL1100239-00 BOX,OPERATION
PM1030034-01 PIPING,GREASE
PM5150023-00 MODIFICATION ASSY (BOOM POINT/SHEAVE 2 PC’S->3 PC’S)
PN1013633-00 ELEC.ASSY (FRAME)
PN1013855-01 ELEC.ASSY
PN1013856-02 ELEC.ASSY (RELOCATING CONFLUENCE SW.)
PN1014224-00 ELEC.ASSY (RADIO CONTROL PLUG)
PN1014226-00 ELEC.ASSY (POST – BOOM)
PN1014228-02 ELEC.ASSY (RADIO CONTROL)
PN1014356-01 ELEC.ASSY (CONTROL BOX)
PN1014357-01 ELEC.ASSY
PN1014358-03 ELEC.ASSY
PN1014359-00 ELEC.ASSY
PN1014656-00 ELEC.ASSY (CONVERTER)
PN1140135-00 SWITCH ASSY
PN5011002-00 NAME PLATE ASSY (RADIO CONTROL)
PO1000151-00 INDICATION PLATES
PO1014178-01 PLATE ASSY,NAME (BOOM)
PO1014618-01 PLATE ASSY,NAME (TANK)
PO1014738-01 PLATE ASSY,NAME (AMA)
PO1014871-01 PLATE ASSY,NAME (FRAME)
PO1030021-00 TADANO
PO1070763-01 PERFORMANCE DATA (NORTH AMERICA)
PO1071284-01 PERFORMANCE DATA (CONSTANT AROUND 360 DEG./ENG.)
PR5130002-00 RING ASSY,SLIP
TM-1882 41039100215A FRAME/STD,MANUAL,6 SECT. BOOM
000002
PS5530041-00 SWITCH ASSY (NACC)
PS5530042-00 SWITCH ASSY (PANASONIC-DENKO)
PS5530190-00 SWITCH ASSY (3 SW/NACC)
PS5530191-00 SWITCH ASSY (3 SW/PANASONIC)
PS5530192-00 SWITCH ASSY (SWITCH & LAMP)
PS5540002-01 SWITCH (OVER WIND/BOOM)
PT5130041-01 TELESCOPE ASSY
PV1020339-00 VALVE,REMOTE CONTROL
PV1050014-00 CYLINDER,ACCELERATOR
PV1070349-03 RADIO CONTROL (KIT:LED)
PV1070515-01 RADIO CONTROL
PV1250004-01 STOWING BOX
PV1250013-00 BOX,STOWING
PV5470002-00 VALVE,RELIEF
PV5470003-00 VALVE,RELIEF
PX1000912-01 MOUNTING PARTS
PX1100284-00 TANK SUPPORT
PX1120582-00 BOOM REST
PX1170755-00 ATTACHMENT PARTS,CRANE FRAME
PX1210108-00 GUARD (CONTROL LEVER)
PX1260228-01 STEP
PX1940275-00 MOUNT (TRUCK MOUNT,LOW HEIGHT)
PY1001137-02 OPTIONS,1
PY5370002-00 ANTENNA UNIT
