Tadano Crane TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES Parts Manual – PDF DOWNLOAD

Description

Tadano Crane TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES Parts Manual – PDF DOWNLOAD

Language : English
Pages :45
Downloadable : Yes
File Type : PDF

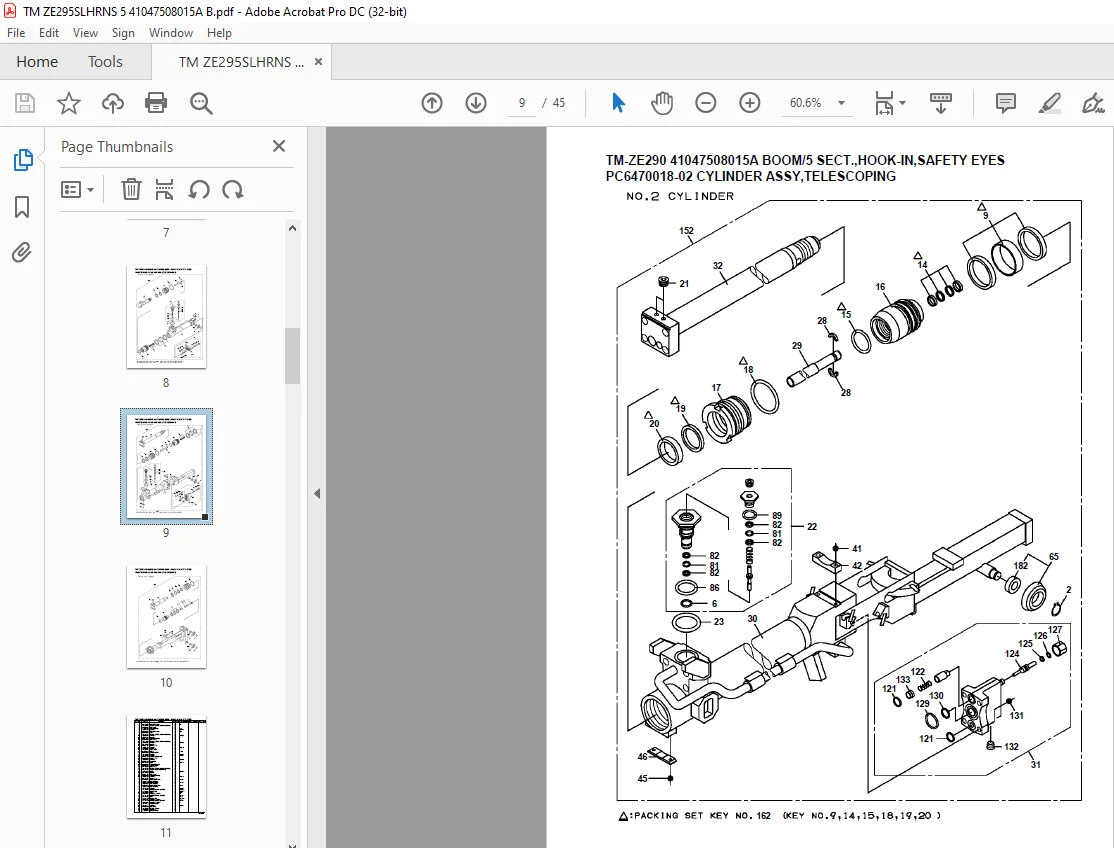

IMAGES PREVIEW OF THE MANUAL:

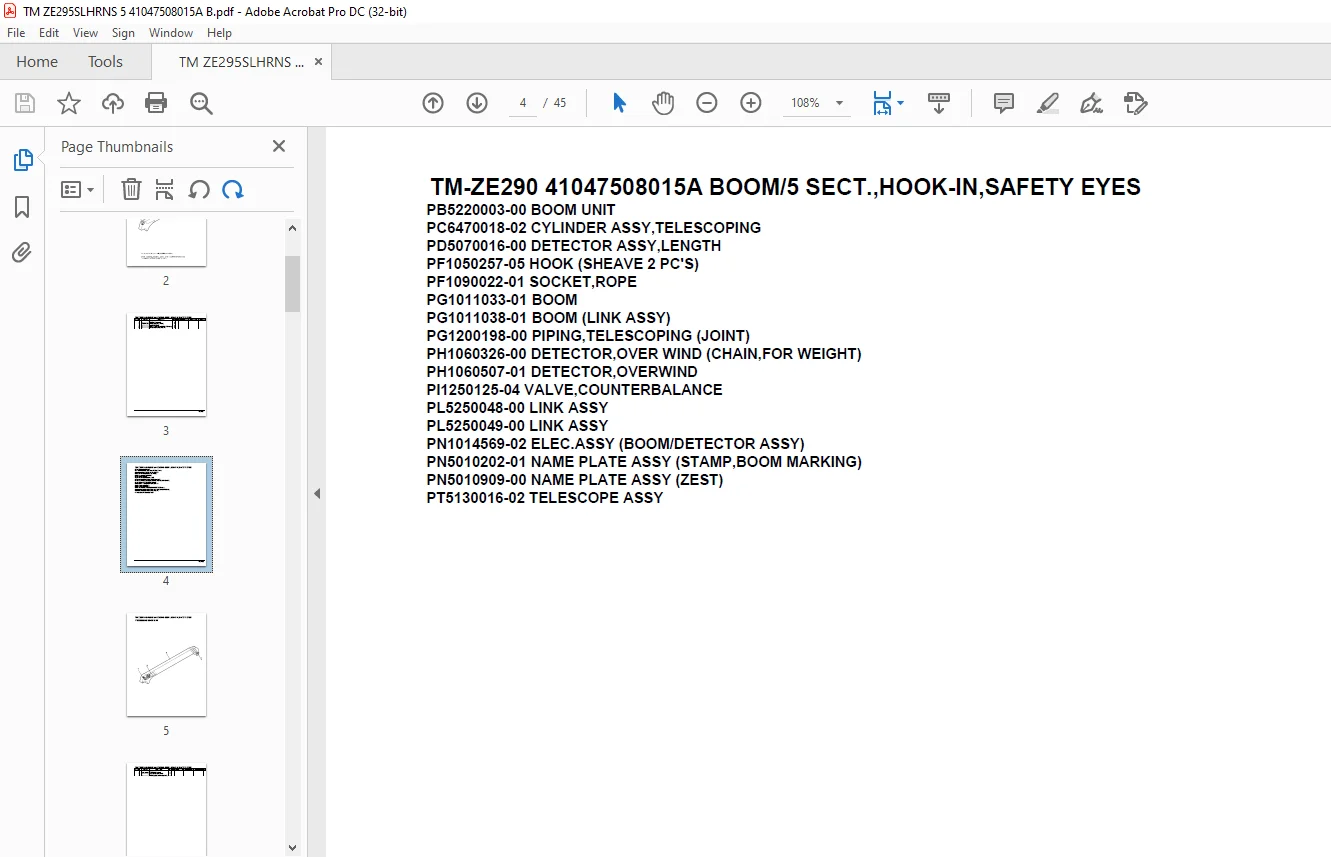

TABLE OF CONTENTS:

Tadano Crane TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES Parts Manual – PDF DOWNLOAD

TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES
PZ1000649-00 BOOM SYSTEM (HOOK-IN)
ASSEMBLY

TM-ZE290 41047508015A BOOM/5 SECT.,HOOK-IN,SAFETY EYES
PB5220003-00 BOOM UNIT
PC6470018-02 CYLINDER ASSY,TELESCOPING
PD5070016-00 DETECTOR ASSY,LENGTH
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1011033-01 BOOM
PG1011038-01 BOOM (LINK ASSY)
PG1200198-00 PIPING,TELESCOPING (JOINT)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060507-01 DETECTOR,OVERWIND
PI1250125-04 VALVE,COUNTERBALANCE
PL5250048-00 LINK ASSY
PL5250049-00 LINK ASSY
PN1014569-02 ELEC.ASSY (BOOM/DETECTOR ASSY)
PN5010202-01 NAME PLATE ASSY (STAMP,BOOM MARKING)
PN5010909-00 NAME PLATE ASSY (ZEST)
PT5130016-02 TELESCOPE ASSY

S.M 11/24
