Tadano Crane TM-ZE500 41050502005A BOOM/5 SECT. Parts Manual PDF
$16.95
Tadano Crane TM-ZE500 41050502005A BOOM5 SECT. Parts Manual – PDF DOWNLOAD
Description
Tadano Crane TM-ZE500 41050502005A BOOM5 SECT. Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Crane TM-ZE500 41050502005A BOOM5 SECT. Parts Manual – PDF DOWNLOAD
Language : English
Pages : 66
Downloadable : Yes
File Type : PDF

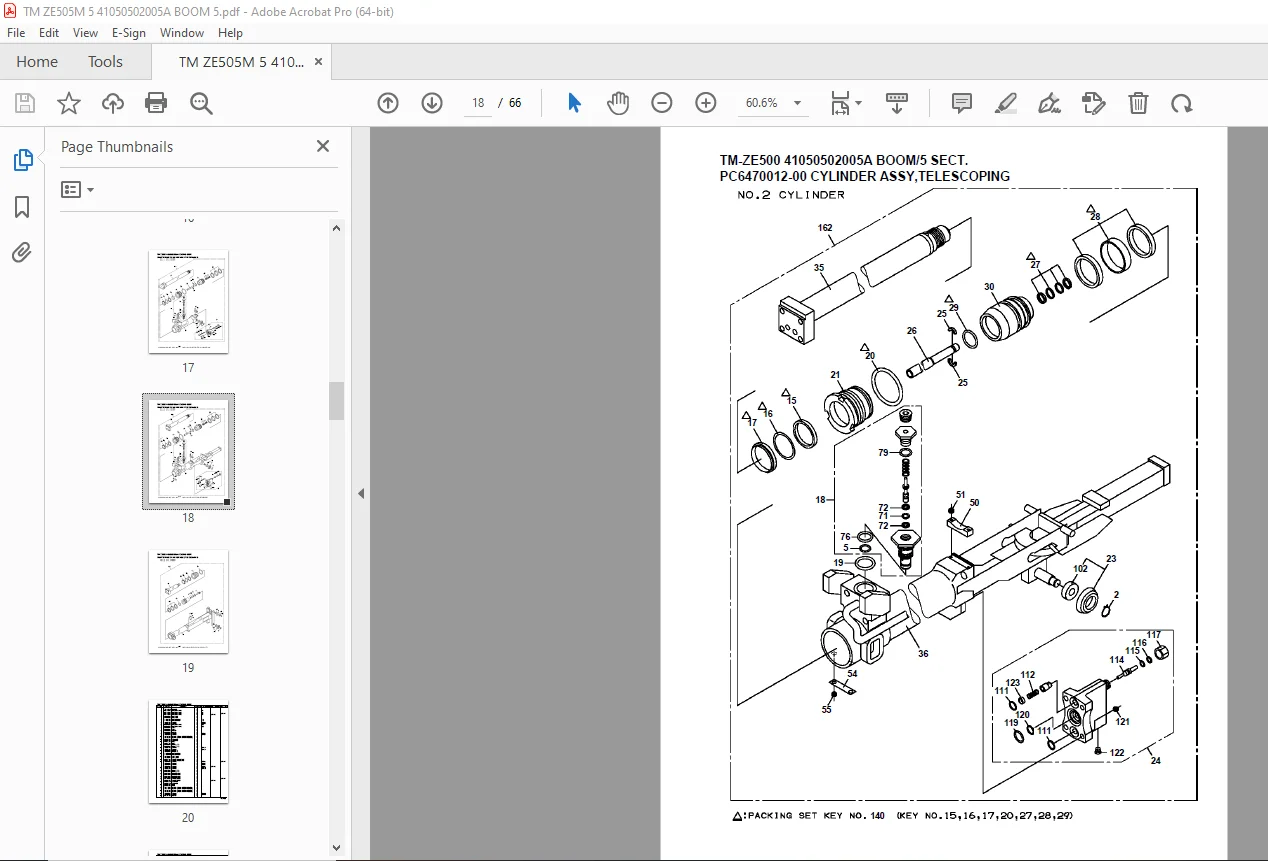

IMAGES PREVIEW OF THE MANUAL:

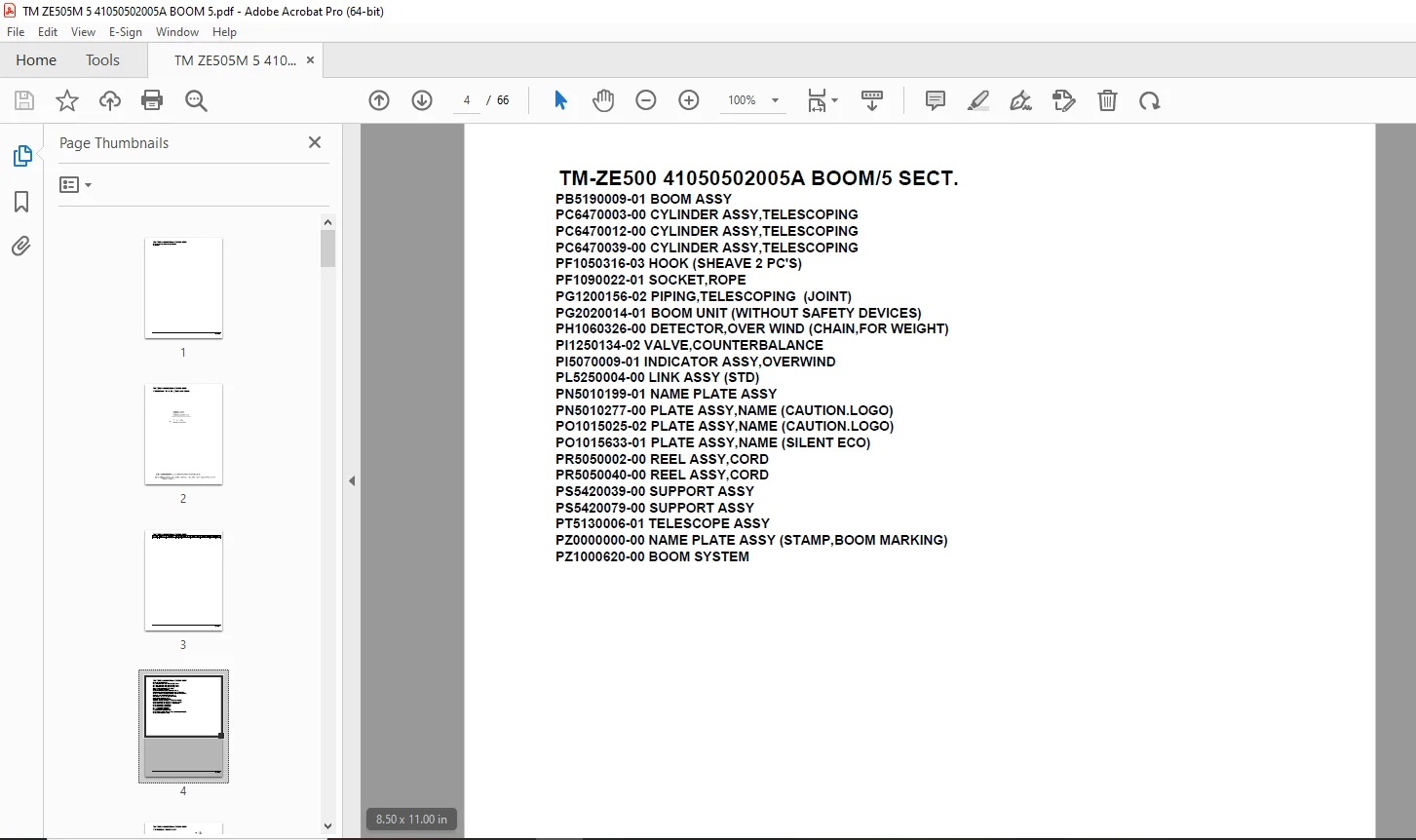

TABLE OF CONTENTS:
Tadano Crane TM-ZE500 41050502005A BOOM5 SECT. Parts Manual – PDF DOWNLOAD
TM-ZE500 41050502005A BOOM/5 SECT.
000002
PB5190009-01 BOOM ASSY
PC6470003-00 CYLINDER ASSY,TELESCOPING
PC6470012-00 CYLINDER ASSY,TELESCOPING
PC6470039-00 CYLINDER ASSY,TELESCOPING
PF1050316-03 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1200156-02 PIPING,TELESCOPING (JOINT)
PG2020014-01 BOOM UNIT (WITHOUT SAFETY DEVICES)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PI1250134-02 VALVE,COUNTERBALANCE
PI5070009-01 INDICATOR ASSY,OVERWIND
PL5250004-00 LINK ASSY (STD)
PN5010199-01 NAME PLATE ASSY
PN5010277-00 PLATE ASSY,NAME (CAUTION.LOGO)
PO1015025-02 PLATE ASSY,NAME (CAUTION.LOGO)
PO1015633-01 PLATE ASSY,NAME (SILENT ECO)
PR5050002-00 REEL ASSY,CORD
PR5050040-00 REEL ASSY,CORD
PS5420039-00 SUPPORT ASSY
PS5420079-00 SUPPORT ASSY
PT5130006-01 TELESCOPE ASSY
PZ0000000-00 NAME PLATE ASSY (STAMP,BOOM MARKING)
PZ1000620-00 BOOM SYSTEM
G.B 12/01/2025
