Tadano Crane TM-ZF260 31113020040 BOOM5 SECT. Parts Manual – PDF DOWNLOAD

Description

Tadano Crane TM-ZF260 31113020040 BOOM5 SECT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZF260 31113020040 BOOM5 SECT. Parts Manual – PDF DOWNLOAD

Language : English
Pages :54
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Crane TM-ZF260 31113020040 BOOM5 SECT. Parts Manual – PDF DOWNLOAD

TM-ZF260 31113020040 BOOM/5 SECT.
000000
PZ1000582-00 BOOM SYSTEM
ASSEMBLY

TM-ZF260 31113020040 BOOM/5 SECT.
000002
PF1050203-01 HOOK (SHEAVE 2PC’S)
PF1090022-01 SOCKET,ROPE
PG1010413-05 BOOM
PG1050224-04 CYLINDER,TELESCOPING
PG1050567-01 CYLINDER,TELESCOPING (NO.1)
PG1050568-01 CYLINDER,TELESCOPING (NO.2)
PG1050569-00 CYLINDER,TELESCOPING (NO.3)
PG1200103-01 PIPING,TELESCOPING
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060249-00 DETECTOR,OVER WINDING
PH1270014-00 INDICATOR,LOAD (CRAWLER CARRIER)
PI1140196-00 VALVE,CHECK
PI1140197-00 VALVE,CHECK
PI1140201-00 VALVE,CHECK
PI1140203-00 VALVE,CHECK
PI1250080-00 VALVE,COUNTERBALANCE
PN1350004-01 REEL,CORD
PO1011703-00 PLATE ASSY,NAME (ZF260/JAPANESE)
PO1011767-00 PLATE ASSY,NAME (ZF260/ENGLISH)
PO1011892-01 PLATE ASSY,NAME (ZF290/JAPANESE)
PO1011915-00 PLATE ASSY,NAME (ZF290/ENGLISH)
PO1011998-01 PLATE ASSY,NAME (ZF300J)
PR5170002-00 ROPE,WIRE (KISWIRE

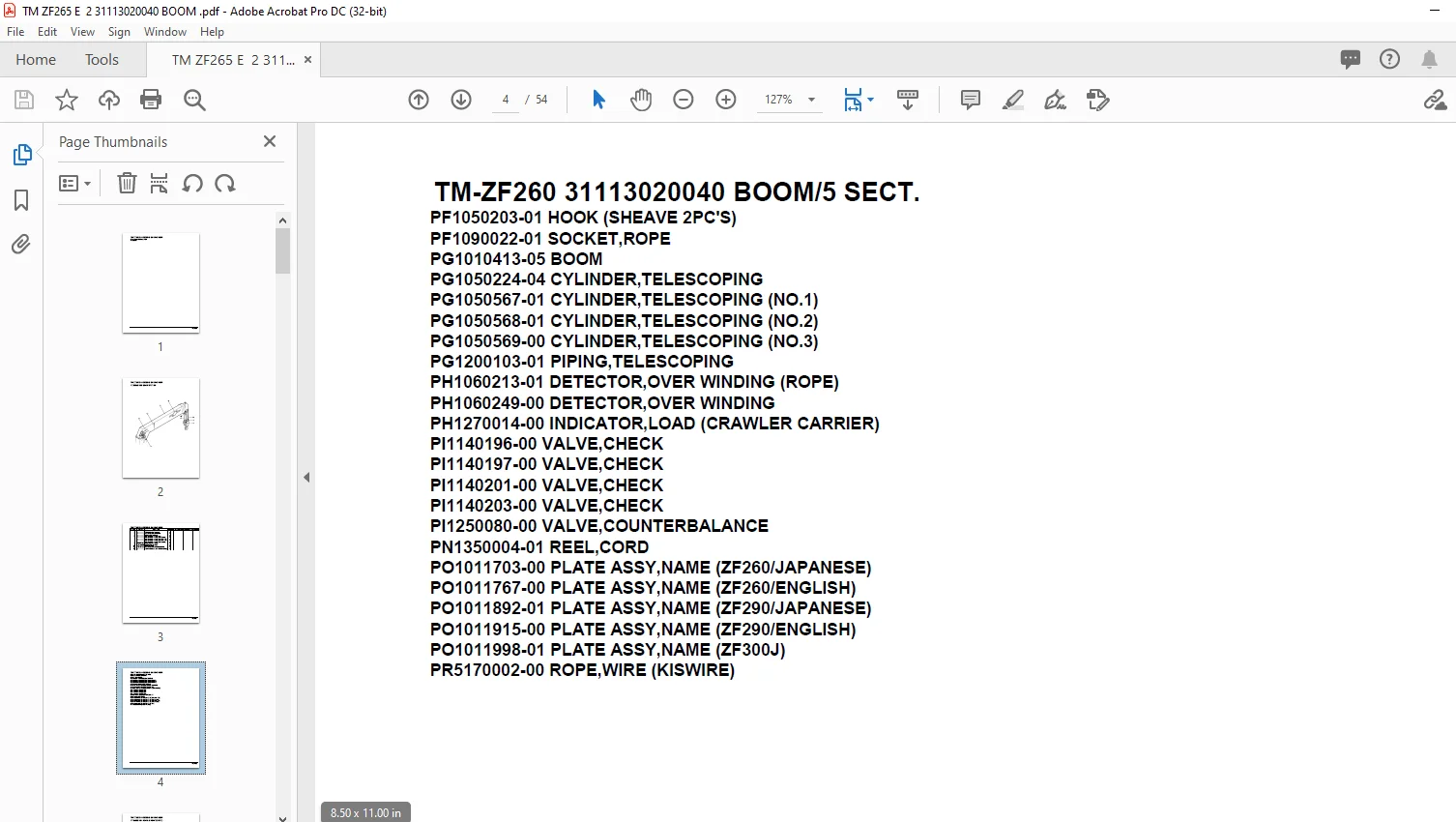

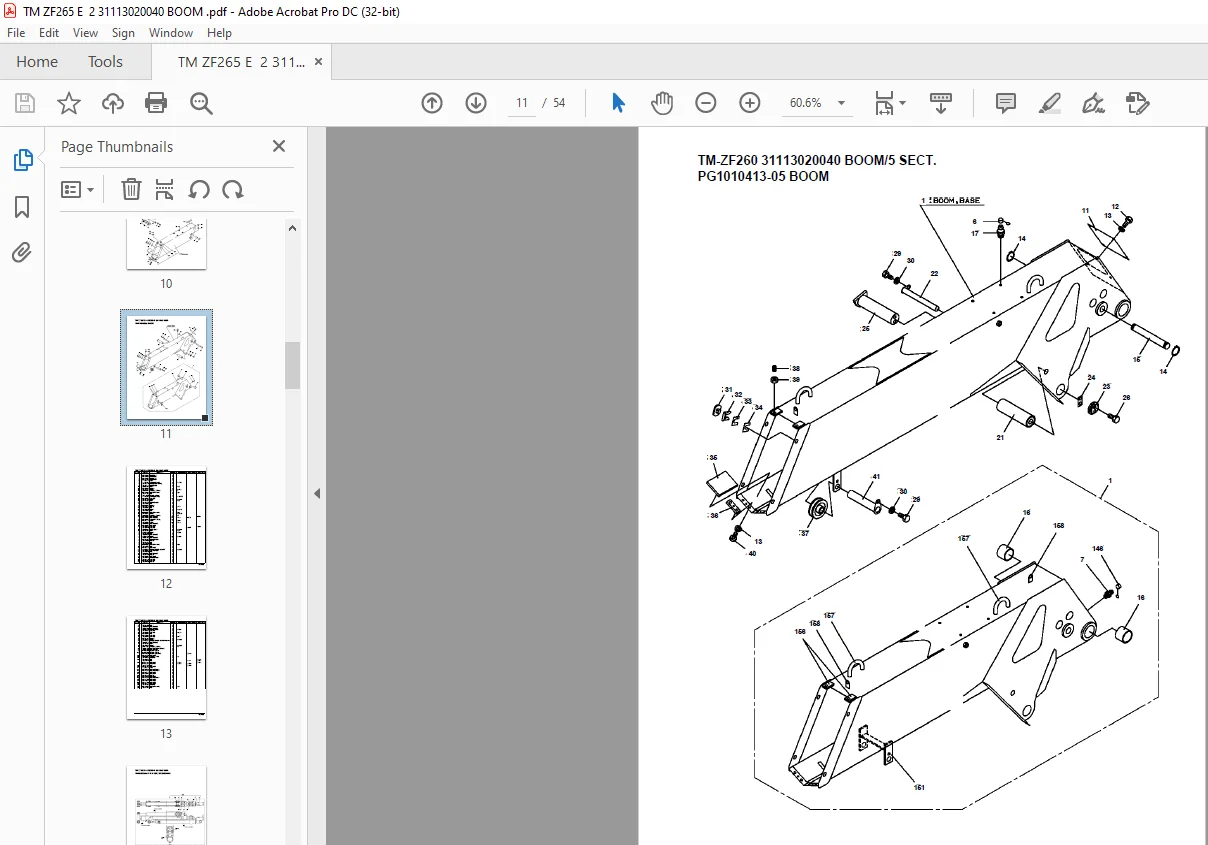

IMAGES PREVIEW OF THE MANUAL:
