Tadano Crane TM-ZF600 31103000002A 3 SEC.BOOM,STD FRAME Parts Manual – PDF DOWNLOAD
Description
Tadano Crane TM-ZF600 31103000002A 3 SEC.BOOM,STD FRAME Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Crane TM-ZF600 31103000002A 3 SEC.BOOM,STD FRAME Parts Manual – PDF DOWNLOAD
Language : English
Pages : 176
Downloadable : Yes
File Type : PDF

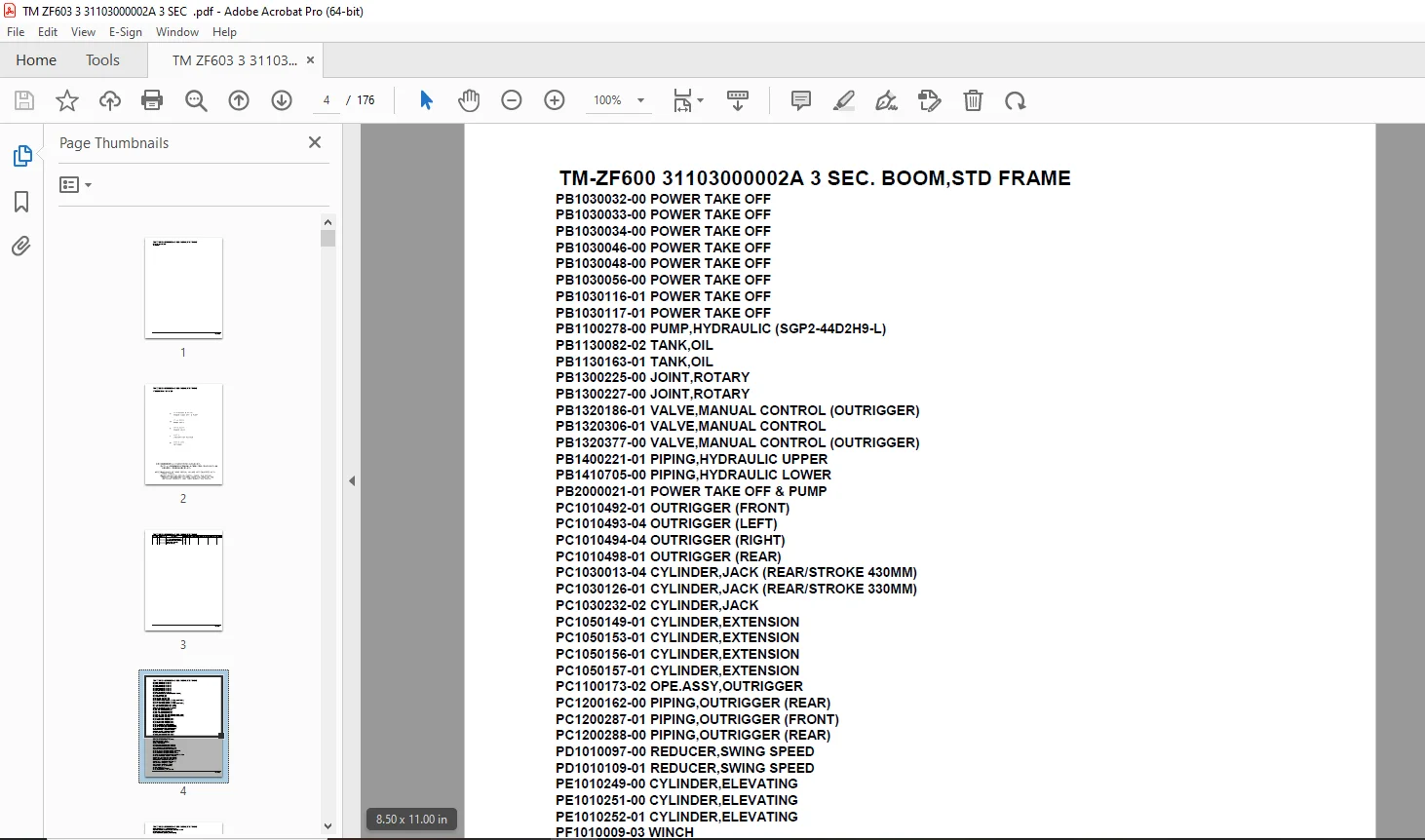

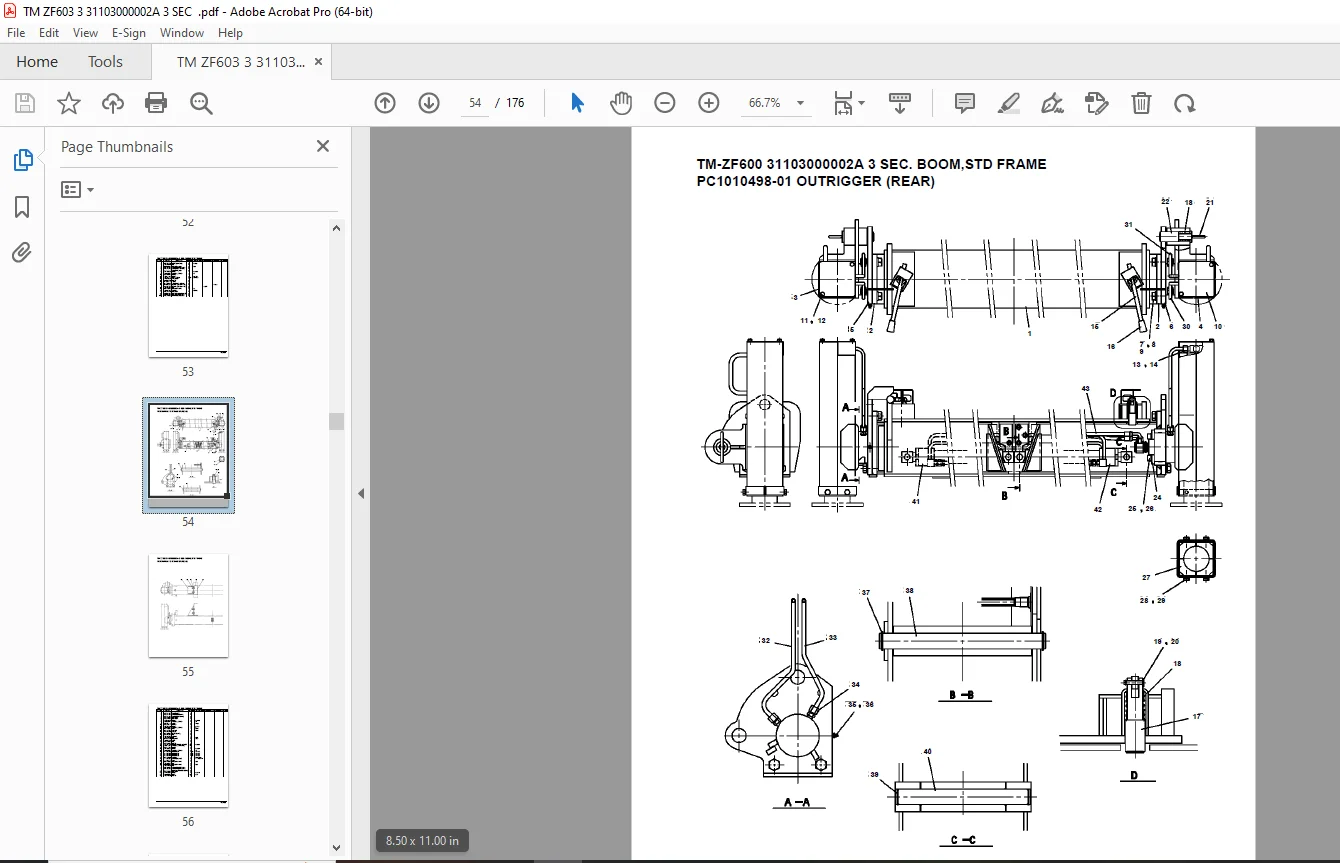

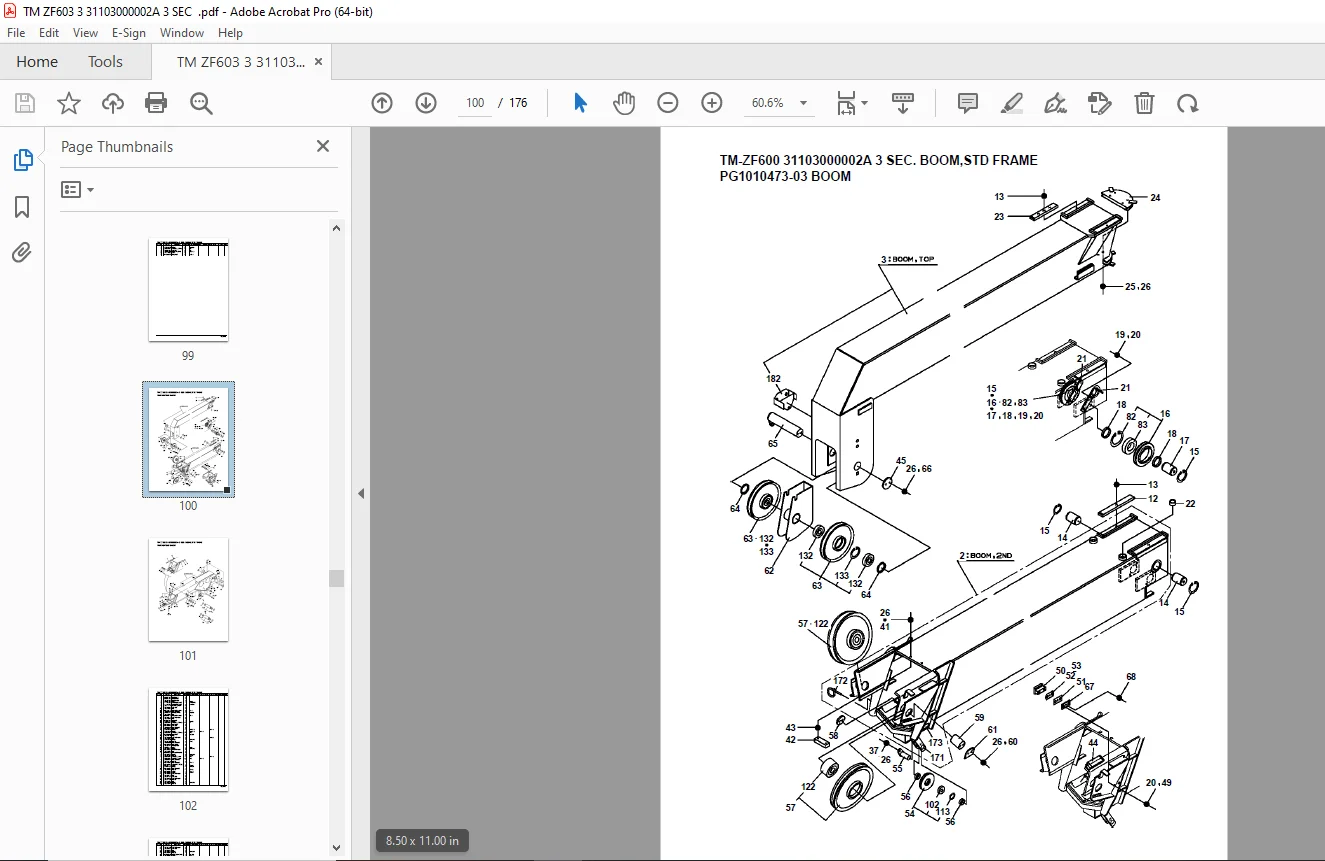

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Tadano Crane TM-ZF600 31103000002A 3 SEC.BOOM,STD FRAME Parts Manual – PDF DOWNLOAD
(FRONT)
PC1010493-04 OUTRIGGER (LEFT)
PC1010494-04 OUTRIGGER (RIGHT)
PC1010498-01 OUTRIGGER (REAR)
PC1030013-04 CYLINDER,JACK (REAR/STROKE 430MM)
PC1030126-01 CYLINDER,JACK (REAR/STROKE 330MM)
PC1030232-02 CYLINDER,JACK
PC1050149-01 CYLINDER,EXTENSION
PC1050153-01 CYLINDER,EXTENSION
PC1050156-01 CYLINDER,EXTENSION
PC1050157-01 CYLINDER,EXTENSION
PC1100173-02 OPE.ASSY,OUTRIGGER
PC1200162-00 PIPING,OUTRIGGER (REAR)
PC1200287-01 PIPING,OUTRIGGER (FRONT)
PC1200288-00 PIPING,OUTRIGGER (REAR)
PD1010097-00 REDUCER,SWING SPEED
PD1010109-01 REDUCER,SWING SPEED
PE1010249-00 CYLINDER,ELEVATING
PE1010251-00 CYLINDER,ELEVATING
PE1010252-01 CYLINDER,ELEVATING
PF1010009-03 WINCH
PF1010127-01 WINCH (HARTYS)
PF1050002-00 HOOK (SHEAVE 2 PC’S)
PF1070005-00 ROPE,WIRE
PF1090009-01 SOCKET,ROPE
PG1010473-03 BOOM
PG1050256-00 CYLINDER,TELESCOPING
PG1050257-02 CYLINDER,TELESCOPING
PG1130027-02 DETECTOR,BOOM LENGTH
PG2000200-00 BOOM UNIT (311-030-20020)
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060275-00 DETECTOR,OVER WINDING
PH1100046-00 DETECTOR,OVER FRONT AREA
PH1180166-03 CONNECTION,MOMENT LIMITER SYSTEM
PH1250028-00 MOMENT LIMITER (AML-PB)
PI1010078-01 MOTOR,HYDRAULIC (SWING)
PI1010228-02 MOTOR,HYDRAULIC (WINCH)
PI1250063-00 VALVE,COUNTERBALANCE
PI1250085-01 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1280162-00 VALVE,PILOT CHECK
PJ5090076-01 JOINT ASSY,SWIVEL
PK1010410-00 FRAME
PK1100228-00 SWING FRAME
PK1200153-00 COVER,SWING FRAME
TM-ZF600 31103000002A 3 SEC. BOOM,STD FRAME
000002
PK2000792-00 FRAME UNIT (311-030-10010)
PL1010658-01 OPERATION SYSTEM, CONTROL VALVE
PO1000122-01 INDICATION PLATES
PO1011941-00 PLATE,INDICATION (BOOM)
PO1012187-00 PLATE,INDICATION (FRAME)
PO1012188-00 PLATE ASSY,NAME (OUTRIGGER)
PO1012189-00 PLATE ASSY,NAME (OUTRIGGER)
PO1020001-00 PLATE,NAME (AML)
PO1070633-00 PERFORMANCE DATA (ZF603)
PO1070634-00 PERFORMANCE DATA (ZF603/OVER FROMT AREA)
PV1020196-00 VALVE,RELIEF
PY1000987-00 OPTIONS (STD)
PY2340010-01 PLATE (500X500,H=90)
