Tadano Crane TM-ZF600 31103000023A 4 SEC. BOOM,SL TYPE Parts Manual PDF

Description

Tadano Crane TM-ZF600 31103000023A 4 SEC. BOOM,SL TYPE Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZF600 31103000023A 4 SEC. BOOM,SL TYPE Parts Manual – PDF DOWNLOAD

Language : English
Pages : 254
Downloadable : Yes
File Type : PDF

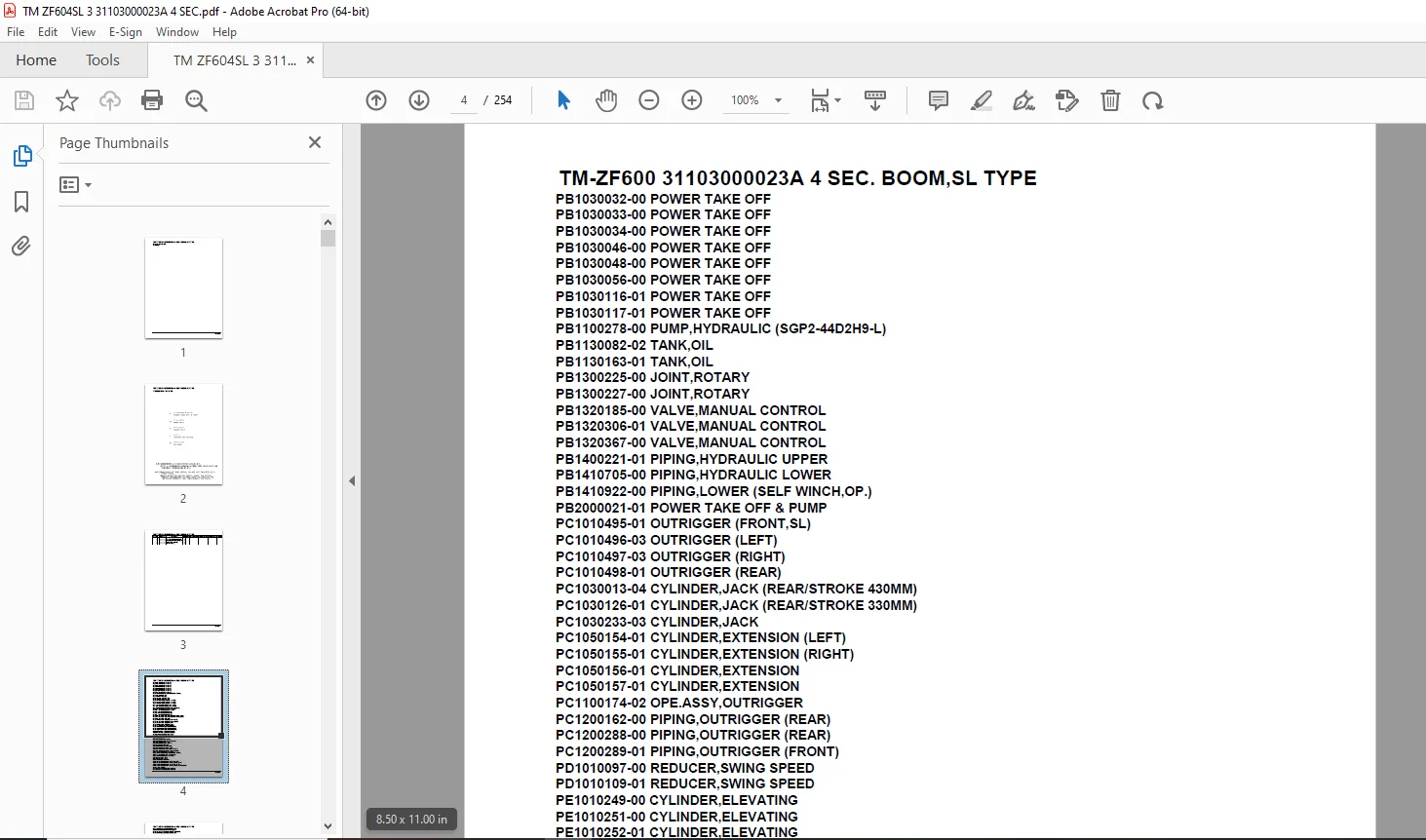

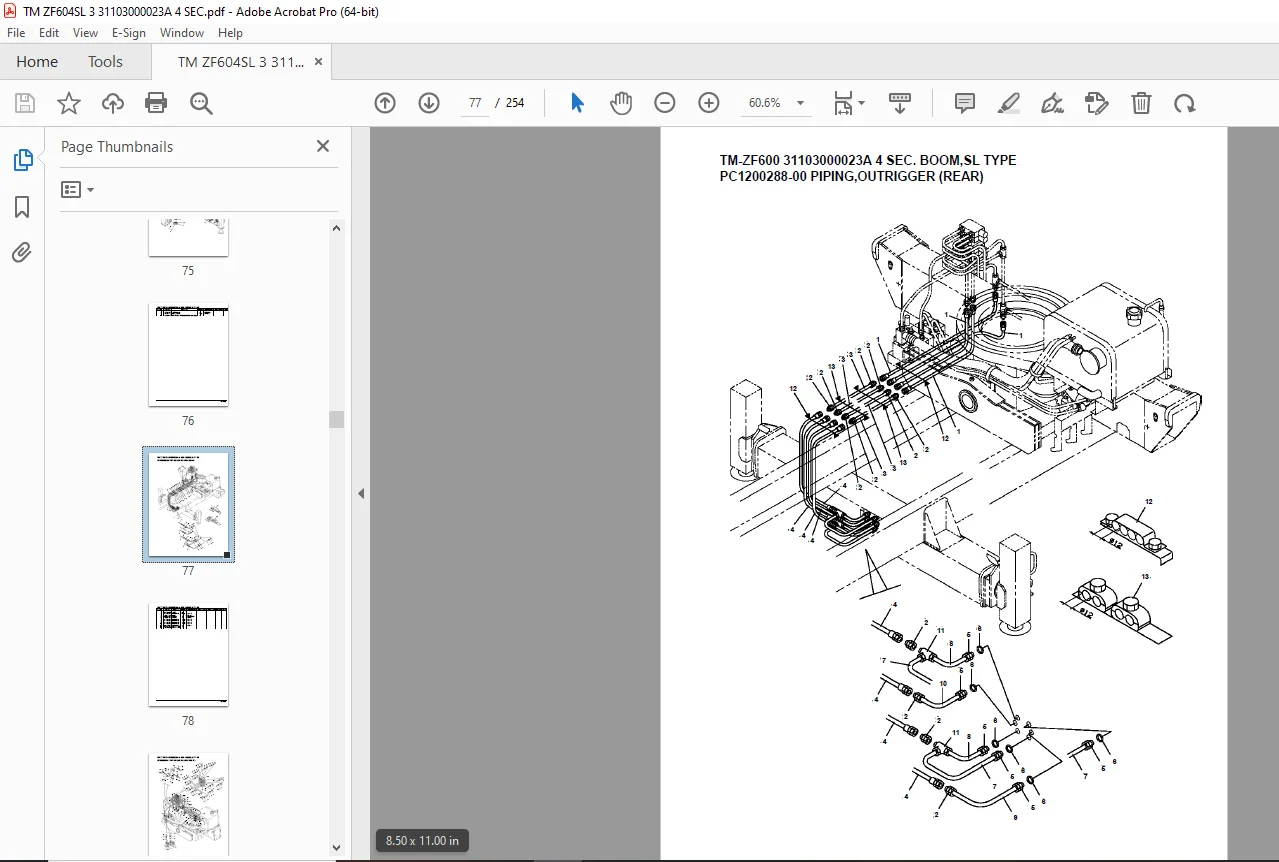

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane TM-ZF600 31103000023A 4 SEC. BOOM,SL TYPE Parts Manual – PDF DOWNLOAD

VALVE,MANUAL CONTROL
PB1320367-00 VALVE,MANUAL CONTROL
PB1400221-01 PIPING,HYDRAULIC UPPER
PB1410705-00 PIPING,HYDRAULIC LOWER
PB1410922-00 PIPING,LOWER (SELF WINCH,OP.)
PB2000021-01 POWER TAKE OFF & PUMP
PC1010495-01 OUTRIGGER (FRONT,SL)
PC1010496-03 OUTRIGGER (LEFT)
PC1010497-03 OUTRIGGER (RIGHT)
PC1010498-01 OUTRIGGER (REAR)
PC1030013-04 CYLINDER,JACK (REAR/STROKE 430MM)
PC1030126-01 CYLINDER,JACK (REAR/STROKE 330MM)
PC1030233-03 CYLINDER,JACK
PC1050154-01 CYLINDER,EXTENSION (LEFT)
PC1050155-01 CYLINDER,EXTENSION (RIGHT)
PC1050156-01 CYLINDER,EXTENSION
PC1050157-01 CYLINDER,EXTENSION
PC1100174-02 OPE.ASSY,OUTRIGGER
PC1200162-00 PIPING,OUTRIGGER (REAR)
PC1200288-00 PIPING,OUTRIGGER (REAR)
PC1200289-01 PIPING,OUTRIGGER (FRONT)
PD1010097-00 REDUCER,SWING SPEED
PD1010109-01 REDUCER,SWING SPEED
PE1010249-00 CYLINDER,ELEVATING
PE1010251-00 CYLINDER,ELEVATING
PE1010252-01 CYLINDER,ELEVATING
PF1010009-03 WINCH
PF1010127-01 WINCH (HARTYS)
PF1010132-00 WINCH (SELF 3TX1,OPTION)
PF1010134-01 WINCH (SL 3TX1)
PF1010177-00 WINCH (SL 4TONX1)
PF1010210-00 WINCH (SELF)
PF1010259-00 WINCH (3TON SELF)
PF1010261-00 WINCH (10TON SELF)
PF1010262-01 WINCH (3TON SELF, RADICON)
PF1010263-01 WINCH (10TON SELF, RADICON)
PF1050002-00 HOOK (SHEAVE 2 PC’S)
PF1050171-00 HOOK (SELF WINCH 10TON OPTION)
PF1050223-02 HOOK (3TON SELF WINCH)
PF1050290-01 HOOK (SHEAVE 1 PC’S)
PF1070005-00 ROPE,WIRE
PF1070005-00 ROPE,WIRE
PF1090009-01 SOCKET,ROPE
PF1200207-00 PIPING,WINCH (3T,OPTION SELF)
PF1200208-00 PIPING,WINCH (10TON,OPTION SELF)
PF1200238-00 PIPING,WINCH (3TON SELF,OPTION)
PF1200248-00 PIPING,WINCH (10TON,OPTION SELF RADICON)
PG1010474-04 BOOM
PG1050258-00 CYLINDER,TELESCOPING
PG1050259-01 CYLINDER,TELESCOPING
TM-ZF600 31103000023A 4 SEC. BOOM,SL TYPE
000002
PG1130027-02 DETECTOR,BOOM LENGTH
PG2000201-00 BOOM UNIT (311-030-20030)
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060275-00 DETECTOR,OVER WINDING
PH1100046-00 DETECTOR,OVER FRONT AREA
PH1180167-03 CONNECTION,MOMENT LIMITER SYSTEM
PH1250028-00 MOMENT LIMITER (AML-PB)
PI1010078-01 MOTOR,HYDRAULIC (SWING)
PI1010085-01 MOTOR,HYDRAULIC
PI1010086-00 MOTOR,HYDRAULIC
PI1010228-02 MOTOR,HYDRAULIC (WINCH)
PI1190010-01 VALVE,PRESSURE REGULATOR (SELF WINCH)
PI1250040-02 VALVE,COUNTERBALANCE
PI1250063-00 VALVE,COUNTERBALANCE
PI1250085-01 VALVE,COUNTERBALANCE
PI1280067-01 VALVE,PILOT CHECK
PI1280162-00 VALVE,PILOT CHECK
PI1330006-00 VALVE,DIVIDING & COMBINING (MURAKAMI)
PJ5090076-01 JOINT ASSY,SWIVEL
PK1010411-00 FRAME
PK1100228-00 SWING FRAME
PK1200153-00 COVER,SWING FRAME
PK2000793-00 FRAME UNIT (311-030-10020)
PL1010658-01 OPERATION SYSTEM, CONTROL VALVE
PL1010665-00 OPE.ASSY,CONT.VALVE (SELF/W)
PL1010753-00 OPE.ASSY,CONT.VALVE (SL)
PN1012086-00 ELEC.ASSY (SELF WINCH,OPT.)
PO1000122-01 INDICATION PLATES
PO1011938-01 PLATE,INDICATION (FRAME)
PO1011941-00 PLATE,INDICATION (BOOM)
PO1011974-00 PLATE ASSY,NAME (SELF WINCH,OPTION 3T)
PO1011975-01 PLATE ASSY,NAME (SELF WINCH,OPTION 10T)
PO1012189-00 PLATE ASSY,NAME (OUTRIGGER)
PO1012190-00 PLATE ASSY,NAME (OUTRIGGER)
PO1012247-00 PLATE ASSY,NAME (SELF WINCH,10TON)
PO1012248-00 PLATE ASSY,NAME (SELF WINCH,3TON)
PO1020001-00 PLATE,NAME (AML)
PO1070640-00 PERFORMANCE DATA (ZF604SL)
PO1070641-00 PERFORMANCE DATA (ZF604SL/OVER F-AREA)
PV1020158-03 VALVE,REMOTE CONTROL
PV1020196-00 VALVE,RELIEF
PV1030107-00 SWITCH BOX (SELF WINCH RADIO CONTROL)
PV1040032-01 CONTROL BOX (SELF WINCH RADIO CONTROL)
PV1070398-00 RADIO CONTROL (KIT:MITSUMI)
PV1400021-01 ANTENNA (FOR RADIO CONTROL)
PW1050010-00 STOPPER,TIRE
PY1000988-00 OPTIONS (SL)
PY2340010-01 PLATE (500X500,H=90)
