Tadano Crane TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Description

Tadano Crane TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :70
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Crane TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN
PB0000021-02 SYSTEM (ZR260,DOMESTIC)
PB0000029-02 SYSTEM (ZR290,DOMESTIC)
PB0000075-01 SYSTEM (ZR300J,DOMESTIC)
PB0000076-01 SYSTEM (ZR300J,EXPORT)
PB0000115-01 SYSTEM (ZR290,EXPORT)
PB0000117-01 SYSTEM (ZR290,TAIWAN)
ASSEMBLY

TM-ZR260 31114020120 BOOM/3 SECT.,HOOK-IN
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1010661-03 BOOM (3 SECT.,HOOK-IN)
PG1050373-02 CYLINDER,TELESCOPING (3 SECT. BOOM)
PG1120144-00 DETECTOR,BOOM LENGTH (BML,2-4SECT.)
PG1120177-00 DETECTOR,BOOM LENGTH (BML,2-4SECT.)
PG1130134-00 DETECTOR,BOOM LENGTH
PG1200149-02 PIPING,TELESCOPING (JOINT)
PG1350009-00 WELDED PARTS (SUPPORT FOR BML)
PG1350028-00 WELDED PARTS (SUPPORT FOR BML)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060343-00 DETECTOR,OVER WIND (3 SECT.BOOM)
PI1250125-04 VALVE,COUNTERBALANCE
PN1350073-00 REEL,CORD
PO1013158-01 PLATE ASSY,NAME (BOOM/ZR290.ZR300J)
PO1013159-01 PLATE ASSY,NAME (BOOM/ZR260)
PO1013161-01 PLATE ASSY,NAME (ZR290.ZR300J/ENGLISH)
PO1013181-00 PLATE ASSY,NAME (ZR290.ZR300J/CANADA)
PO1014277-00 PLATE ASSY,NAME (RAC/ZR290,ZR300J)
PO1014310-00 PLATE ASSY,NAME (RAC/ZR260)
PR5170002-00 ROPE,WIRE (KISWIRE)
PZ1000575-00 BOOM SYSTEM
PZ1000575-00 BOOM SYSTEM
PZ1000608-00 BOOM SYSTEM
PZ1000608-00 BOOM SYSTEM
PZ1000608-00 BOOM SYSTEM
PZ1000608-00 BOOM SYSTEM

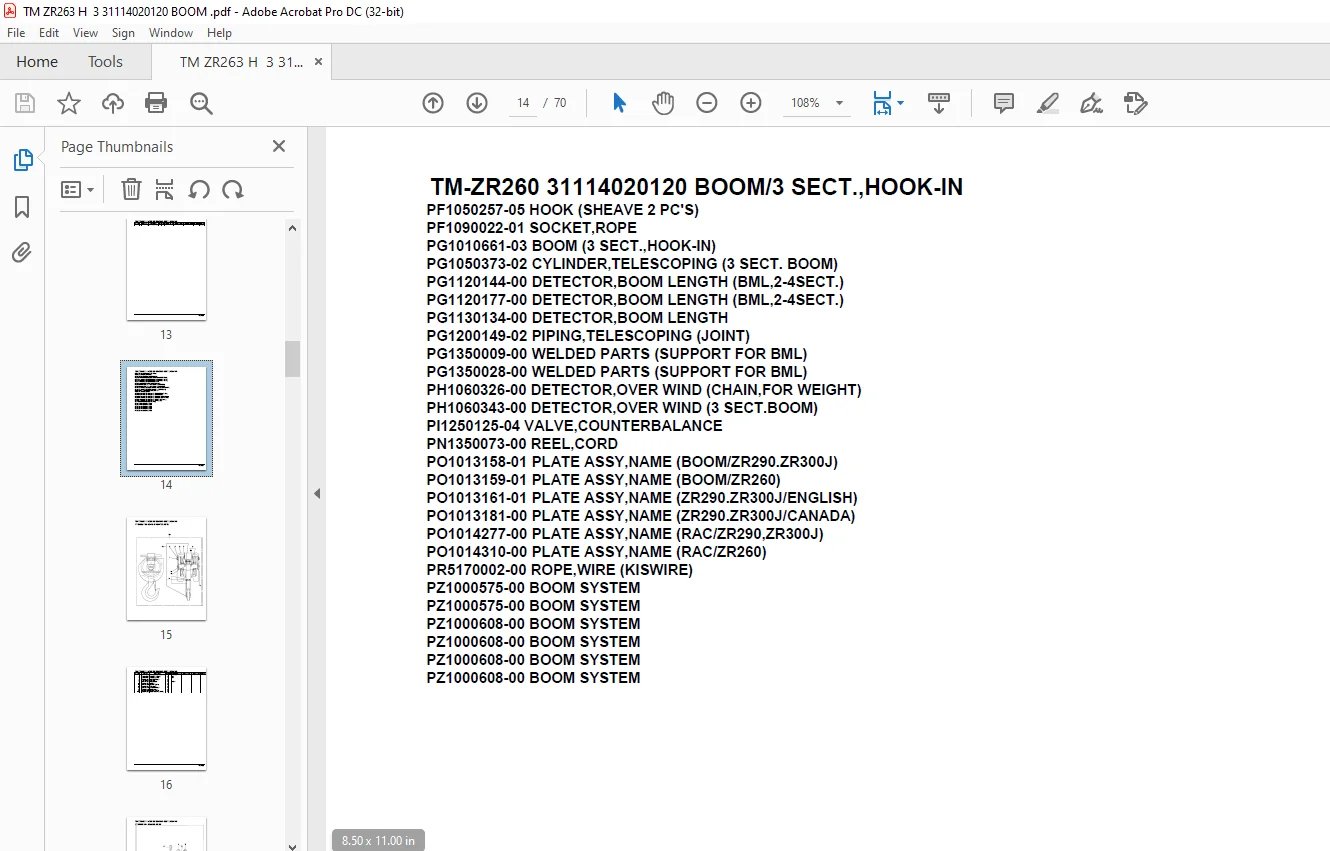

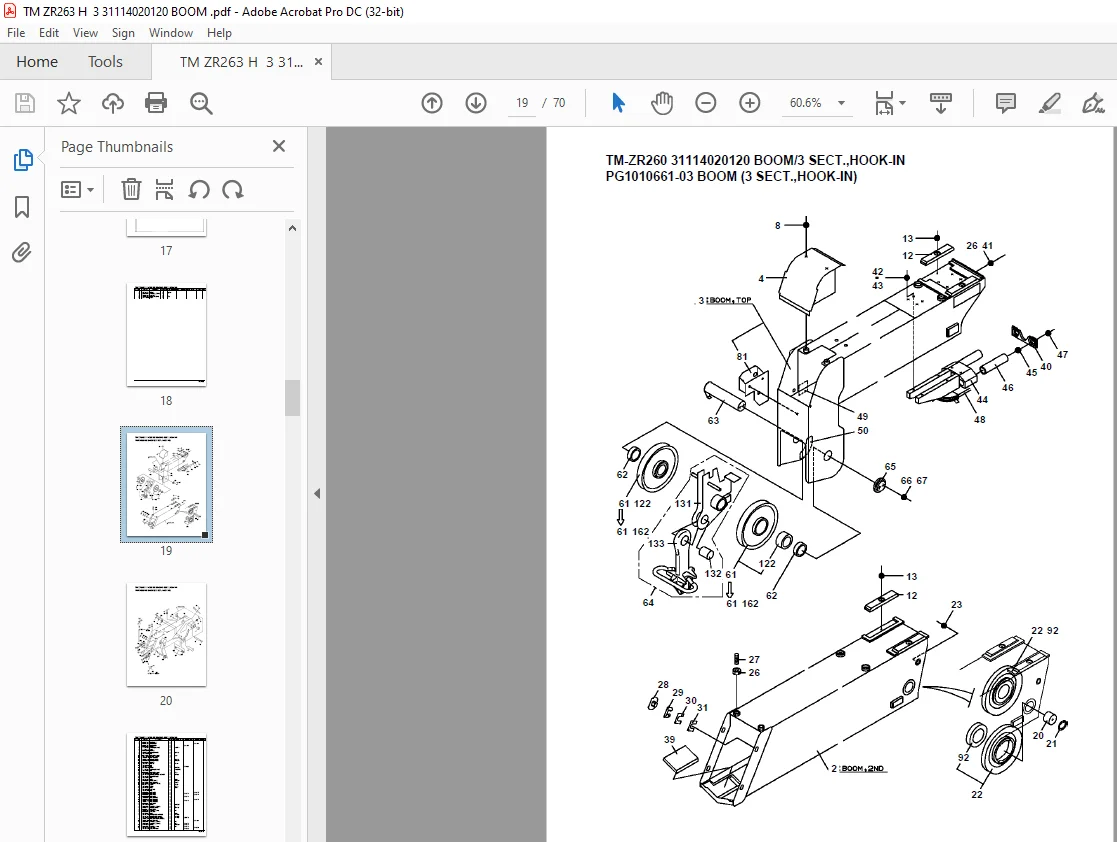

IMAGES PREVIEW OF THE MANUAL:
