Tadano Crane TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Description

Tadano Crane TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :38
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Crane TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN
PB0000021-02 SYSTEM (ZR260,DOMESTIC)
PB0000029-02 SYSTEM (ZR290,DOMESTIC)
ASSEMBLY

TM-ZR260 31114020520 BOOM/3 SECT.,HOOK-IN
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1010888-01 BOOM
PG1050373-02 CYLINDER,TELESCOPING (3 SECT. BOOM)
PG1120177-00 DETECTOR,BOOM LENGTH (BML,2-4SECT.)
PG1130134-00 DETECTOR,BOOM LENGTH
PG1200149-02 PIPING,TELESCOPING (JOINT)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060408-01 DETECTOR,OVER WIND (3 SECT.BOOM)
PH5032071-00 HARNESS
PI1250125-04 VALVE,COUNTERBALANCE
PN1013762-02 ELEC.ASSY
PO1014309-00 PLATE ASSY,NAME
PR5170002-00 ROPE,WIRE (KISWIRE)
PZ1000572-00 BOOM SYSTEM

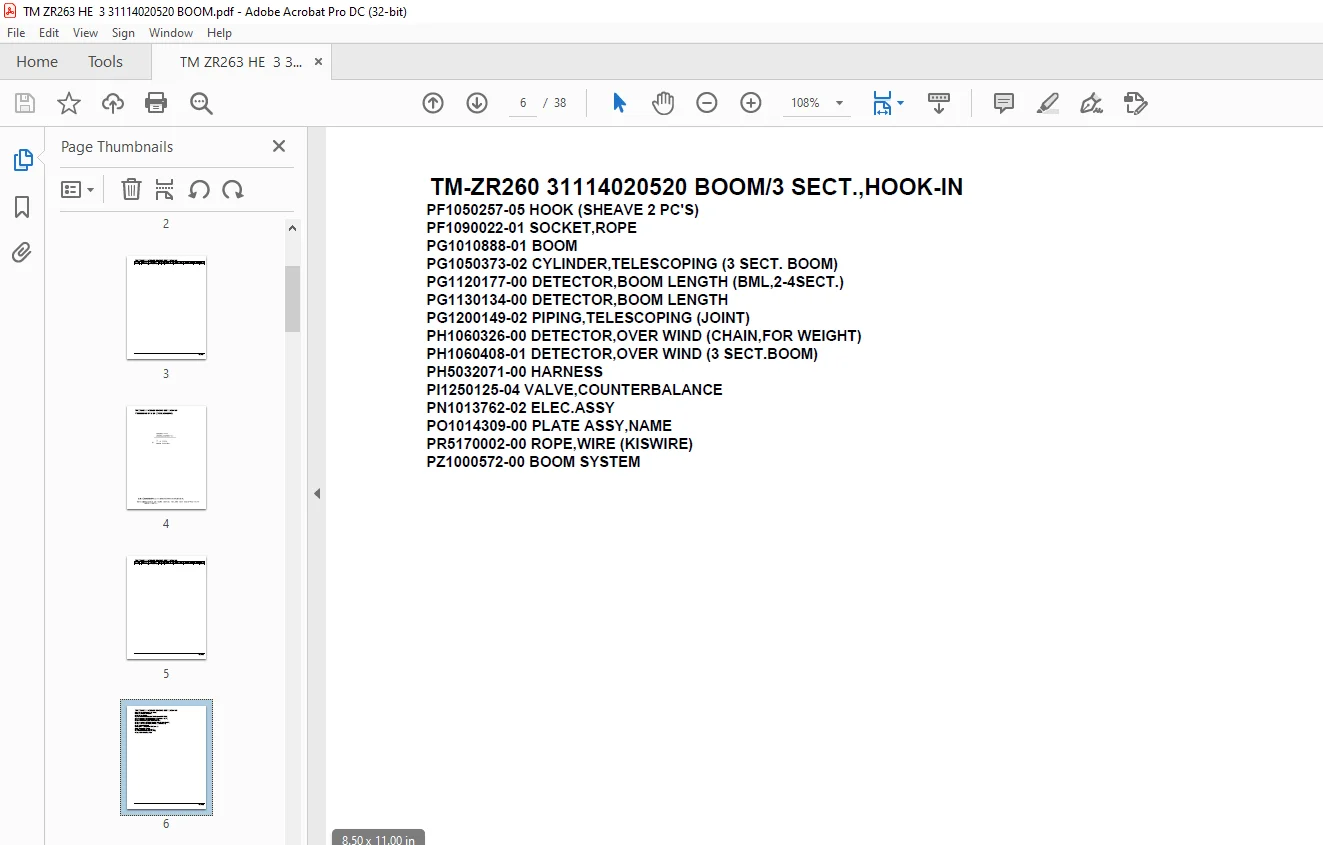

IMAGES PREVIEW OF THE MANUAL:
