Tadano Crane TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER Parts Manual
$28.95
Tadano Crane TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER Parts Manual – PDF DOWNLOAD
Description
Tadano Crane TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Crane TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER Parts Manual – PDF DOWNLOAD
Language : English
Pages :120
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Tadano Crane TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER Parts Manual – PDF DOWNLOAD
TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER
PB0000005-01 SYSTEM
ASSEMBLY
TM-ZR275 41012200089A 5 BOOM,RADIO CONT.,UNICA CRAWLER
000002
PB1290005-00 STOPPER,ROTARY JOINT
PB1300351-00 JOINT,ROTARY
PB1400394-00 PIPING,UPPER
PB1410646-02 PIPING,HYDRAULIC LOWER
PD1010044-01 REDUCER,SWING SPEED
PD1020017-02 SWING UNIT
PE1010112-04 CYLINDER,ELEVATING (RIGHT)
PE1010286-00 CYLINDER,ELEVATING (MOUNT)
PE1010327-01 CYLINDER,ELEVATING (RIGHT)
PF1010228-00 WINCH
PF1020005-00 DRUM,WINCH (HARTYS)
PF1020026-00 DRUM,WINCH (Y.G.TEC)
PF1050316-03 HOOK (SHEAVE 2 PC’S)
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1090022-01 SOCKET,ROPE
PF1400397-00 MOUNT,WINCH
PG1010583-01 BOOM
PG1050328-03 CYLINDER,TELESCOPING
PG1050564-01 CYLINDER,TELESCOPING (NO.1)
PG1050565-01 CYLINDER,TELESCOPING (NO.2)
PG1050566-00 CYLINDER,TELESCOPING (NO.3)
PG2000158-00 BOOM UNIT (411-121-20100)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060369-00 DETECTOR,OVERWIND
PI1010198-00 MOTOR,HYDRAULIC
PI1140196-00 VALVE,CHECK
PI1140201-00 VALVE,CHECK
PI1250080-00 VALVE,COUNTERBALANCE
PI1250081-00 VALVE,COUNTERBALANCE
PI1440001-00 METER,LOAD
PK1100214-01 SWING FRAME
PK1330169-00 COVER (SWING BEARING)
PK2000626-00 FRAME UNIT (411-121-10100)
PL1010597-00 OPERATION SYSTEM, CONTROL VALVE
PM5230003-00 MOTOR,OIL
PN1013676-01 ELEC.ASSY
PN1350045-00 REEL,CORD
PO1000151-00 INDICATION PLATES
PO1013336-00 PLATE ASSY,NAME (BOOM)
PO1014159-00 PLATE ASSY,NAME (FRAME)
PO1014424-00 PLATE ASSY,NAME
PS5530075-00 SWITCH ASSY (GREEN:PANASONIC)
PV1000075-02 REMOTE CONTROL SYSTEM
PV1020325-00 VALVE,REMOTE CONTROL
PV1030080-05 SWITCH BOX (RADIO CONTROL,LED TYPE)
PV1040093-03 CONTROL UNIT
PV1050009-00 CYLINDER,ACCELERATOR(NACHI)
PV1070351-00 RADIO CONTROL (KIT:LED)
PV1070353-00 RADIO CONTROL (LED)
PV1250004-01 STOWING BOX
PV1300011-02 CABLE (ANTENNA 2M)
PV1400042-00 ANTENNA (FOR RADIO CONTROL)

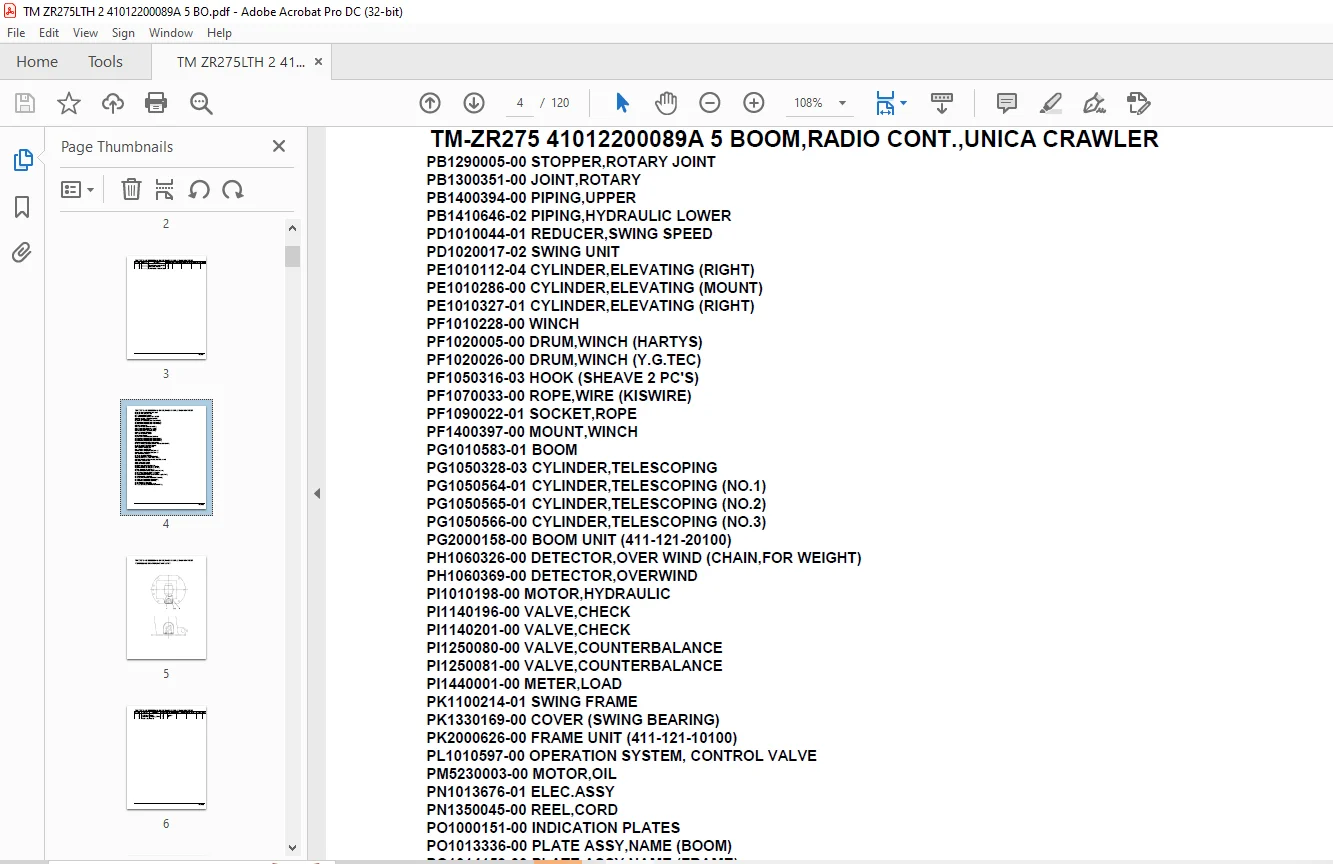

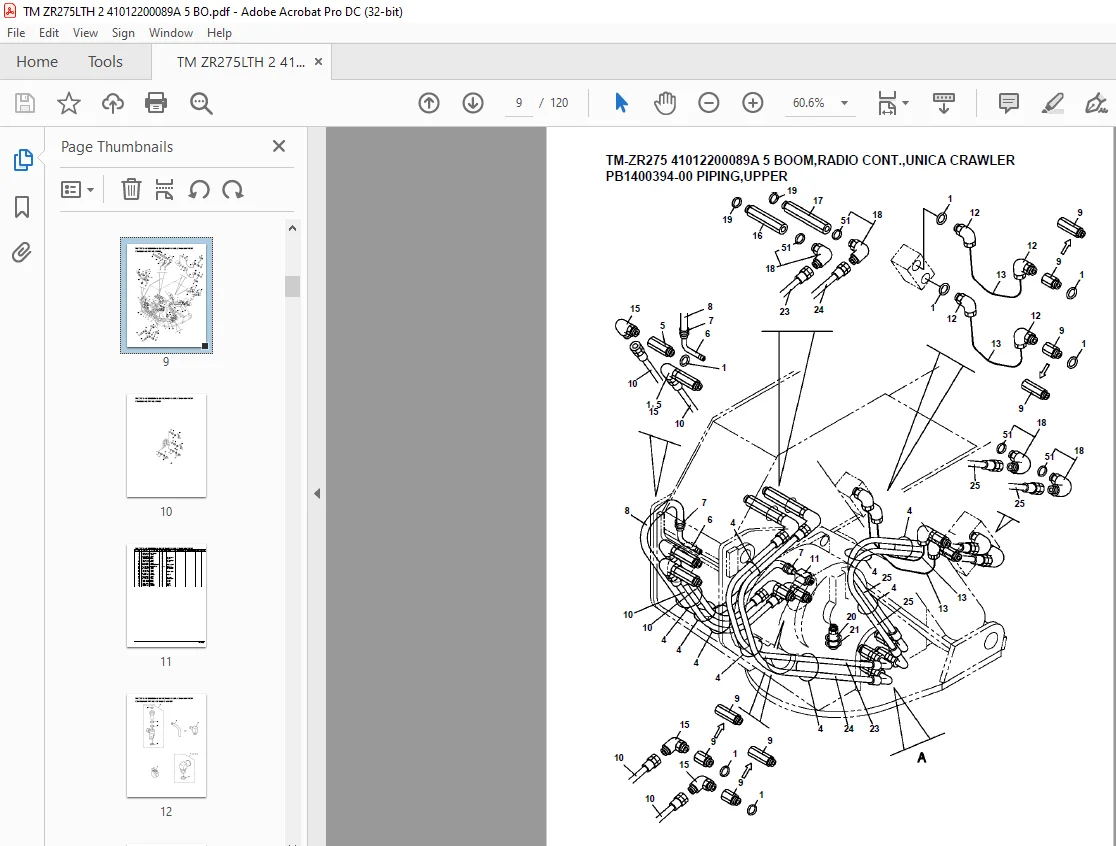

IMAGES PREVIEW OF THE MANUAL:
