Tadano Crane TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN Parts Manual – PDF

Description

Tadano Crane TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :367
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Crane TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN
PB0000070-01 SYSTEM (ZR300,DOMESTIC)
ASSEMBLY

TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN
PB1020002-00 POWER TAKE OFF ASSY (SELECTION)
PB1020008-00 PUMP ASSY (SELECTION)
PB1030015-03 POWER TAKE OFF
PB1030036-02 POWER TAKE OFF
PB1030066-02 POWER TAKE OFF
PB1030091-02 POWER TAKE OFF
PB1030093-02 POWER TAKE OFF
PB1030103-04 POWER TAKE OFF
PB1030104-02 POWER TAKE OFF
PB1030111-00 POWER TAKE OFF
PB1030112-00 POWER TAKE OFF
PB1030114-03 POWER TAKE OFF
PB1030115-00 POWER TAKE OFF
PB1030118-02 POWER TAKE OFF
PB1030122-02 POWER TAKE OFF
PB1030125-02 POWER TAKE OFF
PB1030127-02 POWER TAKE OFF
PB1030128-02 POWER TAKE OFF
PB1030135-03 POWER TAKE OFF
PB1030136-03 POWER TAKE OFF
PB1030137-03 POWER TAKE OFF
PB1030138-02 POWER TAKE OFF
PB1030142-03 POWER TAKE OFF
PB1030145-03 POWER TAKE OFF
PB1030146-02 POWER TAKE OFF
PB1030147-03 POWER TAKE OFF
PB1030157-02 POWER TAKE OFF
PB1030159-02 POWER TAKE OFF
PB1030175-02 POWER TAKE OFF
PB1030186-02 POWER TAKE OFF
PB1030189-02 POWER TAKE OFF
PB1030208-01 POWER TAKE OFF
PB1030213-01 POWER TAKE OFF
PB1030233-00 POWER TAKE OFF
PB1030234-01 POWER TAKE OFF
PB1030235-01 POWER TAKE OFF
PB1030236-00 POWER TAKE OFF
PB1030238-00 POWER TAKE OFF
PB1030241-00 POWER TAKE OFF
PB1100099-00 PUMP,HYDRAULIC (LEFT,SPLINE 13)
PB1130196-02 TANK,OIL (MOUNT)
PB1130198-01 TANK,OIL
PB1290011-00 STOPPER,ROTARY JOINT
PB1300315-01 JOINT,ROTARY
PB1300417-01 JOINT,ROTARY
PB1300527-00 JOINT,ROTARY
PB1380052-00 POWER SUPPLY
PB1400298-03 PIPING,UPPER
PB1410990-01 PIPING,HYDRAULIC LOWER
PB1410994-01 PIPING,LOWER (REMOTE CONT.VALVE/NACHI)
PB1411876-00 PIPING,LOWER (REMOTE CONT.VALVE/SANWA)
PB2000050-00 POWER TAKE OFF & PUMP
PC1010746-02 OUTRIGGER (LEFT,4TON)
PC1010747-02 OUTRIGGER (RIGHT,4TON)
PC1010748-02 OUTRIGGER (RIGHT,G-TYPE)
PC1010749-02 OUTRIGGER (LEFT,G-TYPE)
PC1011119-00 OUTRIGGER (FOR 4TON)
PC1011120-01 OUTRIGGER (G-TYPE)
PC1020003-00 OUTRIGGER,REAR (FRAME)
PC1020046-01 OUTRIGGER,REAR (ROTARY,POWER PACKAGE)
PC1020094-01 OUTRIGGER,REAR(ROTARY/POWER PACKAGE:WITH LOCK ASSY)
PC1030214-05 OUTRIGGER ASSY (MIN=1440)
PC1030301-03 CYLINDER,JACK (REAR OUTRIGGER)
PC1100146-05 OPE.ASSY,OUTRIGGER
TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN
000002
PC1230021-04 PIPING,REAR JACK (2,ROTARY)
PC1230028-00 PIPING,REAR JACK (ROTARY 1,WITH POWER/S)
PC1230061-01 PIPING,REAR JACK (1)
PC6390047-02 CYLINDER ASSY,JACK (MIN.550)
PD1010133-00 REDUCER,SWING SPEED
PD1010154-01 REDUCER,SWING SPEED (MOUNT)
PE1010348-03 CYLINDER,ELEVATING
PE5021179-00 ELEC.ASSY (MOUNTING VEHICLE)
PE5021180-00 ELEC.ASSY (MOUNTING VEHICLE)
PF1010167-02 WINCH (HARTYS)
PF1010207-00 WINCH (HARTYS)
PF1010237-01 WINCH (OOKUBO)
PF1010242-01 WINCH (YG.TEC)
PF1010334-00 WINCH (SELF 3TONX1, F-RADICON,CRANE:E)
PF1020004-01 DRUM,WINCH (HARTYS)
PF1020035-00 DRUM,WINCH (Y.G.TEC)
PF1050161-03 HOOK (1-PART LINE ,OPTION)
PF1050338-01 HOOK (SELF, 3TONX1-PART LINE)
PF1050447-00 HOOK
PF1050464-00 HOOK (1-PART LINE)
PF1160066-02 OPE.ASSY,CLUTCH (SL WINCH,RADIO CONTROL)
PF1180062-01 DETECTOR,DISORDERLY WIND (DRUM FREE)
PF1200309-03 PIPING,WINCH (3TON SELF)
PF1400303-03 MOUNT,WINCH
PF1400322-00 MOUNT,WINCH (3T SELF)
PF5100218-01 FRAME ASSY (R/O:WITHOUT LOCK ASSY)
PH1060338-00 DETECTOR,OVER WINDING
PH5031732-00 HARNESS
PH5032122-00 HARNESS (L=1000)
PH5032277-00 HARNESS
PI1010085-01 MOTOR,HYDRAULIC
PI1010152-00 MOTOR,HYDRAULIC (WINCH)
PI1010223-01 MOTOR,HYDRAULIC
PI1120142-02 VALVE,SOLENOID
PI1250126-04 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1280067-01 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PI1330006-00 VALVE,DIVIDING & COMBINING (MURAKAMI)
PI1440035-01 METER,LOAD (2.9TON KUSABA/ENG.& JAPANESE)
PI1440036-01 METER,LOAD (2.9TON NAGANO/ENG.& JAPANESE)
PJ3410034-02 LOCK ASSY (REAR OUTRIGGER)
PK1010572-02 FRAME
PK1100359-00 SWING FRAME
PK1330102-00 COVER (SWING BEARING)
PK2000203-01 FRAME UNIT
PL1010803-03 OPE.ASSY,CONT.VALVE (CRANE)
PN1012303-04 ELEC.ASSY
PN1012323-01 ELEC.ASSY (R/O,ROTARY,POWER SUPPLY)
PN1012343-02 ELEC.ASSY (LAMP,LOWER/FRAME)
PN1012344-02 ELEC.ASSY (24V60W LAMP/MOUNT,POST)
PN1012345-01 ELEC.ASSY (24V45W LAMP/MOUNT,BOOM)
PN1012482-01 ELEC.ASSY (BML)
PN1012530-03 ELEC.ASSY (SL,F-RADIO CONTROL/SWITCH)
PN1012923-02 ELEC.ASSY (SWITCH COVER)
PN1014685-04 ELEC.ASSY
PN1080229-00 LAMP (MOUNT,POST/24V-60W)
PN1080230-01 LAMP (MOUNT,BOOM/24V-45W)
PN1140224-00 SWITCH ASSY (PLATING:NACC)
PN1140225-00 SWITCH ASSY (GREEN:PANASONIC)
PN1140226-00 SWITCH ASSY (PLATING:NACC)
PN1140227-00 SWITCH ASSY (GREEN:PANASONIC)
PN1140234-00 SWITCH ASSY (PLATING:NACC)
PN1140235-00 SWITCH ASSY (GREEN:PANASONIC)
TM-ZR300 31014010480A FRAME/LONG JACK,RADIO CONT.,HOOK-IN
000002
PN1140239-00 SWITCH ASSY (WITH HARNESS,2-SW)
PO1000123-00 INDICATION PLATES
PO1012473-02 PLATE ASSY,NAME (HOOK)
PO1013040-03 PLATE ASSY,NAME (1-PART LINE OPE.)
PO1013041-01 PLATE ASSY,NAME (G)
PO1013212-00 PLATE ASSY.NAME (ACC.,CLUTCH,SL WINCH)
PO1013559-00 PLATE ASSY,NAME
PO1013767-00 PLATE ASSY,NAME (FRAME)
PO1014584-04 PLATE ASSY,NAME (BOOM,ELEV. STOWING FAILURE)
PO1014592-03 PLATE ASSY,NAME
PO1014635-00 PLATE ASSY,NAME
PO1015086-01 PLATE ASSY,NAME
PO1070398-00 PERFORMANCE DATA (CBZR305J/A)
PO1070399-00 PERFORMANCE DATA (CBZR305J/B)
PO1070400-00 PERFORMANCE DATA (CBZR305J/C)
PO1080006-00 PLATE,NAME
PR5050032-00 REEL ASSY,CORD
PV1000075-02 REMOTE CONTROL SYSTEM
PV1020231-03 VALVE,REMOTE CONTROL (NACHI)
PV1020353-00 VALVE,REMOTE CONTROL
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030086-00 SWITCH BOX (FUTABA)
PV1040087-01 CONTROL BOX (RADIO CONTROL D-TYPE)
PV1040098-00 CONTROL UNIT
PV1050012-00 CYLINDER,ACCELERATOR
PV1050013-02 CYLINDER,ACCELERATOR
PV1070386-00 RADIO CONTROL
PW5060005-01 WINCH ASSY (Y.G.TEC)
PY1000373-00 OPTIONS
PY1560010-01 ALARM SYSTEM ((OUTRIGGER HARNESS)
PY1560011-01 ALARM SYSTEM (BOOM HARNESS)
PY1560039-01 ALARM SYSTEM
PY1560040-01 ALARM SYSTEM
PY2340011-00 PLATE (355X355,H=80)
PZ0000000-00 FRAME ASSY(R/O:WITH LOCK ASSY)
PZ0000000-00 FRAME ASSY

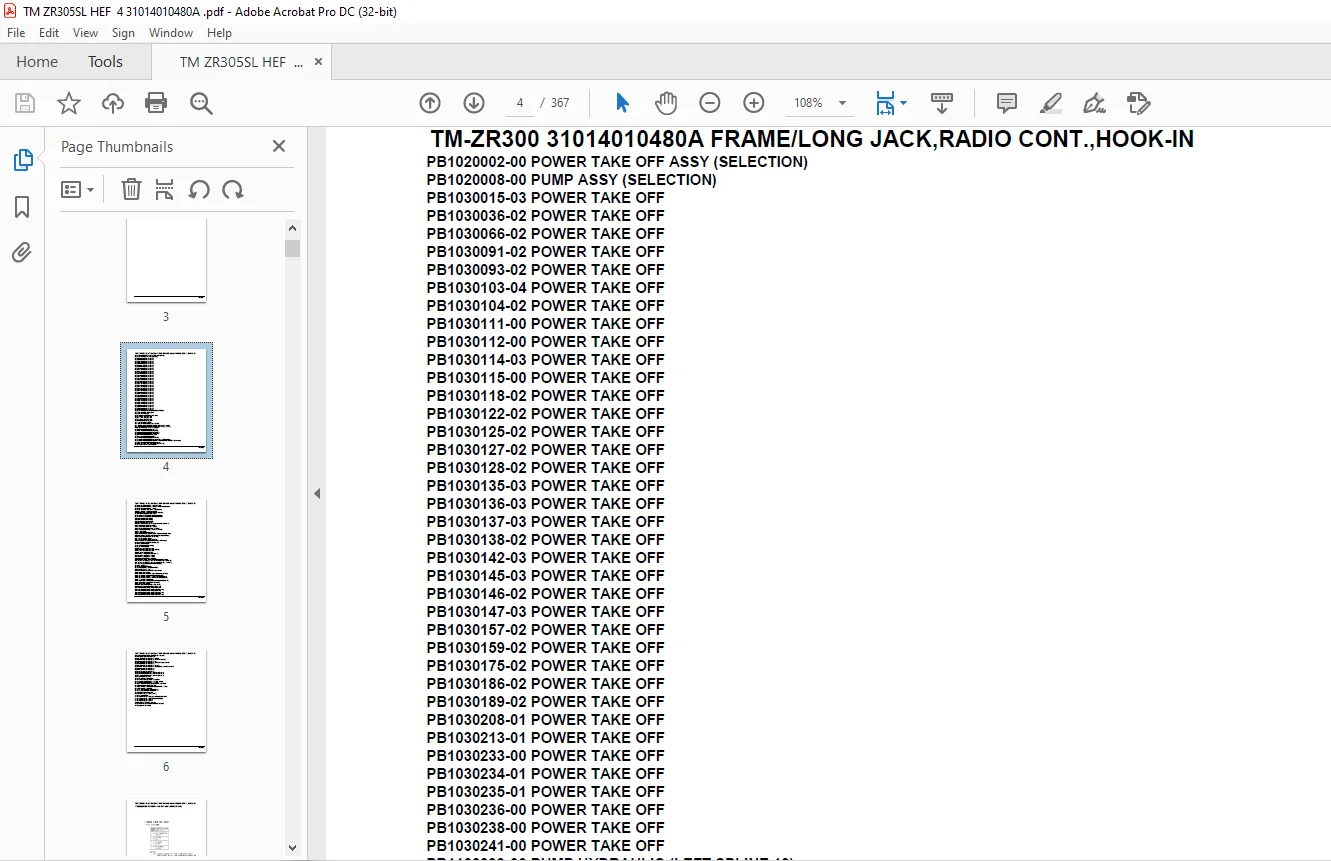

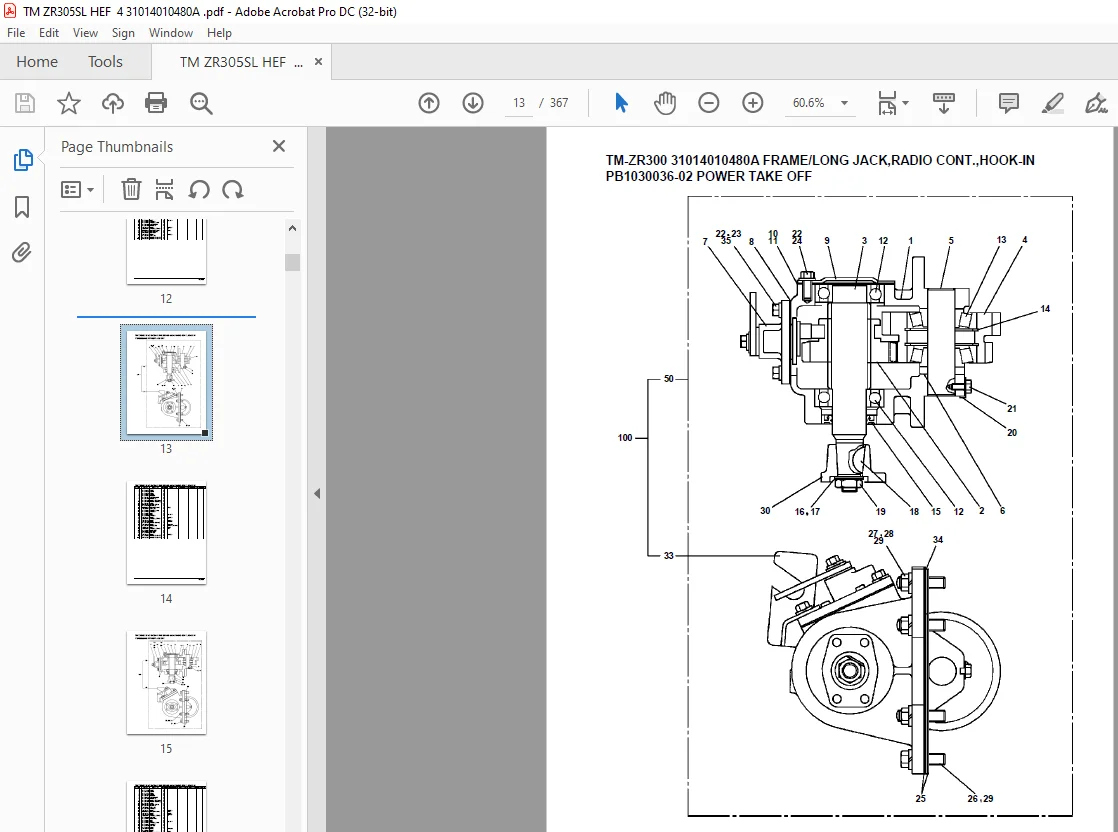

IMAGES PREVIEW OF THE MANUAL:
