Tadano Crane TM-ZR300 31014020030 BOOM/4 SECT. Parts Manual – PDF DOWNLOAD

Description

Tadano Crane TM-ZR300 31014020030 BOOM/4 SECT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZR300 31014020030 BOOM/4 SECT. Parts Manual – PDF DOWNLOAD

Language : English
Pages :76
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Crane TM-ZR300 31014020030 BOOM/4 SECT. Parts Manual – PDF DOWNLOAD

TM-ZR300 31014020030 BOOM/4 SECT.
PB0000025-03 SYSTEM (ZR300,DOMESTIC)
PB0000032-03 SYSTEM (ZR360,DOMESTIC)
PB0000059-02 SYSTEM (ZR300,EXPORT)
PB0000060-03 SYSTEM (ZR360,EXPORT)
ASSEMBLY

TM-ZR300 31014020030 BOOM/4 SECT.
PC6470057-00 CYLINDER ASSY,TELESCOPING
PC6470058-01 CYLINDER ASSY,TELESCOPING
PF1050316-03 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1010612-05 BOOM (4 SECT.)
PG1120144-00 DETECTOR,BOOM LENGTH (BML,2-4SECT.)
PG1120177-00 DETECTOR,BOOM LENGTH (BML,2-4SECT.)
PG1130134-00 DETECTOR,BOOM LENGTH
PG1200149-02 PIPING,TELESCOPING (JOINT)
PG1350009-00 WELDED PARTS (SUPPORT FOR BML)
PG1350028-00 WELDED PARTS (SUPPORT FOR BML)
PH1060323-02 DETECTOR,OVER WIND (4 SECT.BOOM)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PI1250119-01 VALVE,COUNTERBALANCE
PI1250125-04 VALVE,COUNTERBALANCE
PN1350067-02 REEL,CORD
PO1013005-01 PLATE ASSY,NAME (ZR300,ZR360 U-OPE.)
PO1013008-01 PLATE ASSY,NAME (ZR360)
PO1013068-01 PLATE ASSY,NAME (ZR300/ENGLISH)
PO1013070-01 PLATE ASSY,NAME (ZR360/ENGLISH)
PO1013208-00 PLATE ASSY,NAME (ZR300/FRENCH)
PO1014253-00 PLATE ASSY,NAME (RAC)
PR5050009-00 REEL ASSY,CORD
PR5170002-00 ROPE,WIRE (KISWIRE)
PT5130048-00 TELESCOPE ASSY
PZ1000363-03 BOOM SYSTEM
PZ1000363-03 BOOM SYSTEM
PZ1000363-03 BOOM SYSTEM
PZ1000363-03 BOOM SYSTEM

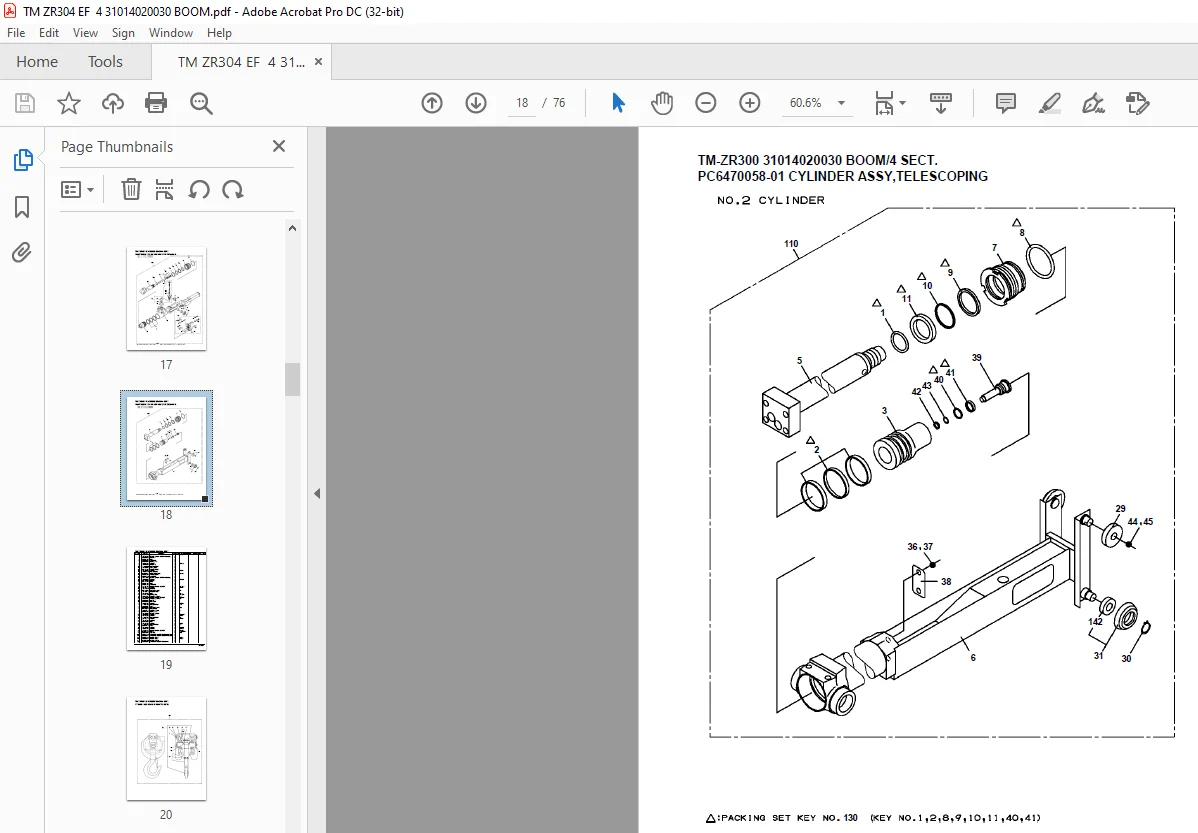

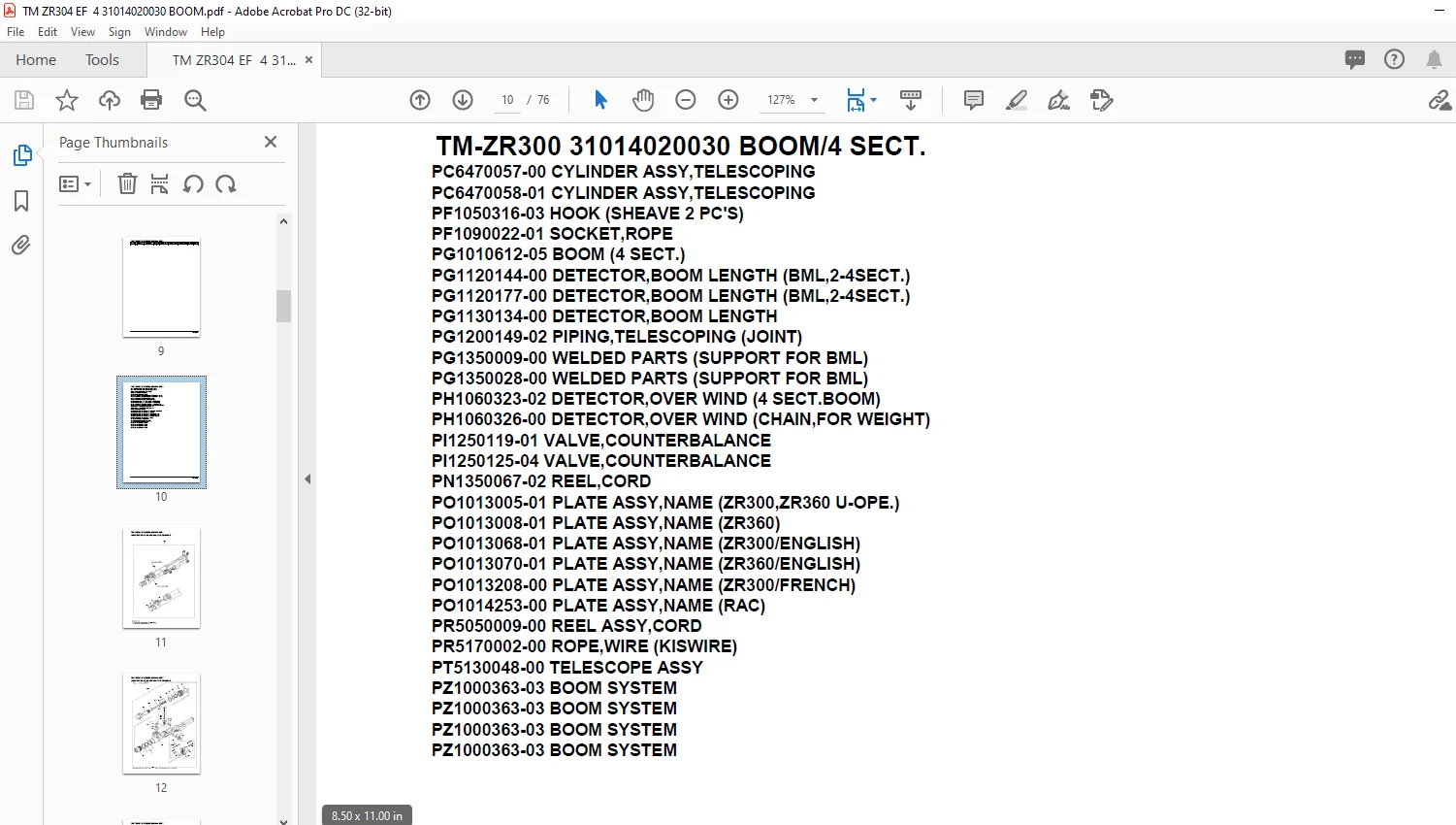

IMAGES PREVIEW OF THE MANUAL:
