Tadano Crane TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN Parts Manual – PDF
$18.95
Tadano Crane TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD
Description
Tadano Crane TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Crane TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD
Language : English
Pages :46
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Tadano Crane TM-ZR560 41120220050 BOOM/5 SECT. HOOK-IN Parts Manual – PDF DOWNLOAD

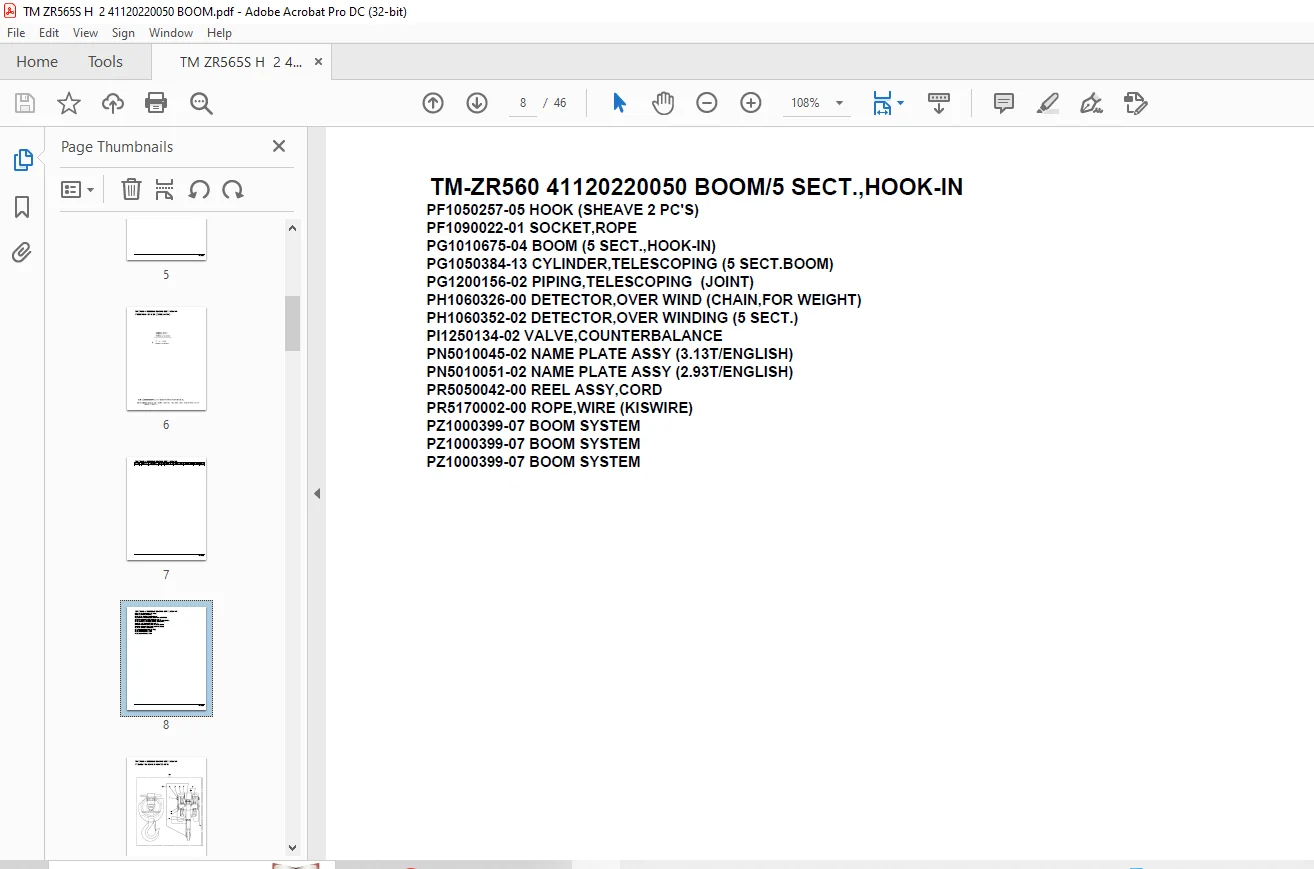

TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN
PB0000056-02 SYSTEM (ZR560,EXPORT)
PB0000102-01 SYSTEM (ZR560,AUSTRALIA)
PB0000103-01 SYSTEM (ZR560,TAIWAN)
ASSEMBLY
TM-ZR560 41120220050 BOOM/5 SECT.,HOOK-IN
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE

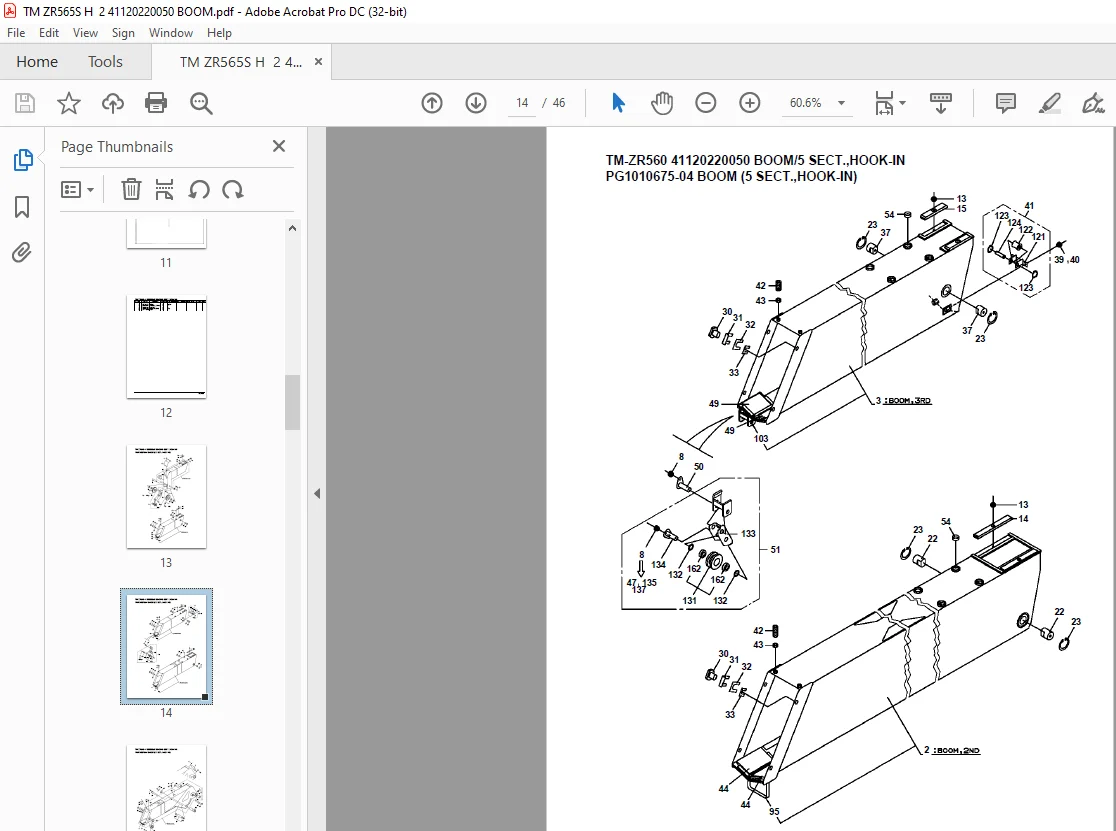

PG1010675-04 BOOM (5 SECT.,HOOK-IN)
PG1050384-13 CYLINDER,TELESCOPING (5 SECT.BOOM)
PG1200156-02 PIPING,TELESCOPING (JOINT)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060352-02 DETECTOR,OVER WINDING (5 SECT.)
PI1250134-02 VALVE,COUNTERBALANCE
PN5010045-02 NAME PLATE ASSY (3.13T/ENGLISH)
PN5010051-02 NAME PLATE ASSY (2.93T/ENGLISH)
PR5050042-00 REEL ASSY,CORD
PR5170002-00 ROPE,WIRE (KISWIRE)
PZ1000399-07 BOOM SYSTEM
PZ1000399-07 BOOM SYSTEM
PZ1000399-07 BOOM SYSTEM
