Tadano CraneTM-20110 41043100214A FRAMEMANUAL,5 BOOM Parts Manual PDF

Description

Tadano CraneTM-20110 41043100214A FRAMEMANUAL,5 BOOM Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano CraneTM-20110 41043100214A FRAMEMANUAL,5 BOOM Parts Manual – PDF DOWNLOAD

Language : English
Pages : 343
Downloadable : Yes
File Type : PDF

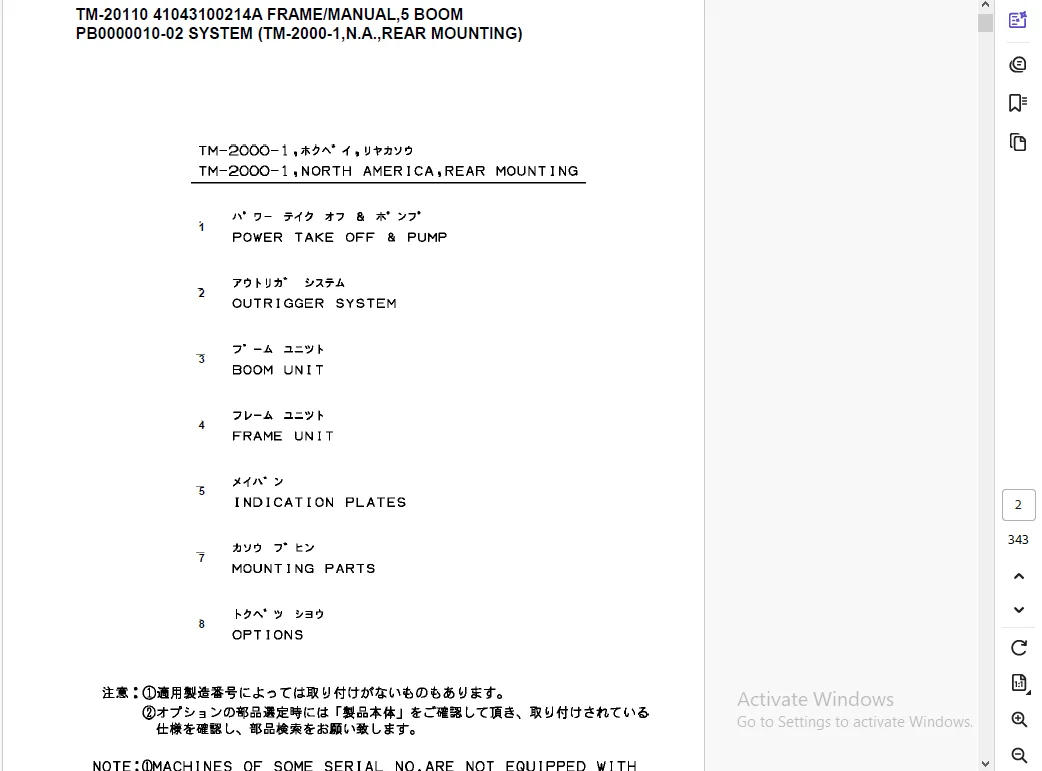

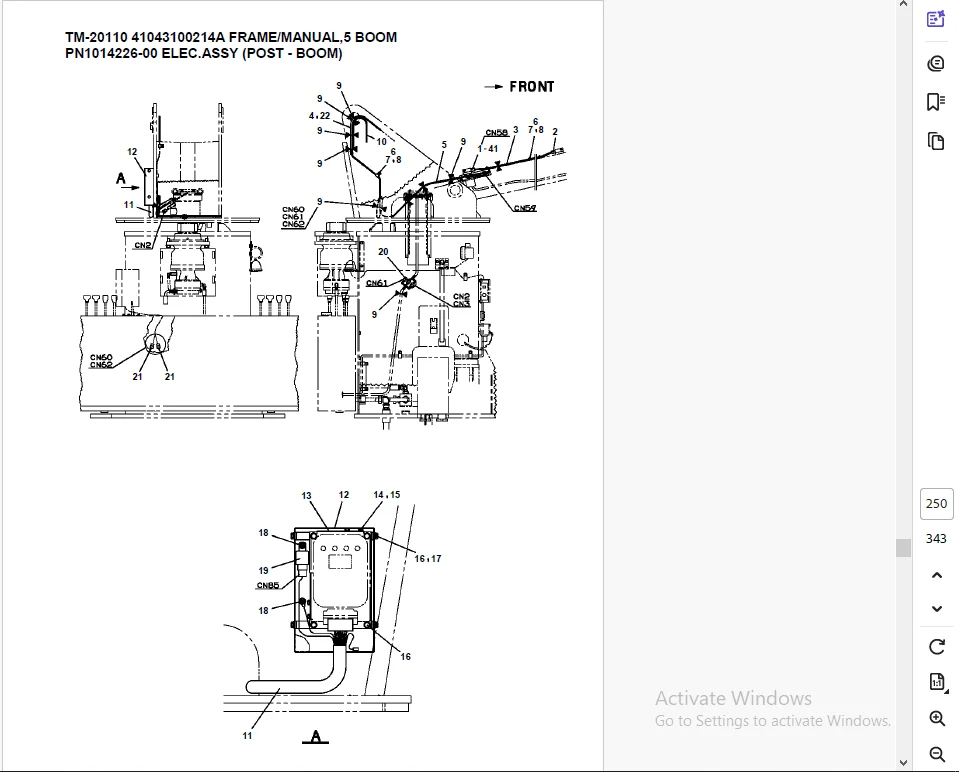

IMAGES PREVIEW OF THE  MANUAL:

TABLE OF CONTENTS:

Tadano CraneTM-20110 41043100214A FRAMEMANUAL,5 BOOM Parts Manual – PDF DOWNLOAD

TM-20110 41043100214A FRAME/MANUAL,5 BOOM
000002
PB1100316-00 PUMP,HYDRAULIC (L)
PB1100322-01 MOUNT ASSY,PUMP (PTO:CHELEA 880)
PB1100323-01 MOUNT ASSY,PUMP (PTO:CHELEA 489)
PB1130283-00 TANK,OIL
PB1130287-00 TANK,OIL
PB1300452-05 JOINT,ROTARY
PB1320603-00 VALVE,MANUAL CONTROL
PB1320604-01 VALVE,MANUAL CONTROL
PB1320605-00 VALVE,MANUAL CONTROL
PB1320611-00 VALVE,MANUAL CONTROL
PB1400427-02 PIPING,UPPER
PB1411718-02 PIPING,LOWER
PB1411809-00 PIPING,LOWER (RADIO CONTROL)
PB1411865-03 PIPING,LOWER
PB1910110-00 PIPING (TANK)
PB1910133-01 PIPING (PUMP)
PB1910134-00 PIPING (TANK)
PB2000028-02 POWER TAKE OFF & PUMP
PB5280004-00 BOX,OPERATION
PC1000551-00 OUTRIGGER SYSTEM
PC1011254-01 OUTRIGGER (FRONT,JACK CYLINDER ST=680)
PC1011255-00 OUTRIGGER (FRONT)
PC1011256-00 OUTRIGGER
PC1011257-00 OUTRIGGER (FRONT)
PC1011285-00 OUTRIGGER
PC1011497-00 OUTRIGGER ASSY
PC1030391-00 CYLINDER,JACK
PC1030413-00 CYLINDER,JACK
PC1030458-00 CYLINDER ASSY,JACK
PC1050270-00 CYLINDER,EXTENSION
PC1200561-01 PIPING,OUTRIGGER
PC1200572-00 PIPING,OUTRIGGER (FRONT)
PC1200573-01 PIPING,OUTRIGGER (FRONT)
PC1230045-00 PIPING,REAR JACK
PC5410004-00 CONTROL UNIT
PC5410005-00 CONTROL UNIT
PD1010180-00 REDUCER,SWING SPEED
PD1020051-01 SWING UNIT
PD5300001-00 DIODE ASSY
PE1010472-00 CYLINDER,ELEVATING
PE1010473-01 CYLINDER ASSY,DERRICK
PF1010344-01 WINCH
PF1010345-00 WINCH
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1090024-00 SOCKET,ROPE
PF1400406-01 MOUNT,WINCH
PG1010938-03 BOOM
PG1050650-00 CYLINDER,TELESCOPING
PG1120228-02 DETECTOR,BOOM LENGTH
PG1130152-00 DETECTOR,BOOM LENGTH
PG1200199-00 PIPING,TELESCOPING
PG2000193-01 BOOM UNIT (411-431-20040)
PH1010008-00 DETECTOR,LOAD
PH1250098-00 MOMENT LIMITER (BML)
PH5030835-00 HARNESS
PH5030836-00 HARNESS
PH5030837-00 HARNESS
PH5030838-00 HARNESS
PH5030839-00 HARNESS
PH5030840-00 HARNESS
PH5030841-00 HARNESS
PH5030842-00 HARNESS
PH5030845-00 HARNESS (SWITCH)
TM-20110 41043100214A FRAME/MANUAL,5 BOOM
000002
PH5030873-00 HARNESS
PH5030889-00 HARNESS
PH5030890-00 HARNESS
PH5032722-00 HARNESS
PH5032723-00 HARNESS
PI1010142-00 MOTOR,HYDRAULIC
PI1010199-01 MOTOR,HYDRAULIC
PI1120311-01 VALVE,SOLENOID
PI1120312-00 VALVE,SOLENOID
PI1120313-00 VALVE,SOLENOID
PI1120314-00 VALVE,SOLENOID
PI1130025-01 VALVE,HYDRAULIC
PI1190012-00 VALVE,PRESSURE REGULATOR
PI1230017-00 VALVE,SHUTTLE
PI1250122-00 VALVE,COUNTERBALANCE
PI1250134-02 VALVE,COUNTERBALANCE
PI1250155-02 VALVE,COUNTERBALANCE
PI1270005-00 VALVE,SEQUENCE
PI1280071-01 VALVE,PILOT CHECK
PI1300044-01 FILTER,OIL
PK1011043-00 FRAME
PK1011192-01 FRAME
PK1100427-00 SWING FRAME
PK1130019-00 COVER,BEARING
PK2000780-03 FRAME UNIT (411-431-10060)
PL1011115-01 OPE.ASSY,CONT.VALVE (RADIO CONTROL)
PL1011122-04 OPE.ASSY,CONT.VALVE
PL1031055-00 OPE.ASSY,ACCELERATOR
PL1031117-00 OPE.ASSY,ACCELERATOR (RADIO CONTROL)
PL1100239-00 BOX,OPERATION
PM1030034-01 PIPING,GREASE
PM5150023-00 MODIFICATION ASSY (BOOM POINT/SHEAVE 2 PC’S->3 PC’S)
PN1013633-00 ELEC.ASSY (FRAME)
PN1013855-01 ELEC.ASSY
PN1013856-02 ELEC.ASSY (RELOCATING CONFLUENCE SW.)
PN1014224-00 ELEC.ASSY (RADIO CONTROL PLUG)
PN1014226-00 ELEC.ASSY (POST – BOOM)
PN1014228-02 ELEC.ASSY (RADIO CONTROL)
PN1014356-01 ELEC.ASSY (CONTROL BOX)
PN1014357-01 ELEC.ASSY
PN1014358-03 ELEC.ASSY
PN1014359-00 ELEC.ASSY
PN1140135-00 SWITCH ASSY
PN5011002-00 NAME PLATE ASSY (RADIO CONTROL)
PO1000151-00 INDICATION PLATES
PO1014618-01 PLATE ASSY,NAME (TANK)
PO1014624-01 PLATE ASSY,NAME (BOOM)
PO1014630-02 PLATE ASSY,NAME (FRAME)
PO1014631-01 PLATE ASSY,NAME (AMA)
PO1014738-01 PLATE ASSY,NAME (AMA)
PO1030021-00 TADANO
PO1070573-01 PERFORMANCE DATA
PR5130002-00 RING ASSY,SLIP
PS5530041-00 SWITCH ASSY (NACC)
PS5530042-00 SWITCH ASSY (PANASONIC-DENKO)
PS5530190-00 SWITCH ASSY (3 SW/NACC)
PS5530191-00 SWITCH ASSY (3 SW/PANASONIC)
PS5530192-00 SWITCH ASSY (SWITCH & LAMP)
PS5540002-01 SWITCH (OVER WIND/BOOM)
PV1020339-00 VALVE,REMOTE CONTROL
PV1050014-00 CYLINDER,ACCELERATOR
PV1070349-03 RADIO CONTROL (KIT:LED)
PV1070515-01 RADIO CONTROL
PV1250004-01 STOWING BOX

G.B 04/12/24
